Трубогиб для труб EMT 20 25 32 мм
US $150.00-$220.00
Автоматический низкозатратный гибочный станок для труб из нержавеющей стали
- Категория: Pipe and Tube Bending Machines >>>
- Поставщик: Henan,Yugong,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.7 $* | 0.7 $* |
| Aug-16-2025 | 0.29 $* | 0.15 $* |
| Jul-16-2025 | 0.78 $* | 0.41 $* |
| Jun-16-2025 | 0.29 $* | 0.37 $* |
| May-16-2025 | 0.91 $* | 0.46 $* |
| Apr-16-2025 | 0.82 $* | 0.9 $* |
| Mar-16-2025 | 0.53 $* | 0.71 $* |
| Feb-16-2025 | 0.61 $* | 0.36 $* |
| Jan-16-2025 | 0.12 $* | 0.29 $* |
Характеристики
Automatic Low Cost Stainless Steel Pipe Bending Machine Price
Product Description
Brief Introduction
Yugong CNC(Computerized Numerical Control) platform bending electric automatic pipe bending machine - Furniture manufacturing, fitness equipment, gate processing, chemical pipelines and other sectors of the large quantities of pipe processing production, mainly for steel pipe, pipe, square tube, flat tube bending arc work.
Machine main structure

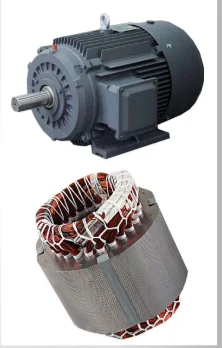

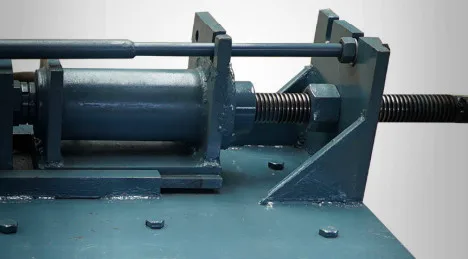

Intelligent CNC programmable microcomputer CNC platform pipe bending machine is composed of bending working device (including pipe clamping device, pipe bending clamping device), bending power device (electric motor, with clutch gear gearbox) and intelligent programmable NC control device, etc.
Techncial Parameter of Steel Pipe Bending Machine
Model | YG-WG28 | YG-WG38 | YG-WG51 | YG-WG76 | YG-WG100 | YG-WG150 |
Type | Electric Type/Hydraulic Type | Hydraulic Type | Hydraulic Type | |||
Bending angle | 0-180° | |||||
Apply for diameter of steel pipe | 10-26mm | 16-38mm | 16-51mm | 16-76mm | 25-100mm | 25-133mm |
Power/voltage | 2.2kw/380v | 3kw/380v | 3kw/380v | 4kw/380v | 7.5kw/380v | 11kw/380v |
Main shaft rotary speed | 20r/min | 16r/min | 8r/min | 8r/min | 9r/min | 9r/min |
Bending angle quantity | 10 | 10 | 10 | 10 | 9 | 9 |
Applicable pipe thickness | ≤2mm | ≤3mm | ≤3mm | ≤3mm | ≤3mm | ≤5mm |
Machine size | 80*65*90cm | 90*80*100cm | 90*80*100cm | 100*90*110cm | 180*200*135cm | 190*210*140cm |
Machine weight | 180kg | 260kg | 300kg | 350kg | 1200kg | 1500kg |
Remark: Electric type means semi-automatic, Hydraulic type means full automatic (Mainly difference in working efficiency) | ||||||
Different Types of Machine Showing

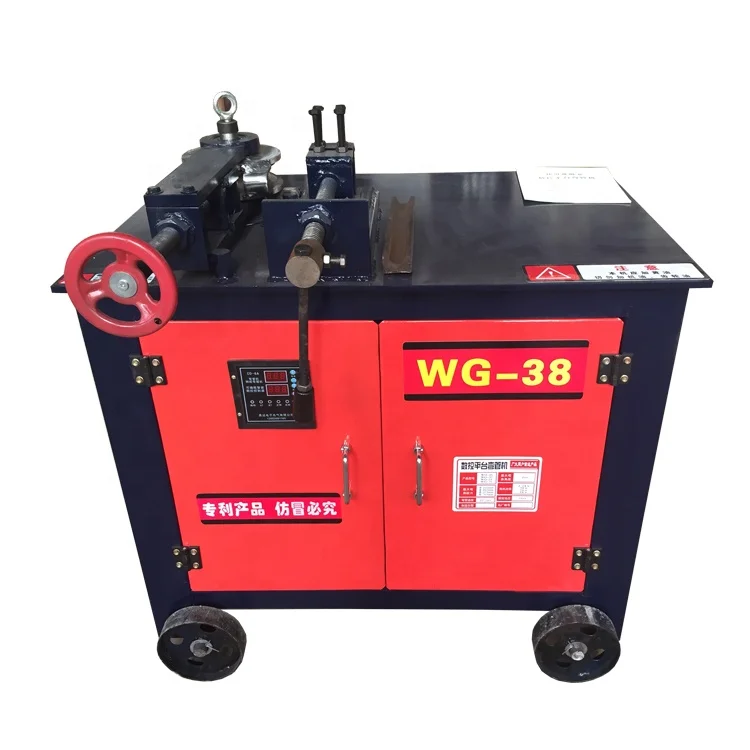

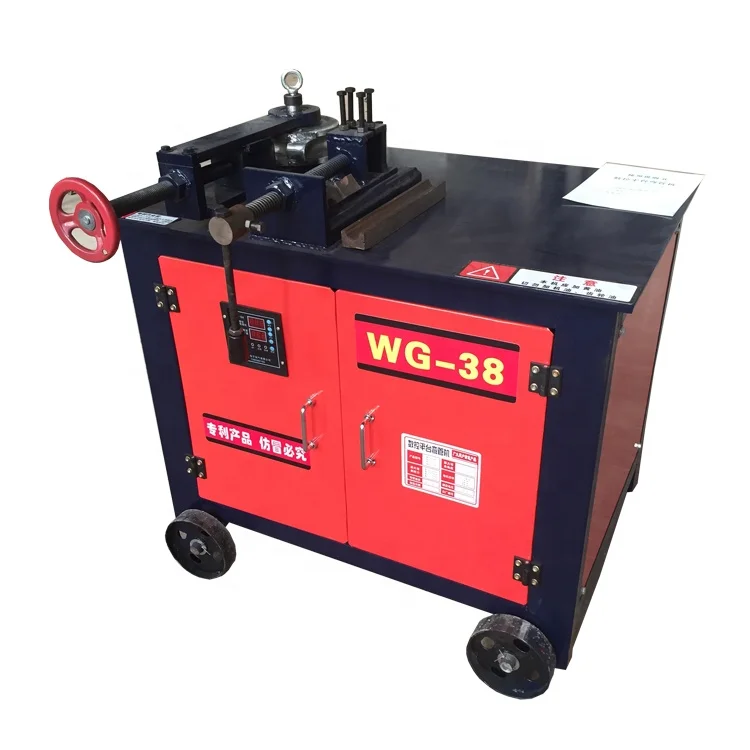

YG-WG26(Electric) YG-WG38(Electric)
YG-WG51(Electric) YG-WG76(Hydraulic)
YG-WG100 YG-WG150
How to choose the suitable bending machine?
Step1:Please advise bending angle
Step2:Please advise steel pipe outer diameter
Step3:Please advise steel pipe thickness
Step4:Please advise bending radius---How to measure the bending radius(Please send inquiry to us!)
Steel pipe bending machine working theory

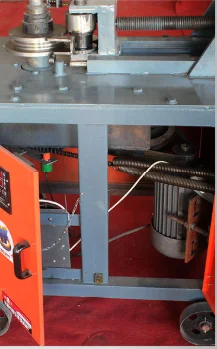

When the pipe bender is rotated clockwise by the motor to decelerate through the triangular belt clutch gearbox, and then the bending working device is driven by the main output shaft on the gearbox to rotate to the specified position set by the NC program, the motor automatically reverses. When the bending working device returns to the stop position, the NC program cuts off the circuit and the motor stops working.
Finished product showing
