Falcon Pro SLA/LCD/DLP Смола Impresora 405 нм UV Drucker 2K LCD 3 D

YIDIMU SLA/LCD/DLP Resin 3D Printer 405nm UV Light Cure Laser Photon Printer Large Size 10.1 Inch 2K LCD Impresora

Product Parameters:

Software : CHITU

Connection:  U disk (USB connect)

Support  format: Stl

Product Name	YIDIMU Falcon Pro LCD 3D Printer
Model NO.	YDM-1LC-215135

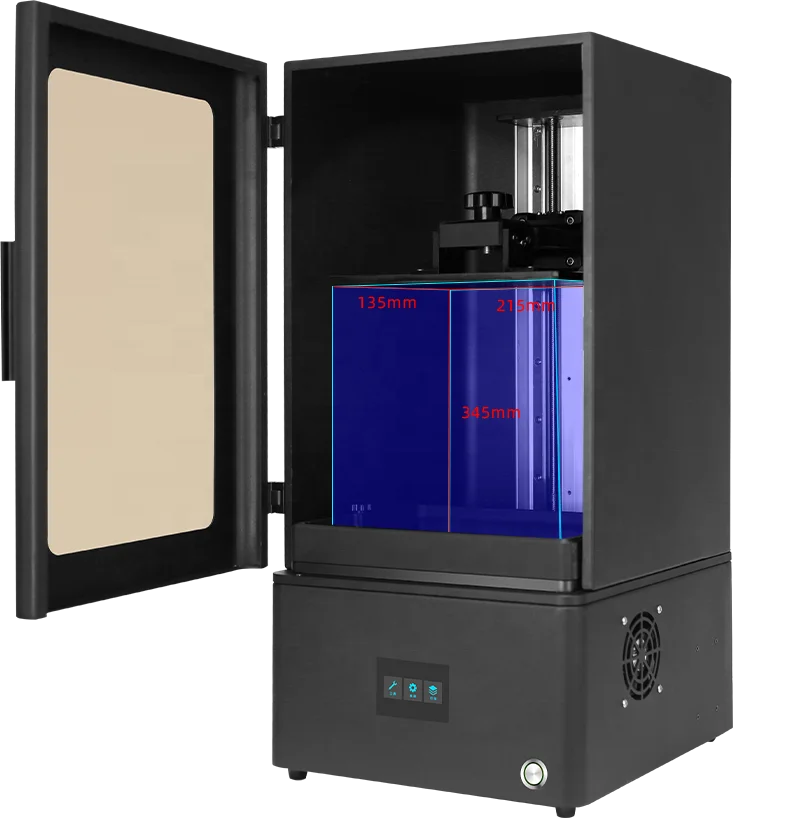

Build Size	215mm ( L ) x 135mm ( W ) x 345mm ( H )
Technology	SLA/LCD
Print speed	4.5-9.5 s/layer
XY Precision	85μm
Light source	UV integrated light(wavelength 405nm)
Printing material	405nm photosensitive resin
Operation software	CHITU
Z axis resolution	10um
File format	STL
Connection mode	U disk (USB connect)
Touch screen	3.5 inch color touch screen
Voltage and Power	24v 10A 140w
Layer resolution	10~ 100um
Technique	LCD Shadow Masking
UV led board	80W high power
LCD display	10.1  inch 2560*1600
Z Axis screw	Double track control
Printing volume	215*135*345mm

Packing Details:

Product weight:21kg

Product size:325 x 350 x666 mm

Package size:445 x 470 x780 mm

Packing Contents:LCD 3D Printer*1 , Power supply*1, print platform *1, 250g resin*1, Mask*1, Storage box*1, Dust-free towel*1,Finger sleeve*10,Gloves*2, Tweezers*1,USB*1, Tool*1





1:Castable resin ok?
Q: Yes, there are castable resins that will work with it.

2:Do you need to have a UV Lamp to cure the finished product after printing?
Q:I just leave it outside for a few hours in the sun. If you don't have good direct sunlight, then yes.

3:This machine works with these software input formats: .stl, .obj, .amf ?
Q: Works with .stl but I have never used .amf and I usually convert to .stl when I check the mesh when using .obj.

4:Is this printer dlp or lcd?
Q: Its a LCD printer.

5:Does this come with a sample bottle of resin?
Q:Yes. Mine came with transparent resin.

6:What is the melting temperature of a printed piece?
Q: It is unable to melt. At 100 degrees, the print cracked. Carbonization at 300 degrees.

7:Is it possible to print directly on the build platform and use supports?
Q: Yes, you can do that.

8:What is the maximum dinensions of an object that can be printed? Circumfrence and height.
Q: it's roughly a 120*65*165(mm) build volume.

9:Would this unit work well for making minatures for rpgs like dungeon and dragons?
Q:Yes, it will. I primarily bought mine for making monsters for roleplaying games (such as d&d),
but it can make humanoids, animals, inanimate objects,  basically whatever you can find a design for within the size parameters [you will just need to find or create the files for the figures themselves, but the detail is great].
