Cold Chamber Pressure Aluminium Alloy Metal Die Casting Machine For Vehicles Accessories China

Cold Chamber Pressure Aluminium Alloy Metal Die Casting Machine For Vehicles Accessories China

Категория: Станок для литья под давлением >>>
Поставщик: Anhui,Xulong,Precision,Industry,Co.,Ltd.

Цена:152 100,00 $ - 155 600,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	180999.41 $*	190049.73 $*
Aug-16-2025	179478.46 $*	188452.14 $*
Jul-16-2025	150579.33 $*	158108.12 $*
Jun-16-2025	176436.69 $*	185258.85 $*
May-16-2025	153621.77 $*	161302.95 $*
Apr-16-2025	173394.79 $*	182064.44 $*
Mar-16-2025	171873.49 $*	180467.58 $*
Feb-16-2025	170352.28 $*	178870.59 $*
Jan-16-2025	168831.50 $*	177273.52 $*

Характеристики

Product Description

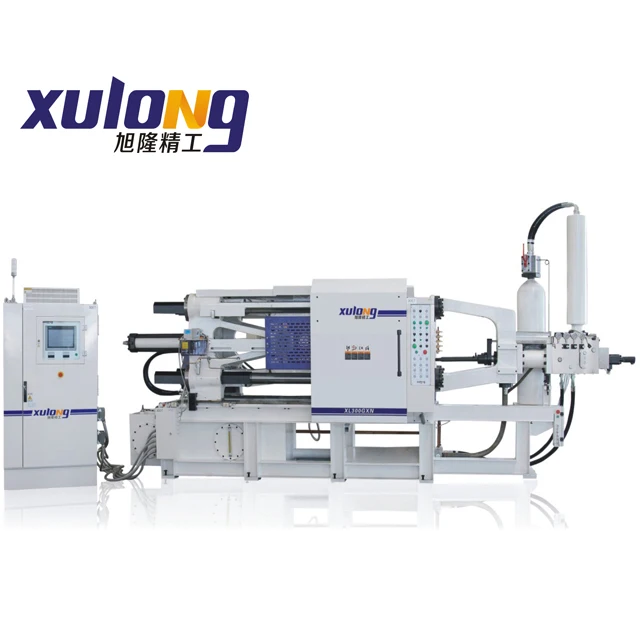

Cold Chamber Pressure Aluminium Alloy Metal Die Casting Machine For Vehicles Accessories China Manufacturer

* High performance: the maximum air injection speed ≥8M/S,pressurized construction time ≤15M/S
* High reliability: According to the latest structure and manufacturing process design of the famous foreign die casting machine factories, the injection system, the heart part of a die casting machine, is capable of various harsh working conditions to achieve high stability and precision production because of its high rigidity, high reliability and high durability.
* High-speed production:According to the new structure design of the most advanced die casting machine made by foreign famous factories, the reliable of high reliable injection system and express clamping system can be greatly improved than traditional die casting machine, and it can realize high-speed production, which can increase the quantity by more than 15%.

700T Cold Chamber Die Casting Machine
Project	Unit	Technical Parameter
Die Locking Force	KN	≥7000
Space Between Tie Bars	MM	760X760
Tie Bar Diameter	MM	φ170
Locking Stroke	MM	≥600
Die Thickness	MM	350~900
Ejection Stroke	MM	≥160
Ejection Force	KN	≥250
Injection Force	KN	240~670
Injection Position(0 as the center)	MM	0~ -250
Plunger Diameter	MM	φ80	φ90	φ100
Injection Weight(Aluminum)	KG	6.1	7.8	9.6
Injection Pressures	Mpa	133	105	85
Cast Projection Area	CM²	526	666	823
Max Cast Projection Area	CM²	1750
Height of Pressure Chamber Flange	MM	15-0.05
Plunger Penetration	MM	295
Injection Stroke	MM	≥715
Dry Cycle	S	13
System Working Pressure	Mpa	14
Motor Power	KW	37
Machine Weight	KG	30000
Machine Dimension(LxWxH)	MM	8480X1960X3350

Our die casting machines are widely used in auto industry,motorcycles,electric mobiles,toys,home appliances,electronics,gifts,sanitary ware,IT,aviation fields,etc.

Detail Images:

Ejection Part

Ejection Control

Injection Part

Proportional Divider

Lubricating System

Electric Cabinet

Products Features:

* Oil hydraulic system adopts proportional controlled system pressure and flow, achieves multi-stage pressure & speed control, and low pressure die clamping protection function.

* Injection speed and pressure are controlled by four stages, position and location are the two ways to supercharge.

* High-speed casting template ,high tension alloy steel Corinth column(tie bars),electroplated chrome outer layer.
* Adopt Omron PLC control system(touch screen) to make sure cast product data storage and monitor capabilities, timely alarm in case of abnormality, and eliminate larger quantities of defective products.

* Omron PLC control system(touch screen) is powerful, stale and reliable operation.

* Hydraulic driver gear die regulating device.

* Reliable and durable foreign brand electrical appliances and hydraulic components.

* Central electric lubrication system.

* Rapid hydraulic ejecting device and core puller.

Company Description

Anhui Xulong Precision Industry Co,.Ltd is a professional manufacturer,specialized in manufacturing various types die casting machine.In the past 35 years,our products are welcomed by many customer from all over the countries,and earned good reputation in domestic and overseas market because of advanced manufacturing technology,strict quality control,perfect quality management system and our creative spirit.
