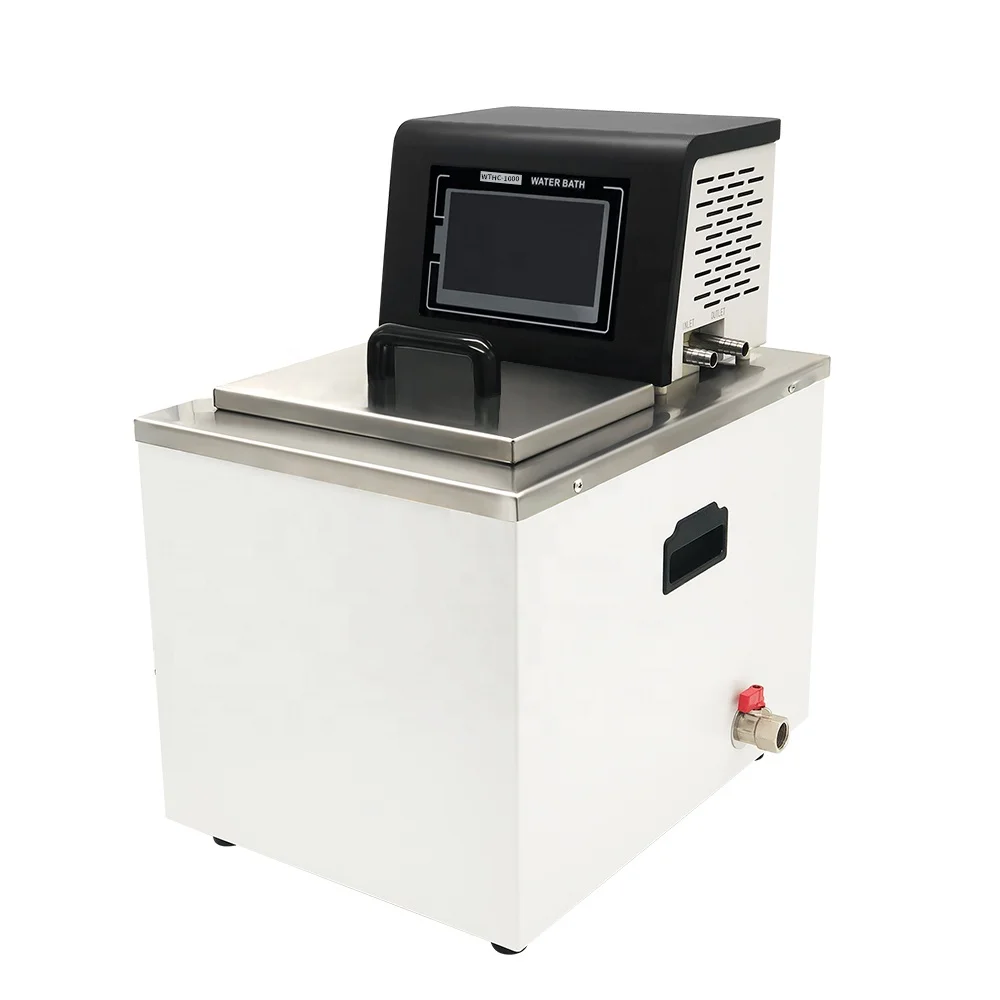

West Tune WTHC-1000 100℃ UL Capacity 15L(3.8 Gallon) Heating Circulator
West Tune WTHC-1000 heating circulators offer outstanding performance and high reliability as well as quiet operation and ease-of-use. Powerful circulating pump provides constant 0~20L/min flow rates, advanced PID controller also provides precise temperature control.
It is widely used in research institutes,universities.corporate quality control departments and industrial sectors relating to petroleum, chemical , electroninstruments, physics, chemistry, bio-engineering, medicine and health, life science, light industry and food, materials testing and chemical analysis etc.
It is widely used in research institutes,universities.corporate quality control departments and industrial sectors relating to petroleum, chemical , electroninstruments, physics, chemistry, bio-engineering, medicine and health, life science, light industry and food, materials testing and chemical analysis etc.
Details Images
Specifications
Model | WTHC-1000 |
Electrical requirements | 110V 60Hz 1-Phase 1050 watts |
Temperature range | Ambient to 100°C |
Heating capacity | 1000 watts |
Circulating pump | Pumping speed: 0~20 liters per minute, adjustable |
Maximum head: 16 feet or 5 meters | |
Chamber | Dimensions: 9.5 x 12 x 7.5" (WxDxH) |
Material: Type 304 stainless steel | |
Capacity: 15 liters / 3.8 gallons | |
Chilling fluid connection: 3/8" hose barb x 2 | |
Chilling fluid drain port: 3/8" hose barb with on/off valve | |
Temperature controller | Type: Digital microprocessor PID controlled |
Display: 7" TFT touch screen | |
Display unit: Degree Celsius °C | |
Temperature step: 0.1°C | |
Temperature accuracy: +/- 2°C | |
Working environment | -15°C/5°F to 25°C/77°F, at <66% humidity |
Unit/shipping dimensions | 12.5 x 16.5 x 19.5" / 17 x 20 x 22" (WxDxH) |
Unit/shipping weight | 30 Lbs / 36 Lbs |
Safety | Short circuit and ground protection |
Over-current protection | |
Over-temperature protection | |
Upper/lower temperature alarm protection |
Features
1.Powerful 1000 watts heater
2. Adjustable pumping speed up to 20 liters per minute
3. Advanced 7" TFT touch screen controller,equipped with a microprocessor intelligent control system.
4. ANSI standard all stainless steel reservoir
5. Standard equiped with a over-temperature alarm system.
6. All steel construction for durability
7. Small footprint saves valuable lab space
8. Plug and play, no assembly required
2. Adjustable pumping speed up to 20 liters per minute
3. Advanced 7" TFT touch screen controller,equipped with a microprocessor intelligent control system.
4. ANSI standard all stainless steel reservoir
5. Standard equiped with a over-temperature alarm system.
6. All steel construction for durability
7. Small footprint saves valuable lab space
8. Plug and play, no assembly required
