Импульсный Магнитный счетчик воды 25
- Категория: Счетчики воды >>>
- Поставщик: Hebei,Shanghong,Meters,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.5 $* | 0.83 $* |
| Aug-17-2025 | 0.24 $* | 0.80 $* |
| Jul-17-2025 | 0.24 $* | 0.29 $* |
| Jun-17-2025 | 0.99 $* | 0.86 $* |
| May-17-2025 | 0.18 $* | 0.34 $* |
| Apr-17-2025 | 0.20 $* | 0.53 $* |
| Mar-17-2025 | 0.66 $* | 0.57 $* |
| Feb-17-2025 | 0.13 $* | 0.92 $* |
| Jan-17-2025 | 0.53 $* | 0.75 $* |
Характеристики

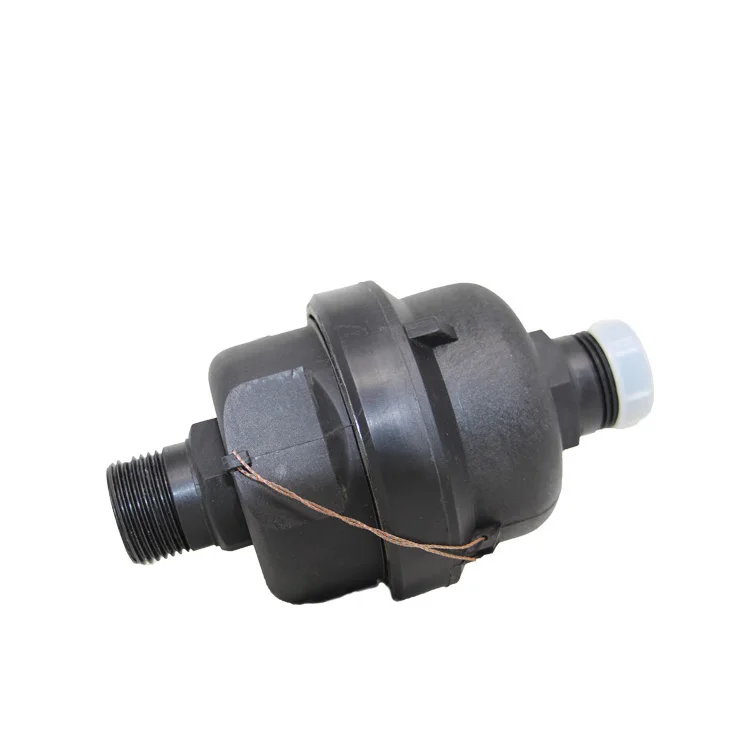

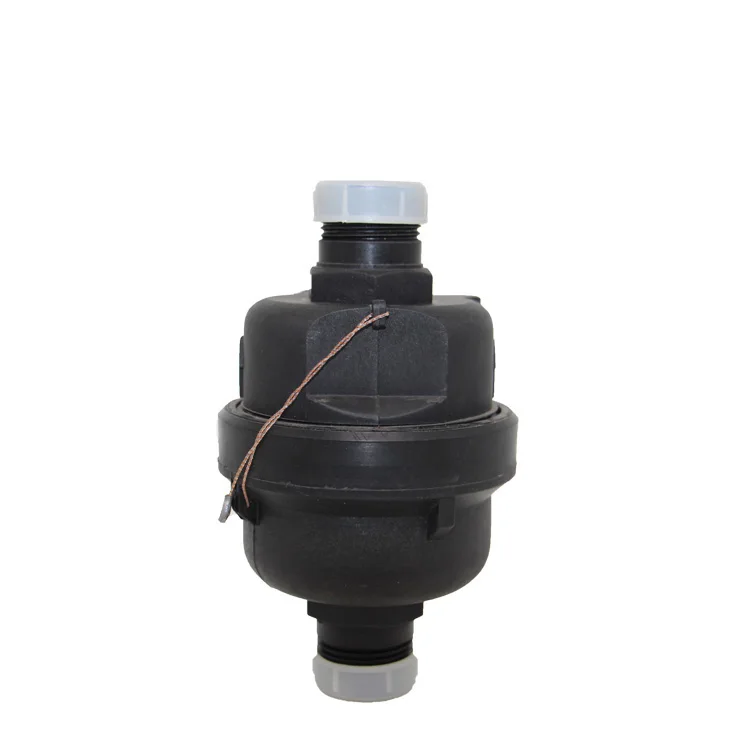

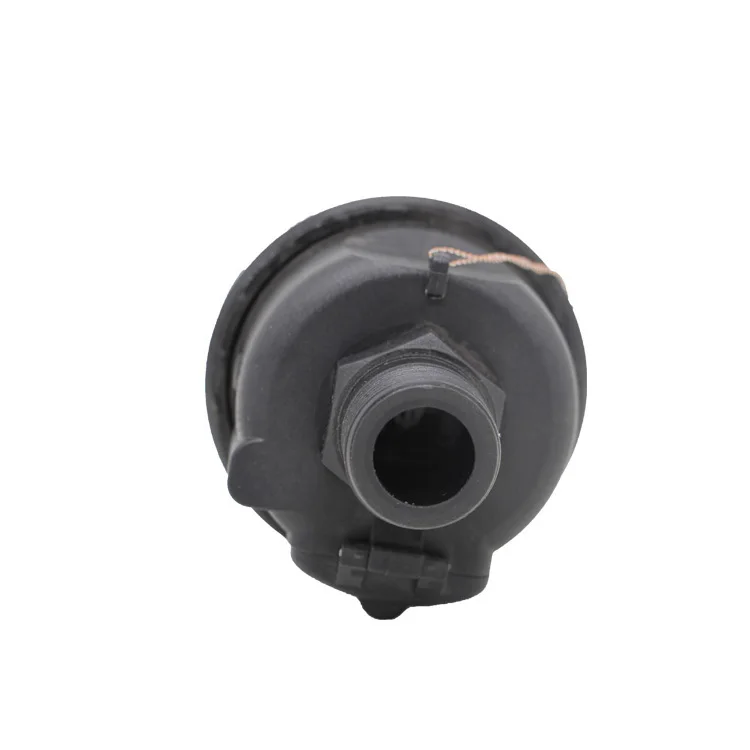

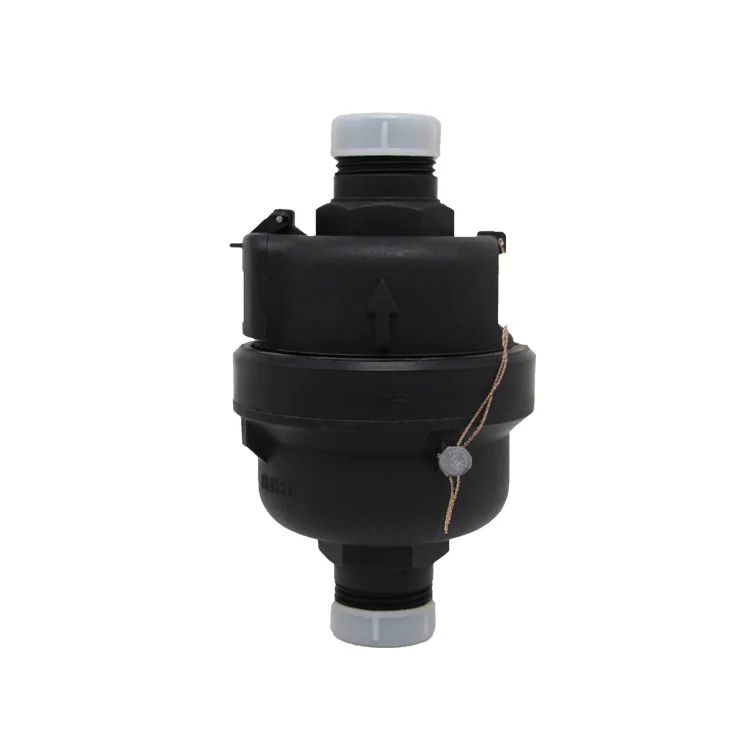

Impulse kent magnet stop water meter 25mm
Product Description
Features | Application |
1. Low start-up flow rate.
2. Volumetric rotary piston principle of measurement.
3. LXHY-15~20 is no location limitation for installation.Accuracy is not to be affected wherever installed at a horizontal,vertical or inclined pipeline.
4. Register is sealed with a special liquid to keep a clear reading in long terrm service.
5. Mechanism use of high-quality rmaterial to ensure a stable characteristic.
6. Accurate measurement with conformity to lSo 4064 class c.
7. on request,the series can be equipped with a kind of remote transmission device. | Measuring the volume of cold portable water passing through the pipeline.Also suitable for pure water. |
Warranty | |
- Water temperature:0.1℃~50℃C for cold water meter. .0.1℃~90℃ for hot water meter. .Water pressure : s1.6Mpa (16 bar). | |
Operating Condition | |
| -The Max.Admissible water pressure 1.6MPa. -Resisting water temperature: 50℃. |

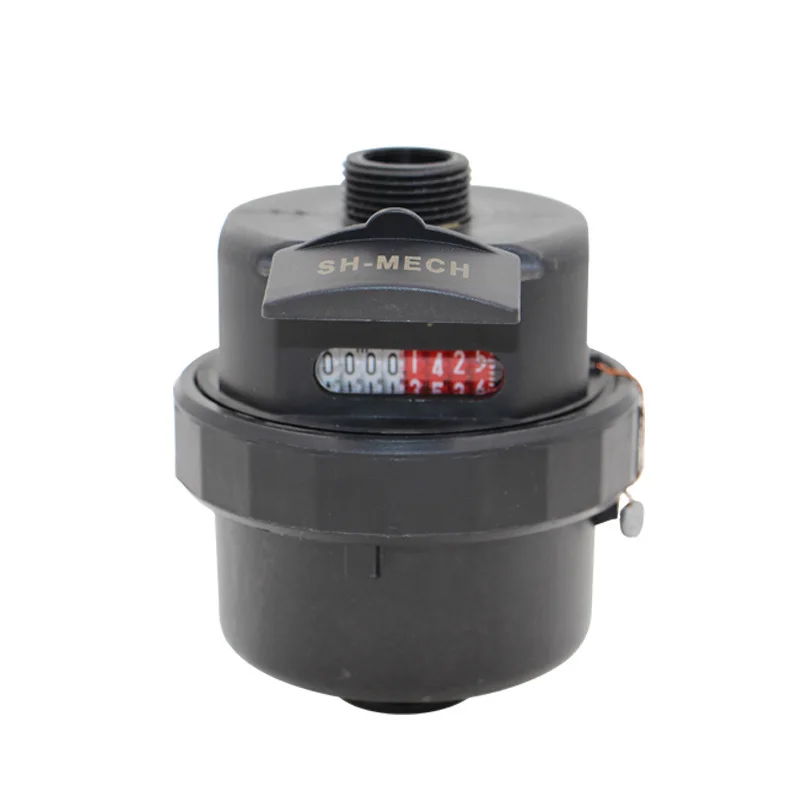

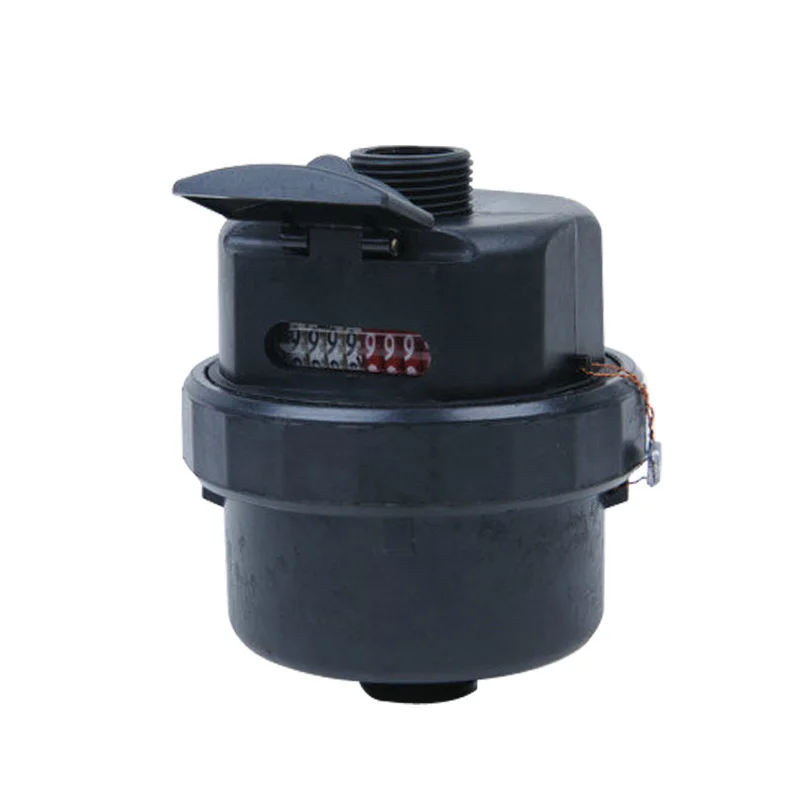

| Dial Picture | Measure Unit |
 | Measure Unit: CBM 8 WHEELS Four red, four white wheel. The minimum reading: 1L |
 | Measure Unit: CBM 8 WHEELS Three red,five white wheel. The minimum reading: 1OL |
 | Measure Unit:UK Gallon 8 WHEELS One red,seven white wheel The minimum reading: 1 UK/Gallon |
 | Measure Unit:UK Gallon 8 WHEELS All white wheel The minimum reading: 10 UK Gallon |
 | Measure Unit:US Gallon 8 WHEELS One red,three black,four white wheel The minimum reading: 1 US Gallon |
- Body material: Brass body /Plastic body.
- Size: Plastic body: DN15-20;Brass body: DN15-40.
- Different register can be choose
