Характеристики
Automatic power easy start 20kw-300kw syngas generator gas generators with famous gas engine
Product Description
We supply the international advanced level biomass gas power with range of 20-1000 kW. Consider the technical characteristics of the syngas has tar and high hydrogen content, we use venturi gas mixer with a reasonable gas distribution and ignition advance angle to achieve the full Combustion of gas and reduce the exhaust temperature that extended the life of the engine. At the same time increased the double tube into the gas intake system to reduce the tar condensation inside. Advanced high-energy ignition system to ensure the safety and reliability of the ignition and the stability of the power output. The series of units are easy maintenance, high security, can be widely applied to biomass gas, coal gas, and other low calorific value gas.
Specification / Data:
| Generator Set | Model | HTG-30GF |
| Rated Power | 30kW | |
| Standby Power | 33kW | |
| Rated Voltage | 400V/230V | |
| Rated Frequency | 50Hz/60Hz | |
| Type | Open/Silent/Soundproof/Container | |
| Diesel Engine | Engine Brand | Deutz, WEICHAI, Ricardo, Steyr, Zichai |
| Alternator | Type | Brushless |
| Brand | Stamford, Faraday, Marathon, Evotec, etc. | |
| Connection | 3-pahse, 4-wire | |
| Controller | Type | Auto PLC Controller |
| Brand | Deepsea, SmartGen, ComAp, HT2012 etc. | |
| Fuel | Biomass Gas, Syngas | |
| Application | Biomass Power Plant, Woodchip Power Plant or others | |
| Delivery | By Sea, By Air, By Train. | |
| Warranty | 12 months or 1500 running hours (subject to the earlier) | |
Conditions for Biomass Gas Requirements | 1.Gas Calorific V alue ≥ 4 MJ/Nm³; 2.Gas Temperature ≤ 40 ℃; 3. Rate of Gas Pressure Change ≤ 1 kPa/min; 4. Tar Content ≤ 20 mg/Nm³; 5. Moisture Content ≤ 40 mg/Nm³; 6. Impurity Particle Size ≤ 5 μm. | |

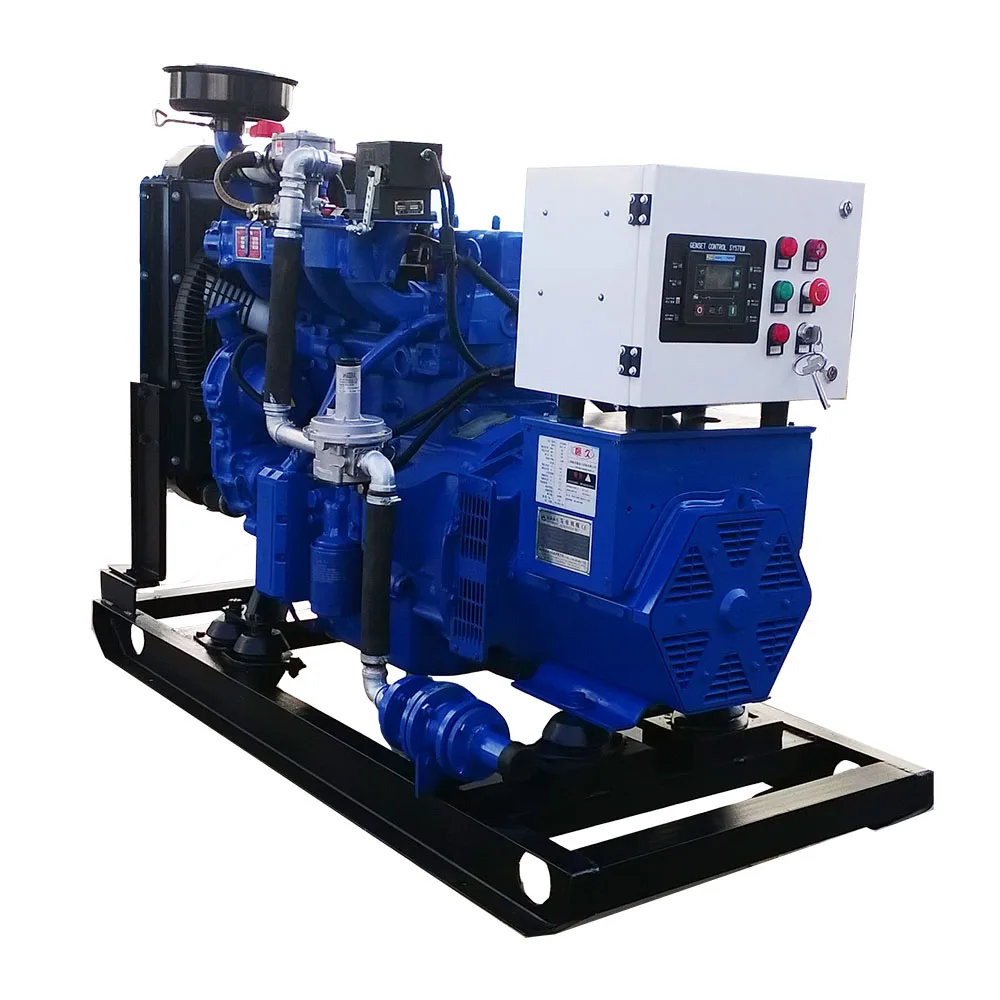

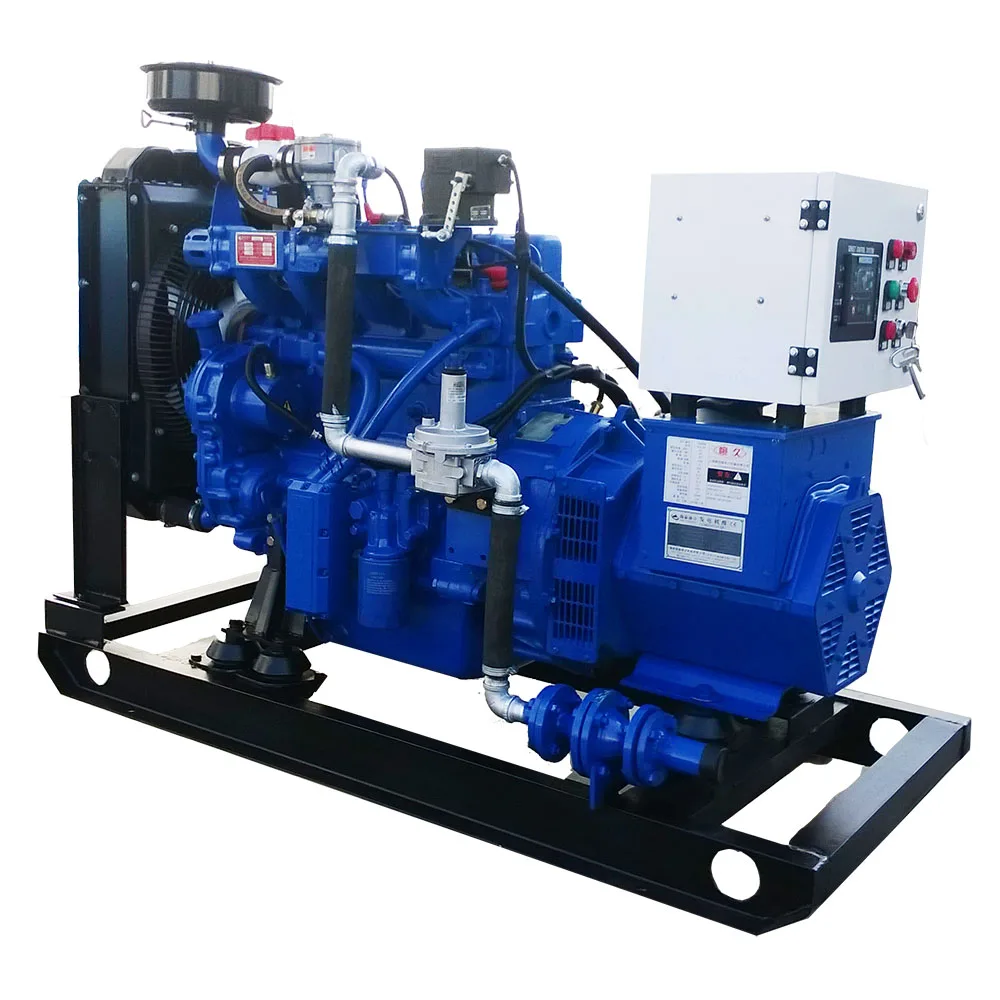

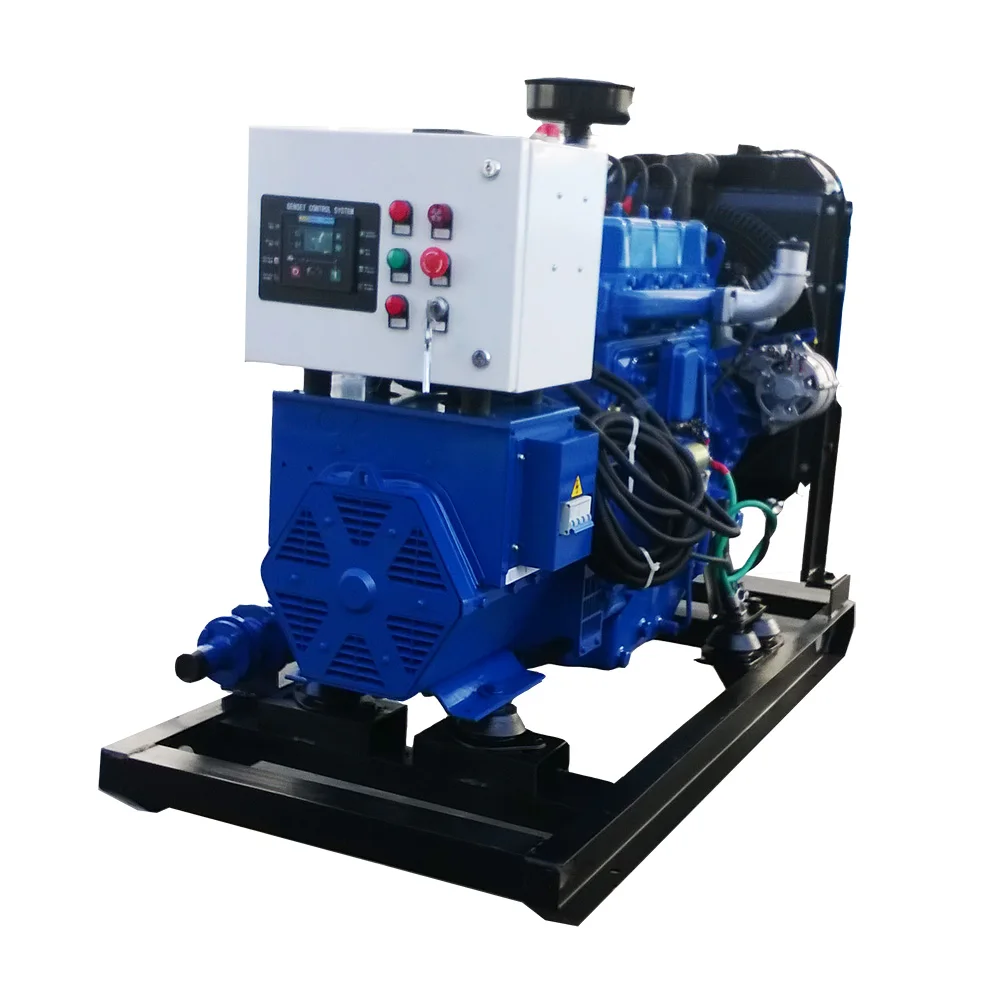

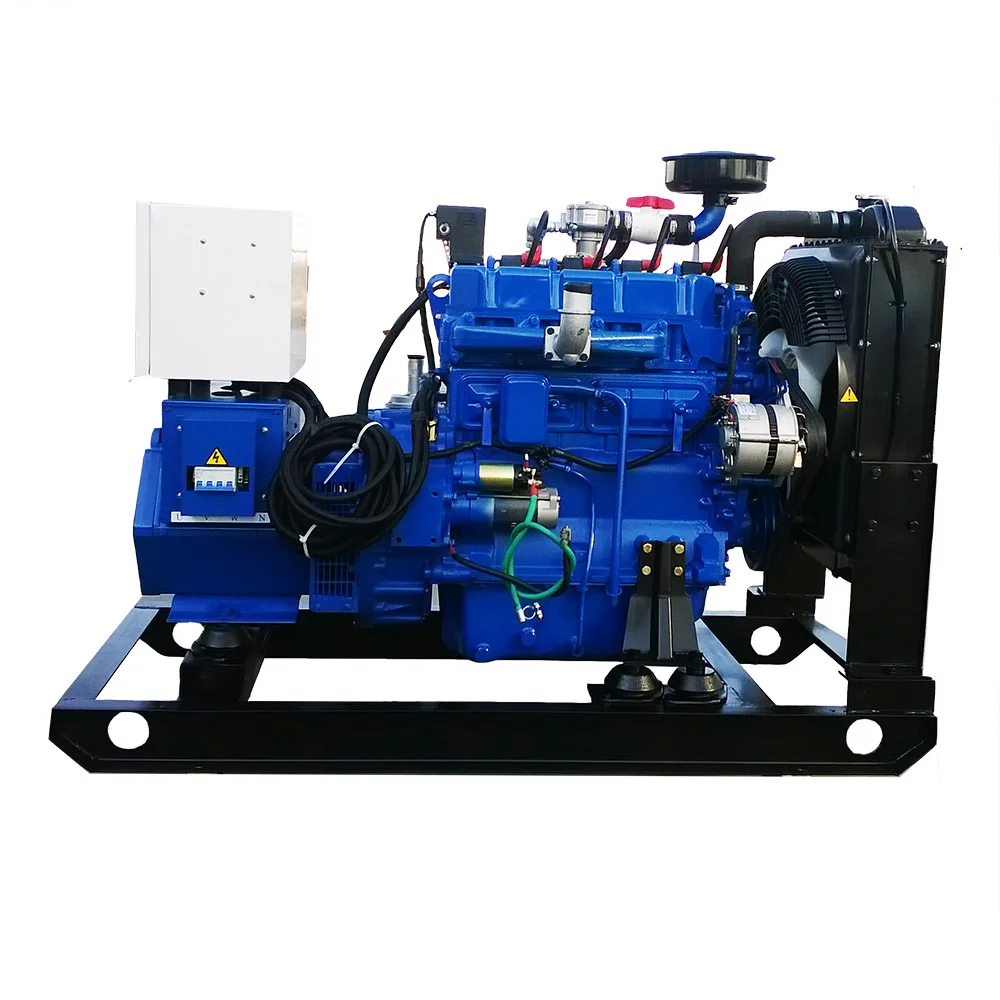

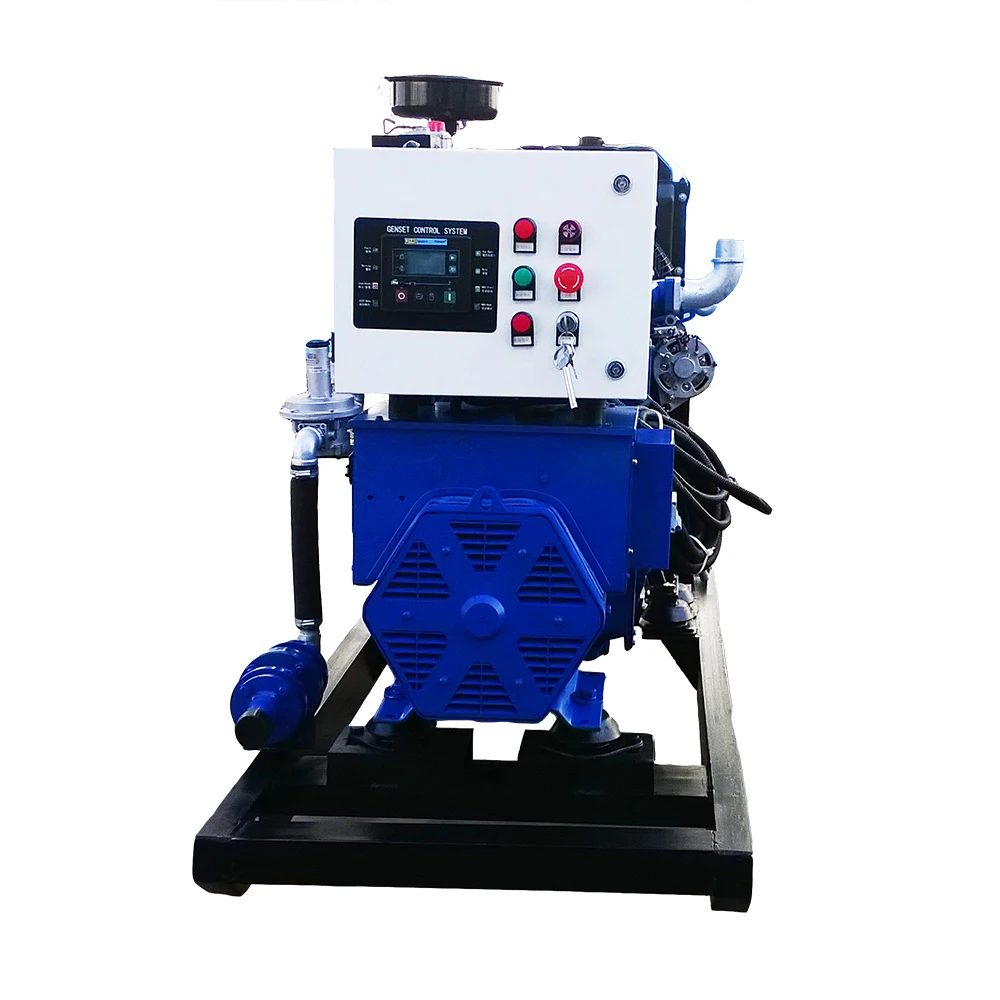

Product Photos:
 |  |
 |  |
 | |
