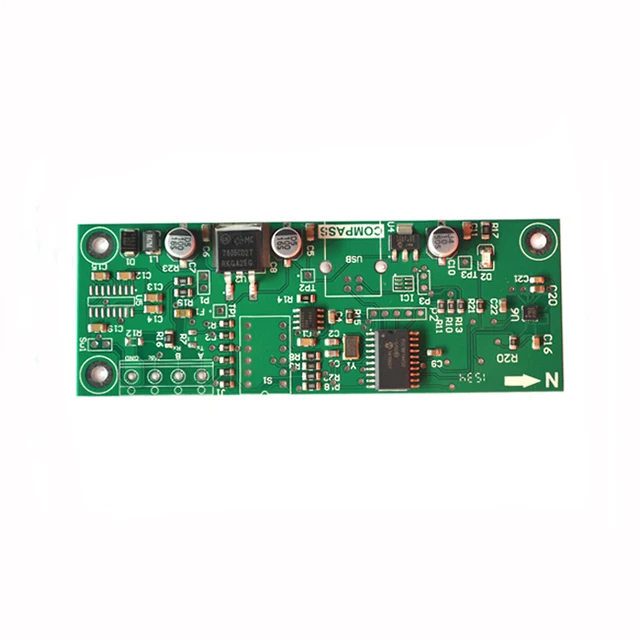

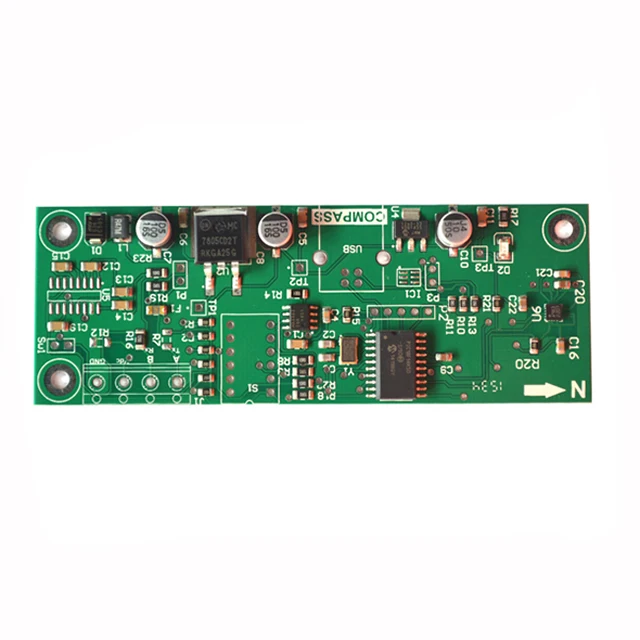

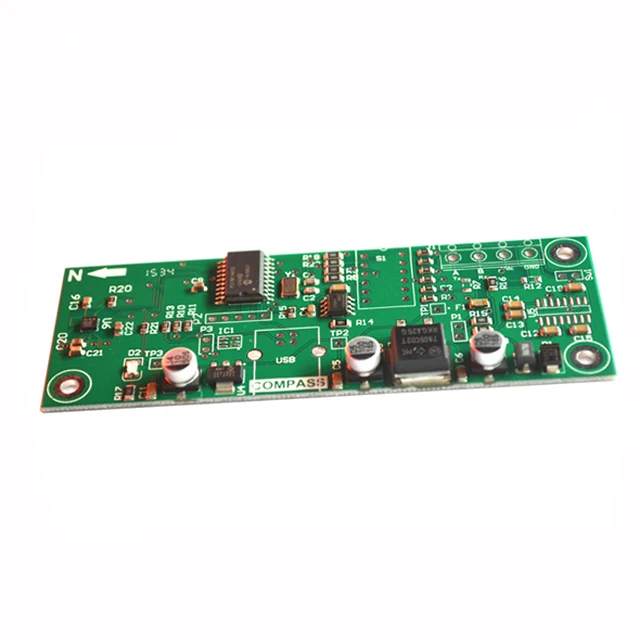

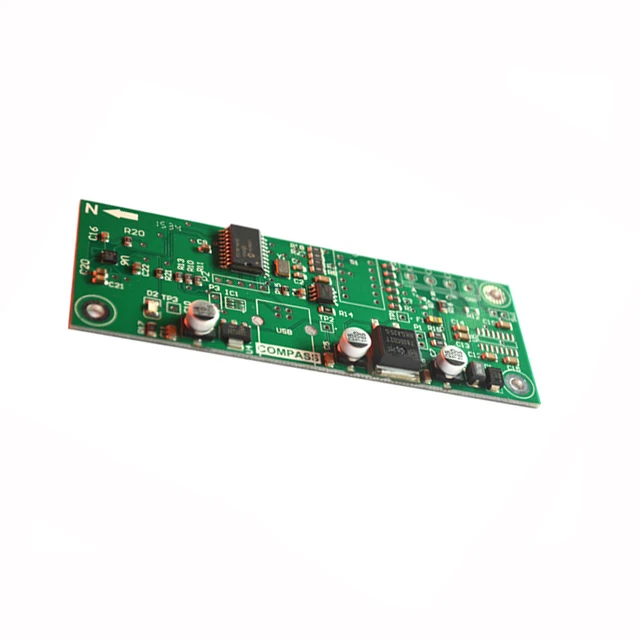

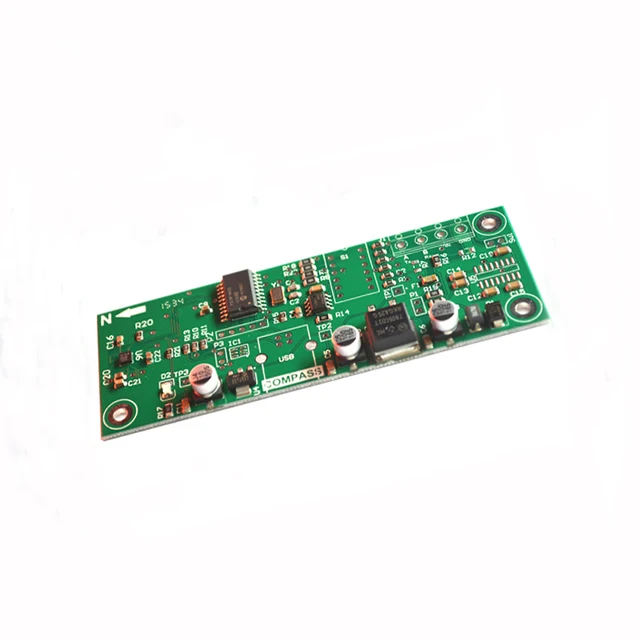

Профессиональные PCBA OEM услуги micro sd карта памяти pcba
US $0.12-$1.00
Производитель печатных плат печатная плата в
- Категория: PCBA >>>
- Поставщик: Shenzhen,Moko,Technology,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.28 $* | 0.5 $* |
| Aug-18-2025 | 0.92 $* | 0.88 $* |
| Jul-18-2025 | 0.72 $* | 0.55 $* |
| Jun-18-2025 | 0.99 $* | 0.54 $* |
| May-18-2025 | 0.10 $* | 0.23 $* |
| Apr-18-2025 | 0.89 $* | 0.26 $* |
| Mar-18-2025 | 0.13 $* | 0.94 $* |
| Feb-18-2025 | 0.87 $* | 0.25 $* |
| Jan-18-2025 | 0.10 $* | 0.2 $* |
Характеристики
Product Description
PCB Bare Board Processing Capacity
Base Material | Normal Tg FR4, High Tg FR4, PTFE, Rogers, Low Dk/Df etc. | ||||||
Solder Mask Color | Green, Red, Blue, White, Yellow, Purple, Black | ||||||
Legend Color | white, yellow, black, red | ||||||
Surface treatment type | ENIG, Immersion tin, HAF, HAF LF, OSP, flash gold, gold finger, sterling silver | ||||||
Max. layer-up(L) | 50 | ||||||
Max. unit size (mm) | 620*813 (24"*32") | ||||||
Max. working panel size (mm) | 620*900 (24"x35.4") | ||||||
Max. board thickness (mm) | 12 | ||||||
Min. board thickness(mm) | 0.3 | ||||||
Board thickness tolerance (mm) | T<1.0mm: +/-0.1mm; T≥1.0mm: +/-10% | ||||||
Registration tolerance (mm) | +/-0.10 | ||||||
Min. mechanical drilling hole diameter (mm) | 0.15 | ||||||
Min. laser drilling hole diameter(mm) | 0.075 | ||||||
Max. aspect（through hole) | 15:1 | ||||||
Max. aspect（micro-via) | 1.3:1 | ||||||
Min. hole edge to copper space(mm) | L≤10, 0.15；L=12-22,0.175；L=24-34, 0.2；L=36-44, 0.25；L＞44, 0.3 | ||||||
Min. innerlay clearance(mm) | 0.15 | ||||||
Min. hole edge to hole edge space(mm) | 0.28 | ||||||
Min. hole edge to profile line space(mm) | 0.2 | ||||||
Min. innerlay copper to profile line sapce (mm) | 0.2 | ||||||
Registration tolerace between holes (mm) | ±0.05 | ||||||
Max. finished copper thickness(um) | Outer Layer: 420 (12oz) Inner Layer: 210 (6oz) | ||||||
Min. trace width (mm) | 0.075 (3mil) | ||||||
Min. trace space (mm) | 0.075 (3mil) | ||||||
Solder mask thickness (um) | line corner : >8 (0.3mil) upon copper: >10 (0.4mil) | ||||||
BGA pad (mm) | ≥0.25 (HAL or HAL Free：0.35) | ||||||
V-CUT blade position tolerance (mm) | +/-0.10 | ||||||
Impedence tolerance (%) | +/-5% | ||||||
Min. legend width (mm) | 0.1 | ||||||
Fire flame calss | 94v0 | ||||||
PCBA Processing Capacity
Processing Service | One Stop PCB Assembly service, include components&plastic mold sourcing,SMT&DIP assembly and enclosure installation service. | ||||||
Components Package | Smallest with 01005, various chips package as QFN,BGA,SSOP,PLCC,LGA.. | ||||||
Testing | 100% Function Testing before shipment | ||||||
MOQ | No MOQ(1PCS) | ||||||
Factory Certificate | ISO9001:2015 | ||||||
Products Application
Simplified Production Flow
Certifications
Product packaging
Company Profile
MOKO TECHNOLOGY LTD is an expert at PCB and PCBA manufacture, based in Shenzhen, Guangdong, China. We provide comprehensive
solutions, including R&D support, prototype service, technical consultation, material sourcing, PCB assembly, conformal coating,
washing, in-circuit test, function test, burn-in test, environment test, logistics and after-sales service.
solutions, including R&D support, prototype service, technical consultation, material sourcing, PCB assembly, conformal coating,
washing, in-circuit test, function test, burn-in test, environment test, logistics and after-sales service.
We have got the ISO9001:2015 and UL RoHS certifications, and we will carry on the management concept of "Quality superior, Service supreme, Reputation first" to provide the best service in production and sales to our global customers. We are looking forward to be your long term trust Partner!
FAQ
Q:What format of Bom List you prefer?
A:We prefer in MS-Excel with Components Part No.,Manufacturer,Quantity,Value info, other format are also accepted.
Q:What files do you use in bare pcb fabrication?
A:Gerber RS-274X,274D,Eagle and AutoCAD's DXF,DWG
Q:How can i know the processing about my PCBA order?
A:Each Customer will have a sale to contact with you. Eastwin working hours:AM 9:00-PM 6:00(Beijing Time) from Monday to Friday.
we will reply your email in 2hours during our working time. And you also could contact with our sales by cellphone if urgent.
we will reply your email in 2hours during our working time. And you also could contact with our sales by cellphone if urgent.
Q:How long will we get the quotation after providing pcb gerber file,completed bom list,part datasheet and PNP file?
A: The quotation will be sent in less than 2 work days, for some special components, you also could recommend supplier to us.
Q:If all PCBAs will be tested before delivery if we provide the function testing method?
A:Yes, we ensure that each piece of PCBA will be tested before shipment, we ensure the goods we sent with good quality.
Q:What's the MOQ?
A:We have no MOQ, could also provide the fast prototype service
Q:How to know more about MOKO?
A:Welcome to visit MOKO or contact our sales via email
