Декоративная настенная панель/машина для производства доски

 MgO board machine adopts the automatic template device to save the labour cost. It also adopts automatic coating release agent system, by this way the release agent is evenly, less dosage and clean. Roller and forming roller precision is high that makes the board uniform thickness and smooth. Automatic cutting film system adopts fixed length cutting method, cutter does not hurt the template.

1. Batching platform
This kind of feeding platform is made of medium carbon steel plate and heavy caliber medium carbon steel tube. On the head position of the forming line, there is equipped multiple feed opening, which can meet the requirements of different specification of Mgo board. Above the platform, there is installed three sets of blenders, which are used to stir different kind of raw materials sufficiently. There is also equipped automatic releasing agent device,which is used to guarantee the sufficient painting on the moldboard surface.

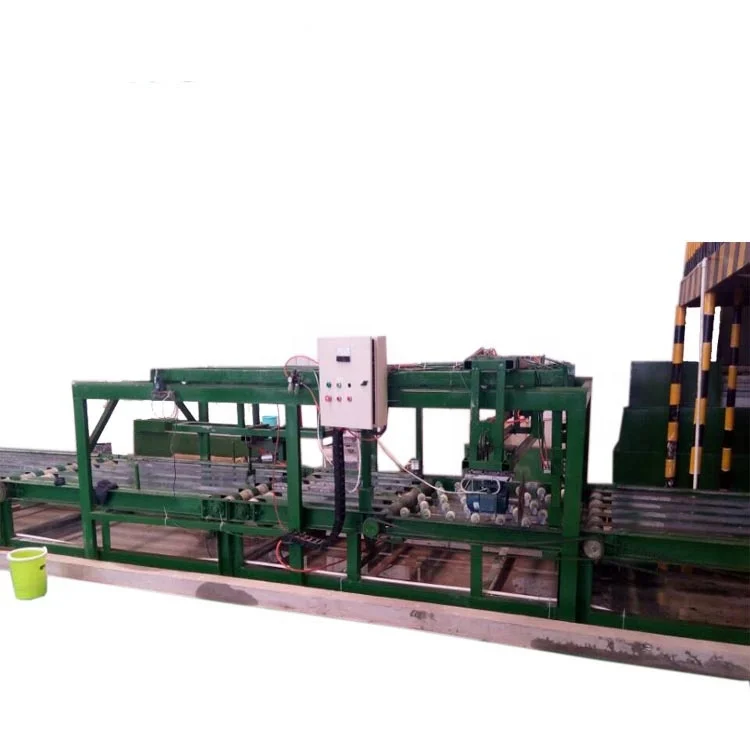

2. Forming line
This kind of line combined stainless steel tube and convey belt style. The stainless steel tube have been processed and polished subtly on the surface, all of the tubes are maintaining on a same level, which achieved greatly reduce wet waste board rate and guarantee the smooth surface,flattening,well-distribute and smallest error of the board. This line is adopted our unique designing of automatic wet board cutter controlling system, which achieving the purpose of cutting the wet board line rapidly and won’t hurt the moldboard according to the presetting length and microprocessor control and guarantee the precise length of the finished board.

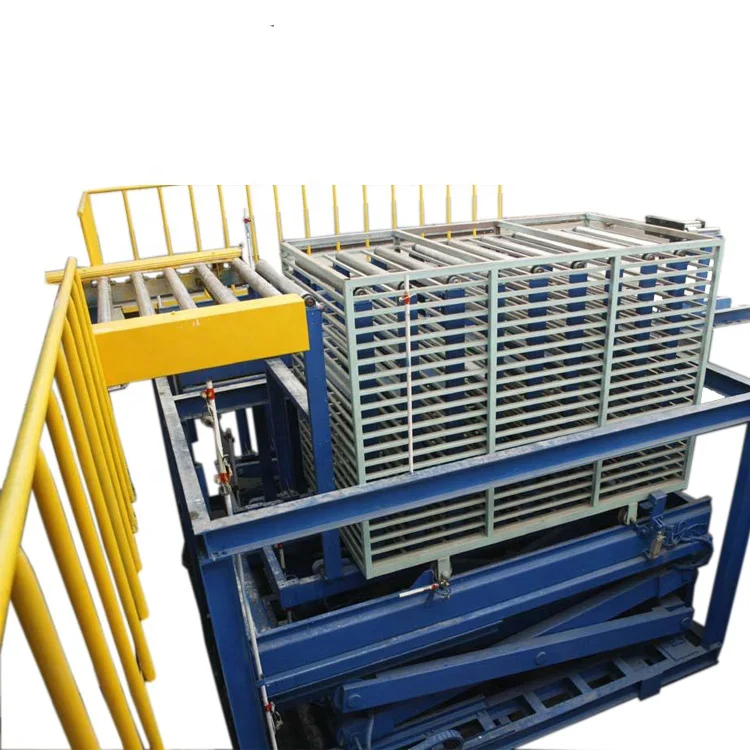

3. Automatic board receiving system

The wet board will enter the automatic receiving system after has been cut with presetting length.This system adopted microcomputer and double elevators.The wet board with moldboard will enter the curing transporter layer by layer following the order of the microcomputer twenty boards with one curing transporter, and the double elevator achieve process production and volume-produce through alternate use.

4. solidifying rom with trackway style

This set of production line is equipped with four trackway,each way can be placed multiple curing transporters and processed solidifying here. The multiple trackway system can meet the purpose of volume-produce.

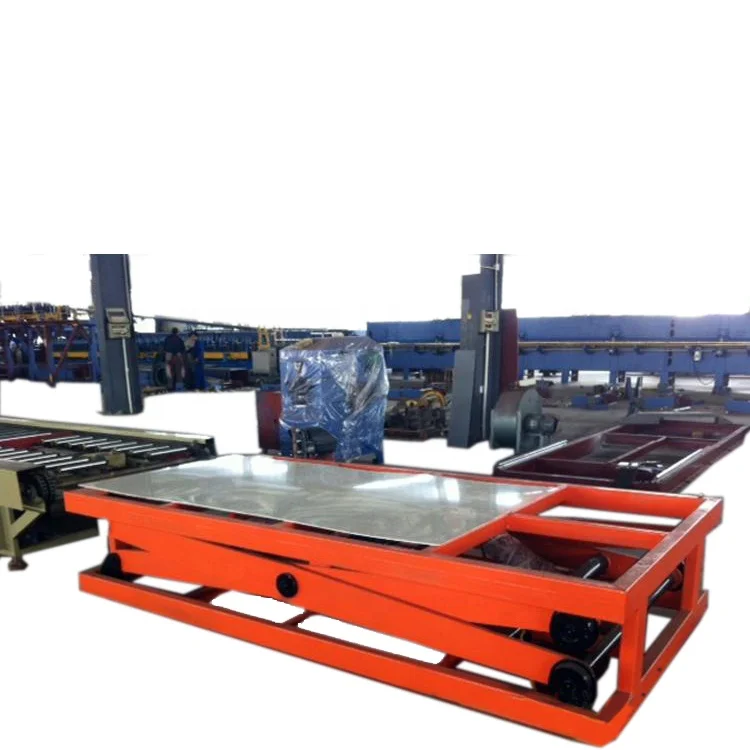

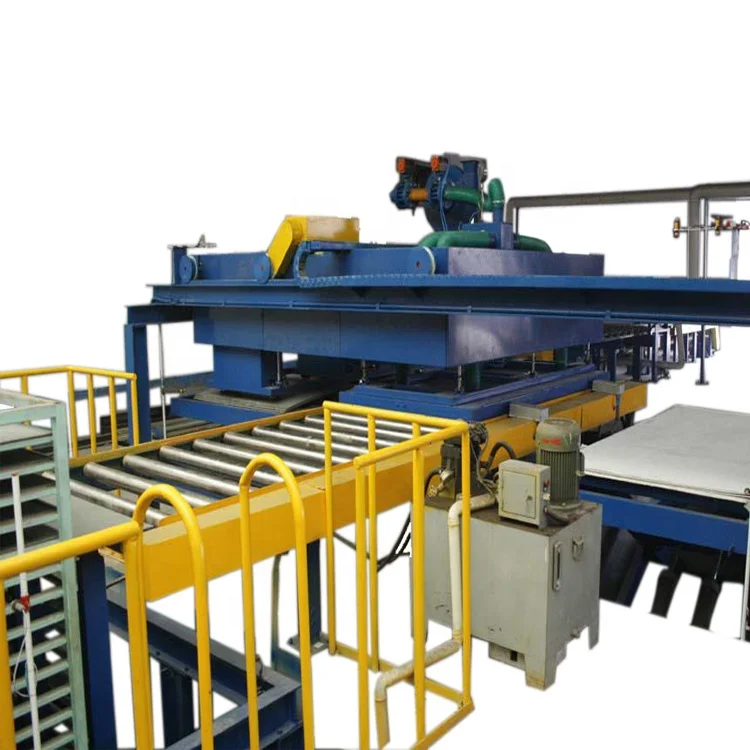

5. Automatic mould move system

The automatic mould move system that adopt the double cupulas and double lifters, stack the moulds and the glass magnesium boards each other,there is a conveying track between the mould stacker and the forming line, it can carry out the quick conveying, so that the continuous producing. The glass magnesium boards will be conveying to the edge cutting saw and start the edge cutting for cutting for getting the dimension of the boards what we request.

Hebei Greens Building Material Technology Development Co., Ltd(a branch company of Lvjoe Group) is a large building and construction material machinery manufacturer specializing in researching, designing, manufacturing, project equipment integration and international trade.Lvjoe Group is original from Hebei LVJOE Machinery Manufacturing Co. Ltd., founded in 1998. With continuing development of Company's business, we established Lvjoe Group in 2016. Greens company as a branch company of LVJOE Group, the main lines of products including gypsum board lamination machine, mineral fiber board production line, fiber cement board production line, MgO board production line, EPS Lightweight Sandwich Wall Panel Machine,gypsum cornice production line, etc.

  The Exhabition and customers

   OUR SERVICE:

1. Our company has professional installation & debug teams. We will install and test the production line at the customers' place until the equipment produces the qualified products.
2. We supply the accessories all the year round. The guarantee time of the equipment is one year. 3. We are responsible for the technical consultation and service all the year around and solve all kinds of technical problems at any time.
4. We can help the customer to do the consignment and the relevant procedure for import and export.
5.If the buyer can not run the machine well then we will send the production engineers to help the buyer to run the machine, and we can cooperate for long terms.
