Современный двигатель мульти шланг топливный диспенсер Диспенсер de

Современный двигатель мульти шланг топливный диспенсер Диспенсер de

Категория: Other Service Equipment >>>
Поставщик: Henan,Eaglestar,Energy,Technology,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	0.54 $*	0.63 $*
Aug-16-2025	0.76 $*	0.12 $*
Jul-16-2025	0.43 $*	0.43 $*
Jun-16-2025	0.36 $*	0.57 $*
May-16-2025	0.50 $*	0.93 $*
Apr-16-2025	0.96 $*	0.28 $*
Mar-16-2025	0.12 $*	0.76 $*
Feb-16-2025	0.42 $*	0.47 $*
Jan-16-2025	0.22 $*	0.87 $*

Характеристики

Product Description

EG6 Introduction

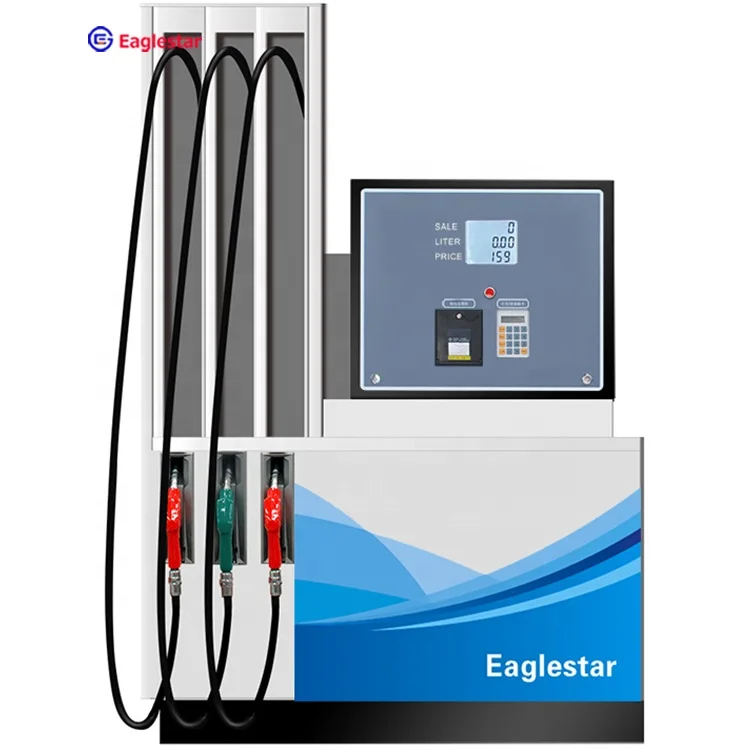

This "L" type fuel dispenser are attractive to all the customers. The optional convenient hose retractor keeps the hose clean and nice.

More than 6 configurations offer customers flexible choice, from 2 hoses, 4 hoses, 6 hoses to 8 hoses.

Optional printer can provide more convenience to end users. EG6

Basic configuration

Basic models and standard features	Optional features
8 hoses 4 products, 6 hoses 3 products, 4 hoses 2 products or 2 hoses 2 products. Standard duty: 50 liter per min. Vane pump and 4-piston flow meter Emergency button stop Non resettable electromagnetic totalizer RS485 and current loop for POS communication	Heavy duty:70 liter per min 7-7-5 LCD display (standard 6-6-4) S gear pump and S flow meter (small size) Built in printer for receipt Card reader for prepay petro card Single phase motor (standard 3 phase) Non resettable electromagnetic totalizer External reusable filter Submersible type Customized logo painting on front panel

Fuel dispenser model

Model	Pump type	Nozzle	Product	Flow Meter	Display (both sides)
EG6-222(G/S)	G for suction type with gear pump S for Submersible type	2	2	2	2
EG6-422(G/S)		4	2	4	2
EG6-632(G/S)		6	3	6	2
EG6-842(G/S)		8	4	8	2

Other fuel dispenser model

Detailed description


Flow Meter Flow meter is paramount on fuel dispenser unit. Eaglestar flow meter is engineered to retain its precision over complete lifetime. The unique internal structure and high quality components keep very less drift in the lifetime of the meter.	Gear pump There are two types of pumping unit, vane and gear, which can be chosen on EG3 series. Comparison with vane pump, Gear type pumping unit has more virtual features. Strong suction power, high flow duty 50/90 liter per minute, two filters, all these can bring it a better performance in the harshest conditions with a variety of fuel types.

Latest ARM Mainboard Eaglestar's new generation STAR main board uses the latest ARM CPU processor to achieve more command feature, Easy configuration and high safety control. More functions can be expanded on STAR main board such as printing, POS, Smart Card, Priority Card etc. The high quality industrial electronic components ensure the excellent performance on power surge, electrostatic shock And electromagnetic interference	LED Display The high quality LED display brings very bright light for night fueling.The low electrical power consumption makes the units cost effective.

Anti Power Fluctuation UL listed motor offer the best performance. Overload protection is robust in various conditions. High quality capacitors allow the motor to start in lower voltage power supply. The stations have less maintenance for the motor. Power board cope with wide range power fluctuation. The enhanced electrical system protect the PCB boards from lighting.	Petro card solution Petrol card solution offer customers one flexible payment method.Through card,fueling station can get prepayment and make more promotions to attract more customers.

Other Accessories
keypad	emergency stop button	electromagnet totalizer	explosion proof solenoid valve
junction box	vane pump	nozzle and hose	nozzle hanger

Technical parameter

Environmental conditions	Technical specification
Temperature : -25°C to +55°C Humidity : 5% to 95%	Accuracy : ±0.25% Flow rate : 50l/min. 80liter/min for heavy duty igits for sales : 7 or 6 digits igits of volume : 6 digits igits of unit price : 5 or 4 digits ower Supply : AC220V (-15% ~ +10%) 50/60Hz C380V (-15% ~ +10%) 50/60Hz echanical totaliser : 7 digits lectronic totaliser : 10 digits
