2 м оборудование точный диапазон измерения лазерная рулетка

2 м оборудование точный диапазон измерения лазерная рулетка

Категория: Лазерные измерители расстояния >>>
Поставщик: Chongqing,Diaoran,Photoelectric,S&T,Co.,Ltd.

Цена:107,70 $ - 148,90 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-16-2025	136.53 $*	139.57 $*
Jul-16-2025	110.57 $*	112.53 $*
Jun-16-2025	134.73 $*	137.66 $*
May-16-2025	133.43 $*	136.29 $*
Apr-16-2025	106.85 $*	108.70 $*
Mar-16-2025	131.67 $*	134.44 $*
Feb-16-2025	129.44 $*	132.86 $*
Jan-16-2025	128.23 $*	131.77 $*

Характеристики

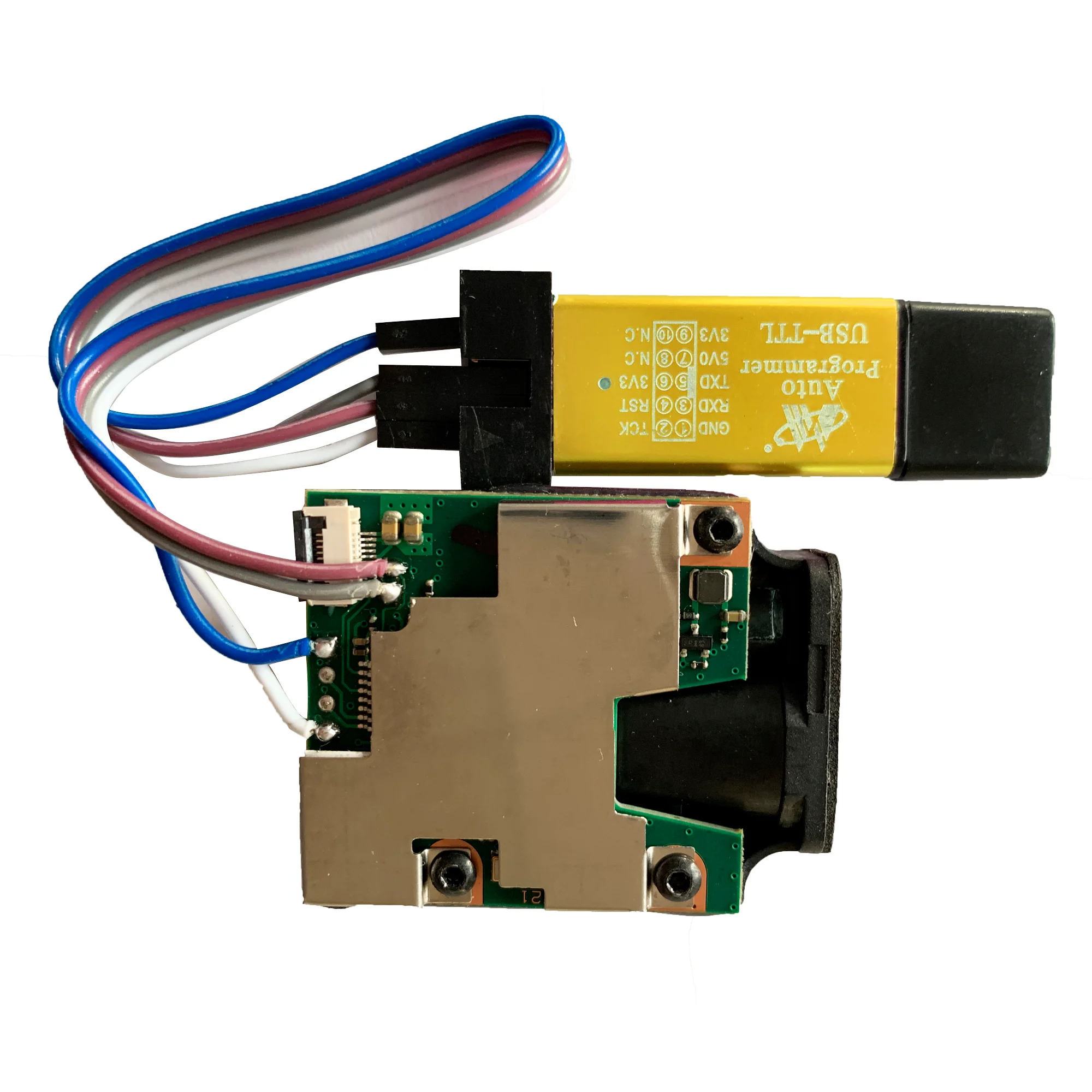

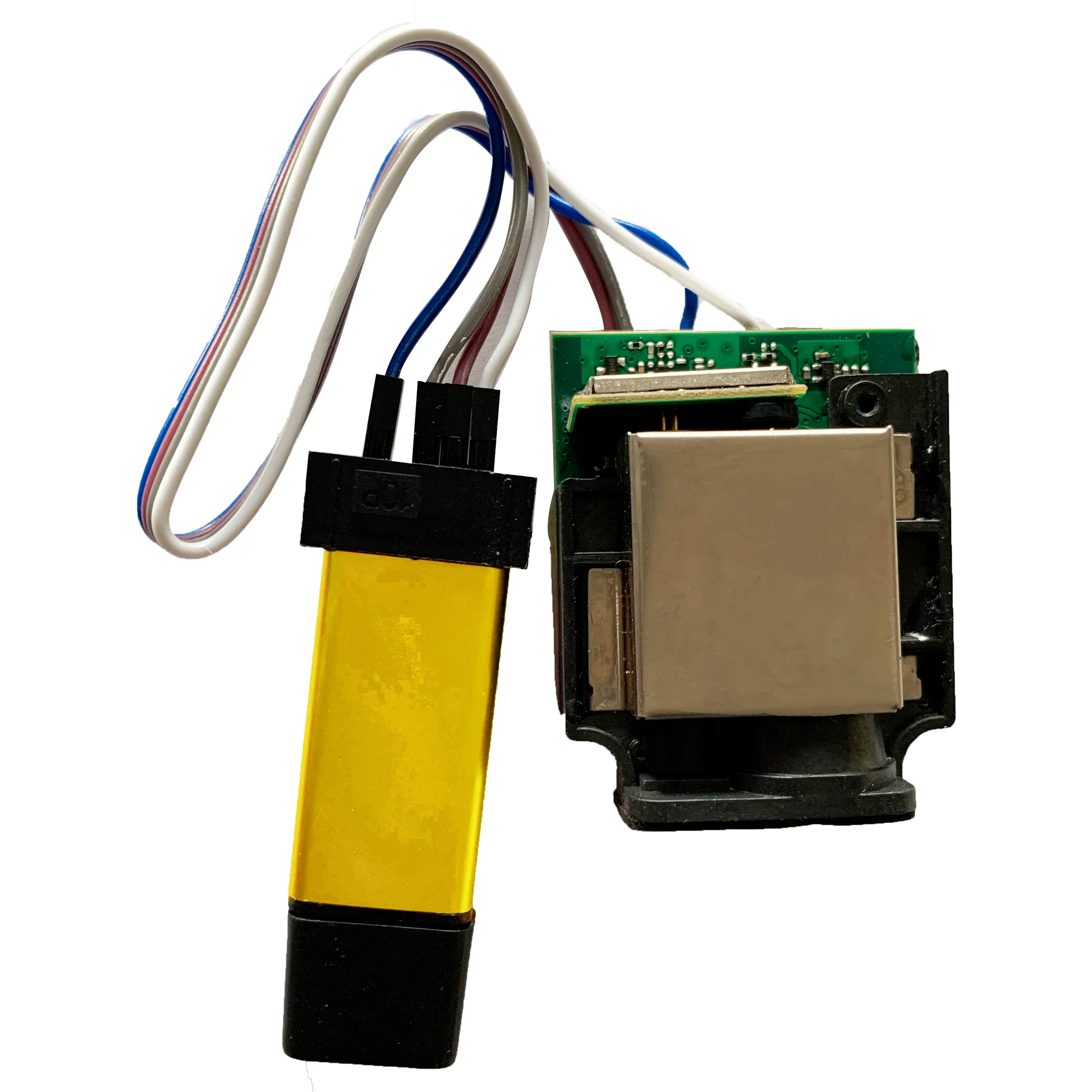

Products Appearance

Front	Back

Product Specification

Products Specification

The Main Technic Index	Details
Measuring range	0.05~2m
Measurement Resolution (standard deviation)	± 0.2mm
Dip angle measurement	-
Distance unit	m
Laser type	620~690nm
Laser-grade	Level II, <1mW
Spot diameter at distance-M	6mm@10m, 30mm@50m
Single measurement time	0.05~1s
Protection grade	IP40
working temperature	-10~+60 °C
Storage temperature	-20~+80 °C
Weight	About 60g
Dimensions (length * width * height)	48 x 42 x 18mm
Standard of execution	GB/T 14267-2009

Products Description

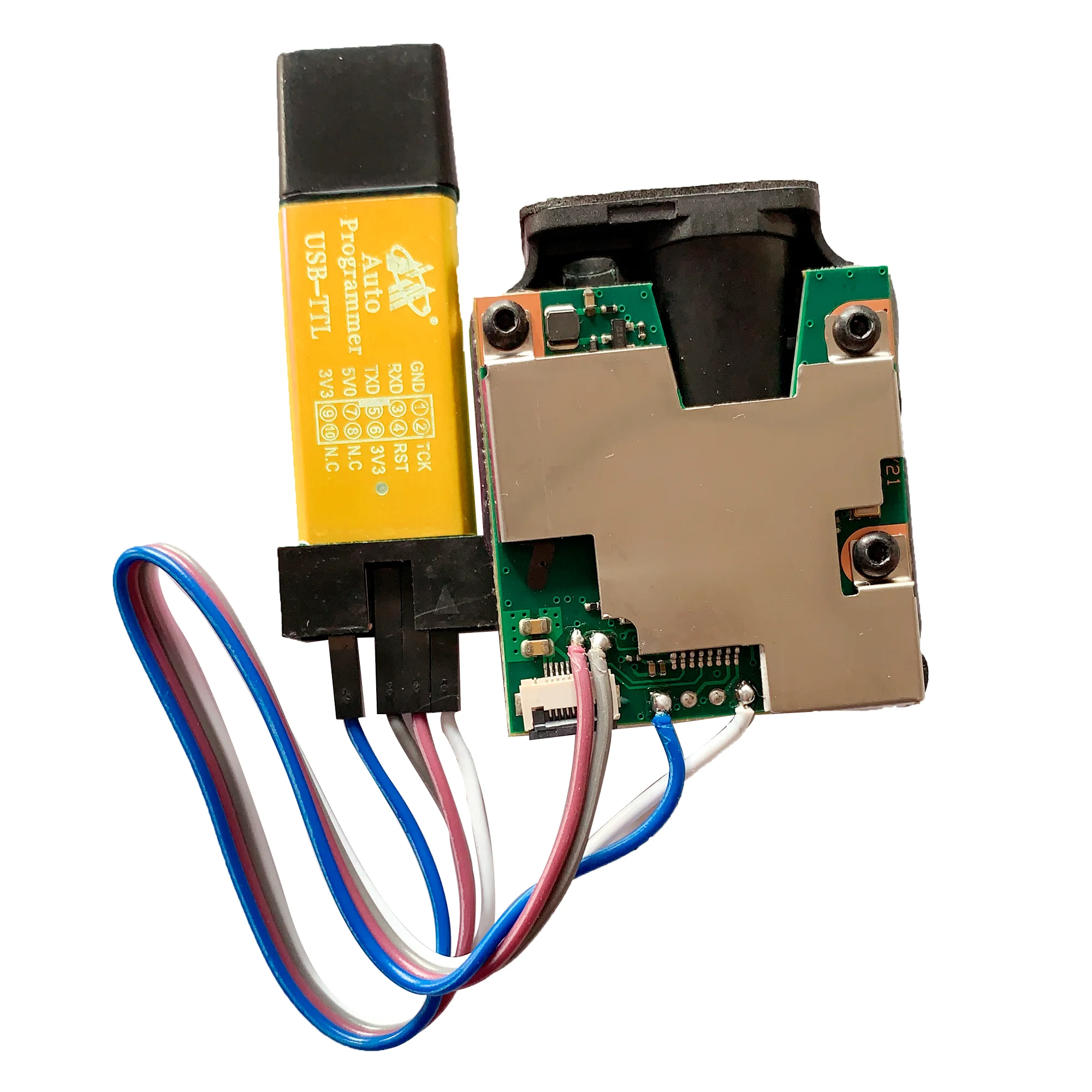

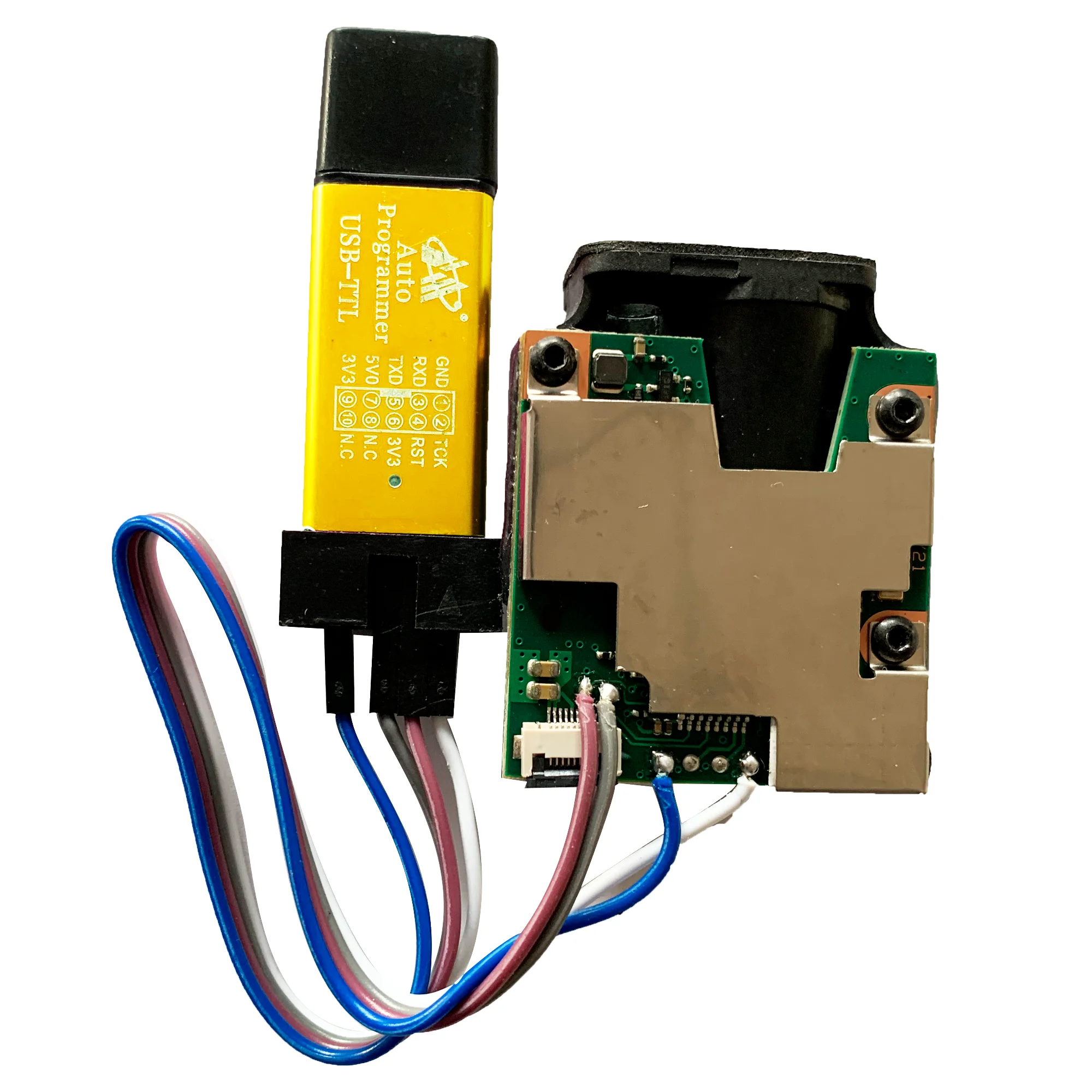

Integrated with PC

Products Integrated

Power range: VCC: 3~3.3VDC, Current:100mA

Remarks:

For different measuring targets and environments, the measurement range may be shortened or the measurement result may be erroneous because of the excessive intensity of ambient light, the excessive or low ambient temperature, the weak or strong reflection of the target, or the rough surface of the target.

Communication protocol for laser ranging module

The baud rate 9600bps,

8-bit data bits,

1 bit start bits,

one-stop bit,

no parity.

ASCII Code

Functional description	Command code	Return code	Remarks
Read parameter	FA 0601 FF	A 0681 ADDR XX XX XX…… CS	Read constant, address, amount of light, temperature
Read machine number	FA 0604 FC	FA 0684 "DAT1 DAT2……DAT16 "CS	DATn is ASCII format
Setting the address	FA 0401 ADDR CS	FA 048181	Successful operation
Setting the address	FA 0401 ADDR CS	FA 848102 FF	Write address error,Return
Distance modification	FA 0406 symbol (positive or negative, The negative and negative 0x2d are positive.0x2b), 0xXX (correction value One byte), CS	FA 04 8B 77	Successful operation
Distance modification		FA 84 8B 01 F6	operation failed
Continuous measurement data set the time interval to return	FA 0405 MeaInterver CS	FA 0485 7D	Successful operation
		FA 848501 FC	Write time interval error
		FA 848501 FA	operation failed
Setting distance Stop point	FA 0408 Position CS	FA 0488 7A	Successful operation
Setting distance Stop point	FA 0408 Position CS	FA 848801 F9	operation failed
Notes: start point and front end option.

Noted:

1. ADDR is a machine address.

2. The position is 1 from the top, 0 from the tail, the default is set to the tail (the program has a distance meter length, from the distance to the top, and then set to the tail).

3.CS is the check byte, which is the sum of all the previous bytes, return to add 1.

4. In the data returned from single and continuous measurements, quotation marks are part of the data in ASCII format

such as 123.456 meters displayed as 31 32 33 2E 34 35 36,

ADDR default value of 80 (128)

The parameter is the command to read data when the factory is set.
