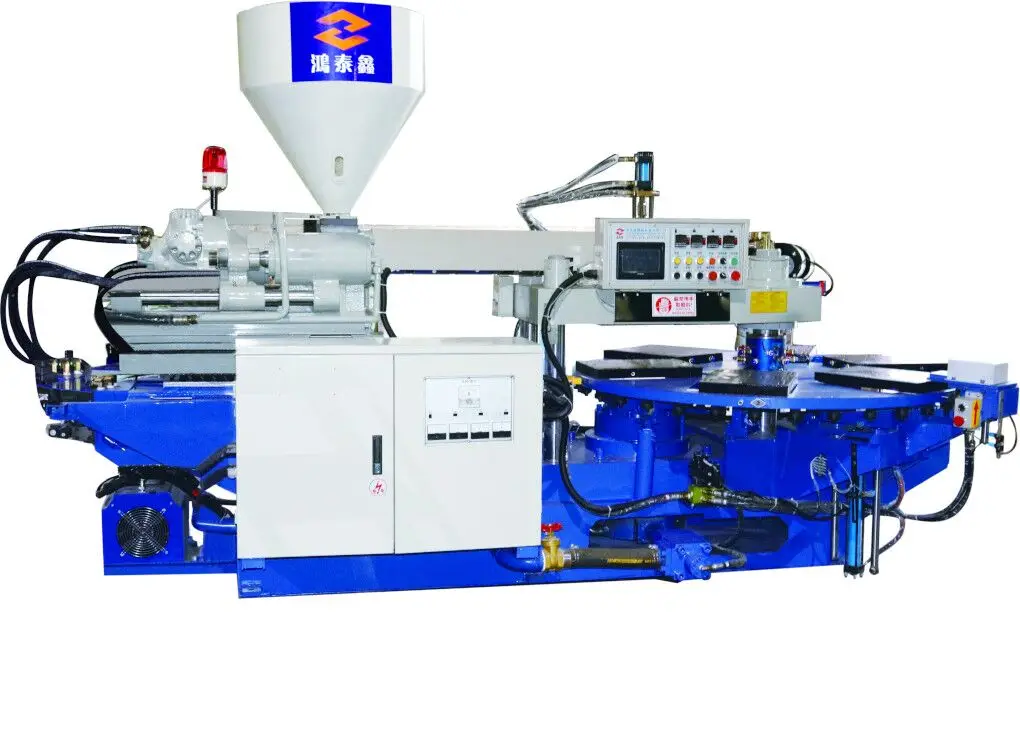

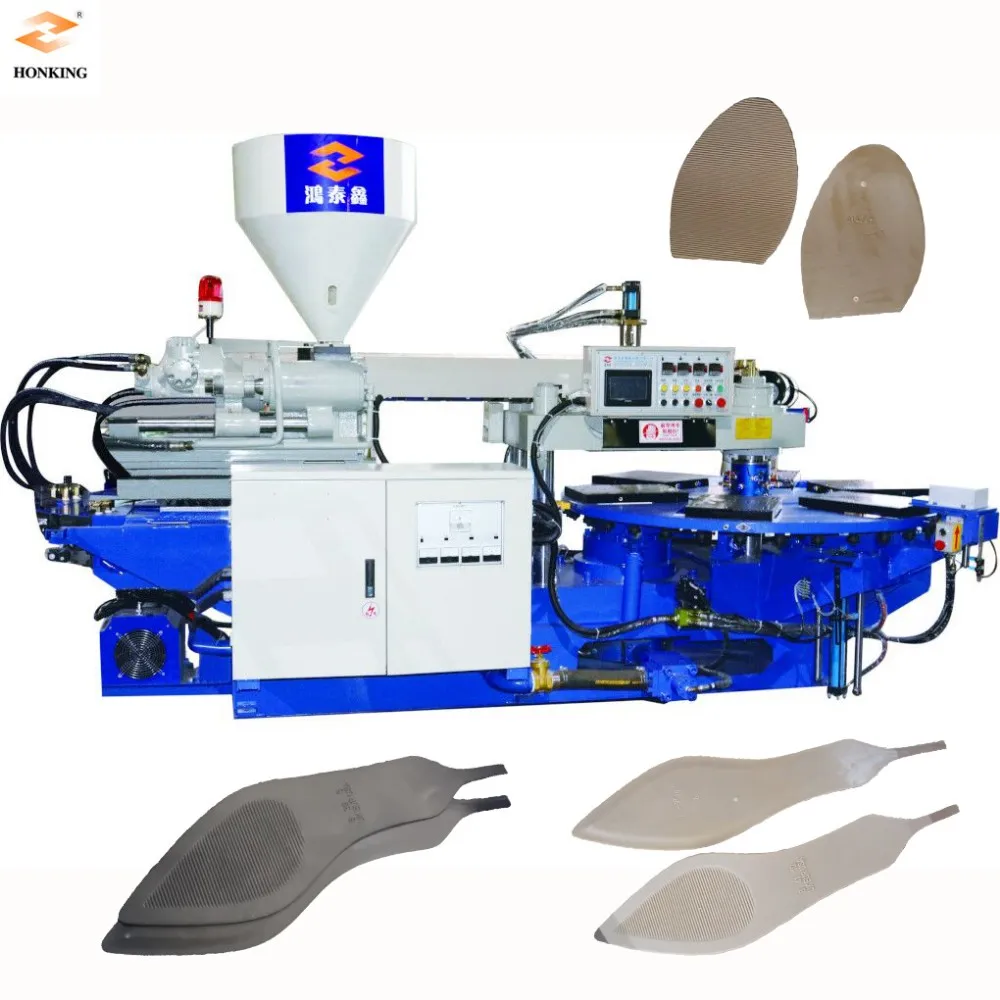

Rotary TPU/TPR/TR soles injection moulding machine with cooling system(4/6 station)

1. This machine is used to TPU/TR/PVC material shoes sole.

2.Special small disc eith four or six station, more flexible on mold, machine bigger oil cylinder, one mould one pair, highte output.

3.Machine tith automatic open mold device, cooling water connect with each mold, better cooling and finalize effect.

4.Injection pressure and speed of each station can be controlled individually according to different materials and molds by PLC system;It can use different molds at the same machine.It saves the time of mold-change and extends the cooling time.

5. Servo system is select-able to save electricity and auto opener is also select-able to save labor. These two items can be selected by customer.

Specifications:

Rotary TPU/TPR/TR soles injection moulding machine with cooling system(4/6 station)

Technical Terms	UNIT	HM-218W
Screw diameter	mm	60/65
Screw rotation speed	r.p.m	0-200
Temperature control	point	4
Injection volume	cm3	800/900
MAX injection stroke	mm	210
Motor	kw	26.5
Clamping force	kg/cm2	120
Work stations	stations	4/6
machine dimension	mm(L*W*H)	3500*2000*2300
Space for mould	mm(L*W*H)	420*300*160
Mechanical Weight	Ton	5.5





please click on the links below to watch the machine working video on YOUKU



(Please copy and paste in broswer)

http://v.youku.com/v_show/id_XNTU0NTM4MzQw.html

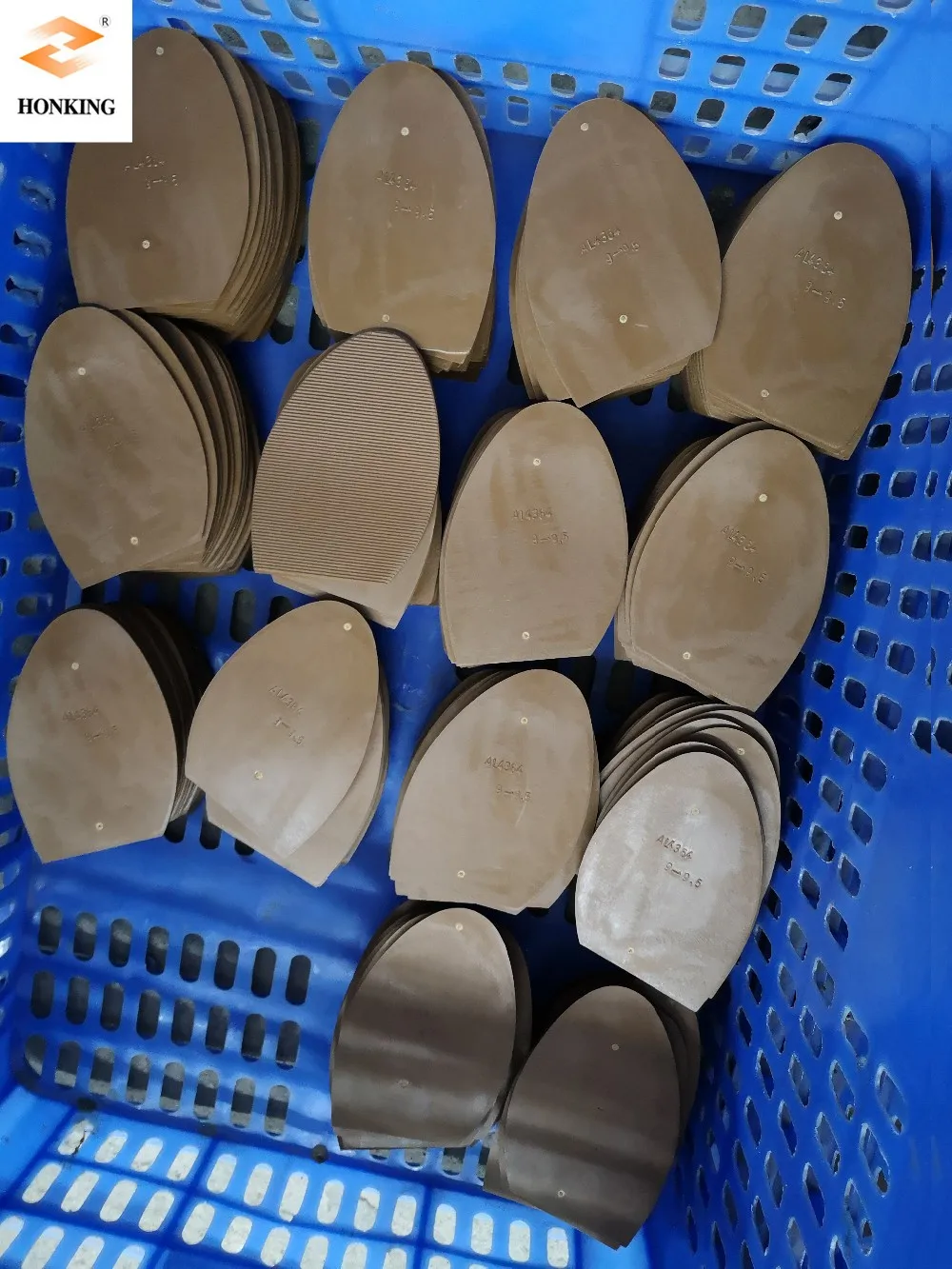

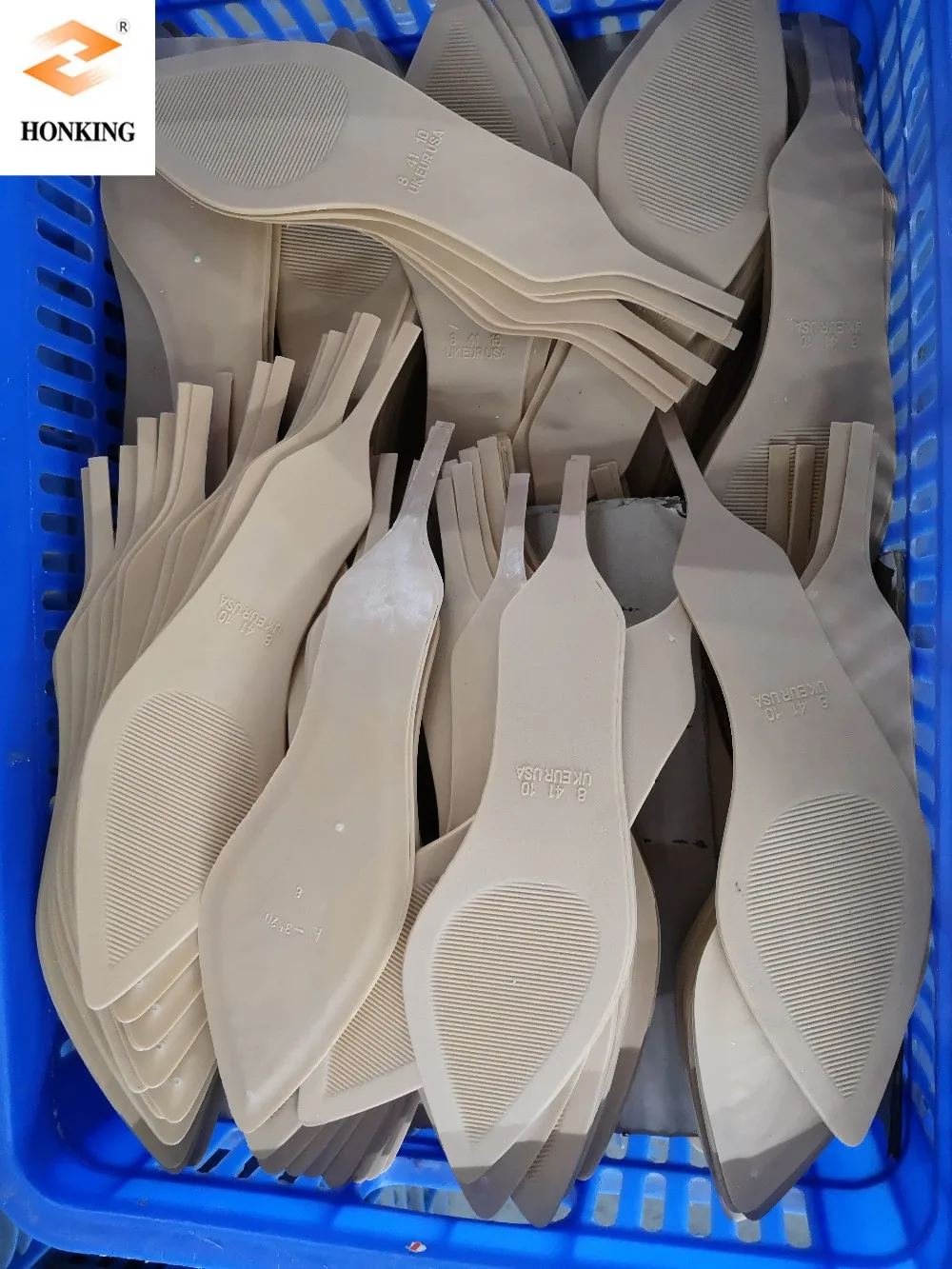

outsole produced by rotary TPU/TPR/TR soles injection moulding machine with cooling system(4/6 station)
