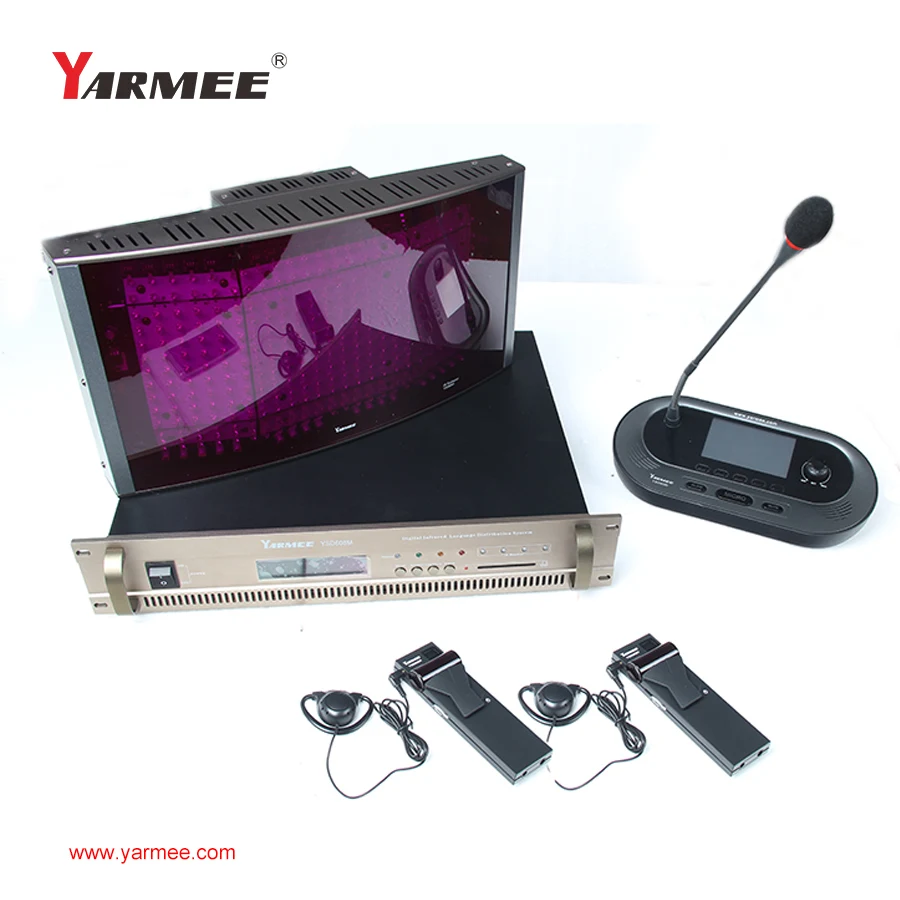

Цифровая инфракрасная Многоязычная машина для одновременного перевода используемая в конференц-зале YARMEE

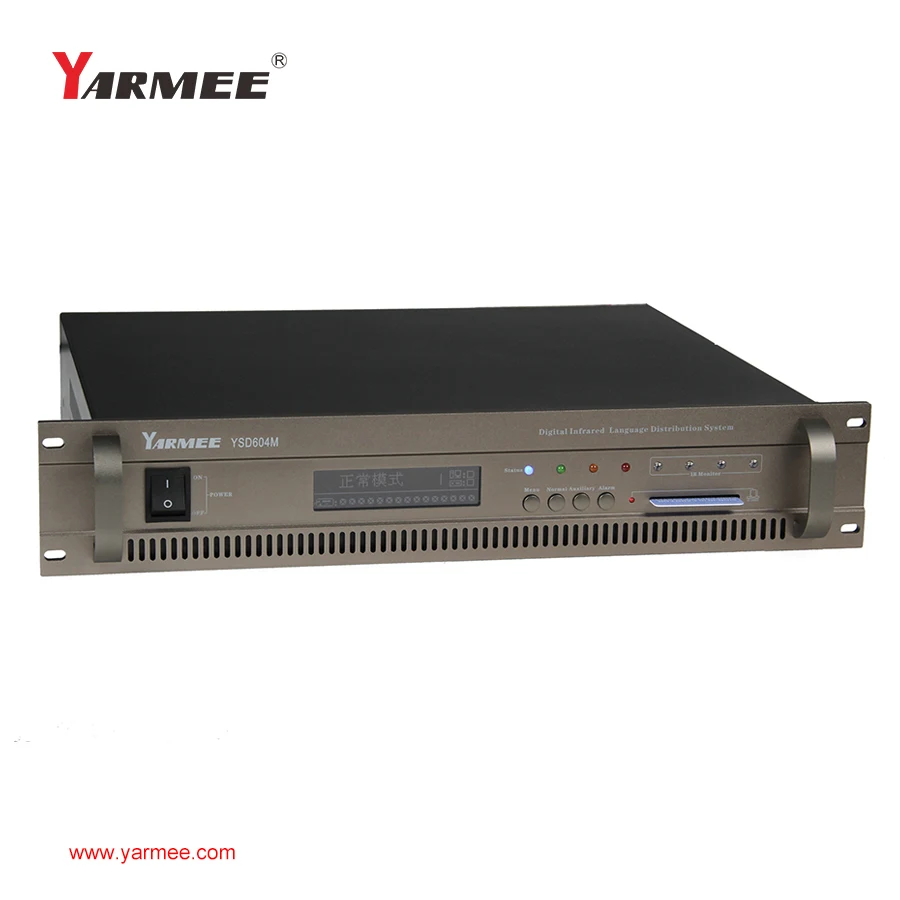

IR Transmission main unit-YSD604M

Features

• Compatible with the latest national standard GB 50524-50524
• Compatible with any other IR system compliant to IEC 61603-7
• Capable 4, 8, 16 or 32 audio channels
• 2 ~ 8 MHZ carrier frequencies, compatible with the international standard spectrum
• Wider signal radiation Angle
• Use filter lens, against noise interference of light effective, work in sunshine, neon lights and complex environment
• Transmission delay compensation function, guarantee proper signals
• Infrared cannot penetrate walls or ceiling, ensure the privacy of the meeting, avoid eavesdropping
• Humanized human-computer interface design, easy to use

Specifications

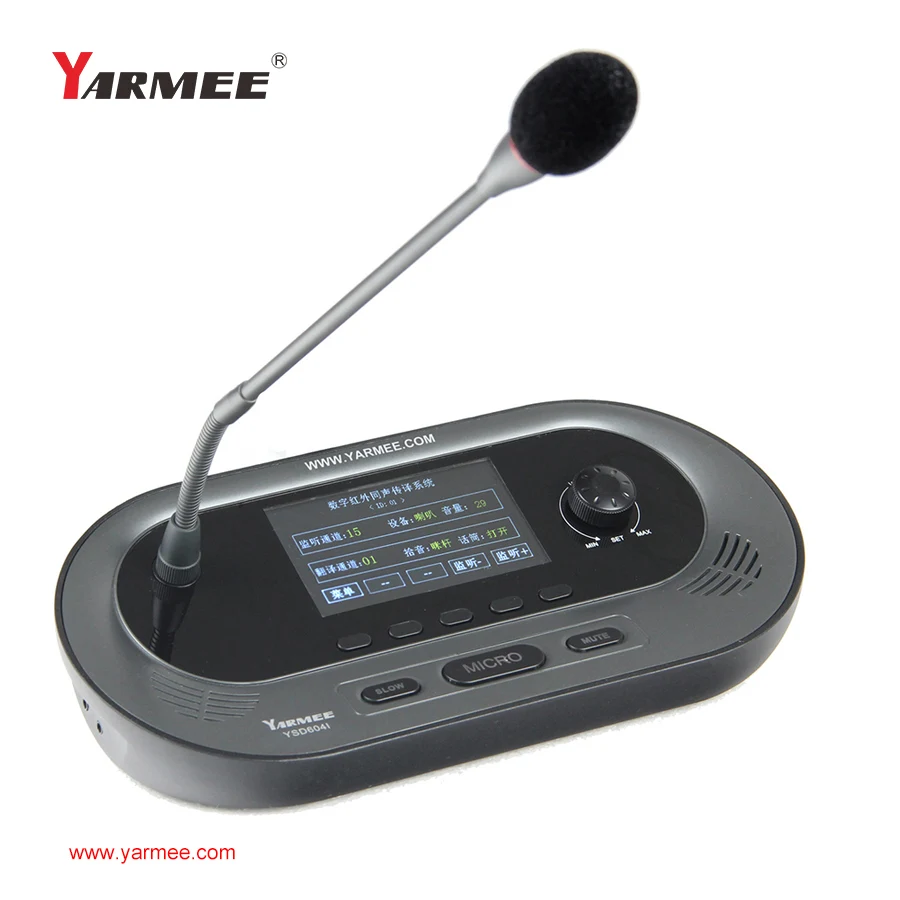

Digital Interpreter Console Unit-YSD604I

Features

• Fully digital design, high sound quality and greatly anti-jamming ability
• Volume adjust and automatic feedback eliminator
• Cough elimination function
• Configurable secondary translation functions, when the translator did not understand the speaker's language, by listening to the other translators transliteration again on the second translation
• Support 4, 8, 12, 16, 32 road audio channel
• Color display, optional headphones and microphones

Specifications

IR Radiator-YSD604X

Features

• Compliant to IEC 61603-7 and IEC 60914
• Immune to interference from HF-driven lighting
• Coverage up to about 50 meters (25 w)
• Hand in hand radiation signal, easy to enlarge the coverage of signal, also be used to configure into many rooms
• Installation: fixed up by bracket or tripod
• Half-transmitting angle: ±22°
• Delay compensation for differences in cable lengths between transmitter and radiators

Specifications

The cross section of the 3-deimensional radiation pattern with the floor of the conference venue is known as the footprint (the white area in the following three figures). This is the floor area in which the direct signal is strong enoug to ensure proper reception, when the receiver is directed towards the radiator. As shown, the size and position of the footprint depends on the mounting height and angle of the radiator.

Rechargeable Storage Box –YSD604C

Features

• 220V ac power supply
• Charges 24 receivers unit per charging
• Draw rod extension and convenient pulley for moving
• Charging protection function and instructions

Specifications
