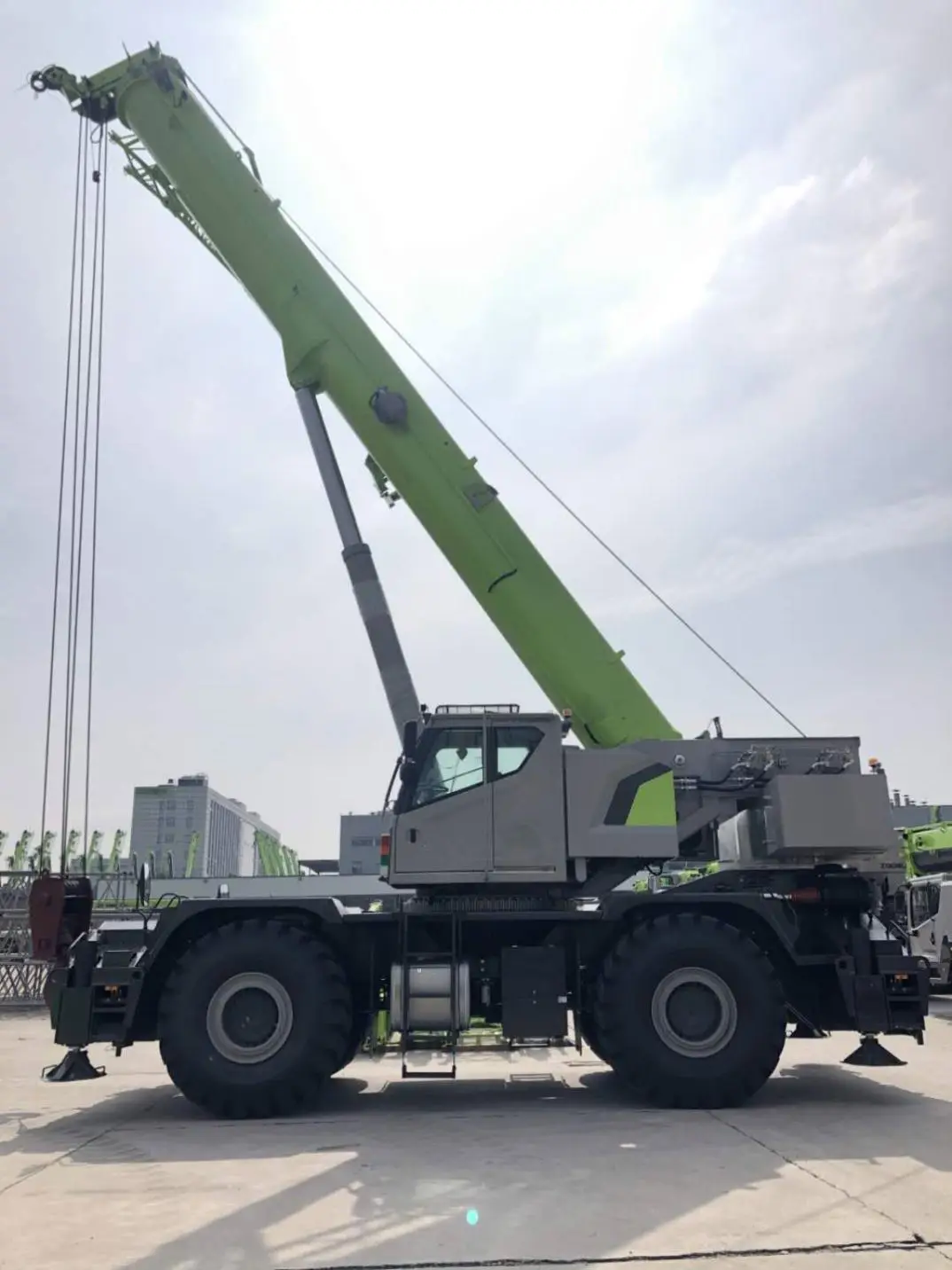

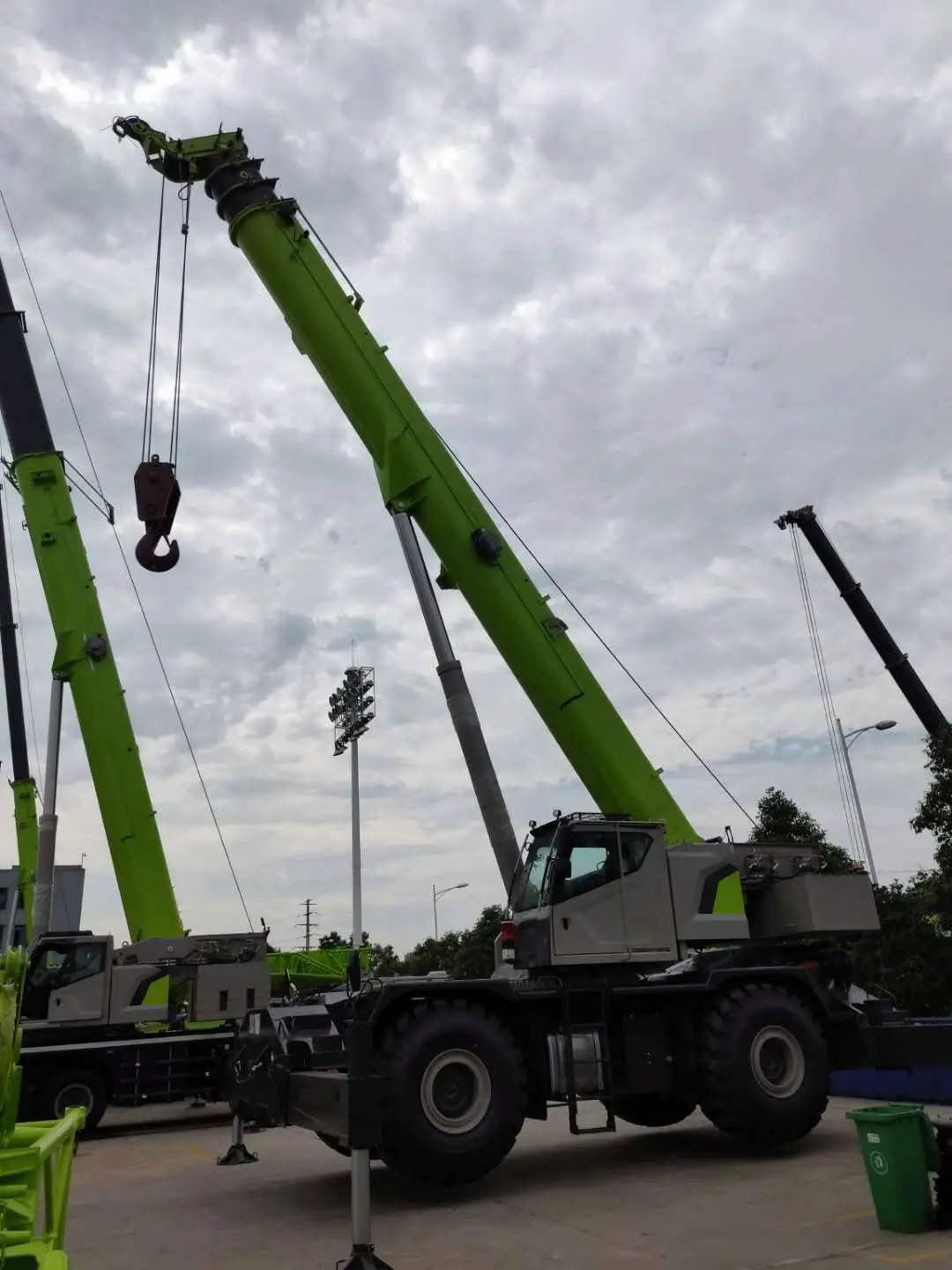

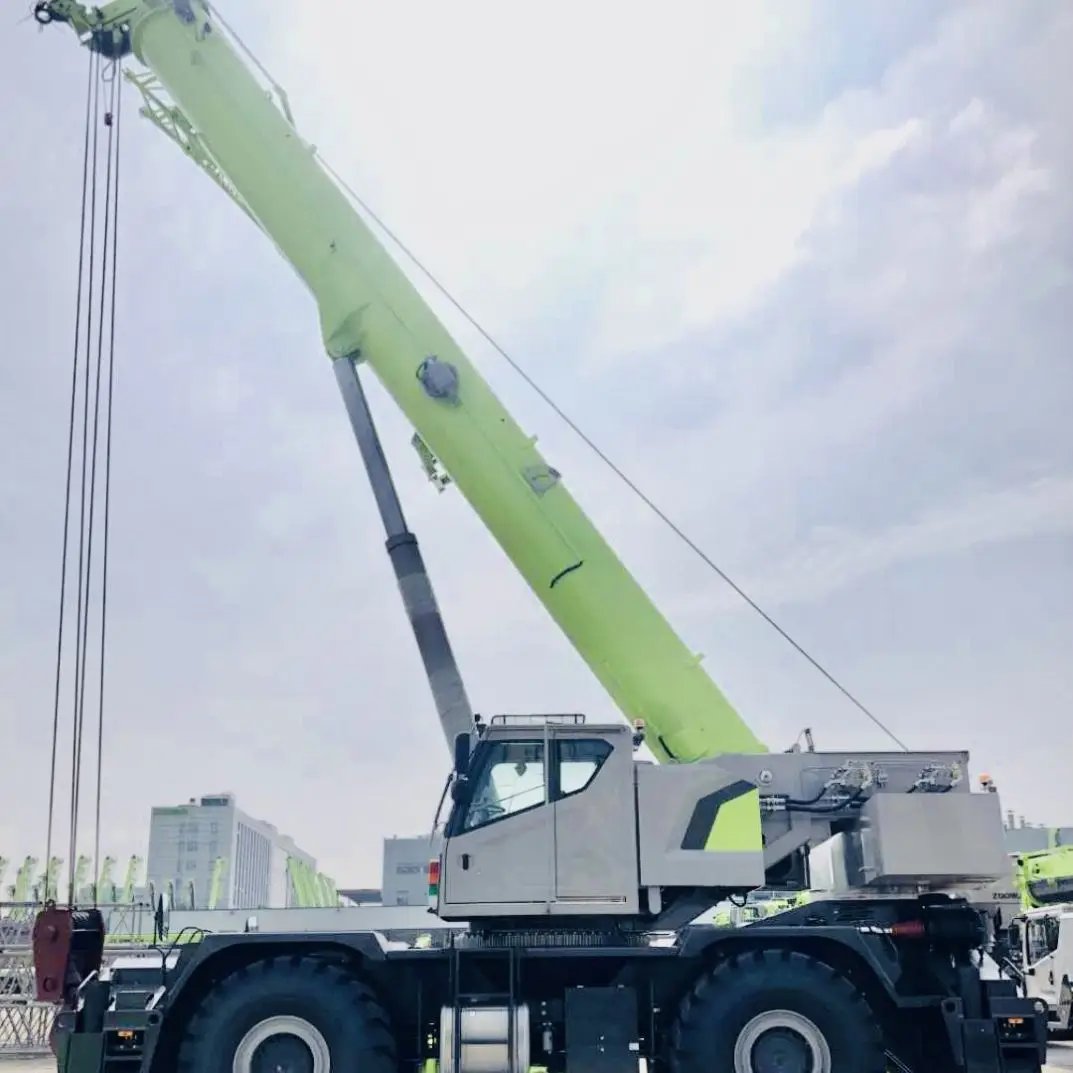

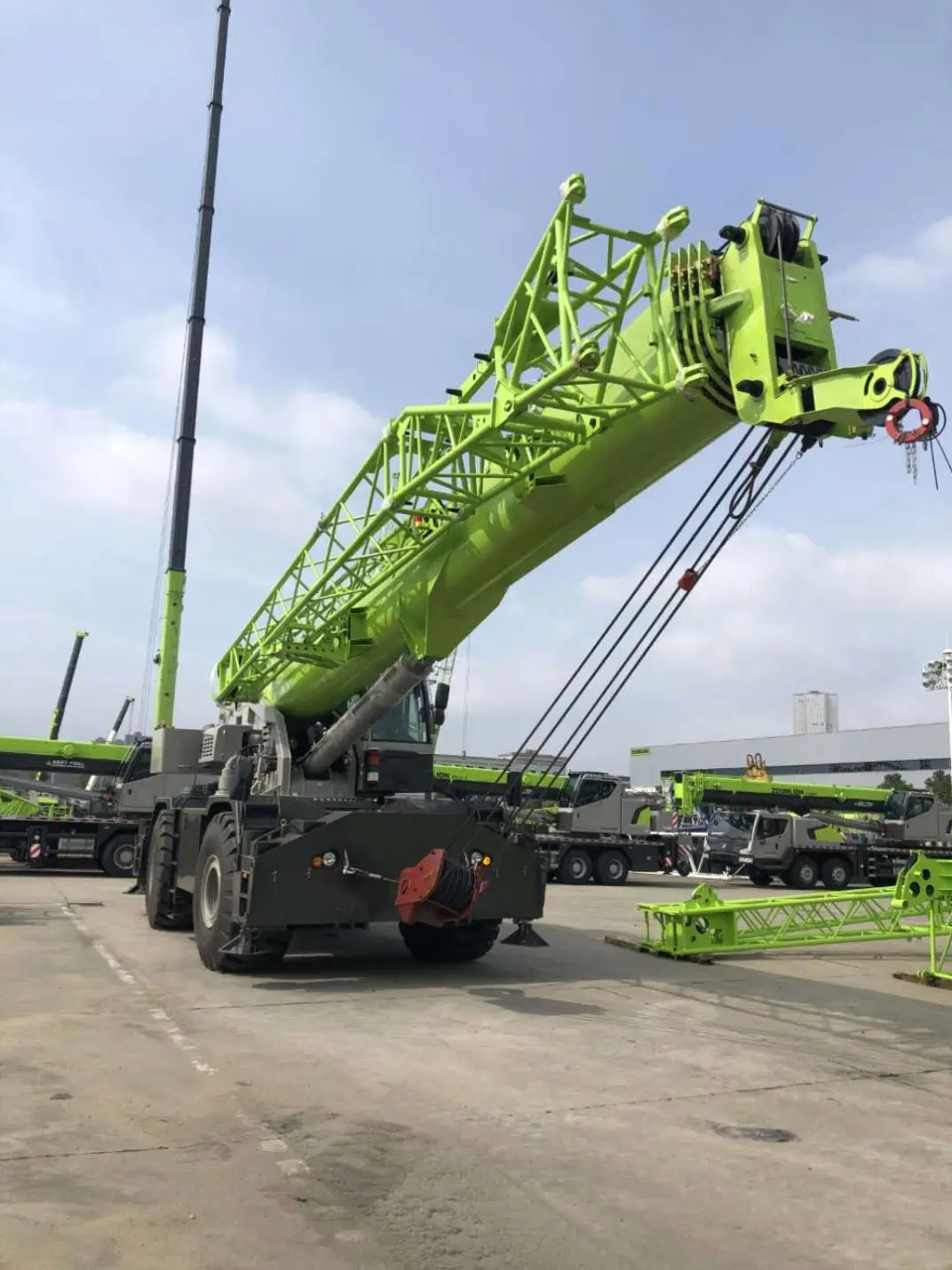

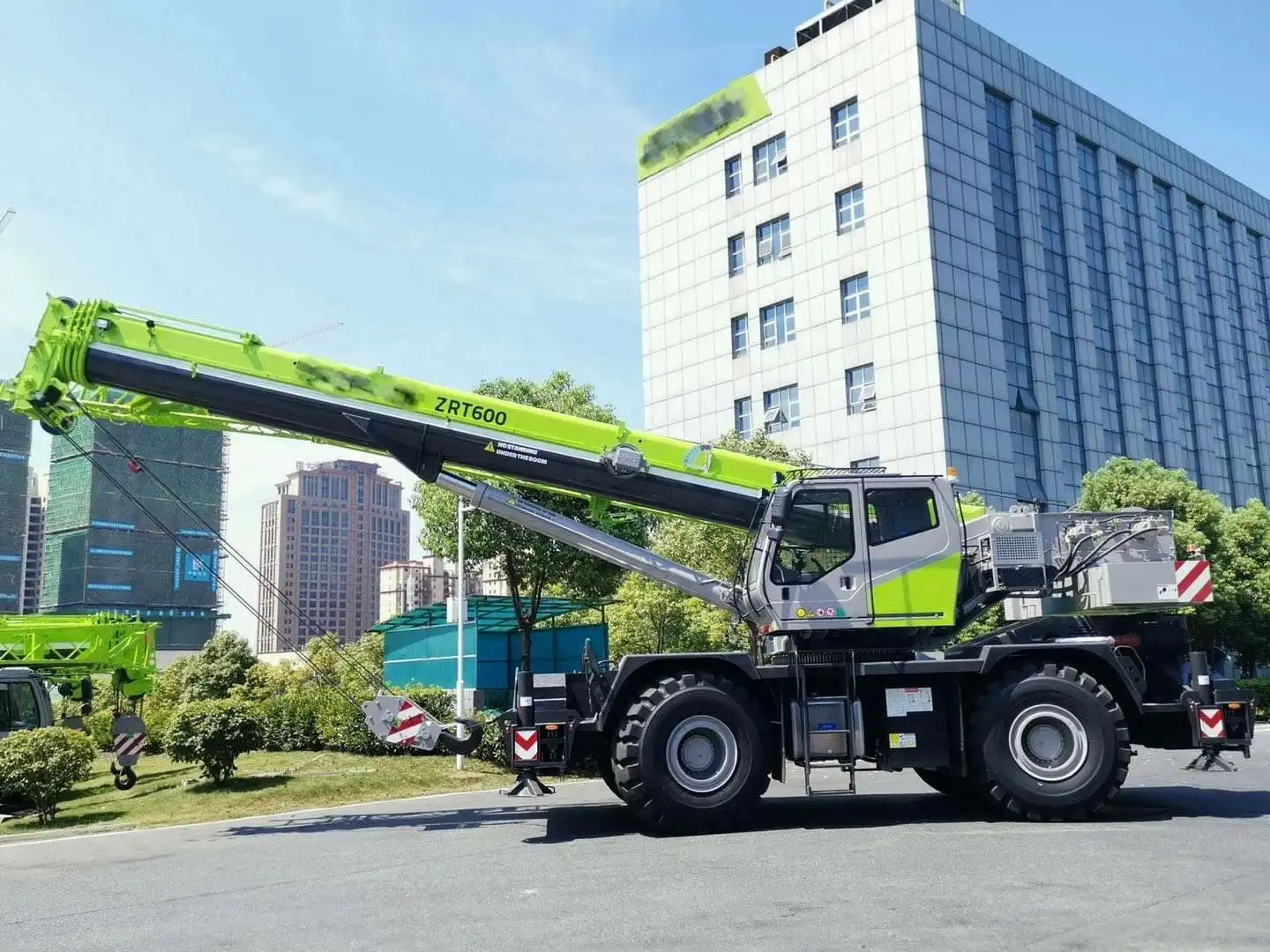

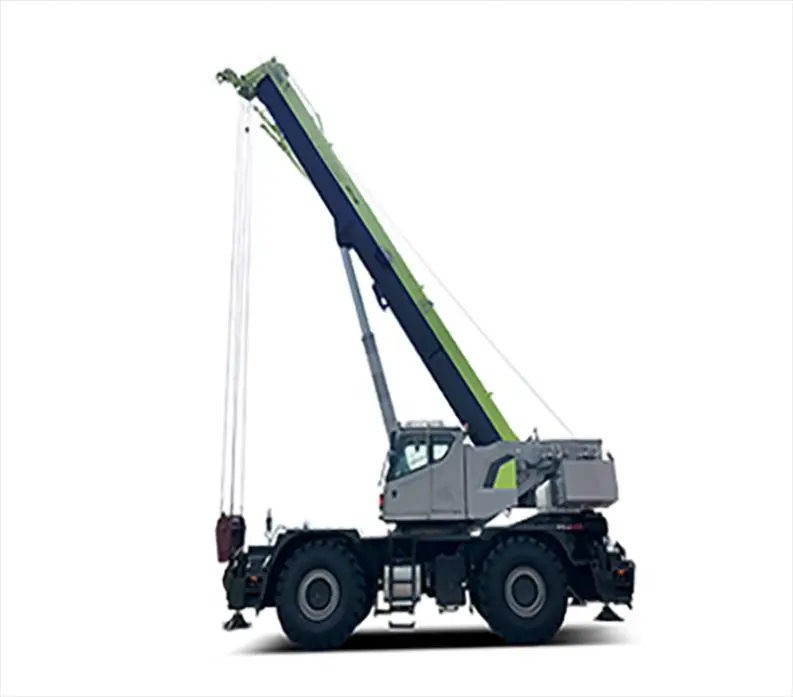

60 Ton Rough Terrain Crane ZRT600 With Excellent Off-road Capability



1.Maneuverable and robust drive
• Four-wheel drive and four-wheel steer chassis;
• Fully hydraulic steering system;
• Variable steering modes, front-wheel steer,four-wheel steer and crab steer; short vehicle length and small turning radius provide the crane with maximum maneuverability and flexibility in narrow job sites

2.Excellent off-road capability
Big ground clearance and departure / approach angle offer excellent off-road capability.

3.Strong gradeability
• electronically-controlled engine, automated transmission and steerable drive axlex provide reliable power output.
• Even in the condition of abrupt road resistance, the engine can also be functional.
• Four-wheel drive, hydraulic suspension and special tires optimize the vehicle’ s drive performance to its maximum, suitable for any bad roads and job sites.

4.Pick-and-carry operations
• The rough terrain crane has the ability to pick and carry loads, thus improves the working efficiency greatly.
• The crane can also carry out”On tires“Lifts without extending the outrigger beams in narrow job sites.
• Superior pick-and-carry ability during short-distance transit can bring great convenience to the users.

5.Single cab design
• Single cab design with large skylight provides large field of view;
• Air-cushioned seat suits to all types of figures, which can release the driver’ s or operator’ s fatigue, thus improves the working efficiency;
• The crane is fitted with air conditioning, suitable for all-weather work;
• Digital display and keyboard units, advanced data bus technology, error check and audible & acoustic alarm ensure the safety and high efficiency of the operation.



Item	Unit	Value
Work    performance	Max.    rated lift capacity × work radius	kg.m	60000×2.8
	Max.    load moment of basic jib	kN.m	1991
	Max.    load moment of max. length main boom	kN.m	1166
	Max.    lifting height of  max. length main    boom	m	45.4
	Max.    lifting height of jib	m	62.2
Dimensions	Overall    dimensions(L×W×H)	mm	13662×3300×3750
	Distance    between outriggers (Longitudinal × transversal)	mm	6900×6900
	Main    boom length (Completely retracted - completely extended)	mm	11400    - 43000
	Jib    length (Jib section 1,jib sections 1+2)	mm	10000-17000
	Boom    angle	°	-3    - 78
	Swing    range	°	360°unlimited    swing(Full range)
Work    Speeds	Max.    hoist rope speed (Main winch)	m/min	150
	Min.    boom telescoping out time	s	140
	Min.    boom telescoping in time	s	120
	Min.    boom up time	s	60
	Min.    boom down time	s	65
	Swing    speed	r/min	0-2
Hydraulic    system	Rated    working pressure	MPa	28
	Rated    working flow	L/min	400
	Hydraulic    oil tank capacity	L	730
Mass	Complete    vehicle kerb mass	kg	44260
	Front    axle load	kg	25220
	Rear    axle load	kg	19040
Driving	Max.    driving speed (Forwarsd / backwards)	km/h	39
	Wheelbase	mm	3950
	Treads    (Front / rear)	mm	2605
	Max.    gradeability	%	75
