Лидер продаж в Китае гидравлический листогибочный станок Yangli для обработки
- Категория: Кромкогибочный пресс >>>
- Поставщик: Suzhou,Candas,Import,And,Export,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 40460.93 $* | 42483.67 $* |
| Aug-16-2025 | 40120.14 $* | 42126.94 $* |
| Jul-16-2025 | 33660.85 $* | 35343.62 $* |
| Jun-16-2025 | 39440.21 $* | 41412.8 $* |
| May-16-2025 | 34340.50 $* | 36057.12 $* |
| Apr-16-2025 | 38760.74 $* | 40698.14 $* |
| Mar-16-2025 | 38420.24 $* | 40341.94 $* |
| Feb-16-2025 | 38080.82 $* | 39984.96 $* |
| Jan-16-2025 | 37740.66 $* | 39627.29 $* |
Характеристики
Product Description

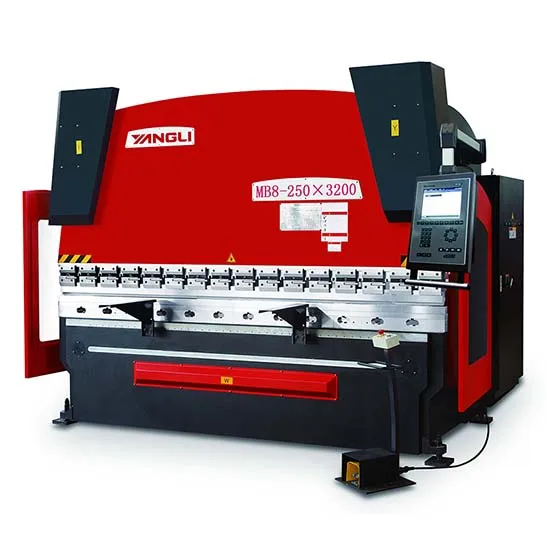

MB8 series CNC bending machine
Advantages
（1）Dual cylinders synchronous controlled by electro-hydraulic servo valve
（2）Hydraulic automatic compensation system

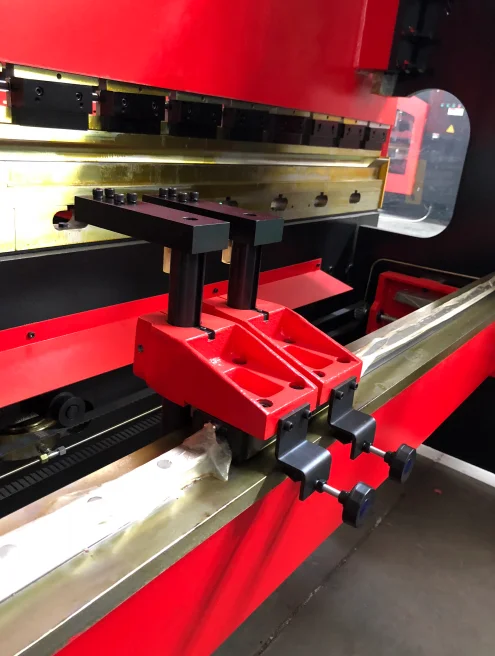

（3）Back gauge device controls multi back gauge shafts
（4）Steel welded frame with tempering treatment

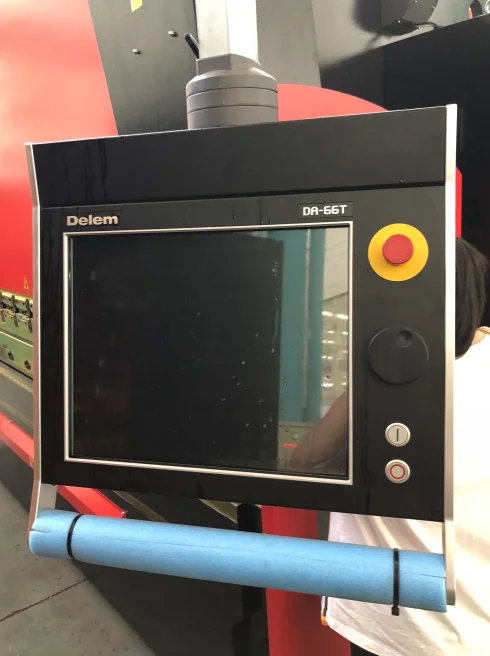

（5）DELEM (Holland) DA56/DA66T/DA52 CNC system with manual and graphic display

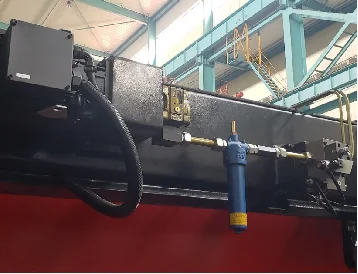

（6） Integrated hydraulic control system and imported seal rings

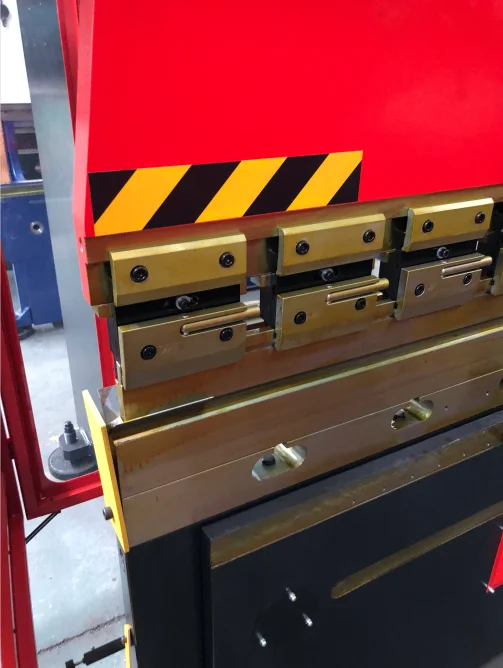

（7） With upper die quick clamp device
Technical Parameters
Press specification | ||||||||||||||||||
MB8-63*1500 | MB8-63*2500 | MB8-100*3200 | MB8-100*4200 | MB8-160*3200 | MB8-160*4200 | MB8-250*3200 | ||||||||||||
Nominal force | KN | 630 | 630 | 1000 | 1000 | 1600 | 1600 | 2500 | ||||||||||
Max. bending length | mm | 1500 | 2500 | 3200 | 4200 | 3200 | 4200 | 3200 | ||||||||||
Between columns | mm | 1100 | 2060 | 2700 | 3700 | 2700 | 3700 | 2700 | ||||||||||
Max. shut height | mm | 430 | 430 | 480 | 480 | 480 | 480 | 480 | ||||||||||
Slide stroke | mm | 200 | 200 | 200 | 200 | 200 | 200 | 200 | ||||||||||
Throat depth | mm | 370 | 370 | 400 | 400 | 400 | 400 | 400 | ||||||||||
Bolster width | mm | 150 | 150 | 200 | 200 | 200 | 200 | 200 | ||||||||||
Down speed | mm/s | 100 | 100 | 100 | 100 | 100 | 100 | 100 | ||||||||||
Pressing speed | mm/s | 10 | 10 | 10 | 10 | 10 | 10 | 10 | ||||||||||
Return speed | mm/s | 80 | 80 | 80 | 80 | 100 | 100 | 100 | ||||||||||
Back gauge stroke | mm | 500 | 500 | 500 | 500 | 500 | 500 | 500 | ||||||||||
Outline dimension | Length | mm | 1825 | 2825 | 3500 | 4500 | 3500 | 4500 | 3500 | |||||||||
Width | mm | 1650 | 1650 | 1650 | 1650 | 1650 | 1650 | 1730 | ||||||||||
Height | mm | 2600 | 2430 | 2540 | 2540 | 2580 | 2580 | 2580 | ||||||||||
Weight | KG | 4600 | 5600 | 8000 | 9500 | 10000 | 12000 | 15000 | ||||||||||
