Высокоскоростная купольная камера IP68 PTZ с оптическим зумом Взрывозащищенная морская защита от коррозии из нержавеющей стали 5 0 МП 36X IP

Описание и отзывы

Трекер стоимости

Характеристики











Technial Features:







Camera:
1.1/2.8” 5.0M Pixel  CMOS
2.36X optical zoom, auto focus
3.5.0MP available
4.True Day/Night, 3D DNR, Digital WDR
5.Backlight compensation, and auto gain control (AGC)



Network Features:
1.Main Stream:(2592*1944)1-15fps; (2592*1520)1-16fps; (2304*1296)1-25(30)fps; (1920*1080)1-25(30)fps;

(1280*960)1-25(30)fps; (1280*720)1-25(30)fps
2.Support the P2P or Android, IOS
3.Support Onvif2.4
4.H.265 main profile/H.264 main profile & M-JPEG Dual-stream Encoding ,Three Simultaneous video streams
5.Standard SDK,CGI,easily to be integrated with other digital systems
6.Support a variety of network protocol such as TCP/IP/ HTTP/ NTP/ IGMP/

DHCP/ UDP/ SMTP/ RTP/ RTSP/ ARP /DDNS /DNS/ P2P



Dome Features:
1.Corrosion Proof and Marine Corrosion stainless steel—by SUS316L material
2. NEW 32 bit processor, with soft ID, more storage space, higher speed, better performance, lower consumption
3. Highest ESD protection against lightning and power surges.
4. 360° continued rotation, manual pan speed 0~300°,manual tilt speed 0~120°
5. Preset speed 400°/S, Preset Accuracy ±0.10°
6. Tilt range:0~90°(Auto flip)

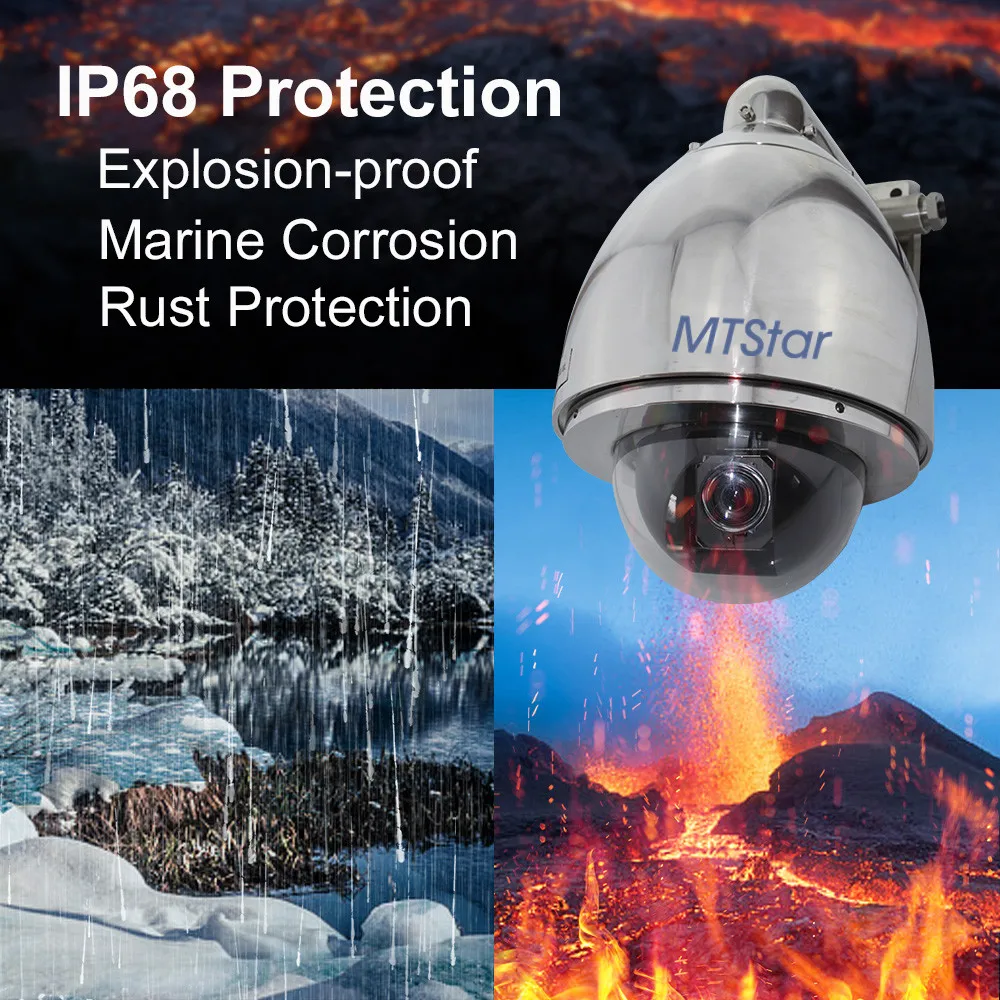

7. Explosion-proof ,Marine Corrosion ,Rust Protection Stainliess steel PTZ , waterproof , weatherproof , IP68





Form parameters

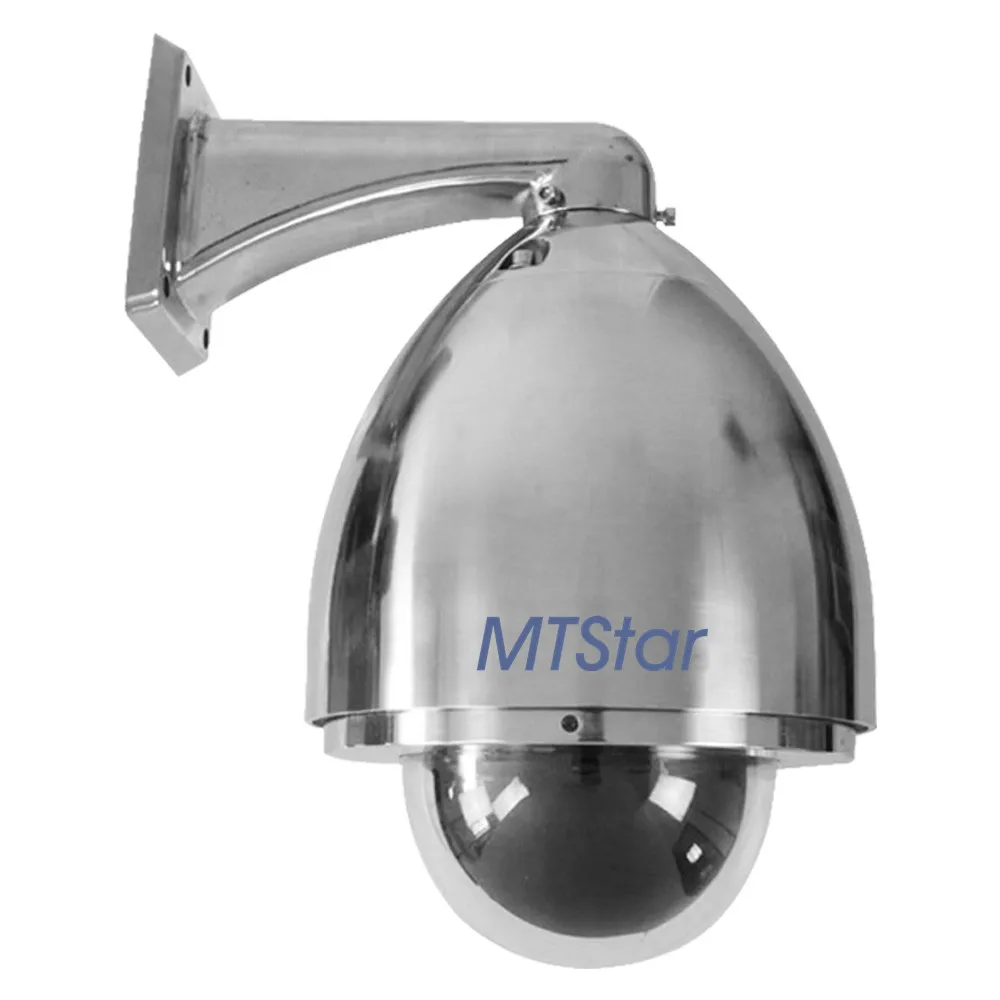

Mode	Name and Description	H.265 5.0MP HD IP High Speed Dome Camera Explosion-proof ,Marine Corrosion  , Rust Protection Stainliess steel PTZ , IP68
		ASIH609L-036-3535
Camera	Image Sensor	1/2.8” 5.0M Pixel Sony IMX335 CMOS
	Effective Pixels	5.0 Mpixes
	Min. Illumination	Color:0.1Lux@(F1.6, AGC ON) B/W: 0.01Lux@(F1.6, AGC ON)
	Zoom	36X ,  f=4.6mm~167mm, D/N( ICR-Cut) ,F1.6~F3.0
	Day/Night	Day / Night / External control(IR Cut Filter)
	SNR	≥46dB(AGC OFF)
	WDR	Digital WDR,≥70dB
	AGC	Auto / Manual
	White balance	Auto/Manual /ATW/Indoor/Daylight lamp/Sodium lamp
	Digital noise Reduction	DNR,3DNR
	Shutter speed	1/2 - 1/20,000s
Network	Video Compression	H.265 Main Profile/H.264 Main Profile/M-JPEG
	Streams	Dual streams
	Frame Rate	Main stream:
		2592*1944, 1-15fps;  2592*1520, 1-16fps;  2304*1296, 1-25(30)fps;  1920*1080, 1-25(30)fps; 1280*960, 1-25(30)fps; 1280*720, 1-25(30)fps
		Sub-stream:
		640*480, 1-25(30)fps; 480*360, 1-25(30)fps; 352*288, 1-25(30)fps;  320*240, 1-25(30)fps; 176*144, 1-25(30)fps;
		MJPEG:
		1920x1080, 1280x960, 1280x720, Close
	Bitrate	CBR/VBR, bitrate:32Kbps~10Mbps variable
	Audio Compression	G711,PCM
	P2P	Android,IOS
	Protocols	TCP/IP/ HTTP/  NTP/ IGMP/  DHCP/ UDP/ SMTP/ RTP/ RTSP/ ARP /DDNS /DNS/ P2P
	Motion detect	Support
	Privacy Zone Masking	Support
	Onvif	Onvif 2.4
	Network	10/100M Base-TX Ethernet, RJ45 Connector
	Mini SD Card	Up to 128GB(Optional)
Dome Features	CPU Type	32 bit ARM CPU
	Address	0~255(soft address and hard address)
	Pan Range	360° continued rotation
	Tilt Range	0~90°(Auto Flip)
	Manual pan speed	0.1~300°/S
	Manual tilt speed	0.1-120º/S
	Preset speed	400°/S
	Actual preset Accuracy	±0.10°
	Preset points	128
	Other function	6Tour, Intelligent Three dimensional Scan, 3Pattern group , Operation recall, Manual continued Auto Scan
	Intelligent power off real time memory	automatic save functions setting ,automatic wake up tour function
General	Work temperature	External–40℃~60℃
	Work Humidity	0%~90% (Non condensing)
	Power	AC24V±10%;2.5A
	Consumption	24W





About Anxinshi:



Anxinshi specializes in security surveillance products manufacturing and integrate development, production, sales and service. We focus on intelligent digital network video surveillance products, especially PTZ cameras, IP cameras, and 4K IP camera with analysis function. We dedicate in offering professional products and customized system solutions to meet various demands. You can get integrated service of system design, product manufacturing and assembly, as well as sales and trade cooperation.



Our factory&Trade Shows:











Certification:





1. About the sample: How could I get a sample?

Once receive your payment for samples and their express delivery and then send samples

to you. The prices of the samples are the same as those on the pricelist. Express delivery

charge depends on the quantity of the samples.



 2. About price list: can I get your price list?

Yes, please tell us the products (with their code number) and order quantity, then we will

offer the price by e-mail. And our price list will keep updated every month.



 3. About the shipment: what type of shipment will you use?

We usually ship the products by express delivery to your door or by air freight to your nearest

airport. If the order quantity is large, we may ship by sea container.



 4. About payment: what terms of payment do you use?

We accept TT (Telegraphic Transfer,MoneyGramor Western Union as payment term for small order and L/C for larger order.



 5. About the MOQ: What is your minimum order qty?

Our minimum order qty is 20pcs each model, but we accept small order as trial order.



6,About compensation: what is your company's compensation policy?

We can compensate buyer's loss if our products have quality problem. For small qty

problem products, we can replace with new products in next order. For larger qty problem

products, we can accept returned problematic products, then we check them and replace

 them by good quality products.



7. About sole-distributor: How can I be your sole-distributor?

We have special policy for sole-distributor. Please contact our sales person to get related files.



8. About OEM: could we place order by OEM style to produce our own brand products in China?

Of course you can. Welcome to do OEM.
