Станок с ЧПУ для намагничивания статора

Описание и отзывы

Трекер стоимости

Характеристики

1.       It is customized for Magneto Stator of Motorcycle.

2.       The model is Meteor original. We have been refining it for 10 years to make it perfect.

3.       It is applicable for the production mode of “Multi-type & small batch”. The  quick-change tool transfer system solved the problem of "multi-objective production" to vastly reduce down-time for specification changeovers

4.       All the key parts are imported from Japan, Italy and US including Panasonic servo system,SKF bearing ,Unitta Belts,SUNX sensor and CKD/SMC Pneumatic parts.

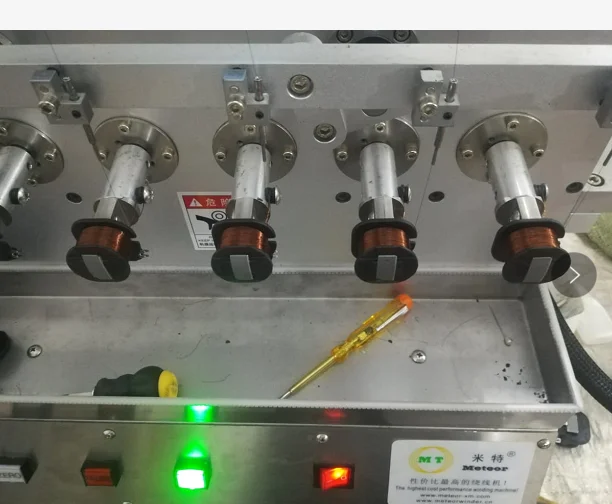

5.       The motion of traverse,winding, twisting are all driven by servo motors. The precision rolled ball screw works together with the servo motor to make sure the traverse motion is uniform and flat

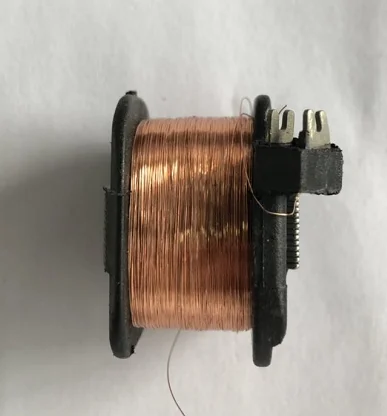

6.       It best fit for the winding of coil of 13F relay and one operator can take care of 2-3 machines.

7.       Consideration ease of operation and maintenance, this machine has a simple construction by reduction of the total number of parts. In addition, the total machine footprint is compact.

 Specifiction:

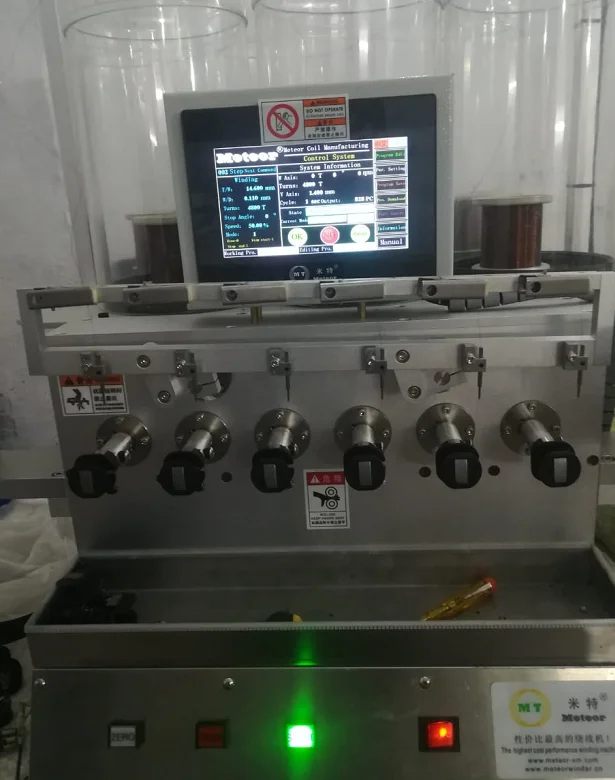

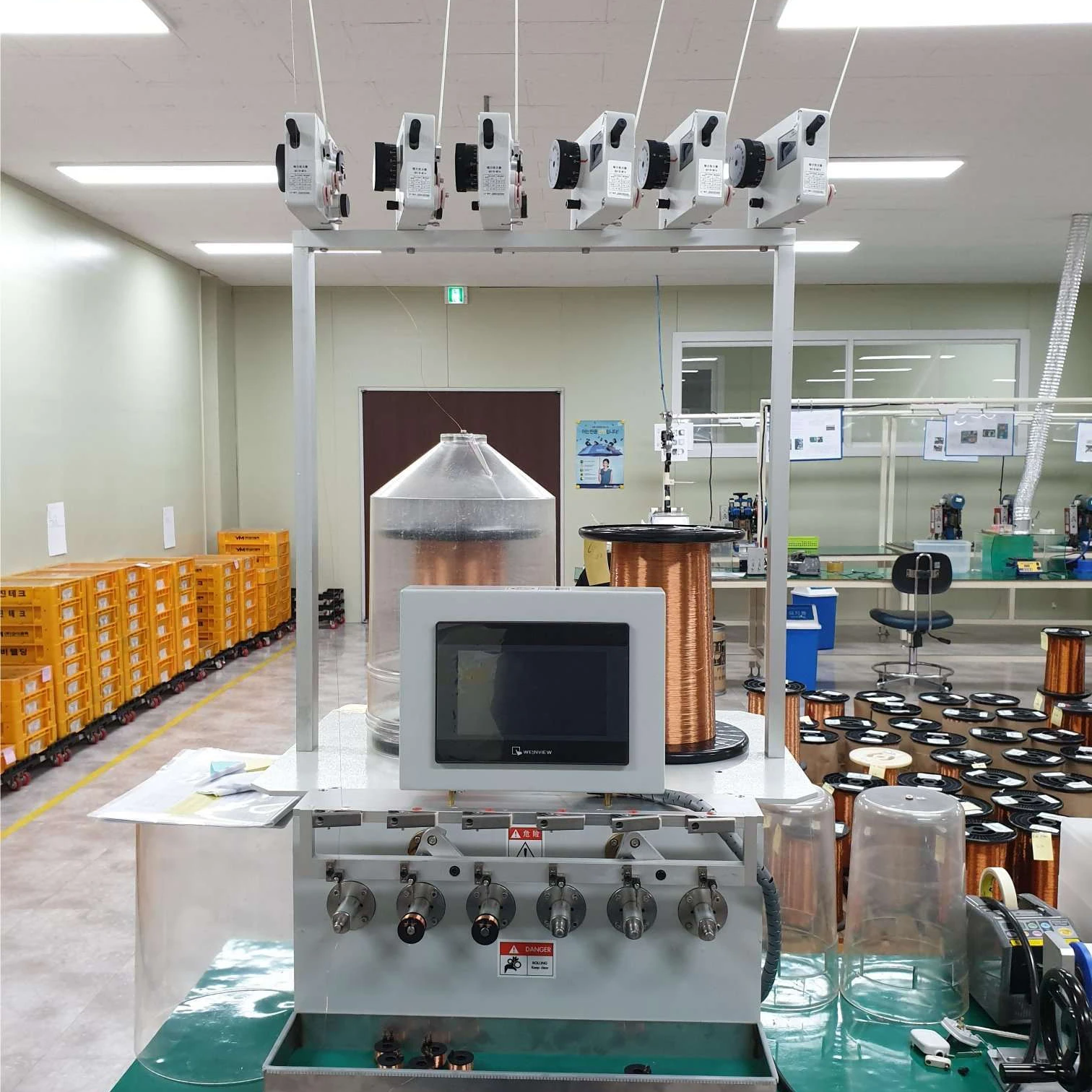

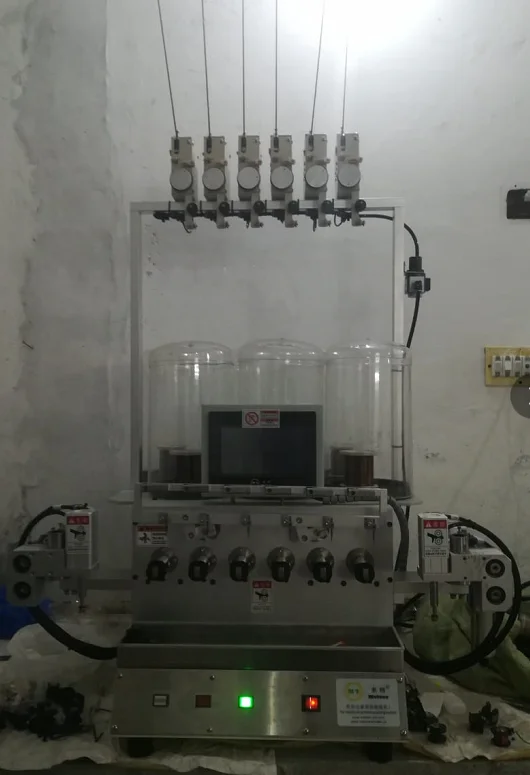

Model #	MTW-0672
Spindle number	6
Spindle speed	15,000RPM
Spindle pitch	72mm
Wire range	0.25-1.5mm
Max. coiling diameter	70mm
Max. coiling width	1-80mm
Power consumption	2500 w
Machine size	520mm(W)×580 mm(D)×1200 mm(H)
Machine weight	85 kg
Air pressure	0.49-0.59mpa

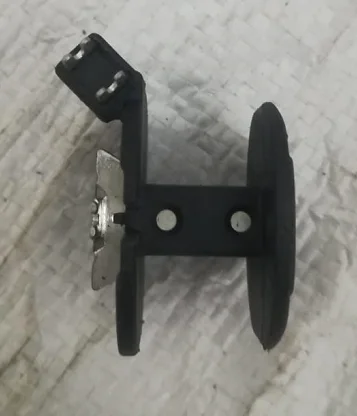

Application:
