G-600 Универсальный пистолет шлифовальный станок высокоэффективный сверлильный для заточки
- Категория: Жернов >>>
- Поставщик: Dezhou,Drillstar,Cutting,Tool,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 1488.2 $* | 1562.14 $* |
| Aug-20-2025 | 1475.61 $* | 1549.85 $* |
| Jul-20-2025 | 1238.85 $* | 1300.3 $* |
| Jun-20-2025 | 1450.70 $* | 1523.54 $* |
| May-20-2025 | 1263.2 $* | 1326.63 $* |
| Apr-20-2025 | 1425.67 $* | 1496.34 $* |
| Mar-20-2025 | 1413.63 $* | 1484.33 $* |
| Feb-20-2025 | 1400.26 $* | 1470.95 $* |
| Jan-20-2025 | 1388.24 $* | 1457.78 $* |
Характеристики
Product Description

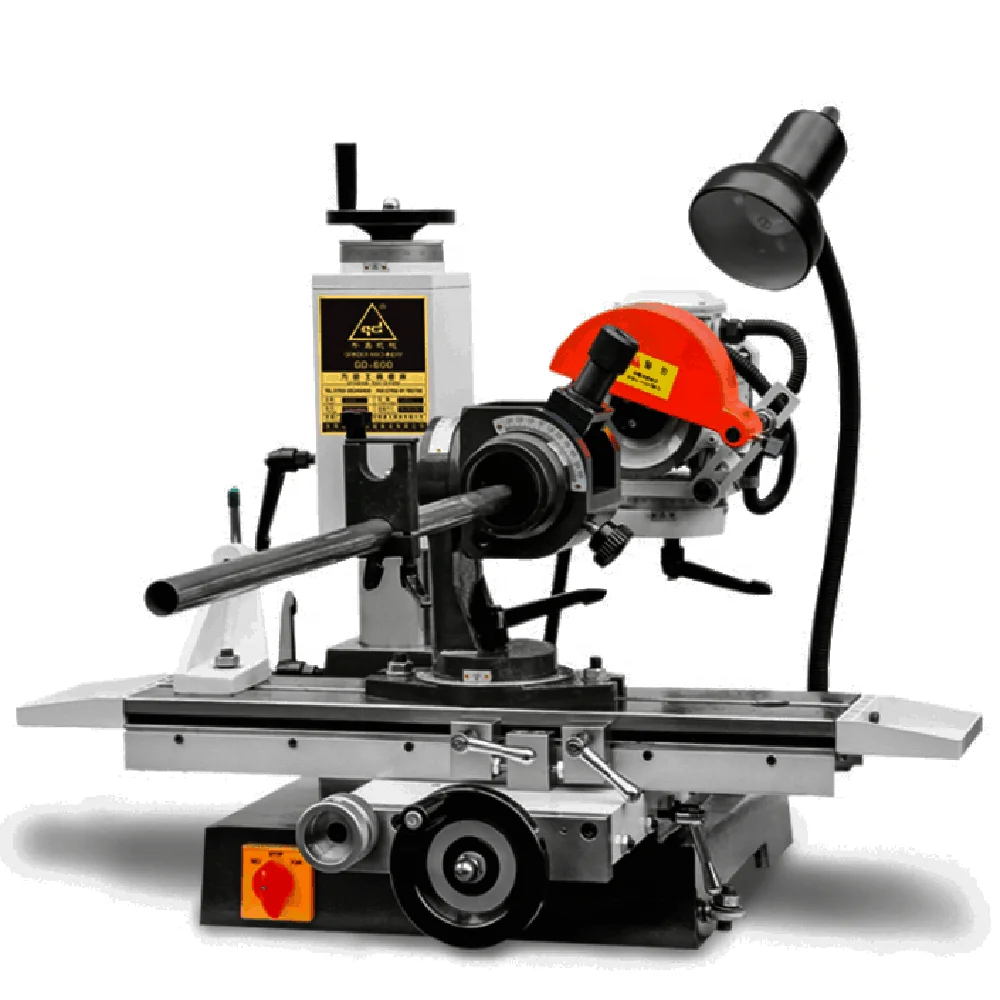

Gun drill sharpening machine
this machine is suitable for deep hole drilling gun drill grinding angle and sharpening ,with accuracy and efficiency,for various gun drill, a fixure can complete all the sharpening angle.
GD-600
Standard gun drill sharpening machine adopt precision rolling track, high-speed motor. The motion is smooth and the friction is
small. Grinder can rotate in horizontal and vertical plane. Widely applicable to machine tools with sharpening Fixture canbe
accurate and effective grinding a variety of gun drill.50Q Gun Drills Gun Drill Sharpening Fixture is specialized used in
dedicated tooling the compact structure, of setup is reasonable and convenient, adjustment is simple, processing is
time-saving(once setup to be completed by all angle grinding), the processing of drilling edge, high precision, good accuracy. Gri
nding range is φ 5-φ 32
Standard gun drill sharpening machine adopt precision rolling track, high-speed motor. The motion is smooth and the friction is
small. Grinder can rotate in horizontal and vertical plane. Widely applicable to machine tools with sharpening Fixture canbe
accurate and effective grinding a variety of gun drill.50Q Gun Drills Gun Drill Sharpening Fixture is specialized used in
dedicated tooling the compact structure, of setup is reasonable and convenient, adjustment is simple, processing is
time-saving(once setup to be completed by all angle grinding), the processing of drilling edge, high precision, good accuracy. Gri
nding range is φ 5-φ 32
FEATURES
1.The operating table adopts the imported high-precision linear ball slide rail which can ensure the table stable and easy to operate.
2.The machine can be matched with different fittings in lines with tools to grind so as to grind drill bit, screw tap, end-milling cutter. R-shaped turning tool, R-shaped milling cutter, hobbling knife, round paper cutting knife.3.The motor can rotate 360, The two sides of the motor can be installed with two grinding wheels at the same time.When you grindcutting tools of different materials, you may restart grinding by simply rotating the motor,Which can enhance security and reduce
the time of disassembling and repatation.
4.It adopts the FC30 cast iron of high toughness to maintain the precision of the machine.
5.The maximum linear speed of grind wheel is 40m/s

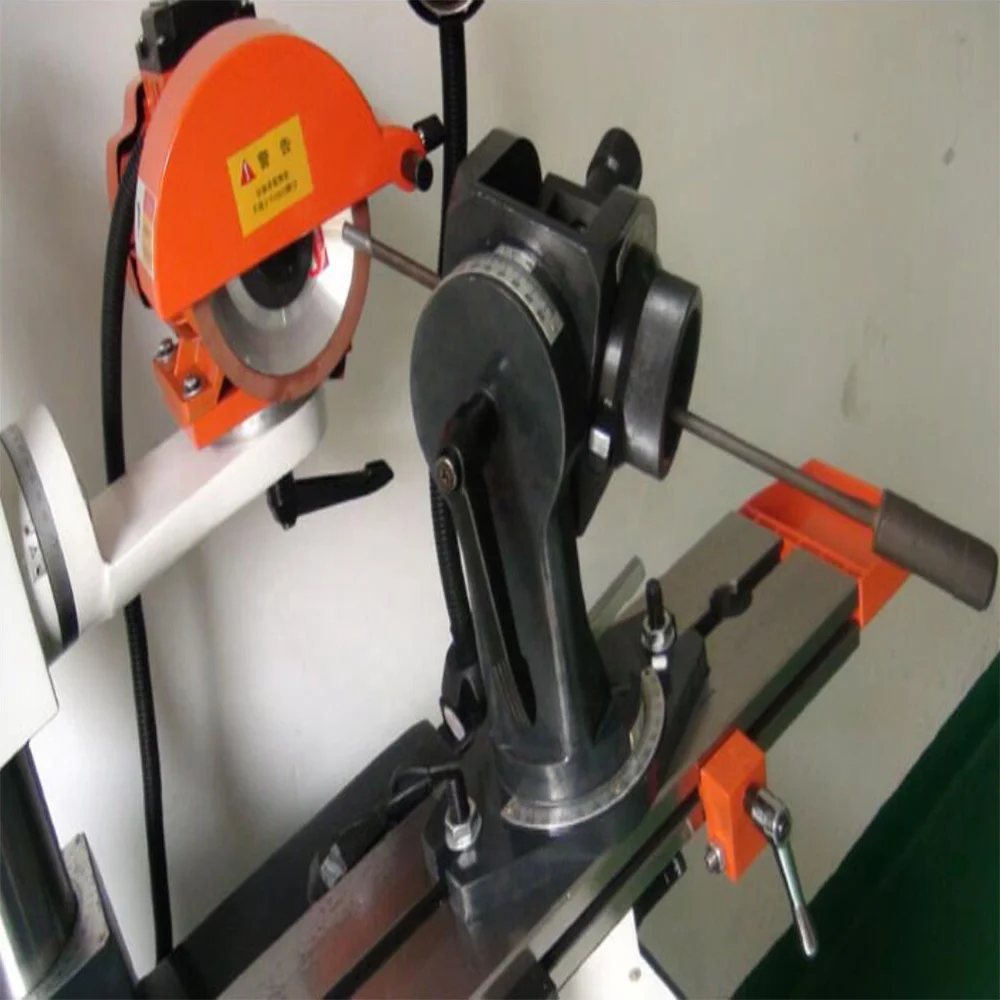

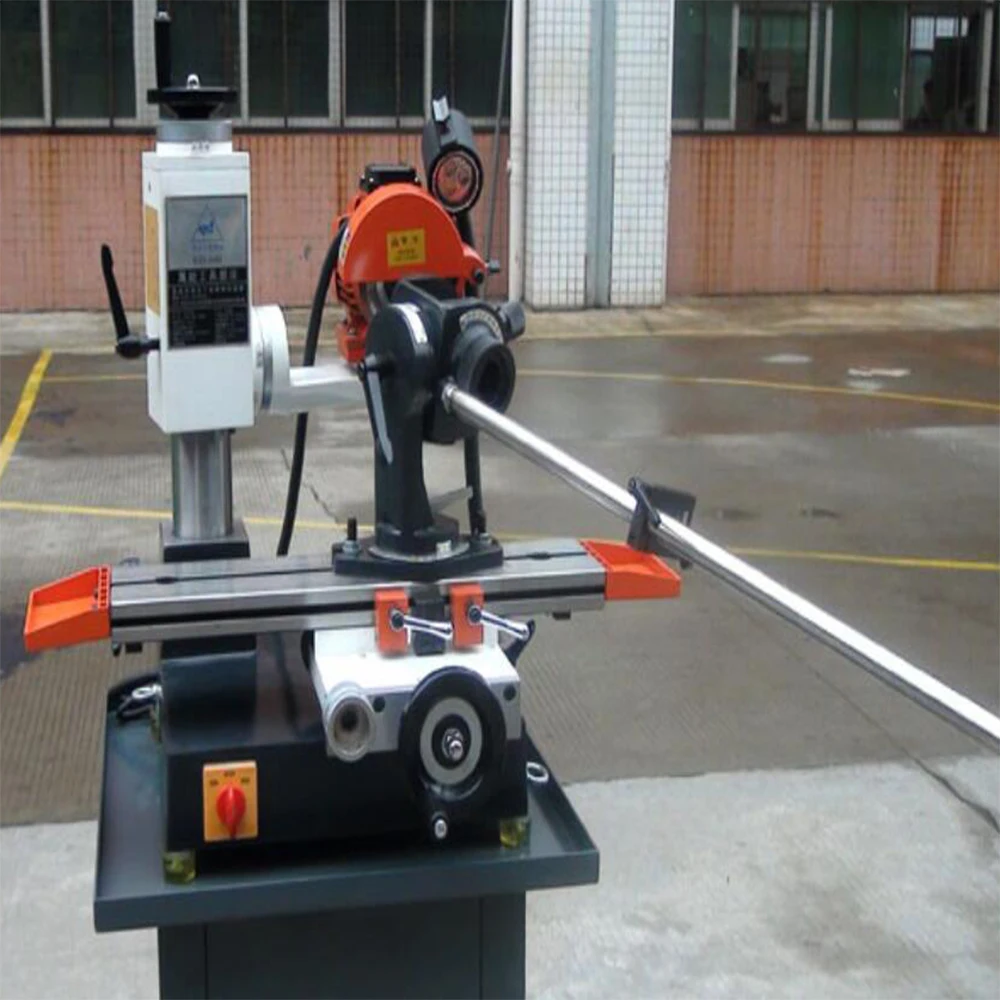

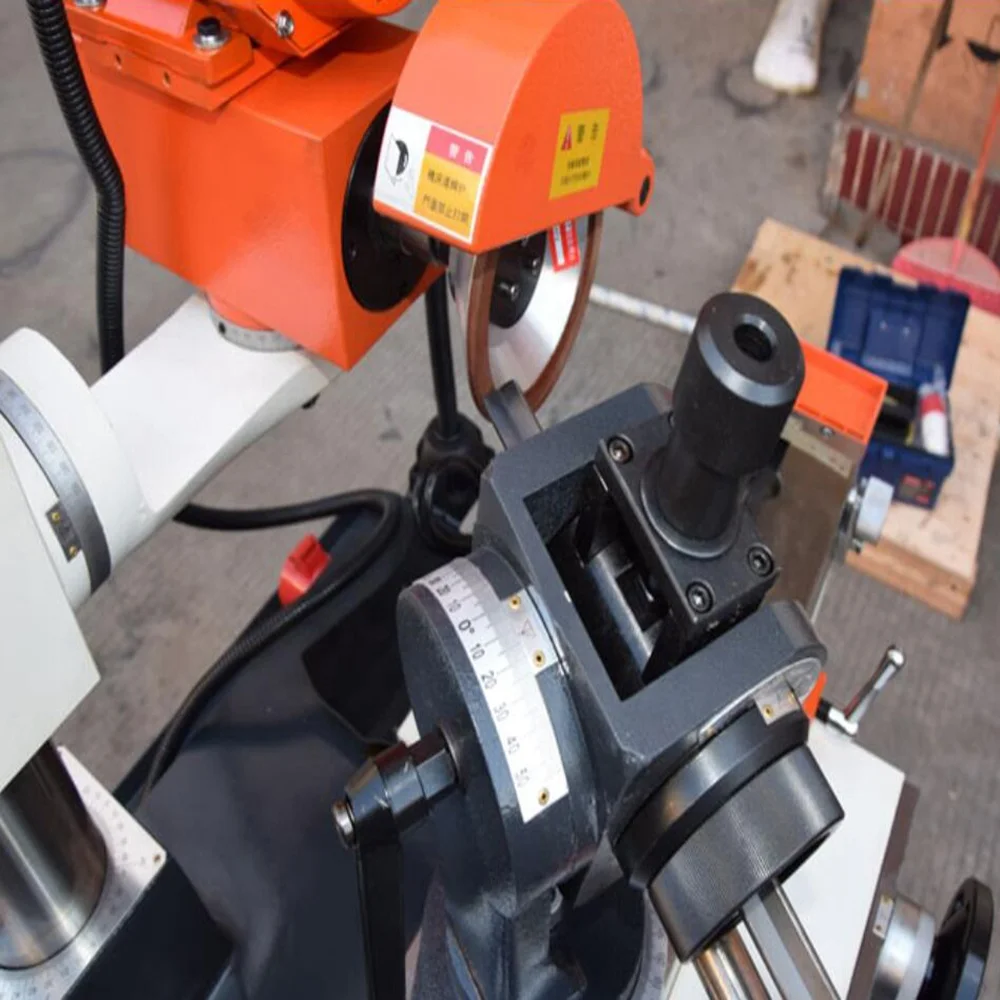

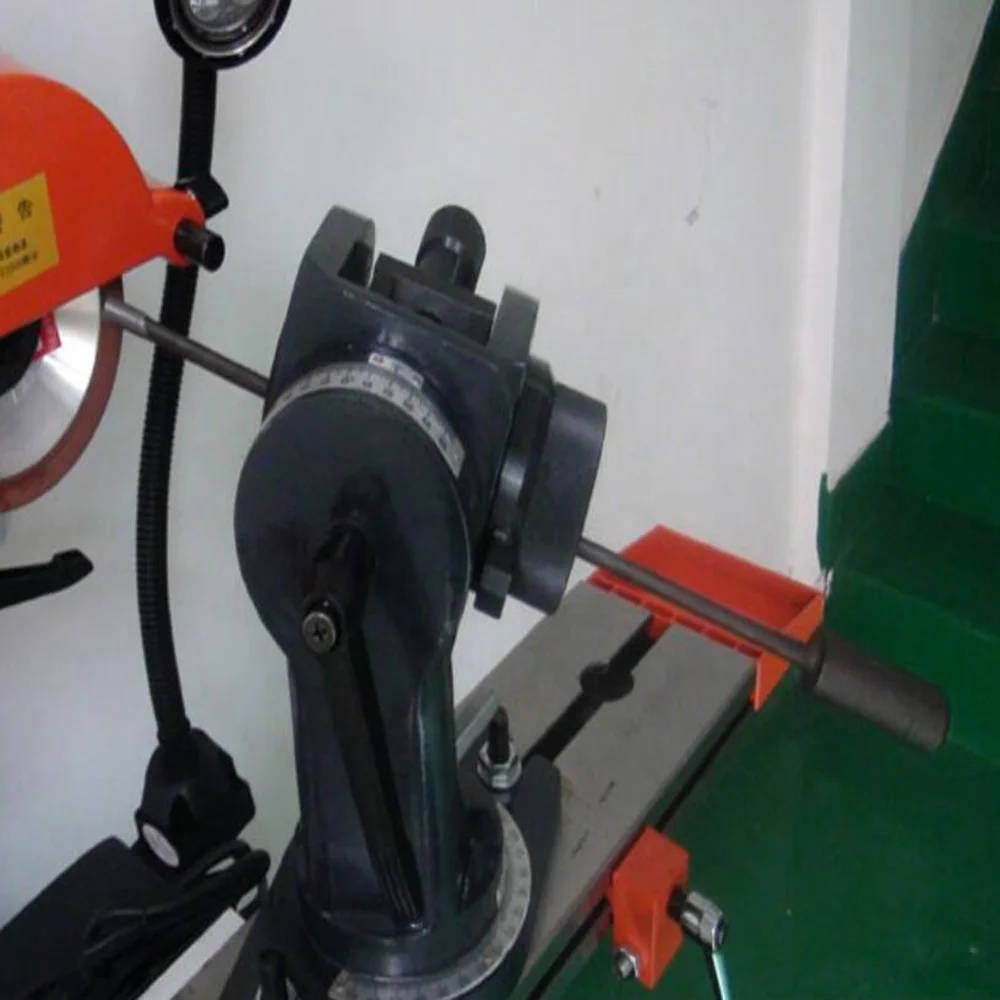

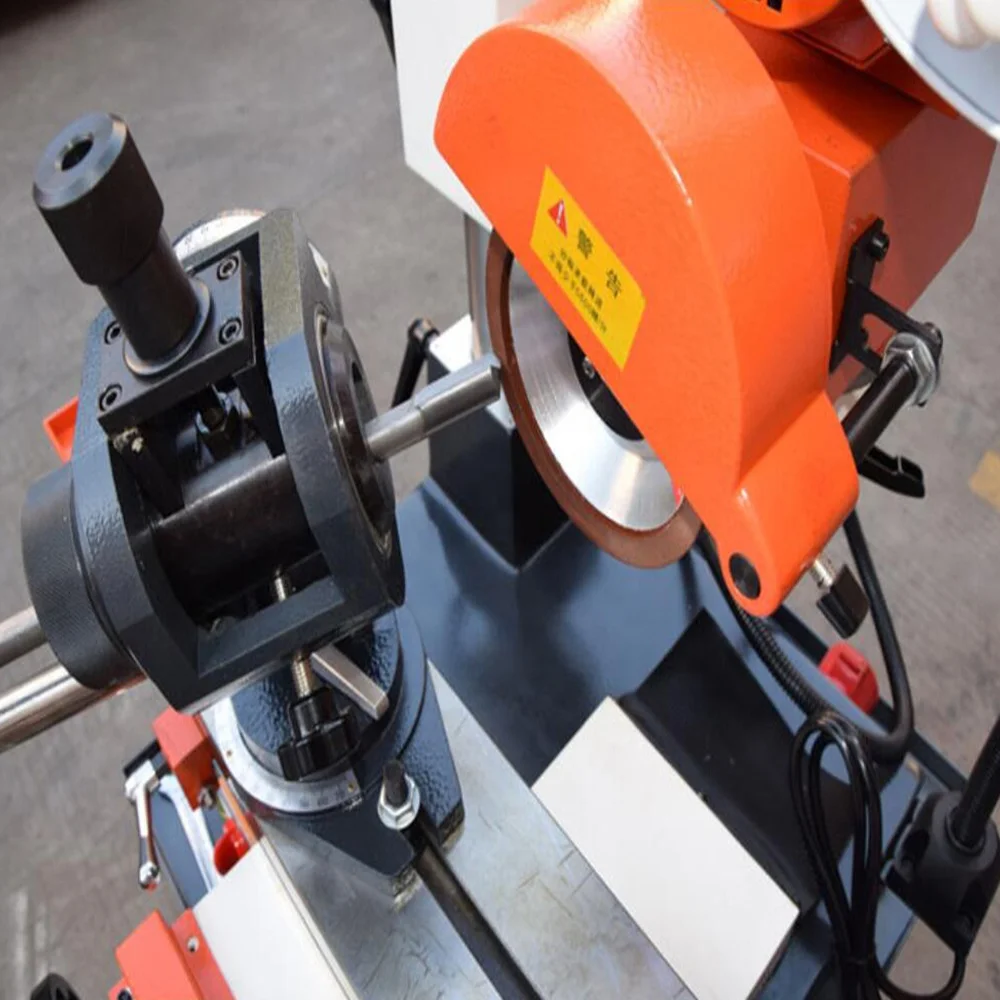

Details Images
Specifications | |
Horizontal Travel of the Oprating table | 270mm |
Longitudinal travel of the operating table | 170mm |
Area of the operating table | 130*600mm |
Elevating Distance of Wheel Head | 140mm |
Rotating Angle of Wheel Head | 360° |
Grinding Wheel Size | 125*50*32mm |
Speed of grinding Wheel | 2800 RPM |
Net Weight / Gross Weight | 145/160kg |
Power | 550w 220v/380v |
Package Size | 760*650*650mm |
Product packaging
