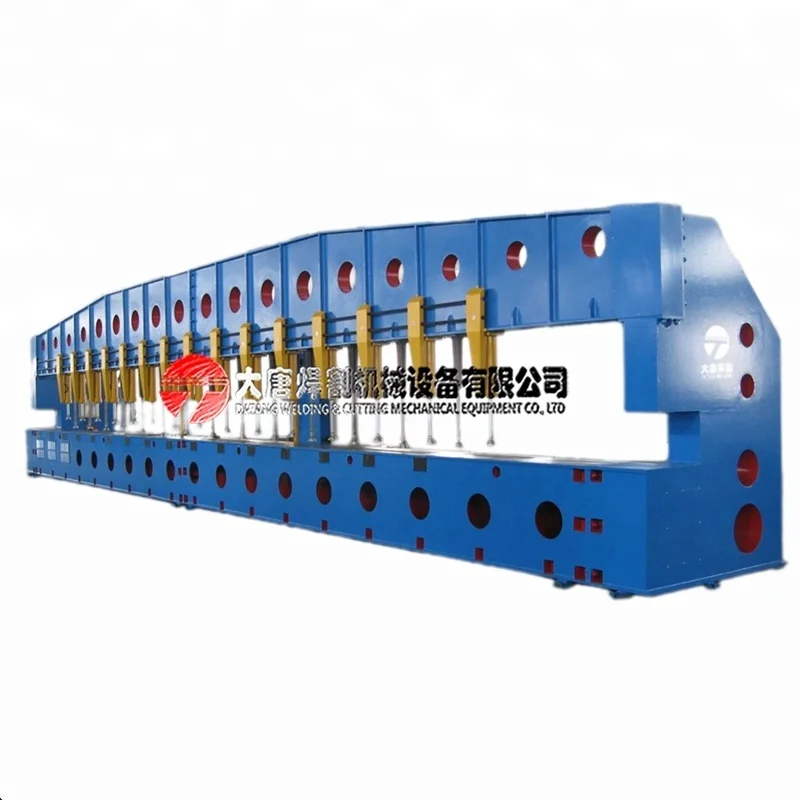

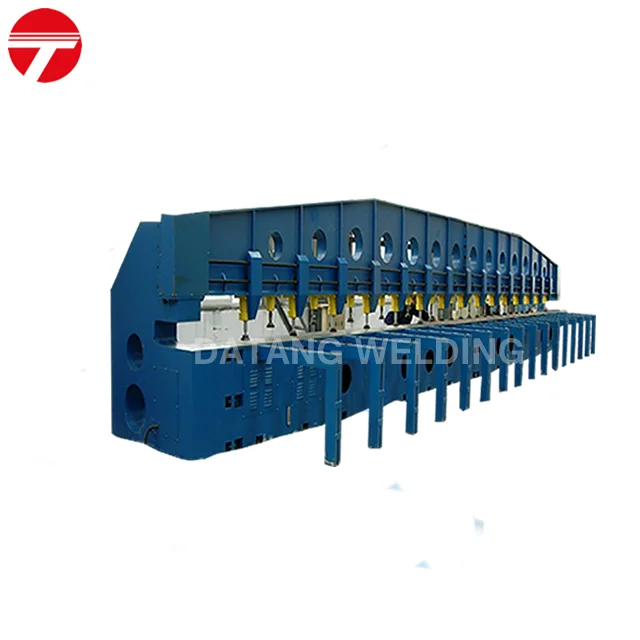

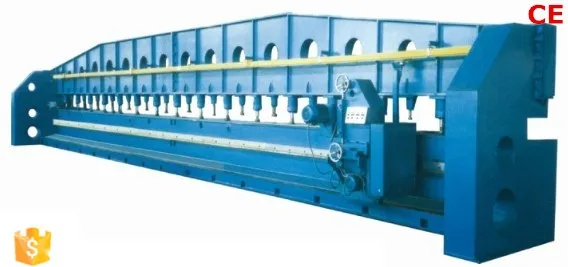

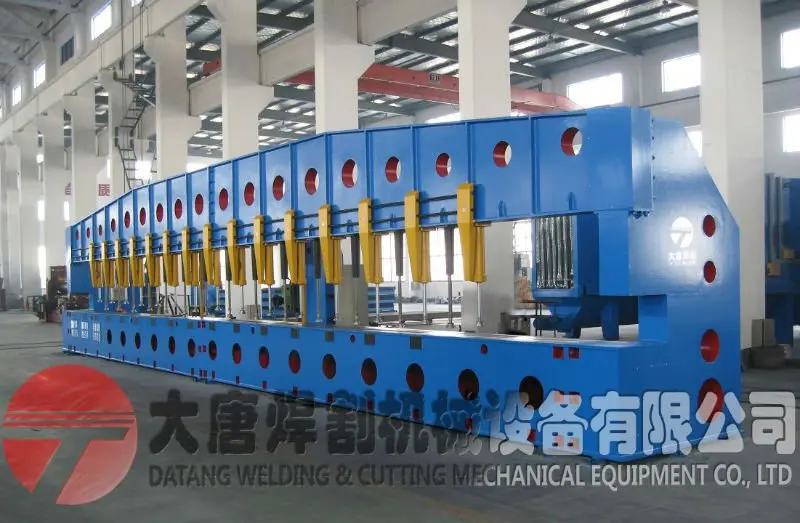

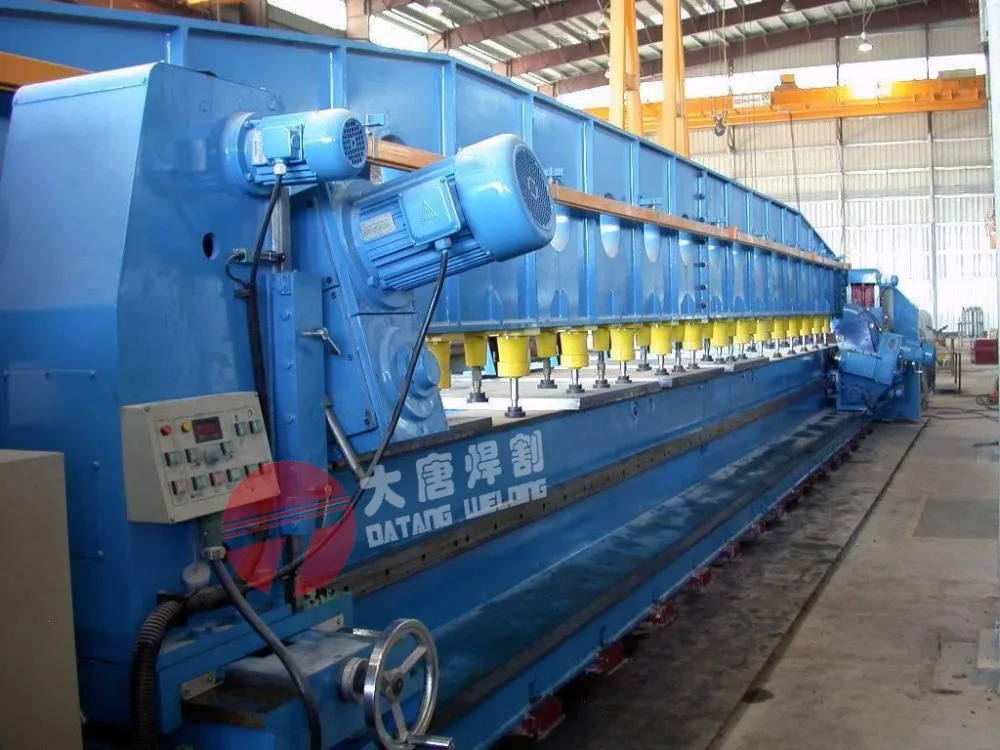

Фрезерный станок для стальных

Категория: Ручные мельницы >>>
Поставщик: Wuxi,Datang,Welding,&,Cutting,Mechanical,Equipment,Co.,Ltd.

Цена:1 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	1190.60 $*	1250.13 $*
Aug-16-2025	1180.30 $*	1239.14 $*
Jul-16-2025	990.83 $*	1040.73 $*
Jun-16-2025	1160.93 $*	1218.8 $*
May-16-2025	1010.30 $*	1061.12 $*
Apr-16-2025	1140.92 $*	1197.12 $*
Mar-16-2025	1130.97 $*	1187.13 $*
Feb-16-2025	1120.79 $*	1176.66 $*
Jan-16-2025	1110.37 $*	1166.92 $*

Характеристики

Model	XB6	XB9	XB12
Milling angle（°）	0-45
Milling plate thickness(mm)	6-50
Milling depth for one time(mm)	12
Transverse milling speed(mm/min)	300/500
Milling free speed(mm/min)	4000
Main shaft rotation speed(rpm)	125-630
Hydraulic system pressure(MPa)	《3.5
Support platform cylinder capacity(Piece)	8	11	15
Support platform to the ground distance(mm)	900
Feeding motor power(kw)	1.1/0.85
Milling motor power(kw)	3
Oil pump motor power(kw)	5.5
Voltage	380V-3PH-50HZ (Other voltage can customized）
Options:1.drilling&milling heat 2.three axis Digital Display

Easy Operate

Compare with the traditional edge milling machine. The series Edge Milling Machine has the assemble and disassemble track with heat-treatment. The lathe has the reasonable structure.

Precise Positioning

The milling head running is steady and reliable. The feeding system and backing system is identified full, free speed is fast and efficiency is high. The milling head angle adjusting is easy.
