MM-K серия полная Электрический подъемный трап грузовик Рабочая платформа
- Категория: Рабочие платформы >>>
- Поставщик: Shanghai,Ting,Wang,Science,And,Technology,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 298.64 $* | 313.43 $* |
| Aug-16-2025 | 295.50 $* | 310.4 $* |
| Jul-16-2025 | 248.31 $* | 260.2 $* |
| Jun-16-2025 | 290.99 $* | 305.88 $* |
| May-16-2025 | 253.65 $* | 266.17 $* |
| Apr-16-2025 | 285.18 $* | 299.9 $* |
| Mar-16-2025 | 283.24 $* | 297.25 $* |
| Feb-16-2025 | 280.40 $* | 294.47 $* |
| Jan-16-2025 | 278.70 $* | 292.11 $* |
Характеристики
Product Description

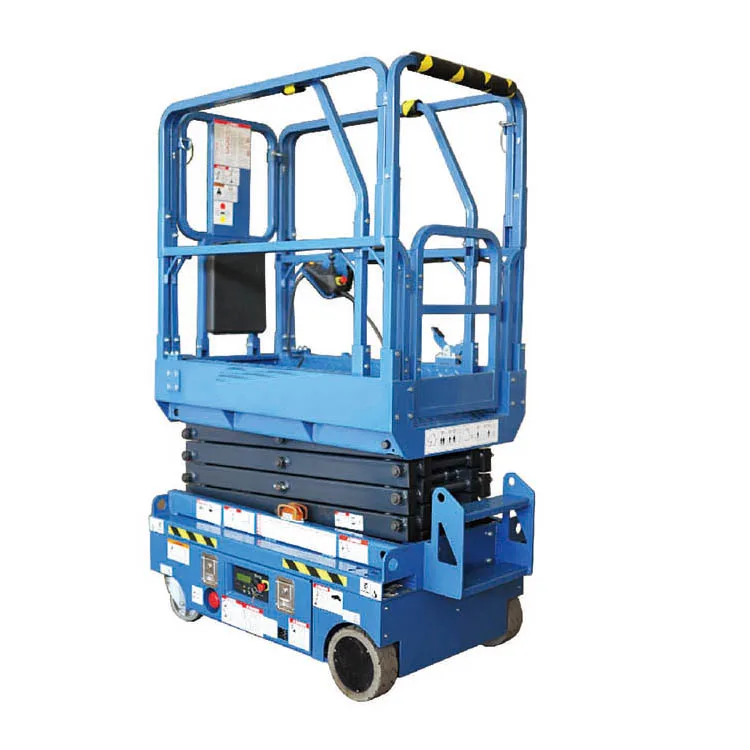

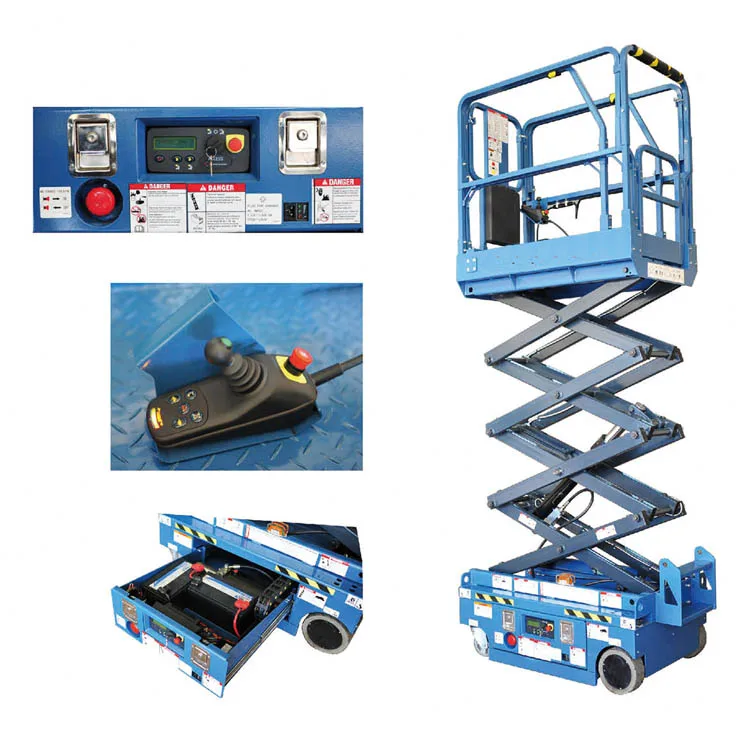

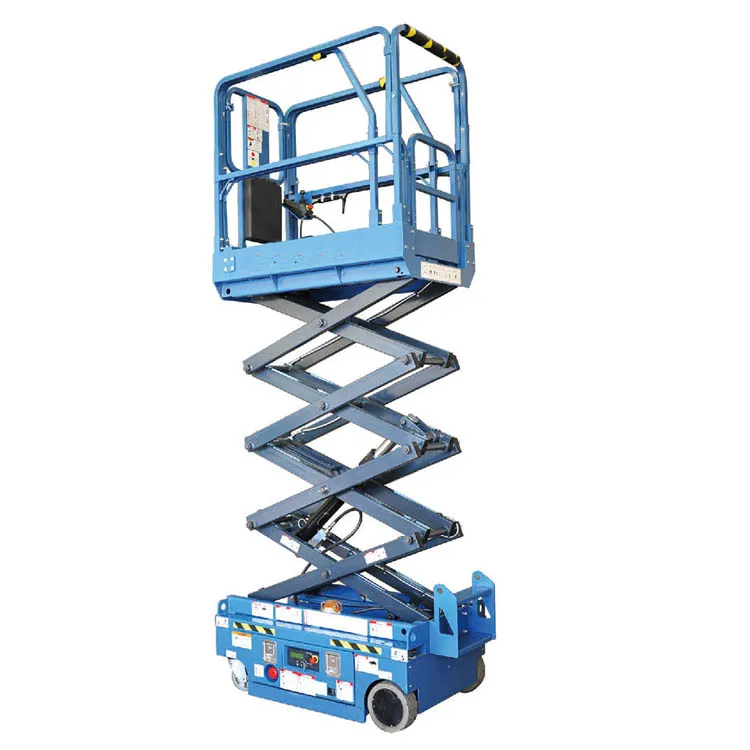

Full Electric Elevating Work Platform [MM-K series]
* Emergency stop at both platform and ground controls.
* Charging indicator
* Pothole guards
* Maintainance bar
* Manual platform lowering valve
* Safety entrance door
* Descent alarm
* Solid non-marking tires
* Tilt level sensor with audible alarm
* Conforms to BS EN280
Note:
Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
Features:
* Charging indicator
* Pothole guards
* Maintainance bar
* Manual platform lowering valve
* Safety entrance door
* Descent alarm
* Solid non-marking tires
* Tilt level sensor with audible alarm
* Conforms to BS EN280
Note:
Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
Model | unit | MM-K2430 | MM-K2439 |
Lifting Capacity | kg | 240 | 240 |
Maximum Platform Occupancy | persons | 2 | 2 |
Max Working Height | mm | 5000 | 5900 |
Max Platform Height | mm | 3000 | 3900 |
Min Platform Height | mm | 760 | 850 |
Platform Length | mm | 1200 | 1200 |
Platform Width | mm | 700 | 700 |
Slide-Out Platform Extension Deck | mm | 600 | 600 |
Height-Stowed:Rails Raised | mm | 1860 | 1950 |
Height-Stowed:Rails Folded | mm | 1530 | 1620 |
Overall Length with Ladder | mm | 1350 | 1350 |
Overall Length without Ladder | mm | 1200 | 1200 |
Overall Width | mm | 760 | 760 |
Wheelbase | mm | 1000 | 1000 |
Ground Clearance Stowed | mm | 60 | 60 |
Ground Clearance Raised | mm | 15 | 15 |
Driving Speed Stowed | km/h | 4 | 4 |
Driving Speed Raised | km/h | 0.5 | 0.5 |
Max Gradeability | % | 25 | 25 |
Max Working Angle-sides/back & forth | degree | 2/3 | 2/3 |
Turning Radius | mm | 1250 | 1250 |
Raise/Lower Speed | s | 30/20 | 35/20 |
Front Wheel | mm | 150*50 | 150*50 |
Rear Wheel | mm | 230*80 | 230*80 |
Driving Motor | v/kw | 2*24V DC/0.4kw | 2*24V DC/0.4kw |
Lifting Motor | v/kw | 24V DC/0.8kw | 24V DC/0.8kw |
Storage Battery | v/ah | 24V DC(2*12V 80AH) | 24V DC(2*12V 80AH) |
Charger | V/A | 24V/8A | 24V/8A |
Weight | kg | 720 | 760 |
