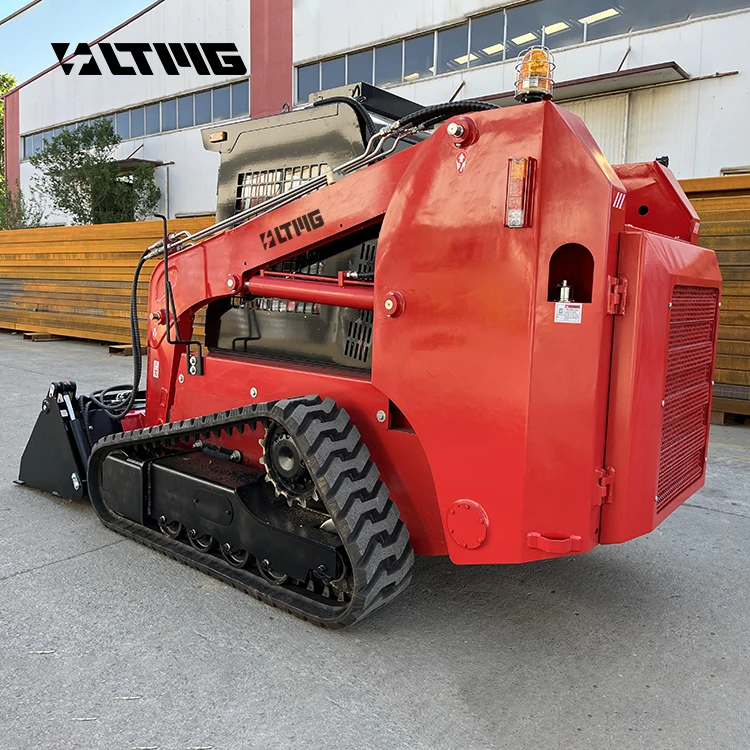

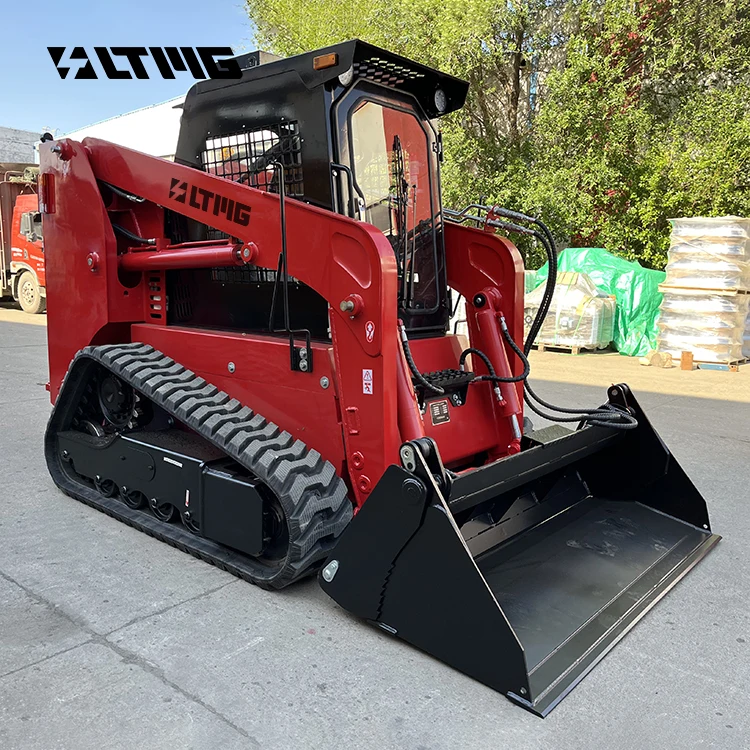

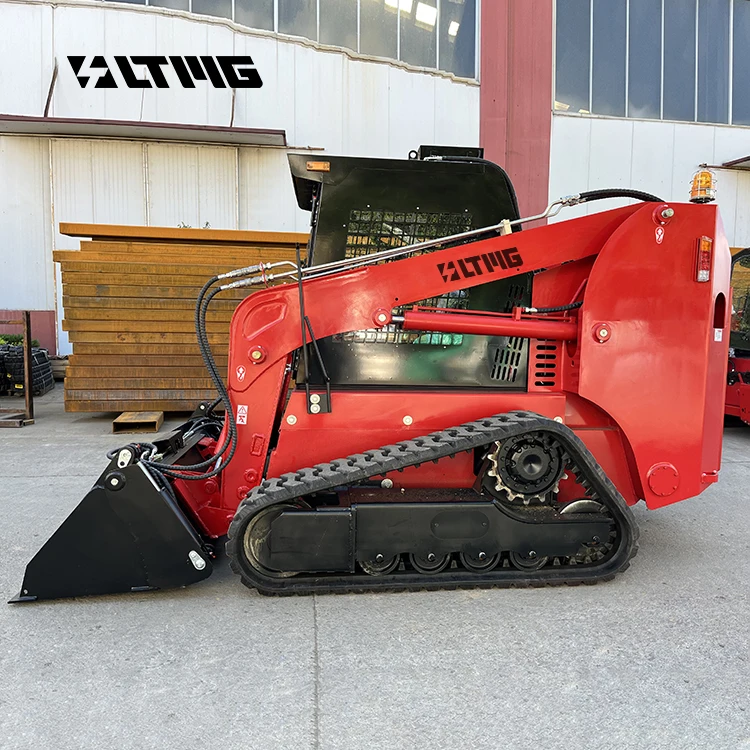

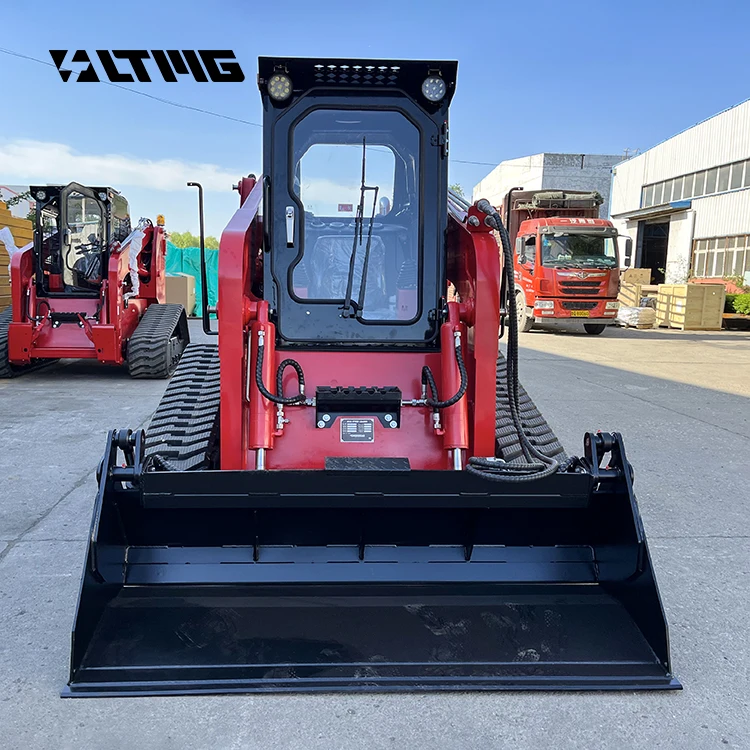

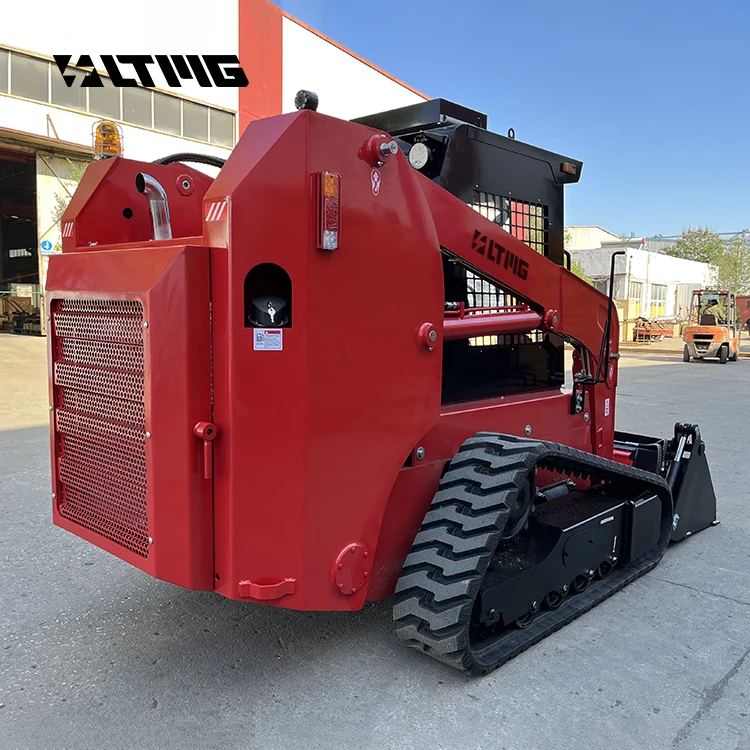

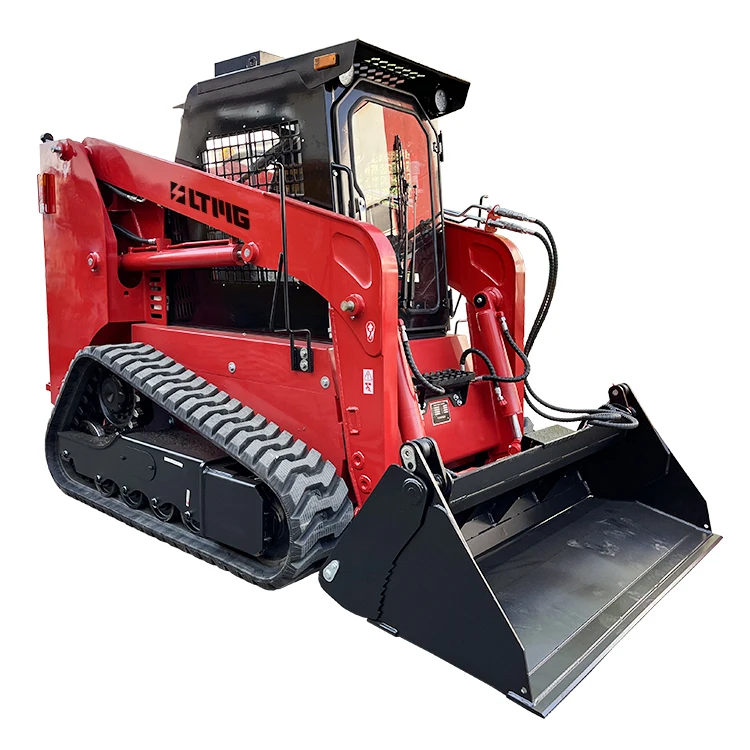

Китайский гусеничный колесный погрузчик 700 кг 1000 1050 1200 1500 с джойстиком закрытой кабиной и
- Категория: Погрузчики >>>
- Поставщик: Xiamen,LTMG,Machinery,Co.,Ltd.Xiamen,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 27551.34 $* | 28929.51 $* |
| Aug-15-2025 | 27319.6 $* | 28685.25 $* |
| Jul-15-2025 | 22920.4 $* | 24066.77 $* |
| Jun-15-2025 | 26856.73 $* | 28199.98 $* |
| May-15-2025 | 23384.87 $* | 24553.50 $* |
| Apr-15-2025 | 26393.11 $* | 27713.10 $* |
| Mar-15-2025 | 26162.57 $* | 27470.20 $* |
| Feb-15-2025 | 25930.7 $* | 27227.94 $* |
| Jan-15-2025 | 25699.76 $* | 26984.65 $* |
Характеристики
Advantages
Comfortable and luxury cab
Multi-functional operation buttons
Hydraulic joystick controller
Triangular tracks for greater safety
The specification of 1500kg skid steer loader | ||||||
Item | LTS100 | |||||
Engine model | 226B | |||||
Bore x stroke (mm) | 105X130 | |||||
Rated power (Kw) | 70 | |||||
Rpm | 2200 | |||||
Number of cylinders | 4 | |||||
Max. toque (N.m) | 380 | |||||
Displacement (L) | 4.5 | |||||
Max. Speed (kin/h) | 12/18 | |||||
Tire ( track ) model() | 320X84 | |||||
Loading Capacity (kg) | 1200 | |||||
Lifting | Arc-Shaped Lifting | |||||
Bucket capacity(m3) | 0.55 | |||||
Rated flow(L/min) | 88 | |||||
High Flow(L/min) | 122 | |||||
Tank capacity(L) F | 90 | |||||
Weight with bucket(kg) | 4280 | |||||
Height at Maximum Extension (mm) | 4070 | |||||
Hinge Pin Height (mm) | 3150 | |||||
Total Height (mm) | 2160 | |||||
Height to bottom of bucket(mm) | 2983 | |||||
Overall length without bucket ( mm ) | 3000 | |||||
Overall length with bucket(mm) | 3700 | |||||
Dumping angle at maximum height(°) | 40 | |||||
Dumping height(mm) | 2450 | |||||
Dumping reach(mm) | 700 | |||||
Rollback at ground position(°) | 30 | |||||
Rollback fully raised at max height(°) | 104 | |||||
Wheelbase(mm) | 1500 | |||||
Ground clearance(mm) | 200 | |||||
Angle of departure(° ) | 20 | |||||
Front turning radius without bucket mm | 1365 | |||||
Front tuning radius(mm) | 2200 | |||||
Rear tuning radius(mm) | 1742 | |||||
Rear length (mm) | 938 | |||||
Track width(mm) | 1654 | |||||
Width (mm) | 1994 | |||||
Bucket width (mm) | 2030 | |||||
ODM/OEM
Optional Attachment
Packaging and Shipping
Company Profile
Certifications
Customer Sharing
Recommend Products
FAQ
1. Why choose us?
As a manufacturer, LTMG industrial is committed to offer not only products with high quality and performance and competitive price, but also in-time delivery and comprehensive 7/24 after-sale services.
2. What is the product range of our factory ?
LTMG industrial is a large-scale machinery manufacturing enterprise primarily specializes in supplying wheel loaders,forklift trucks,excavator and related attachments. We can also customize non-standard products according to customer's requirements.
3. What payment terms can we accept?
Normally 30% deposit is required in advance, 70% balance shall be settled before shipment. And 100% irrevocable L/C at sight with the terms we agreed can also be accepted.
4. What Certificates do we have?
All products meet with the ISO9001 Quality System and have acquired CE certificate. EPA approval will be available if needed.
All products meet with the ISO9001 Quality System and have acquired CE certificate. EPA approval will be available if needed.
5.How about our delivery time?
Usually it will take 15 to 30 days after receiving your deposit. About standard products, we always
have in stock and can deliver immediately. But customized products will take more time, depending on the requirements of your order.
have in stock and can deliver immediately. But customized products will take more time, depending on the requirements of your order.
6. Can we provide OEM service?
LTMG industrial can provide customized products according to customers' requirements, both OEM and ODM are acceptable.
