Профессиональный конусный загуститель из

Категория: Загуститель для горнодобычи >>>
Поставщик: Luoyang,Longding,Environmental,Protection,Technology,Co.,Ltd

Цена:650 615,40 ₽ - 975 923,10 ₽*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-17-2025	826281.77 $*	842807.41 $*
Jul-17-2025	670133.78 $*	683536.85 $*
Jun-17-2025	813269.14 $*	829534.46 $*
May-17-2025	806763.81 $*	822898.34 $*
Apr-17-2025	644109.12 $*	656991.39 $*
Mar-17-2025	793750.37 $*	809625.3 $*
Feb-17-2025	787244.95 $*	802989.96 $*
Jan-17-2025	780738.28 $*	796353.50 $*

Характеристики

Product Description

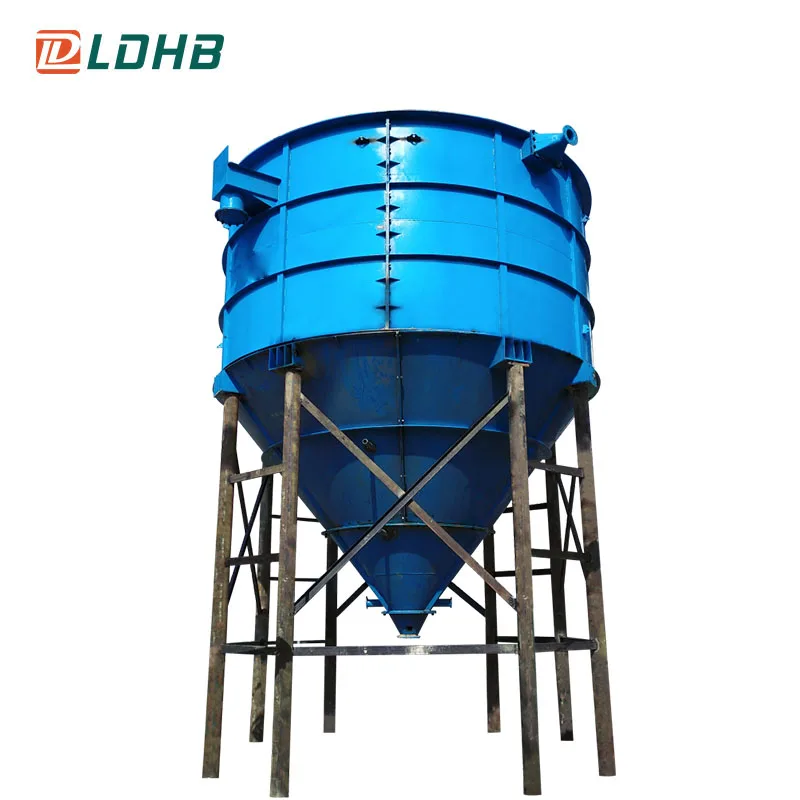

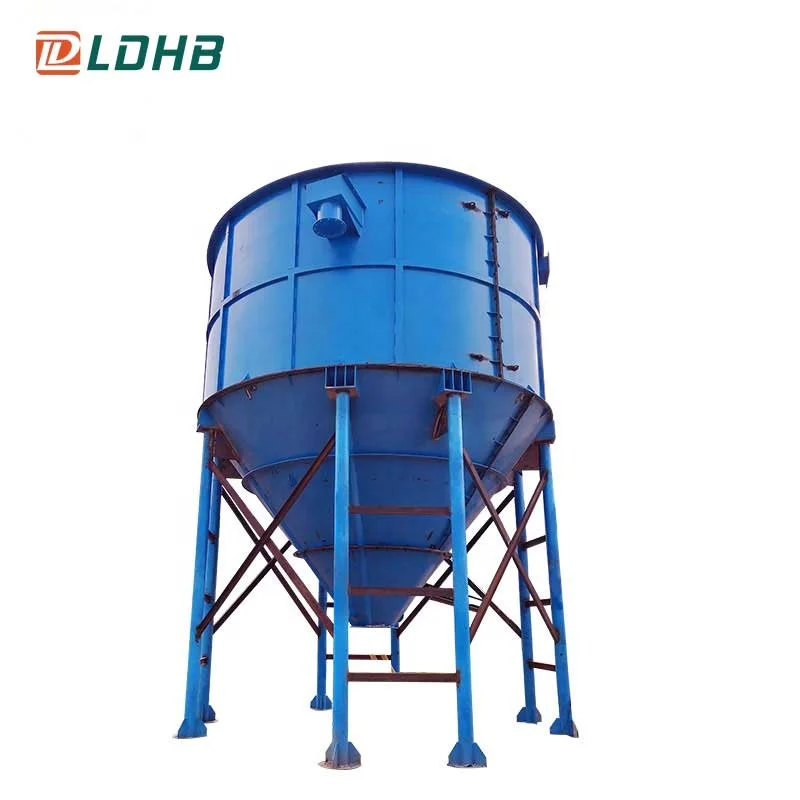

Paste Thickener

The product is a fast device precipitation means may be combined into a system of production equipment production line, widely used in plants of aggregate, concentrator noble metal, ceramics, glass and other industries.

Working Pinciple

LDHB paste thickener is a solid-liquid separation equipment based on gravity sedimentation. When working, the solid particles suspended in the pulp in the centrum of thickener settle under gravity, and the upper part becomes clarified water, so that the solid-liquid can be separated.
The slurry wastewater with solid content of 2%-15% can be raised to 60%-70% slurry by gravity sedimentation. The upper part of the tank can realize clear water overflow, so as to achieve the purpose of slurry purification and solid-liquid separation.

Model	Capacity (m³/h)	Height of tank (mm)	Volume of tank (m³)	Overall Dimension (mm)
S3040	<50	φ3000X4000	35	φ3000X8860
S3060	50-100	φ3000X6000	50	φ3000X10860
S6030	100-150	φ6000X3000	100	φ6000X9400
S6040	150-200	φ6000X4000	130	φ6000X10400
S6050	200-250	φ6000X5000	160	φ6000X11400
S6060	250-300	φ6000X6000	190	φ6000X12400
S8045	350-400	φ8000X4500	260	φ8000X10600
S8060	400-500	φ8000X6000	300	φ8000X12100

Main Features

1. The high-efficiency paste thickener has a slender body, and a flocculant is added during the concentration process to accelerate the concentration process of material settling and overflow water clarification.
2. Using suspension filtration, medium adsorption, precipitation working principle, no purification film, no wearing parts.
3. The tank body is made of high quality carbon steel (or stainless steel, epoxy glass reinforced plastic, etc.) material, which has good strength and corrosion resistance.
4. The cost of the medicament is low, the treatment volume is large, the treatment efficiency is high, and the performance is stable.
5. Small size, small footprint, easy to install.
6. The service life of the whole machine is 10-15 years, with less one-time investment and significant economic benefits.
7. The processing capacity is higher than that of the traditional thickening machine, and the quality of the overflow water can reach the national emission standard.

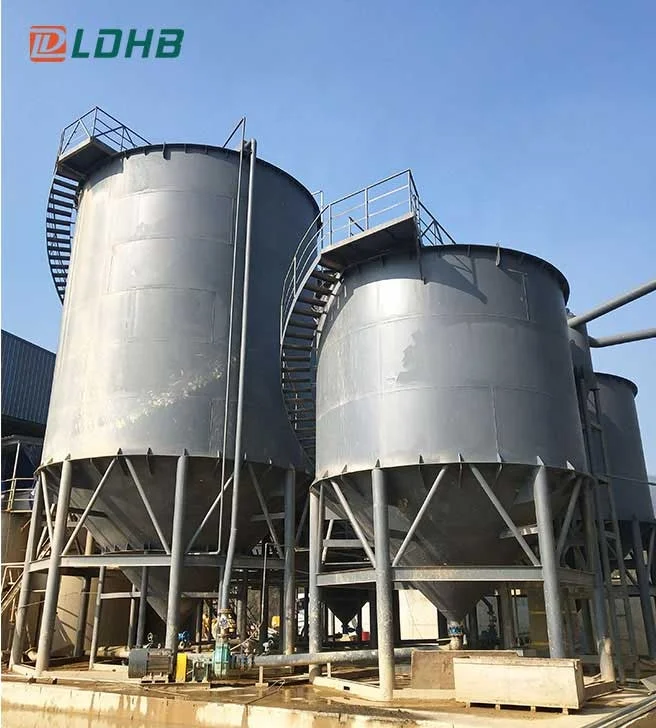

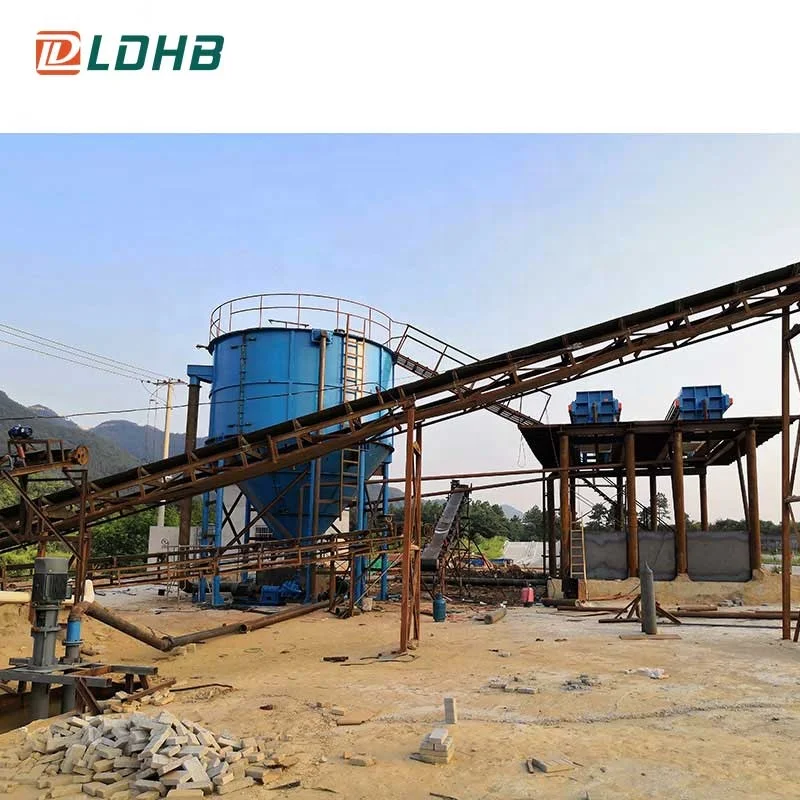

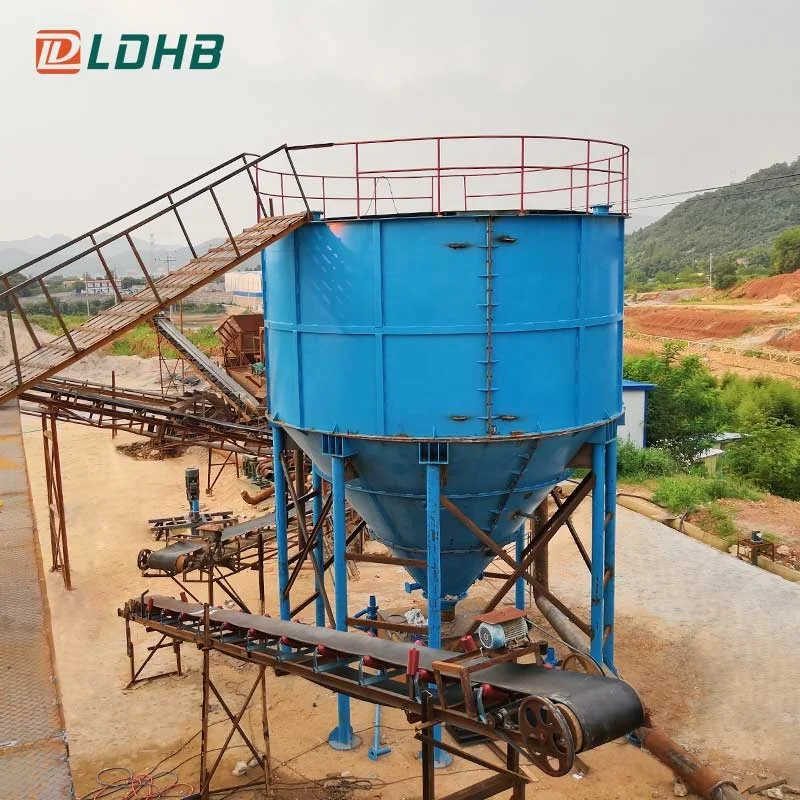

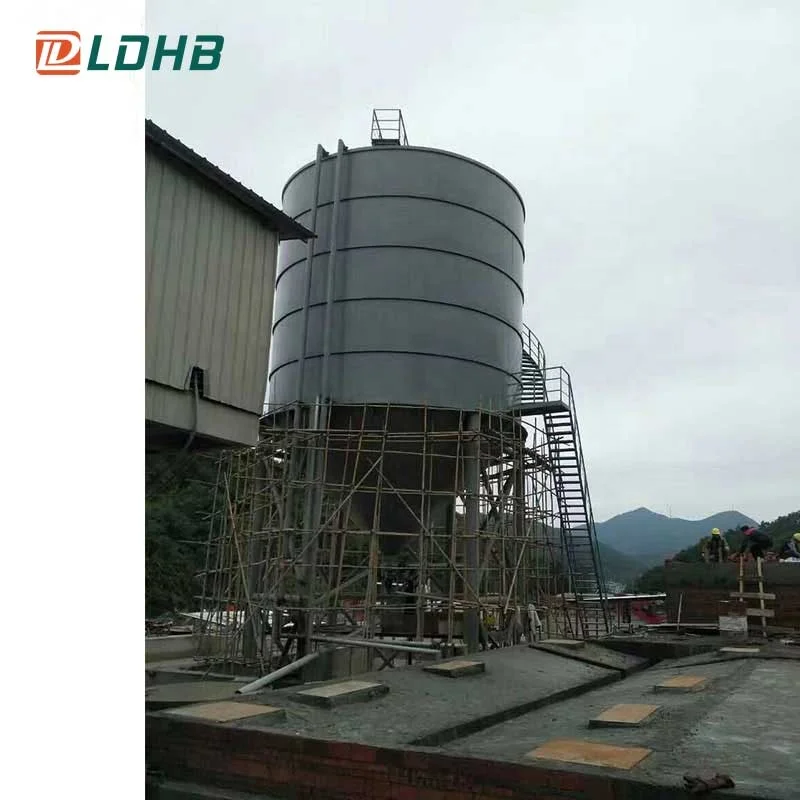

Working Site

Packing & Delivery

Packaging
Model	S6030
Size	φ6000X9400
Weight	14T
Packaging Details	The normal package is plastic cloth for main machine and wooden for parts.The wooden box will be fumigated, can also pack it according to customers special request.

Our Company

Certifications

Exhibition & Visiting

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.
* 24hours for technical Operation Guide and 4hours offer technical proposal for problem shooting.
