Rubber injection stopper machine -200ton

Machine Features

1, Four-column structure ensures machine durability.

2, Multistep setting of injection pressure and speed;

3, Precise measurement of metering stroke;

4, To realizing precise metering by slowing down plasticizing screw speed before ending metering;

5, PID control vulcanizing temperature and time.

6, protect mould by closing mould in low pressure;

7, Three stages of mold open and close to change pressure and speed setting;

8, Automatic eject and mold sliding function(optional).



Series Main Technical Parameters



Parameter Name	HYZ-100A		HYZ-200A		HYZ-300A		HYZ-400A		HYZ-500A		HYZ-580A
Injection Volume(cm3)	1000		2000	2400	3000	4000	3000	4000	3000	5000	5000	6000
Clamping Force(KN)	1000		2000		3000		4000		5000		5800
Platen Size(mm)(W*L)	500*500		550*550		600*700		700*700		700*700		700*700
Dimention Btwn Tiebar(mm)	610*335		650*360		710*510		860*490		770*550		930*560
Space of Platens(mm)	500		570		750		570		750		750
Max.Clamping Stroke(mm)	450		500		600		500		700		700
Min.Mold Thickness(mm)	60		80		160		80		60		60
Nozzle Diameter(mm)	φ5.5		φ5.5		φ5.5		φ5.5		φ6		φ8
Arc Radius of Nozzle(mm)	SR19		SR19		SR19		SR19		SR16		SR19
Heating Power(KW)	12		12		18		21		26		26
Total Power(KW)	25		28		40		45		55		55
Machine Dimension(L*W*H)(m)	2.7*1.2*3.1		3.2*2.1*3.9		3.5*2.5*4.5		4.2*2*4.5		3*2*4.6		3*2.4*4.3
Machine Weight(Ton)	5.5		8		10		12			15	23

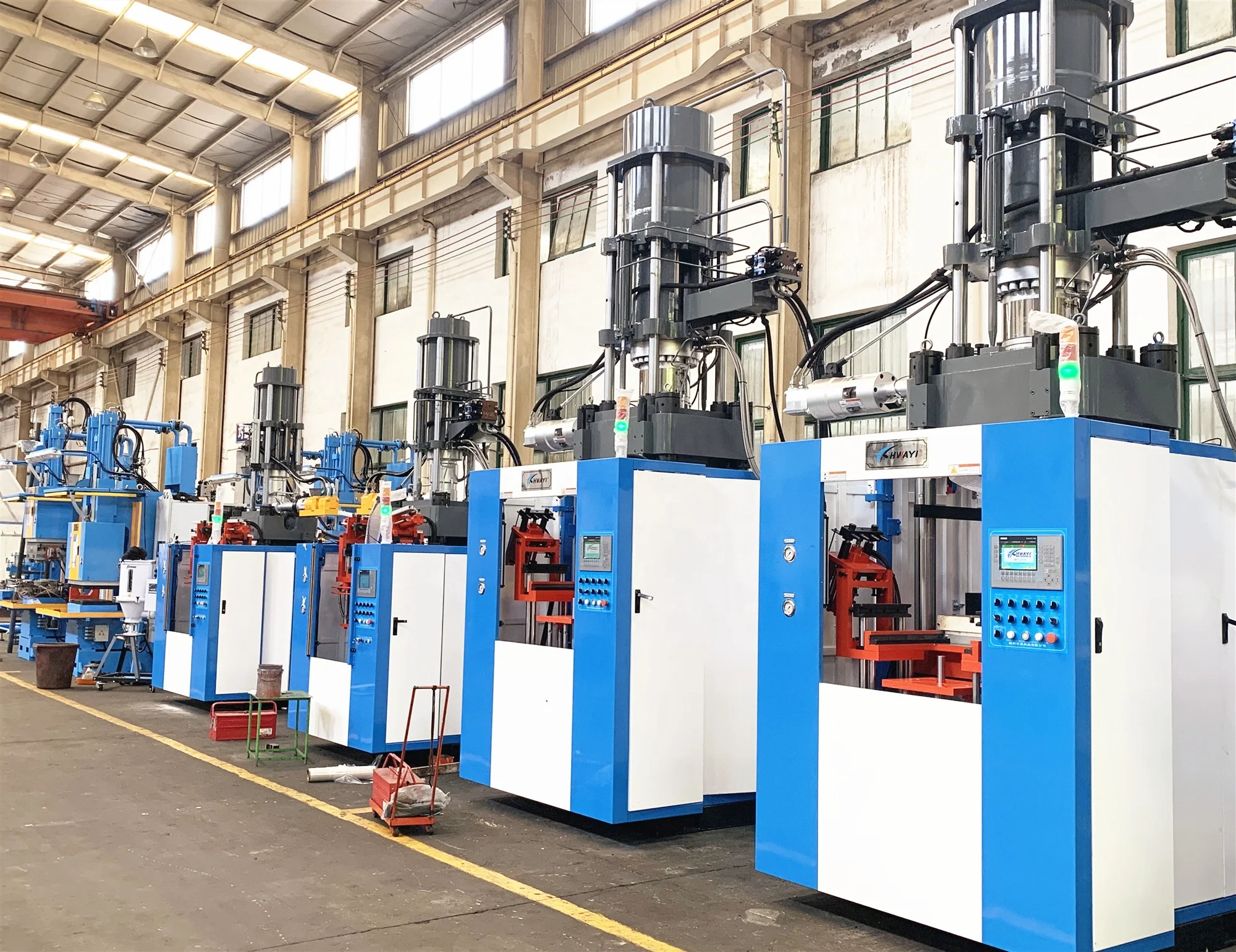

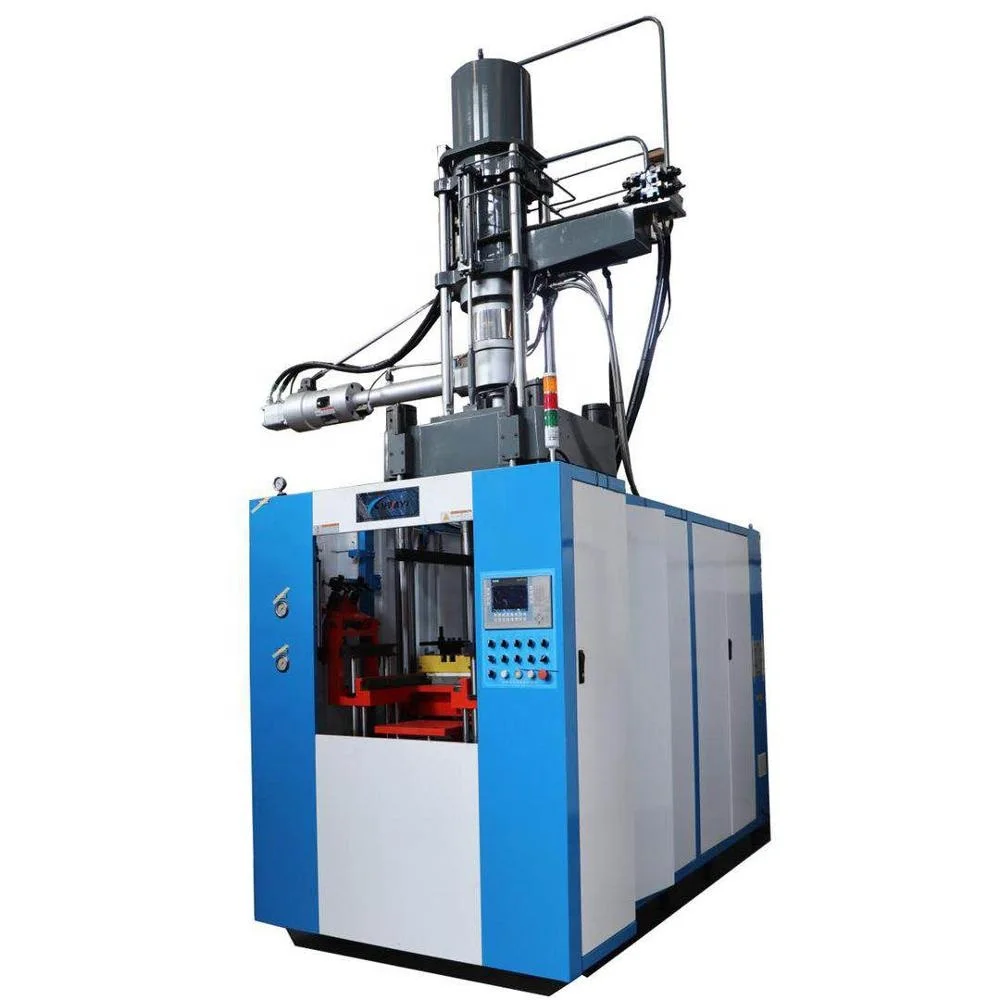

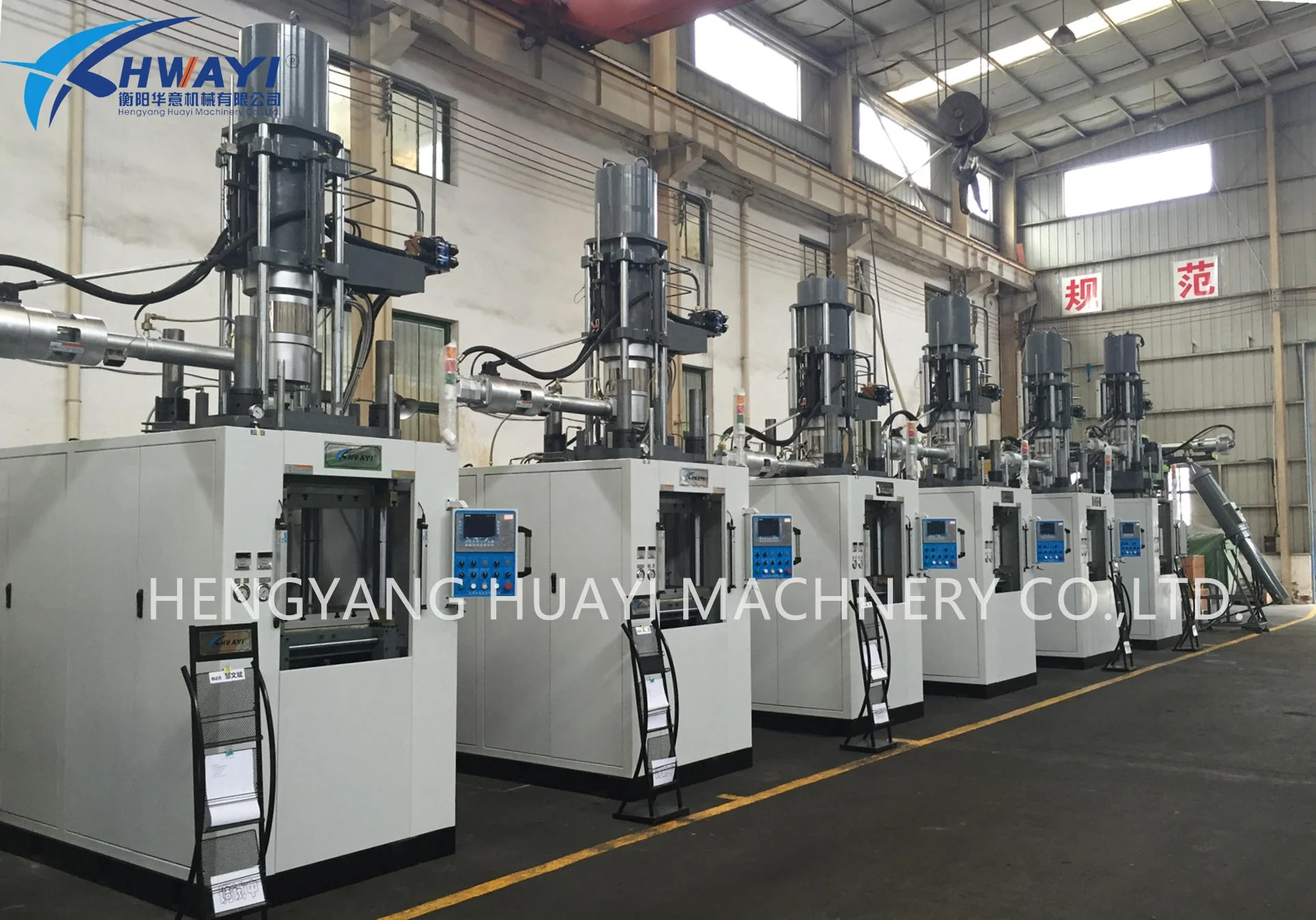

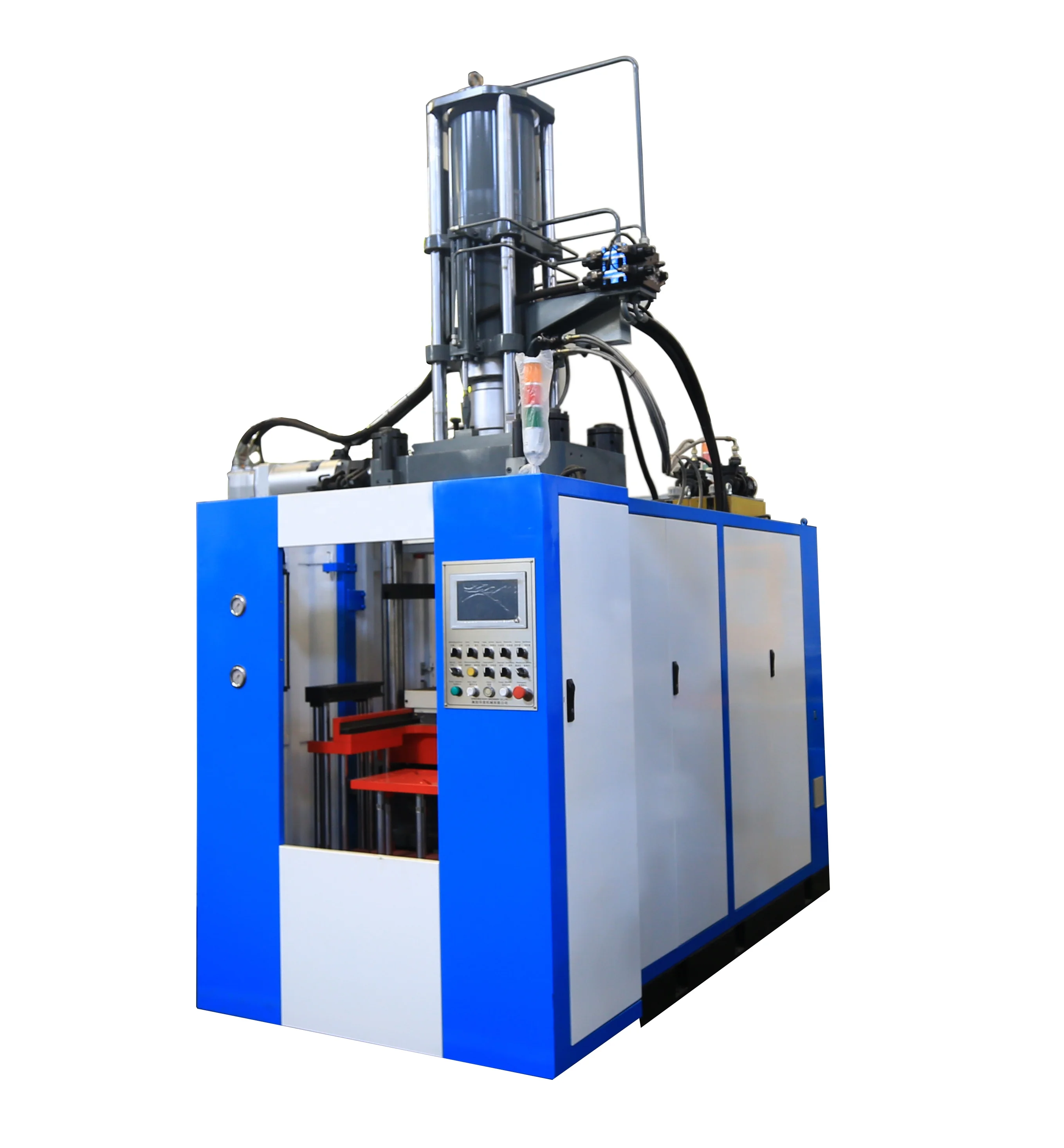

Machine Picture and Moulded Parts













We provide you with optimum solution for automotive rubber moulded parts, rubber metal parts, anti-vibration mountings, etc.
