Рамка для трафаретной печати УФ-свет вакуумный экспозиционный блок экспозиция
- Категория: Форпресс оборудование >>>
- Поставщик: Changzhou,Welldone,Electronic,Materials,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 333.39 $* | 350.80 $* |
| Aug-16-2025 | 330.76 $* | 347.11 $* |
| Jul-16-2025 | 277.69 $* | 291.19 $* |
| Jun-16-2025 | 325.9 $* | 341.65 $* |
| May-16-2025 | 283.30 $* | 297.41 $* |
| Apr-16-2025 | 319.25 $* | 335.21 $* |
| Mar-16-2025 | 316.13 $* | 332.90 $* |
| Feb-16-2025 | 314.96 $* | 330.11 $* |
| Jan-16-2025 | 311.97 $* | 327.32 $* |
Характеристики
Product Pictures
Screen Printing Squeegee Rubber
1.Not easy to deform
2.Solvent resistant
3.Wear resistant
4.Long service life
Product Description

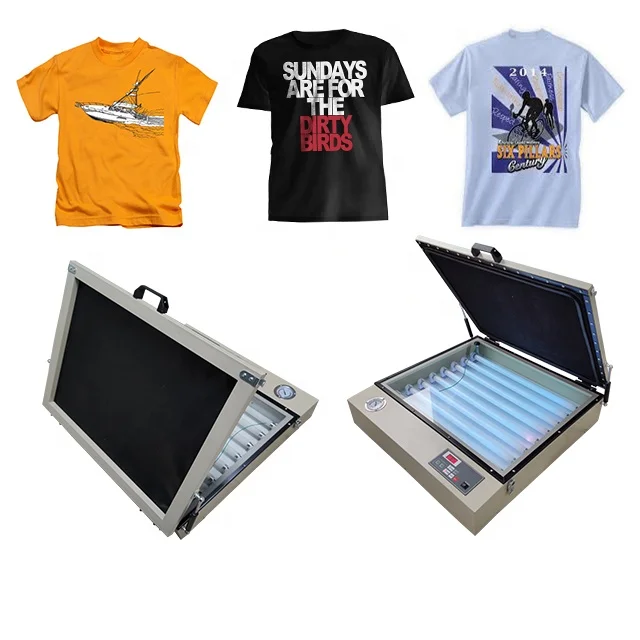

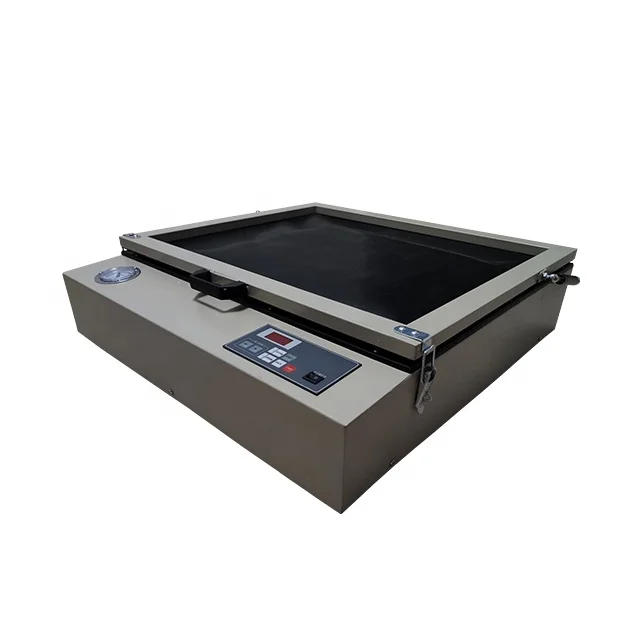

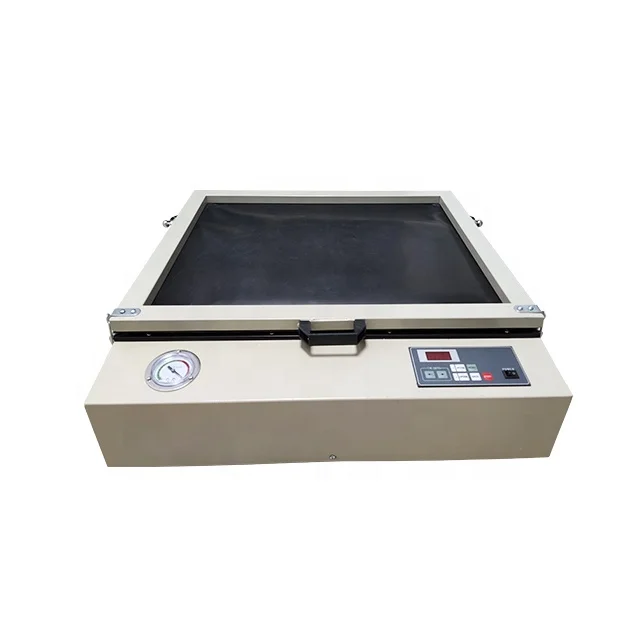

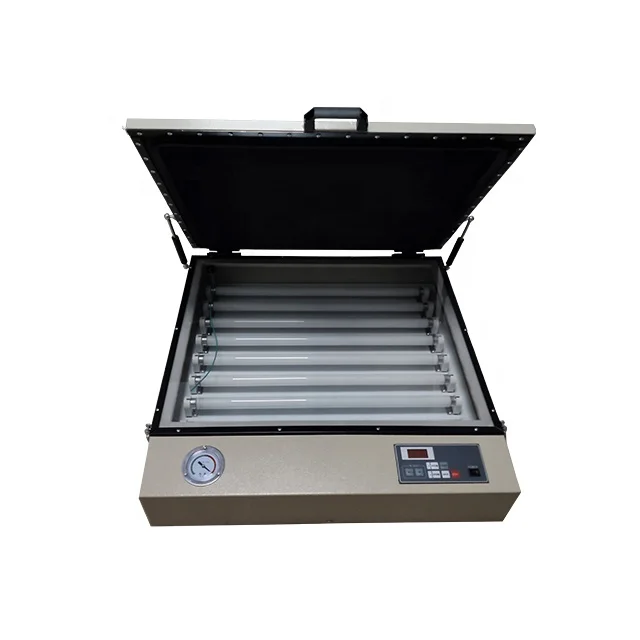

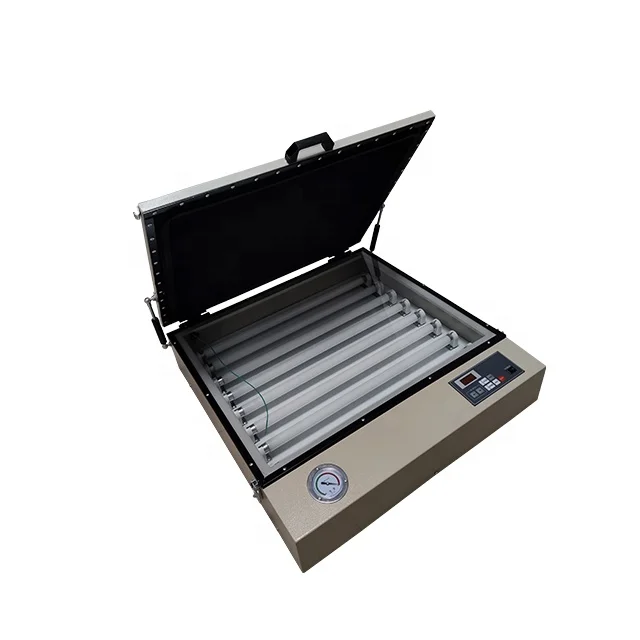

Screen Exposure Machine with UV Light | ||
1 | Power:220v/50Hz ; 110V/ 60Hz ; 240w | |
2 | Light Source: UV Light | |
3 | Lamp Power×Amount: 30W×10Pcs | |
4 | Digital Display of Exposure Time Setting | |
5 | Exposure Size: 60*50cm / 70*60cm | |
6 | Net Weight: 23Kg / 30Kg | |
7 | Gross Weight: 34Kg / 41Kg | |

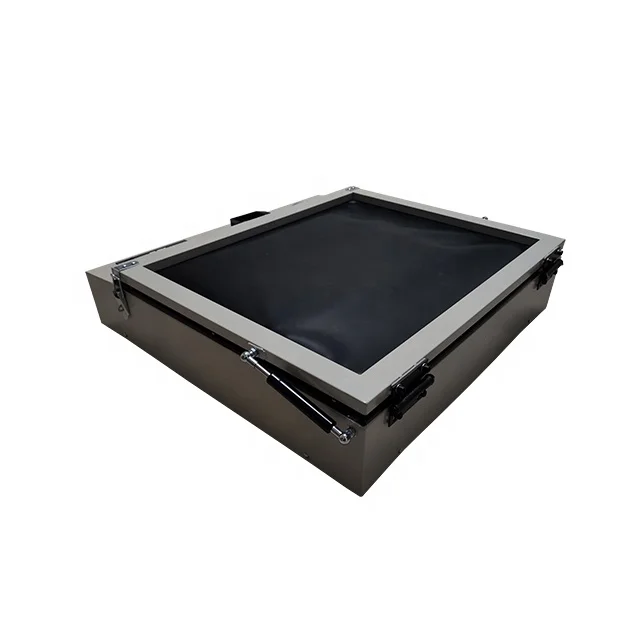

Vacuum Screen Exposure Machine with UV Light | ||
1 | Special Tips: The vacuum pumping area (sizes of the rubber blanket) is 55*85cm; But the optimum exposure screen is within 40*50cm by the outer sizes. If your screen is oversized, please buy cautiously! | |
2 | Screen printing screens are coated with a light sensitive emulsion using a scoop coater. When the emulsion is dry, place a positive print of your image on the screen. Once you burn the screen, the emulsion that did not get any UV will wash out of the screen exposing the tiny pin holes. The surrounding areas that were exposed to UV will be cured. Hence the ink will pass through screen onto your substrate. | |
3 | Rational design & easy operation: based on humanity and practicality principles, with the elaborate designed table type structure, it's much easier for screen exposure with high precision. | |
.4 | All-metal construction & elegant appearance with advanced electrostatic paintings, easy to clean and no rust | |
5 | Excellent packing in study wooden case as a whole will guarantee a easy and safety transportation. | |
6 | Equipped with spare parts of a UV lamp and a ballast, instruction manual and videos for your smooth usage | |
Application
T-Shirts Screen Printing Machne--Application
| The machine is four color four station screen printing machine,suitable for one or two people to use.Users just need to stand in one platen station to work,platen station and frame can rotate in 360 degree to station location,it don’t need the operator move to work. Mainly used for T-shirt printing, also printed cloth and other products.Optional flash dryer, and the dryer place in the upside of printing station’s platen,drying the surface of material after printing for 3-5 seconds,then printing the next color,improve the work efficiency,two people operate(one people printing,one people place the T-shirt and drying platen,Fold the printed T-shirts)Printed four-color T shirt 200-250 pieces per hour. |
The maintenance storage of the squeegee
1.Shall be falt,don't placed into rolls
2.Shall be open the whole roll 24 hours make sure the squeegee complete stretch befor using.
3.Storage without removing the handle,the article blowing up,should be used when the stencil scraping the article can't contact with any object.
4.When store the squeegee,the temperature should be 20℃to 25℃ degrees and dry environment,away from the ink ,because the squeegee can absorb moisture in the air and solvents.
5.The squeegee with ink or handle can't stored overnight.
6.Do not put the squeegee in the solvent for long time.although the squeegee can be resistant to many kinds of solvents,but long time of soaking will make the squeegee deformation,loss of elasticity.
7.Shall be immediately flush after using it to avoid ink dry on the squeegee.After cleaning the rubber handle there won't have any residual ink marks,otherwise when using the squeegee next time will have mark.
8.Using the soft cloth to clean the squeegee,along the direction of the squeegee to clean.otherwise reverse cleaning will damage the squeegee edge.
Abpve all it is very important to the select and use the squeegee.in the midst of our printing,undertake choosing according to various substrates with different squeegee.it will have great effect for silk screen printing quality.
