Характеристики
Product Description

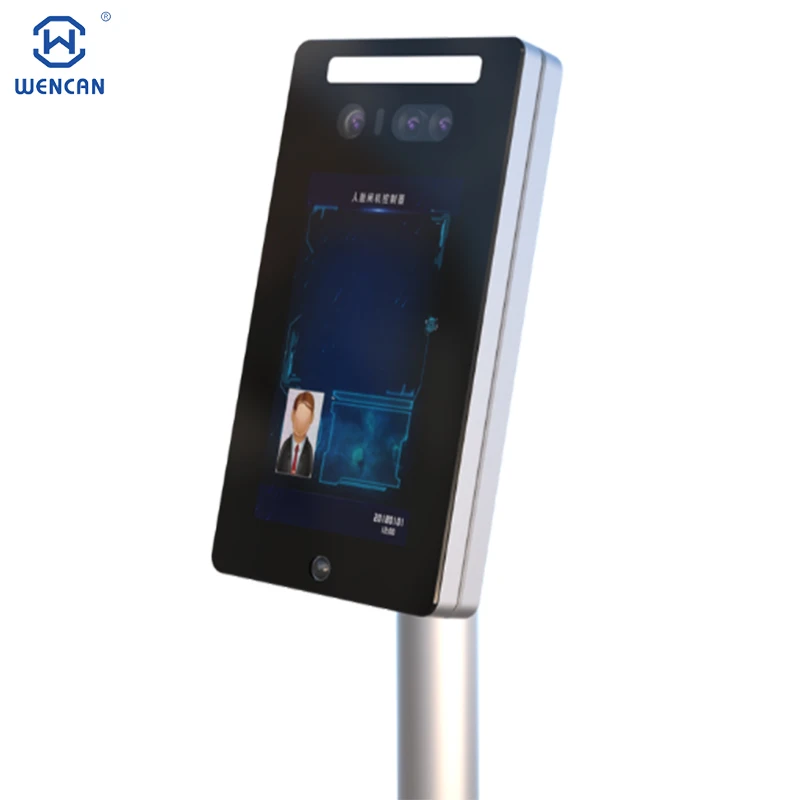

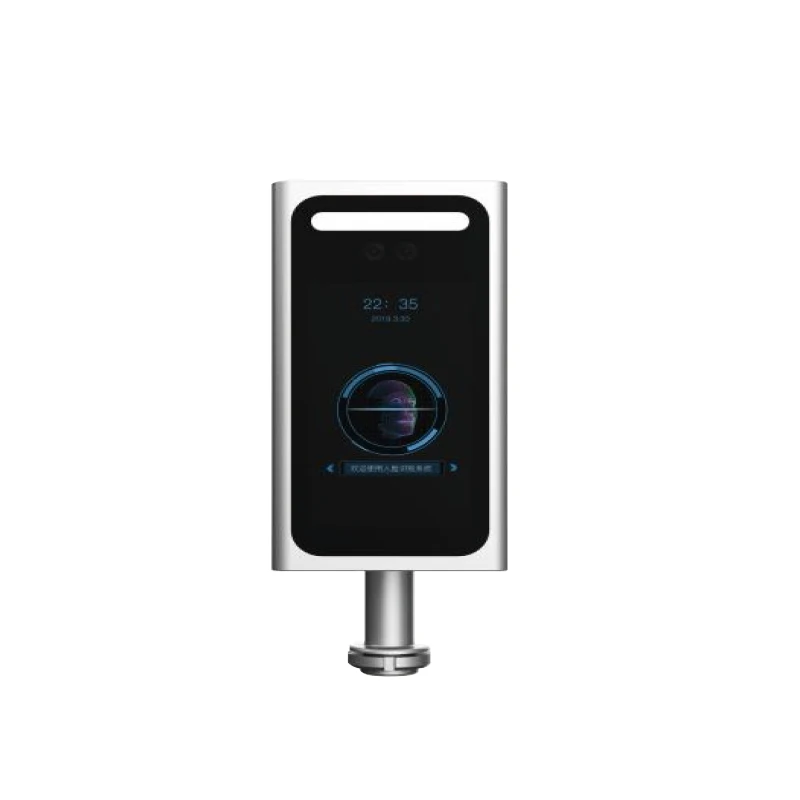

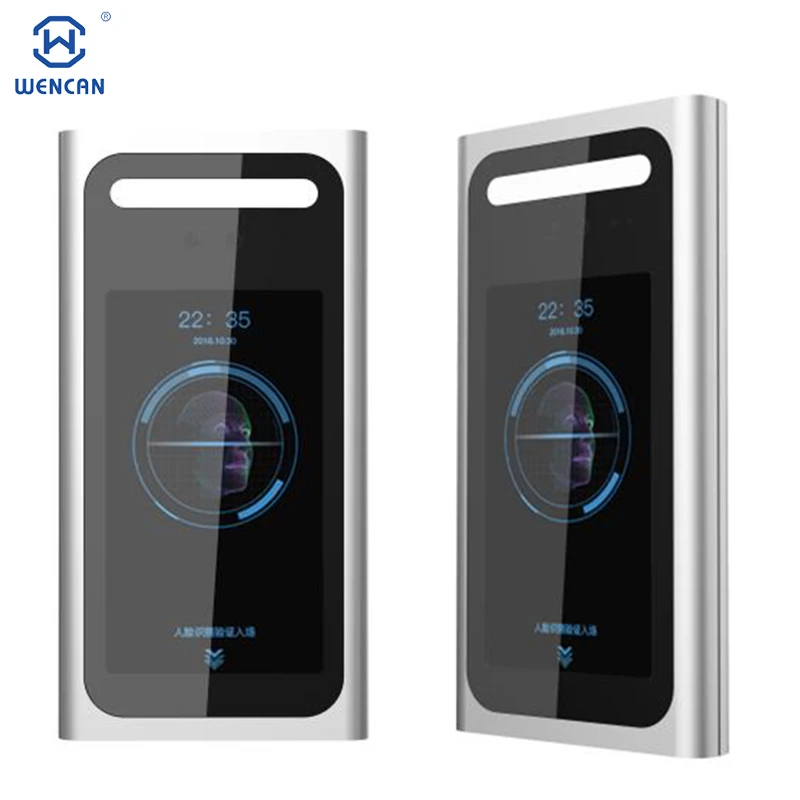

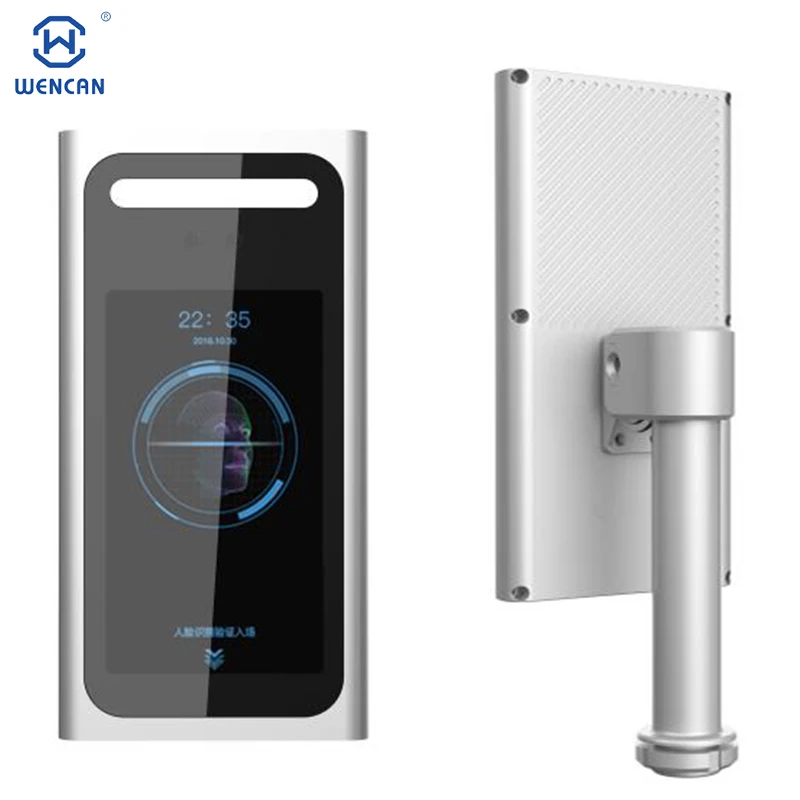

WCH-PR02 Face recognition
Come with 3 cameras, human bodies can be detected with high accuracy even in night vision
* Support Real Time Human Body Detection.
* Using Linux operating system, better system stability.
* Face recognition algorithm to accurately recognize faces, face recognition time is less than 1s.
* Unique The camera uses H.265 Main Profile encoding, compatible with NVR and other storage devices through the ONVIF protocol.
* From -45 ° C to + 70 ° C environment for long-term stable operation.
* Support free switching 1:N/1:1 (IC card, QR code, ID card) recognition mode 1: N with 0.8s comparison efficiency.
* Outdoor IP66 water proof and dust proof.
* Mean time between failures MTBF>50000 H.
* Support for AD file playback.
* Support PIR human body sensing wake-up function.
* Support TF card storage, pictures are stored continuously for 1 year, video is stored continuously for 7 days.
* Support 40000+ face matching library and 1600,000 face recognition records.
* Rich interface protocol, support SDK and HTTP protocol under various platforms such as Windows/Linux.
* Support machine vision optical wide dynamic ≥120dB, suitable for backlist environment monitoring.
* Support tracking of personnel movements under strong backlight conditions.
* The host supports the Wiegand interface to connect with the personnel gate and the access control host, and acts as a face recognition reader.The device supports the external access control host or Wiegand card reader through the international standard Wiegand protocol (WG26/WG34).
* Using Linux operating system, better system stability.
* Face recognition algorithm to accurately recognize faces, face recognition time is less than 1s.
* Unique The camera uses H.265 Main Profile encoding, compatible with NVR and other storage devices through the ONVIF protocol.
* From -45 ° C to + 70 ° C environment for long-term stable operation.
* Support free switching 1:N/1:1 (IC card, QR code, ID card) recognition mode 1: N with 0.8s comparison efficiency.
* Outdoor IP66 water proof and dust proof.
* Mean time between failures MTBF>50000 H.
* Support for AD file playback.
* Support PIR human body sensing wake-up function.
* Support TF card storage, pictures are stored continuously for 1 year, video is stored continuously for 7 days.
* Support 40000+ face matching library and 1600,000 face recognition records.
* Rich interface protocol, support SDK and HTTP protocol under various platforms such as Windows/Linux.
* Support machine vision optical wide dynamic ≥120dB, suitable for backlist environment monitoring.
* Support tracking of personnel movements under strong backlight conditions.
* The host supports the Wiegand interface to connect with the personnel gate and the access control host, and acts as a face recognition reader.The device supports the external access control host or Wiegand card reader through the international standard Wiegand protocol (WG26/WG34).
Specifications
Model | WCH-PR02 | ||||||
Processor | Sextuple processor + 2G memory + 32G flash | ||||||
Operating system | Linux operating system | ||||||
Storage | Support TF card storage | ||||||
Camara module | H21A | ||||||
Sensor | 1/2.8" Progressive Scan CMOS | ||||||
Lens | 3.6mm (optional) | ||||||
Recognition height | 1.2~2.2 meters, angle can be adjustable | ||||||
Recognition distance | 0.5~5 meters, depends on lends | ||||||
Face angle | 30 degrees left and right, 30 degrees up and down | ||||||
Recoginition speed | Less than 1 second | ||||||
Function | Support 400,000 capture library, real-time capture, support 160,000 list library | ||||||
Switch inputs | 1ch switch input | ||||||
Power | DV12V, 3A | ||||||
Network interface | 1x RJ45 10M / 100M Adaptive Ethernet port | ||||||
Wiegand interface | 1ch Wiegand interface input/output | ||||||
USB interface | 1ch USB interface | ||||||
Camera | Three cameras:1x face capture camera, 1x IR camera, 1x B/W camera | ||||||
Effective illumination | Color 0.01Lux @F1.2(ICR);B/W 0.001Lux @F1.2 (ICR) | ||||||
SNR | ≥50db(AGC OFF) | ||||||
WDR | ≥120db | ||||||
Video coding | H.265 Main Profile /H.264 BP/MP/HP /MJPEG | ||||||
Resolution of main stream | 50Hz: 25fps (1920×1080,1280×720) 60Hz: 30fps (1920×1080,1280×720) | ||||||
Resolution of sub stream | 720*576,1-25(30)fps/640*480,1-25(30)fps 320*240,1-25(30)fps | ||||||
Operating temperature | -45℃ - +70℃ | ||||||
Working humidity | 5～90%relative humidity, no condensation | ||||||
Powered by | DC12V/3A | ||||||
Power | 20W(MAX) | ||||||

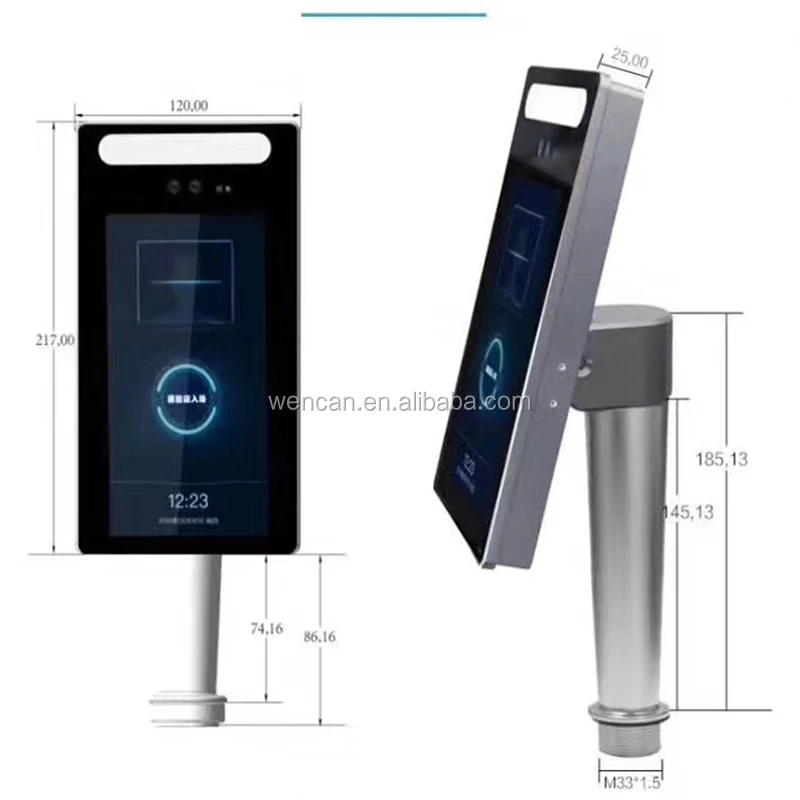

Device Size | 128(W) * 28(T) *240(H)mm | ||||||
Screen Size | 7 inches | ||||||
