Сверхмощный самосвал 430hp 8x4 12 колесный для песка euro

Цена:*

Количество:

Product Description

Engine
German tech diesel engine
Type	Common rail, 6 cylinder,direct injection turbocharged, water cooled
Max. power	316kw/1900rpm
Max. torque	2050N.m/1100~1450rpm
Number of cylinder	6
Displacement	11.81L

Main Technical Specification
Curb weight	16500Kg
Max. payload capacity	30000Kg
Rated axle loading capacity (Front)	2×7500kg
Rated axle loading capacity (Rear)	2×16000kg
Max. traveling speed	72km/h
Max. grade ability	30%
Tread	2065/1860/1860mm
Min. ground clearance	285mm
Fuel consumption	35L/100km
Fuel tank capacity	380L

Transmission System
German tech manual transmission
Type
Ratio
Forward	15.53, 12.08, 9.39, 7.33, 5.73, 4.46,3.48, 2.71, 2.10, 1.64, 1.28, 1.00
Reverse	14.05

Dump Body
Overall length	7800mm
Overall width	2300mm
Overall height	1500mm
Side plate thickness	8mm
Under floor thickness	12mm
Hoist	Front lifting

Steering System
Hydraulic steering with power assistance
Driving position	Left / Right hand drive

Axle And Tyre
Front axle	Reinforced
Rear axle	Reinforced
Rear axle ratio	5.921
Tyre size	12.00R20

Clutch And Brake
Single-plate dry coil-spring clutch, hydraulically operated with air assistance.
Service brake	Dual circuit compressed air brake
Parking brake	Spring energy operating on rear wheels
Auxiliary brake	Engine exhaust brake

Electric System
Negative grounded
System voltage	24v
Batteries	2×12volt/2×150Ah
Starter	24volt/7.80kw
Alternator	24volt/70A

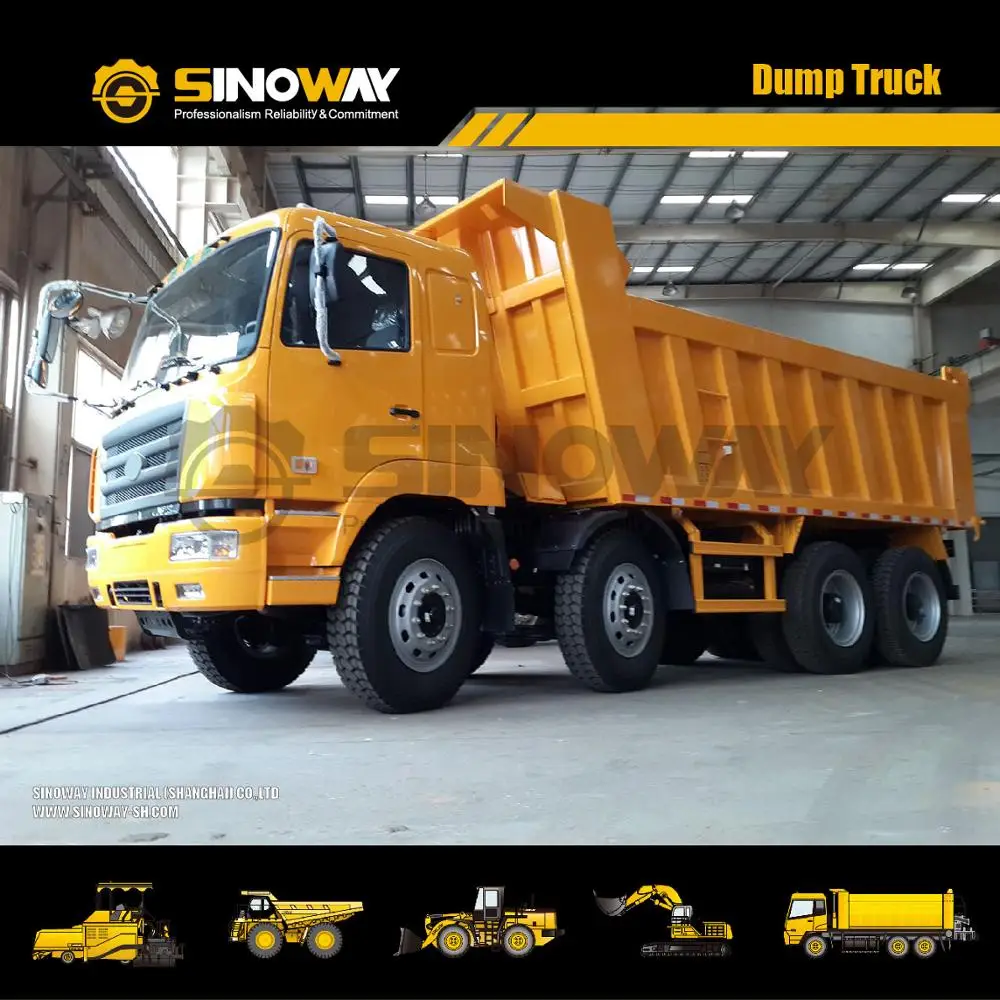

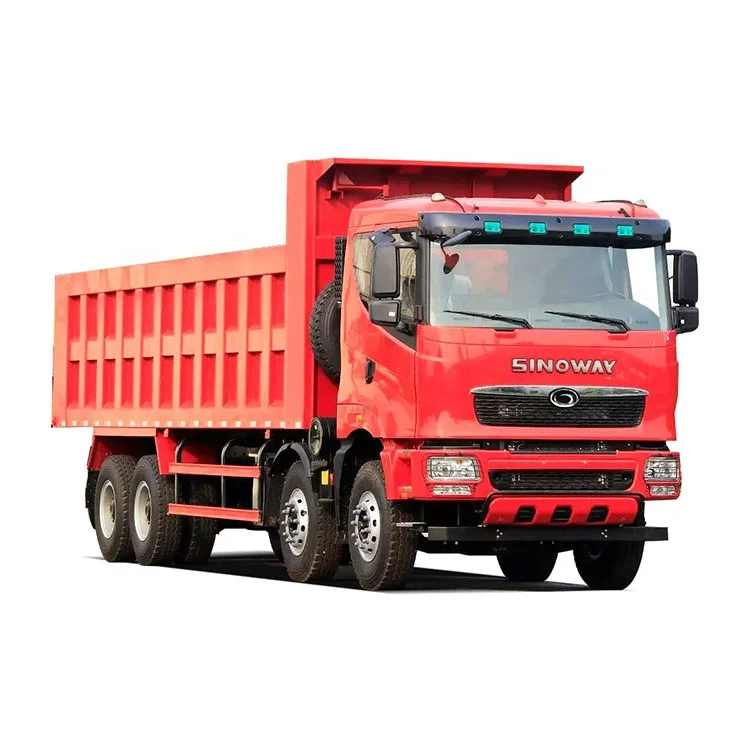

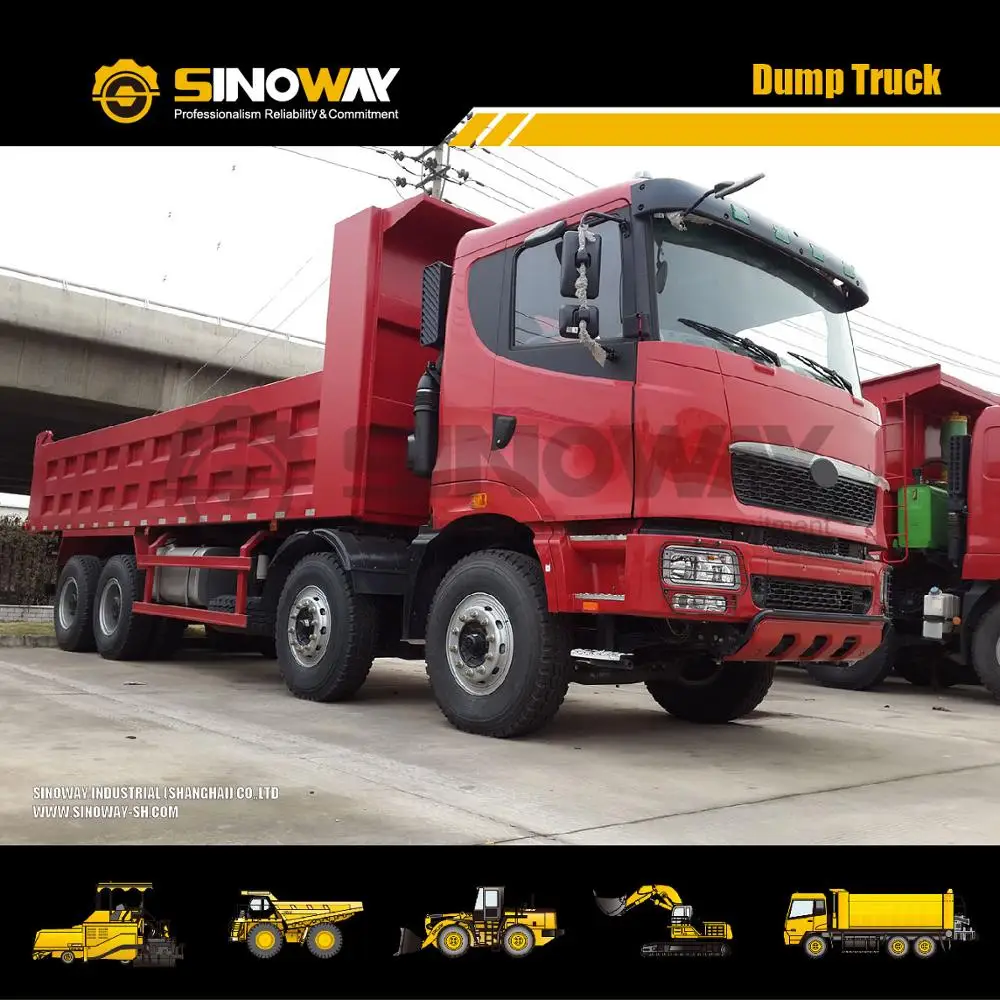

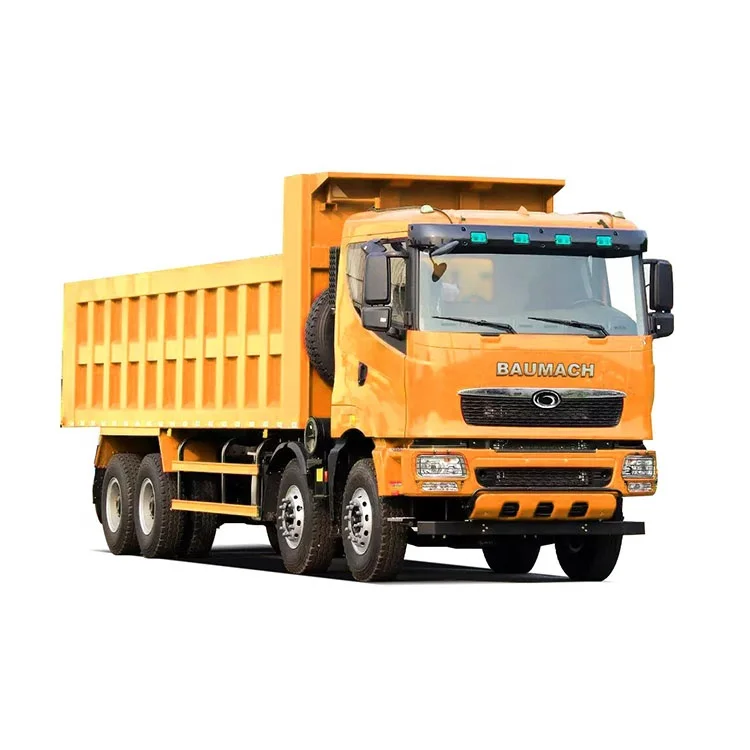

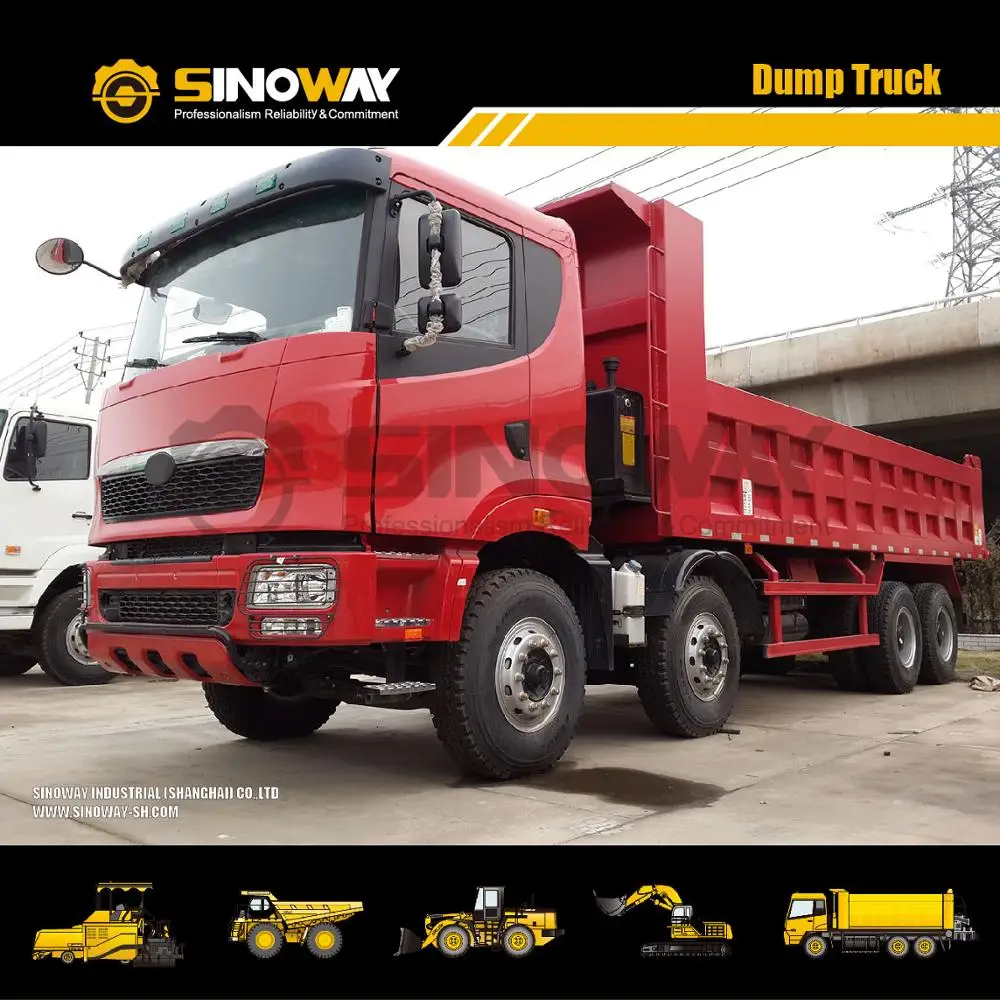

Product Show
