Пластиковый порошковый пульверизатор для ЭВА ПТФЭ


Поделиться:


Цена:8 660,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-16-2025 10305.37 $* 10820.39 $*
Aug-16-2025 10219.49 $* 10730.15 $*
Jul-16-2025 8573.25 $* 9002.1 $*
Jun-16-2025 10046.23 $* 10548.85 $*
May-16-2025 8747.13 $* 9184.57 $*
Apr-16-2025 9872.9 $* 10366.6 $*
Mar-16-2025 9786.39 $* 10275.91 $*
Feb-16-2025 9699.5 $* 10184.12 $*
Jan-16-2025 9613.35 $* 10094.62 $*

Характеристики


Product Description

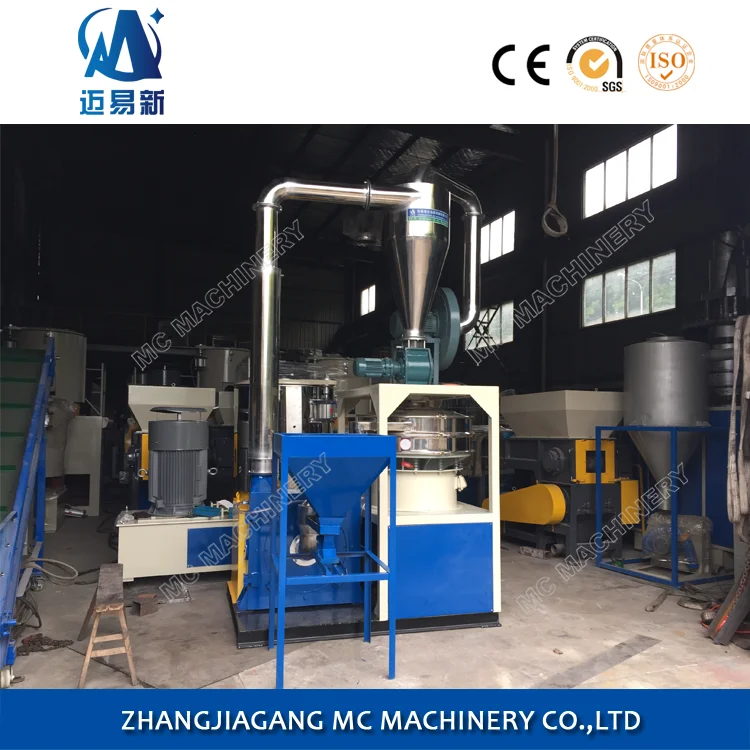

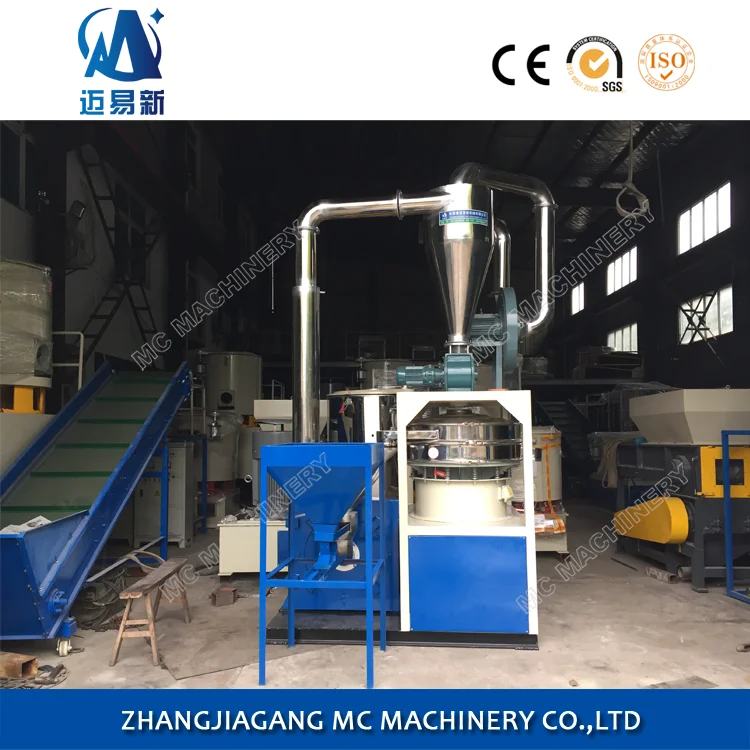

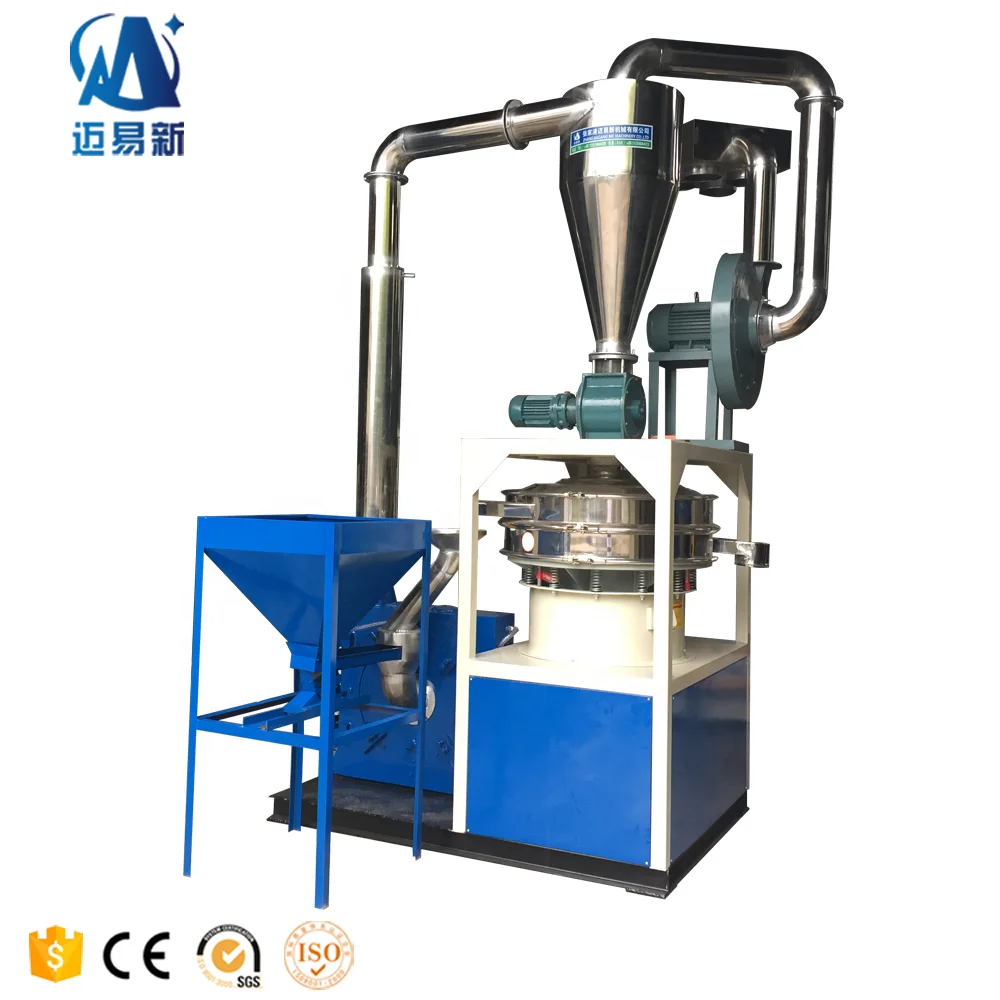

Plastic Powder Pulverizer Machine for EVA PTFE and Rubber is mainly suitable for milling PVC,PE,HDPE,LDPE,LLDPE,PMMA,PTFE,PC,PS,PET,ABS,MBS,PLA,EVA,rubber and so on.The suitable flake size can sending into directly is below than 12mm,final powder size is 10mesh to 100mesh.With different milling capacity 100kg/h,200kg/h,300kg/h,400kg/h by different machine model.
Main Fetures
1. This type can grind most kinds of Hard & Soft materials into 20-100 mesh powders in normal temperature.
2. A widely use range, PVC/PE/HDPE/LDPE/LLDPE/ABS/PS/PA/PC/PET/PMMA/PLA/PTFE/EVA/rubber Materials.
3. Equipped with seperatly Dust powder collector,keep your factory clean and better working environment and condition.
4.Complete machine has complete water cooling system to provent powder stick together.
5. The transport pipe and silo are all bade by stainless steel, it can work much more continously than normal steel type.
6. Knife can be adjusted and change very easy,your workers can change blade by themselves when you use extra blade.
6.Low energy consumption and high output.
Machine Parameter
Machine Model
MF-400
MF-500
MF-600
MF-800
Main motor power
30KW
37KW
55KW
75KW
Vibrating screen Diameter
600mm
800mm
1000mm
1200mm
Capacity
50-150kg/h
150-300kg/h
250-400kg/h
350-600kg/h
If you have interests to know more about this machine,please send us an inquiry!
Detailed Images

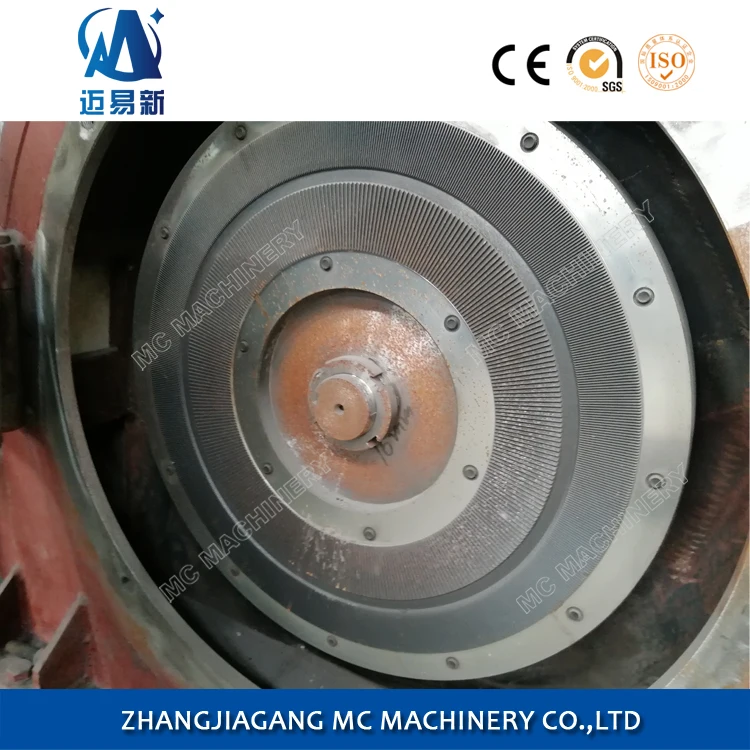

Grinding Disc
1)Grinding disc diameter:610mm
2)Grinding disc raw material:9CrSi/SKD-11
3)Quantity:2 pieces(1 complete set)
Vibrating Machine
1)Vibrating screen diameter:1000mm
2)Vibrating motor power:0.55KW
3)Screen net hole size:10-100mesh
4)Screen raw material:stainless steel
Main Motor
1)Motor power:55KW,AC motor
2)Motor speed:2980r/min
3)IP55

Dust Collection Device

1)Dust collect bag quantity:4 pieces
2)Dust bag raw material:Non woven bags special for powder collection
3)Dust suction motor power:7.5KW

Electric Cabinet

1)Electric contactor:DELIXI/SIEMENS
2)Feeding speed adjustment device
3)Air switch:CHINT

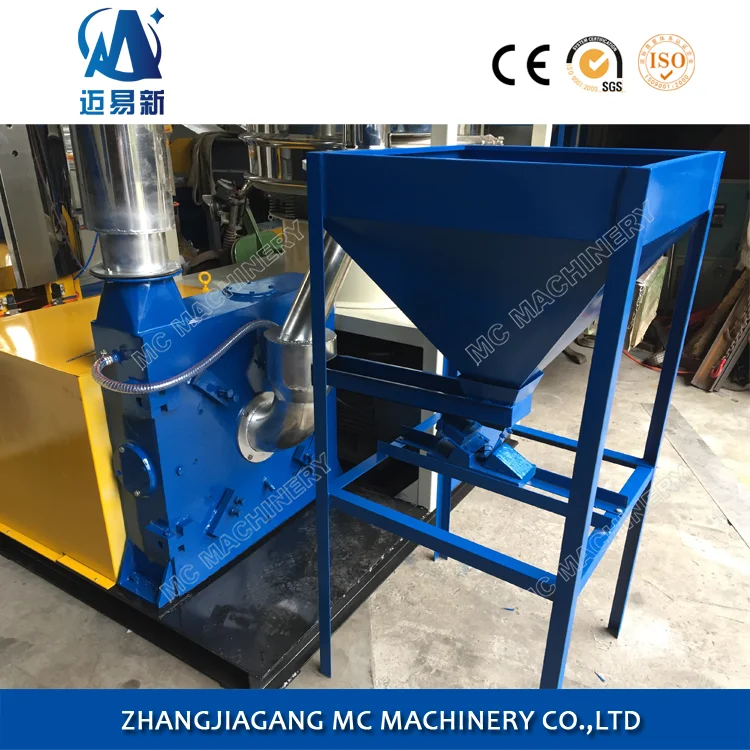

Feeding Device

1)Feeding speed is adjustable
2)Feeding hopper effective volume:25KG
3)Separated feeding hopper from the milling machine,it will protect the feeding motor and easy for worker's operating.
Our Service
Pre-sales Service
* We given client the details technician offer.
* Professional advice for Inquiry and technical support.
* supply the details layout, installation instruction, technician support for the clients
* View our Factory,sales manager accompany.
* 24 hours English support.
* Trade assurance service,third part guarantee machine quality,quantity,delivery time from payment to delivery.
After-sales Service
* We arrange engineer to install the machinery and training the workers for client abroad if clients required.
* We have 24 hours team to solve problems after sales.
* We have free spare parts with the right machine during warranty time.
* We supply whole machine lifetime spare parts for every customer with only raw material cost after warranty time.
* We always update the new technology to every customer.
Packing & Delivery
If you have interests to know more about this machine,please send us an inquiry!
Related Products

Grinding Disc for MF-600 Plastic Milling Machine


PVC Pulverizer Milling Machine


Waste Plastic Crusher

SRL-Z High Speed Mixer Unit

Horizontal Plastic Pipe and Profile Crusher


Plastic Pellet Vacuum Loader

Our Company
FAQ
1.How about the quality of your product?
Marksim:
1)Our products manufactured strictly according to national and international standard
2)We have CE ,ISO,BV,SGS certification
3)We take testing on every product before delivery.
4)Our quality supervision department oversees the whole process during manufacturing and machine testing before machine made shippment.

2.What is the MOQ?
Marksim
:1 set.

3.If you can make machine custom-made?
Marksim:Yes,we can make products special design according to customer's requirements.

4.What is the machine voltage?
Marksim
:Normally 380V,50hz,3 phase.But we can change it according to customer's requirement, like 220V,240V,415V,440V,600V and so on.

5.What is this machine guarantee time?
Marksim:1 year

6.When the machine can be deliveried?
Marksim
:Normally we have ready machine in stock,if not have ready machine then need 20 working days for manufacturing new.

7.We want to visiting your factory first before order,if it is avaliable?
Marksim
:Yes,welcome to visit our factory any time,our factory normally have ready machines in stock,you can see real machine by your eyes and it will be the best for you to know our machine and our company.

8.If we finally buy your machine,you can send engineers to our country and help installation and training our workers?
Marksim:Yes,of course,if you needed,we will send engineer to your country to your factory to help installation and training your workers,but you have to bear our engineer's flight charge around,take responsibility of engineer's food and hotel during his visiting and pay salary USD100 per day for one person.

9.I’m a foreign customer,if the machine some part is broken one day,how can we get help from you?
Marksim
:If the machine part is broken,during warranty we will sending spare parts to you without any charge and help you make it change to new by phone or whatsapp or video.If out of warranty,we will also provide you spare part but with raw material cost,and we also will help you change to new instead of broken part.We provide spare parts and technical service whole machine lifetime .
If you have interests to know more about this machine,please send us an inquiry!
