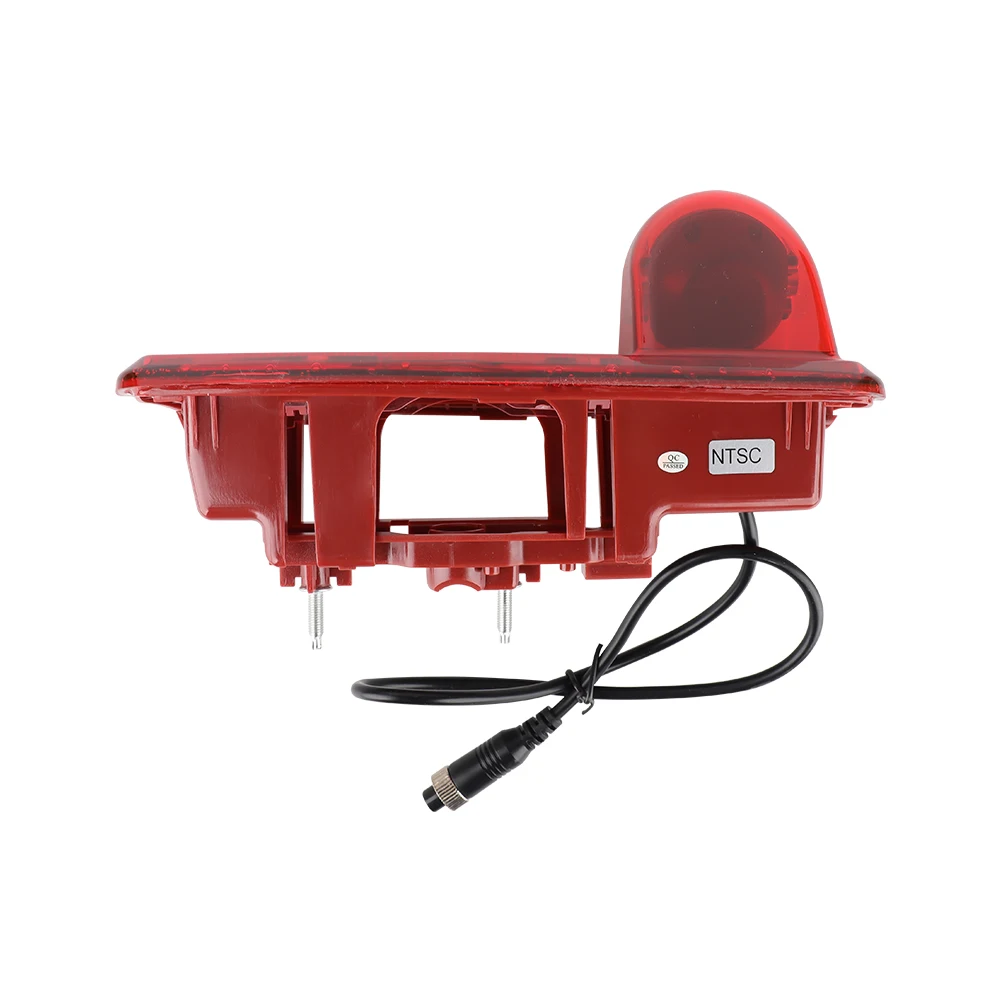

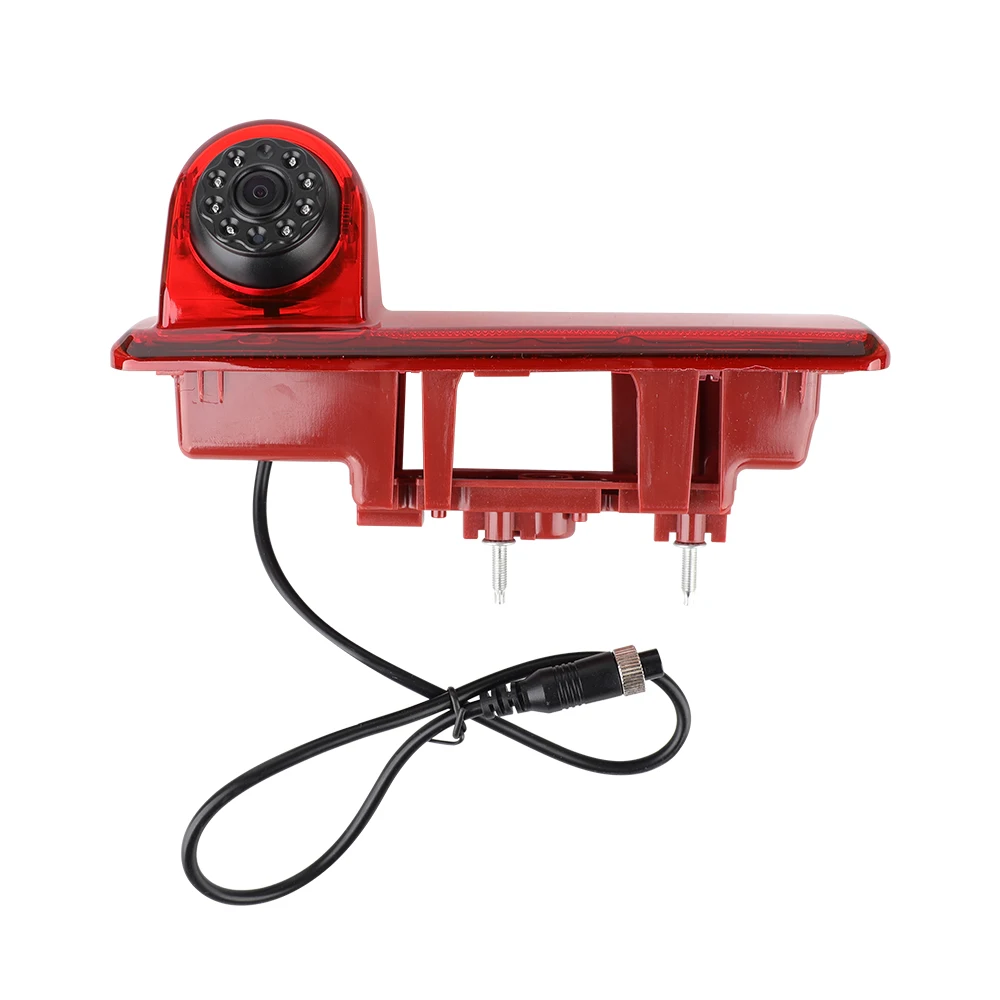

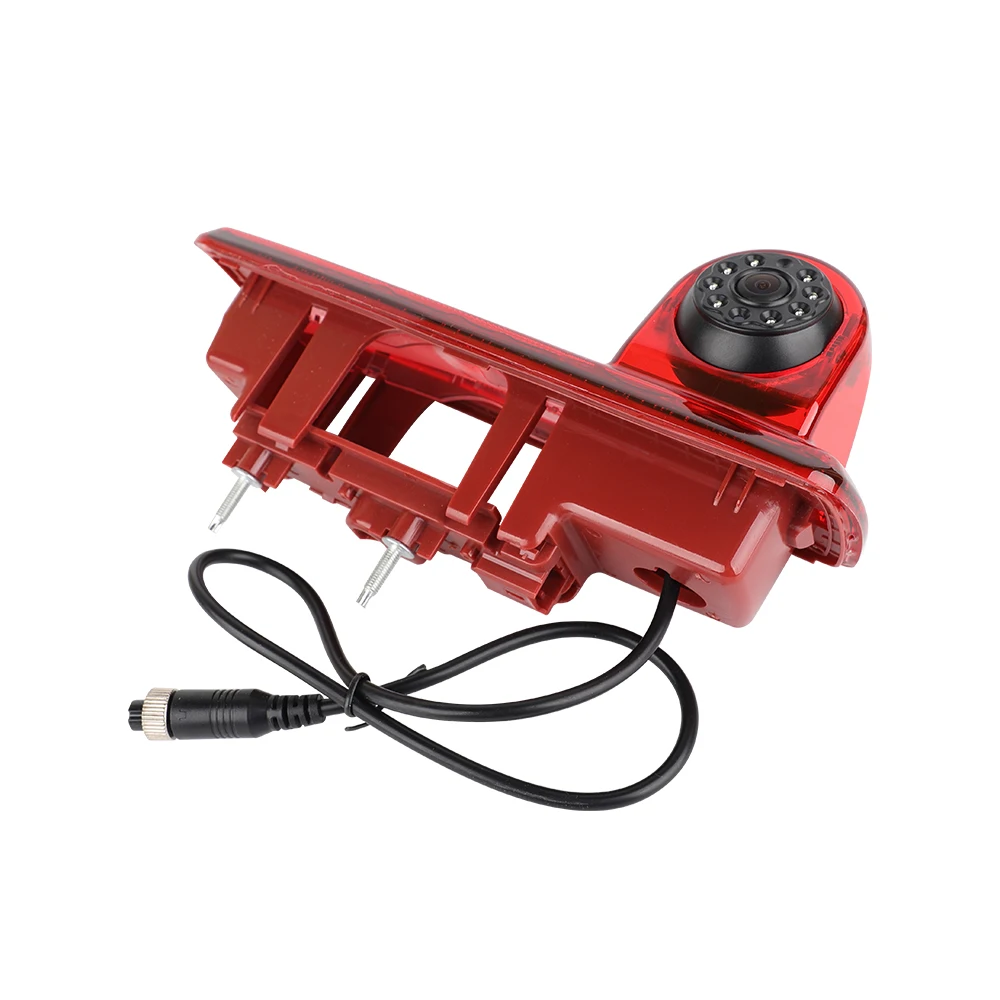

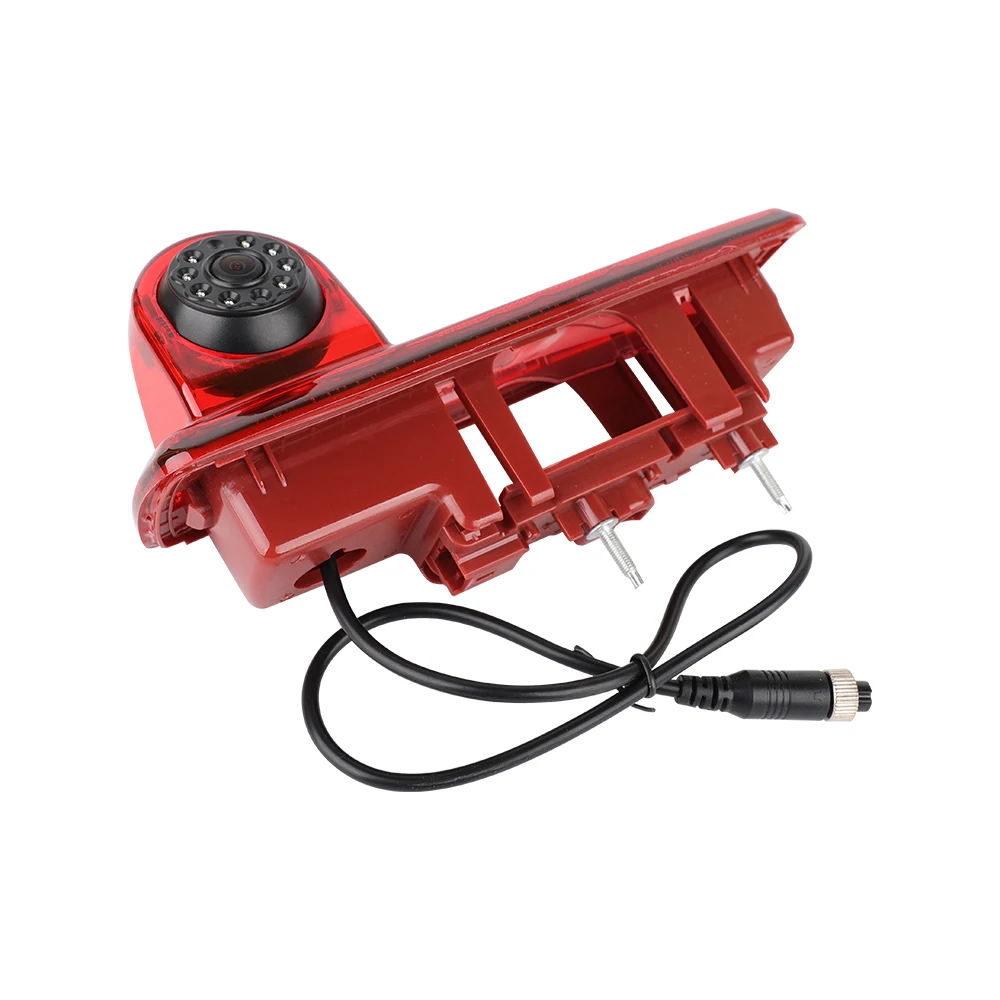

Камера заднего вида фонаря сигнала торможения резервная камера обратного хода для OPEL VAUXHALL VIVARO RENAULT авто парковка реверсивная

Reversing Camera & Kits:
Color: Red
Housing Material: Plastic
Voltage: 12V DC
Power: 12W
Dimension 140mm x 87mm
Image sensor: PC3089
Mirror head: F = 1.7mm
Viewing angle: 170 degrees
TV System: PAL
Horizontal Sync Frequency : 15625kHz
Resolution: 420-700TV Lines
682 × 504 Coms
Signal to noise ratio: >48dB (AOC on)
Post rate: 30fps
Minimum illumination: 0.5Lux
Waterproof: IP68
Output line: power supply, signal line, ground line
Video output: composite video cable (75 Euro)
Operating temperature: -20 ° C ~ +70 ° C, RH95%
Storage temperature: -40 ° C ~ +85 ° C, Rh 95%
AGC: Auto
BLC: Auto

Features:
-- High Performance Digital Super Clarity Image processor
-- The camera is mounted in a ball socket which only moves in one plane so is easy to setup and can be adjusted by the end user
who would like to fine tune the image -- to suit their individual requirements.
-- The camera comes with a long extension cable, allowing trouble free installation to suit even the longest wheelbase models.
-- You need to unscrew your current brake light housing to replace it with this one and screw in the bulb to maintain the brake
light functionality.
-- Then you just need to wire the camera to a reversing light feed to switch it on when you select reverse gear.
-- The camera also incorporates reversing guidelines to help you reverse.
-- Night Vision Camera
-- Waterproof
-- High sensitivity

Fitments (Please Compare The Camera With Your Original One Before Purchasing!):
For Renault Trafic 2001-2014

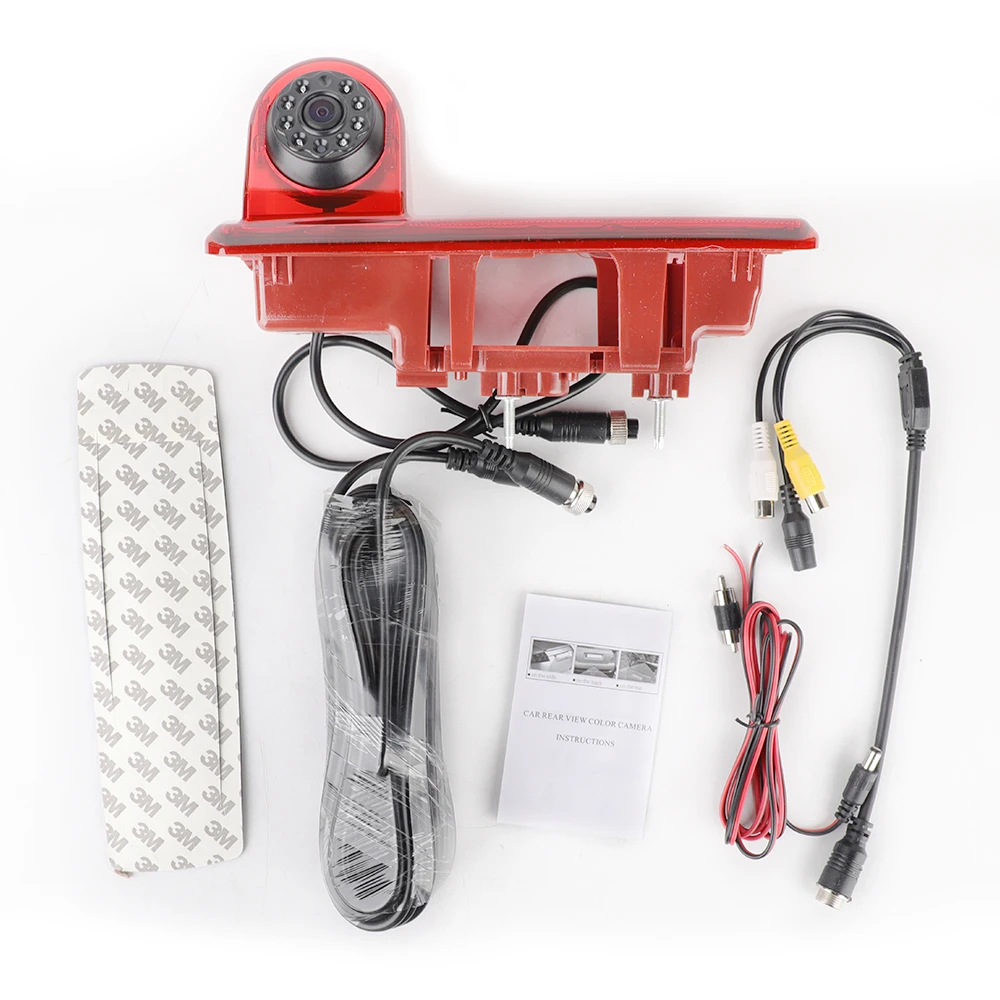

Package Included:
1x Reverse Camera
1x10M long extension cable
1x1.5m Power Supply Lead
1xComposite to Phono/RCA Adaptor Cable
1xEnglish Manual
Pre-fitted Sealing Gasket (As pictured)
(The ruler can be displayed on the display to see the approximate distance of the rear object from the rear of the car.)

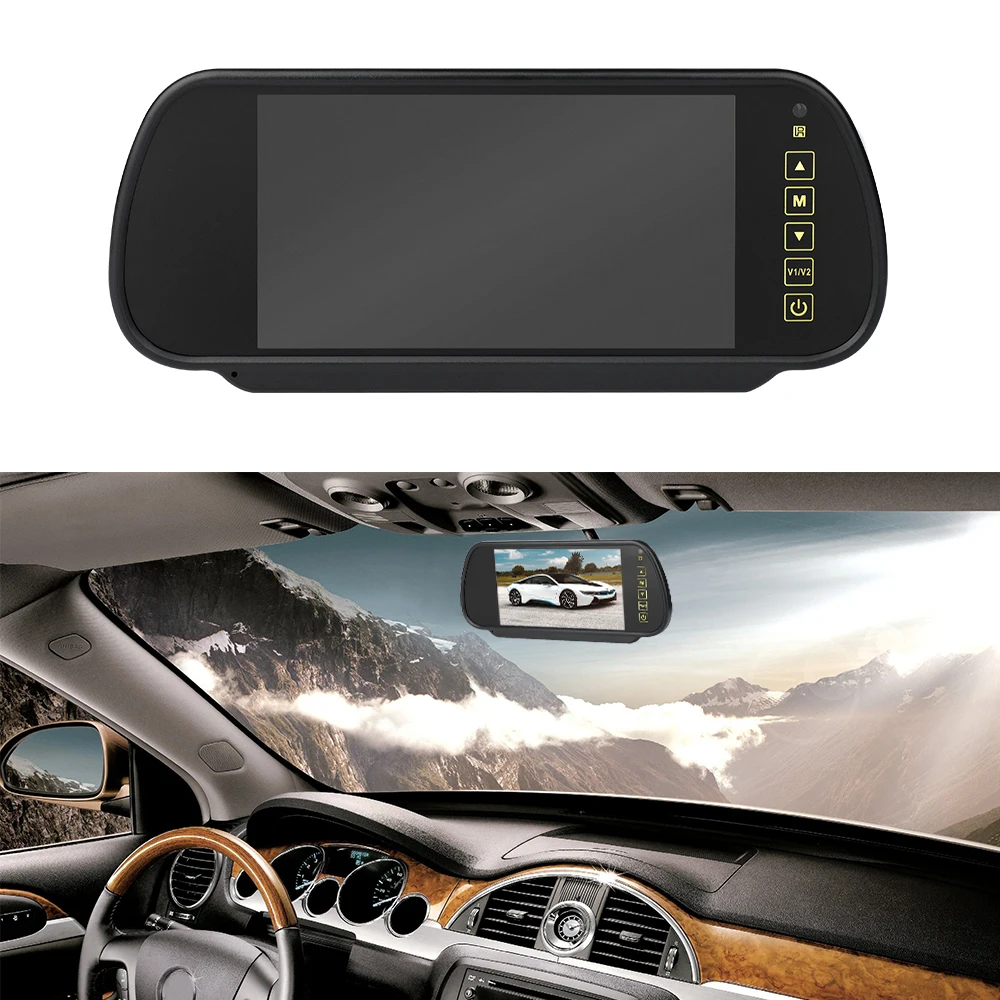

Display Screen:
Screen Size: 7 inch
Display Component: Color TFT LCD
Screen ratio 16:9/4:3 adjustable
Resolution: 480 x 234 Pixels
Contrast Ratio: 100:1
Housing Material: ABS
Video Frequency: PAL/NTSC
Support rotating the screen;Support adjust the Brightness, contrast, color.
2 ways to install: standing or mounting.
Low power consumption. No Audio input or output.
Comes with an IR remote controller for a easy operation.
Power supply: DC 12V / 24V
Working Temperature:
Work: 0 to 80 degrees C
Storage: -10 to 80 degrees C
Product Dimensions(L x W x H): 193 x 135 x 25mm
Net Weight: 356g

Feature:
100% Brand New. 7 inch LED backlight color TFT LCD display.
High resolution with 480 x 234 Pixels. Comes with an IR remote controller for a easy operation.
Support rotating the screen and adjust the brightness, contrast, color.
With 2 AV input. AV1 connects to car DVD, VCR and other video equipment. AV2 to car backup camera.
Working perfectly with Car DVD, VCD, camera, STB, satellite receiver, and other video equipment.

Package includes:
1 x Monitor;
1 x Bracket
1 x Video & Power Cable
1 x Remote Controller
1 x User Manual
