4x2 12 14 16 м Малый высотный

Цена:*

Количество:

Product Description

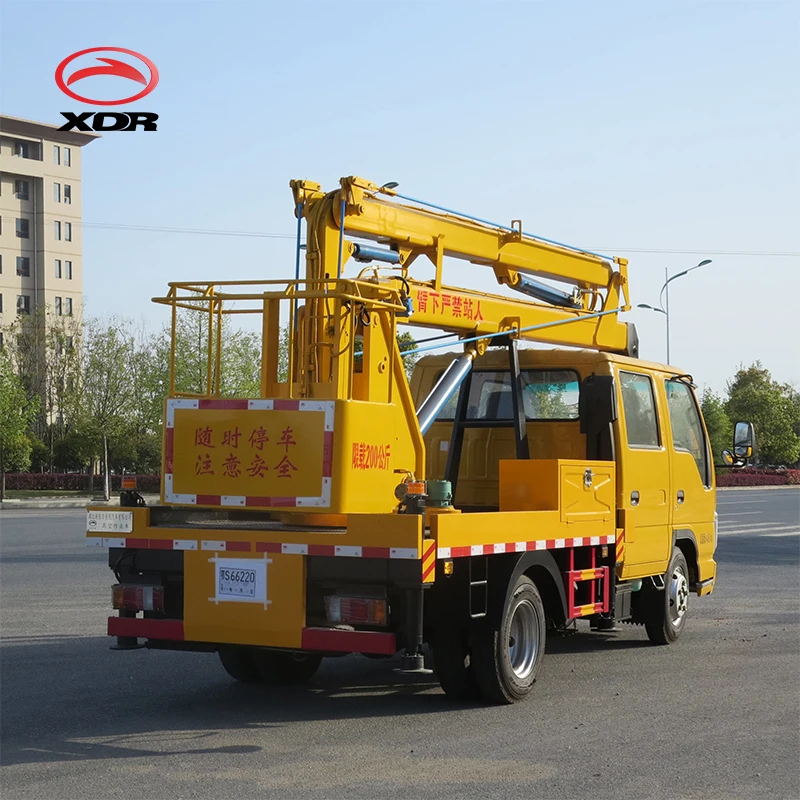

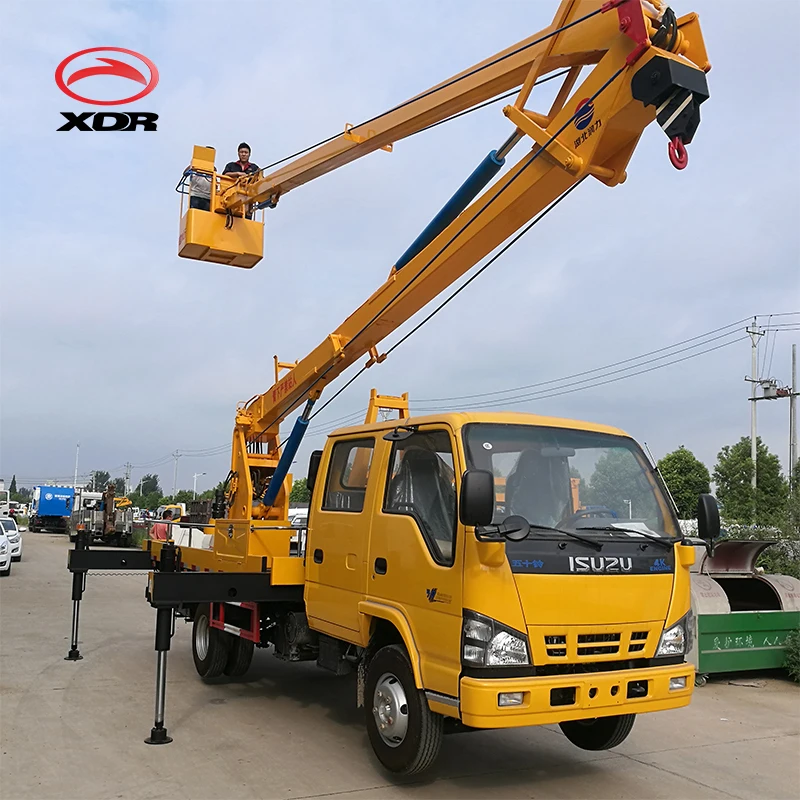

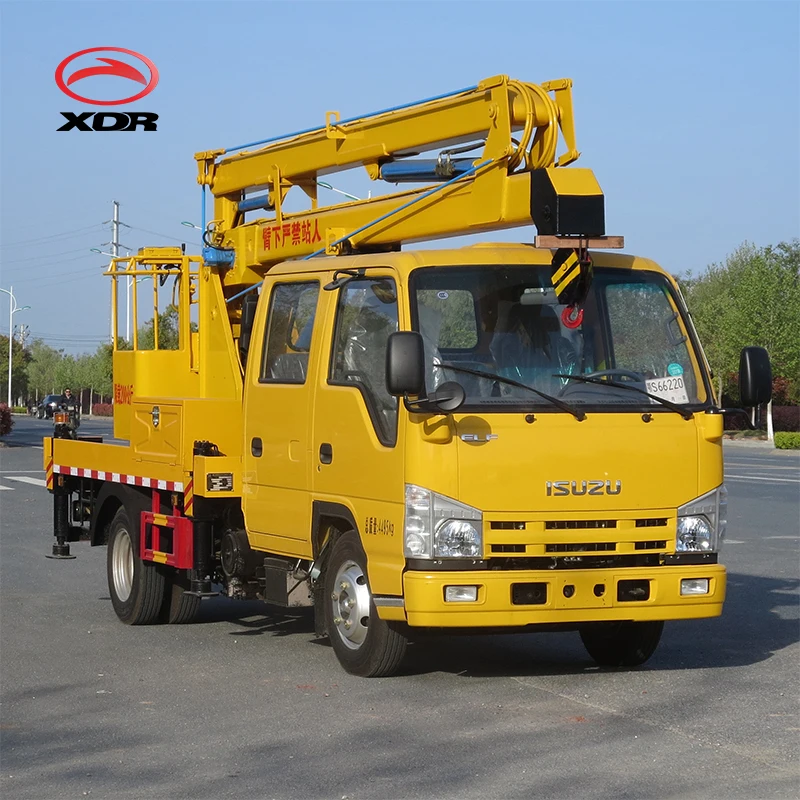

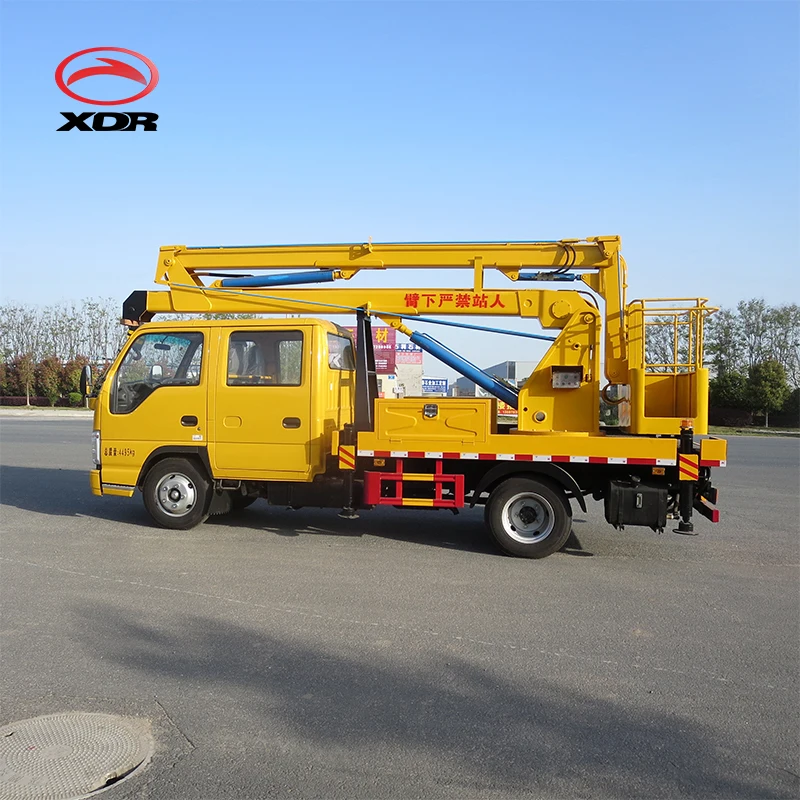

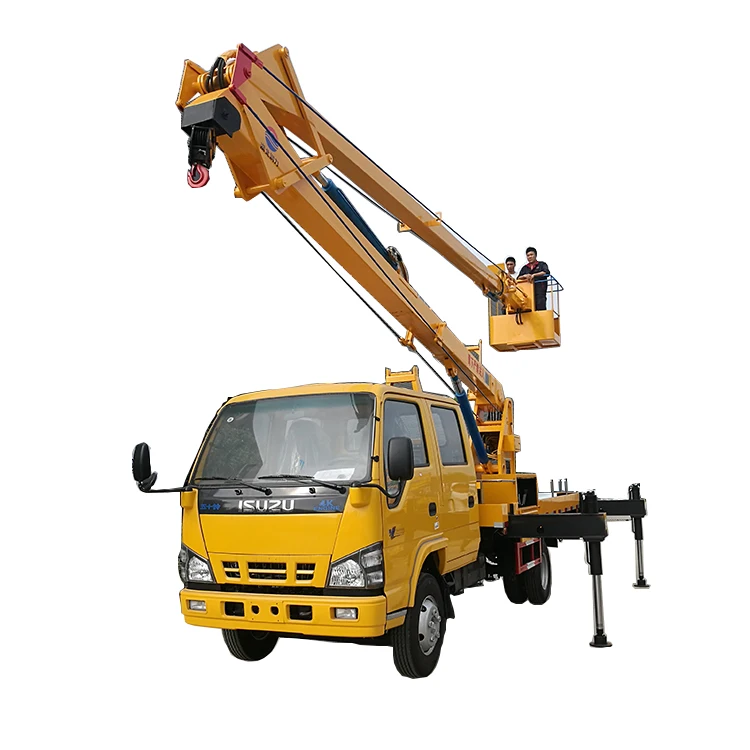

Item	Aerial Working Platform Truck			Chassis Model	QL1040A6HWY
Vehicle parameters	GVW(kg)	4495	Overall Dimension (mm)	5998×2000×2960
		Curb weight (kg)	4170	Steering Wheel	LHD
		Wheelbase (mm)	3360	Driving Type	4*2
Engine parameters	Engine Brand	ISUZU
		Model	4KH1CN5LS	Emission Standard	Diesel, Euro 5
		Horse Power(hp)	98	Displacement	2999ml
		4 stroke,4-cylinders in line, water cooling
Gear Box	MSB 5 forward and 1 reverse
Performance Parameter	Max Speed (km/h)	90	Front Axle	1377
		Cab Seat	2+3	Rear Axle	1425
		Leaf Spring	3/3+2	Front Suspension	1015
		Tire No.	6+1	Rear Suspension	1423
		Tire Specification	7.00R16	Approach Angle	24
		Axle No.	2	Departure Angle	13
Aerial Platform Structure Parameter	Arm Material	Carbon steel Q345
		Working Height(m)	12
		Maximum working radius(m)	6.2
		Platform average rise speed(m/s)	≤0.4
		Arm structure type	Three Section
		Rotation	360°continuous rotary
		Outrigger	3040*2890mm distance; H type, independently
