Характеристики

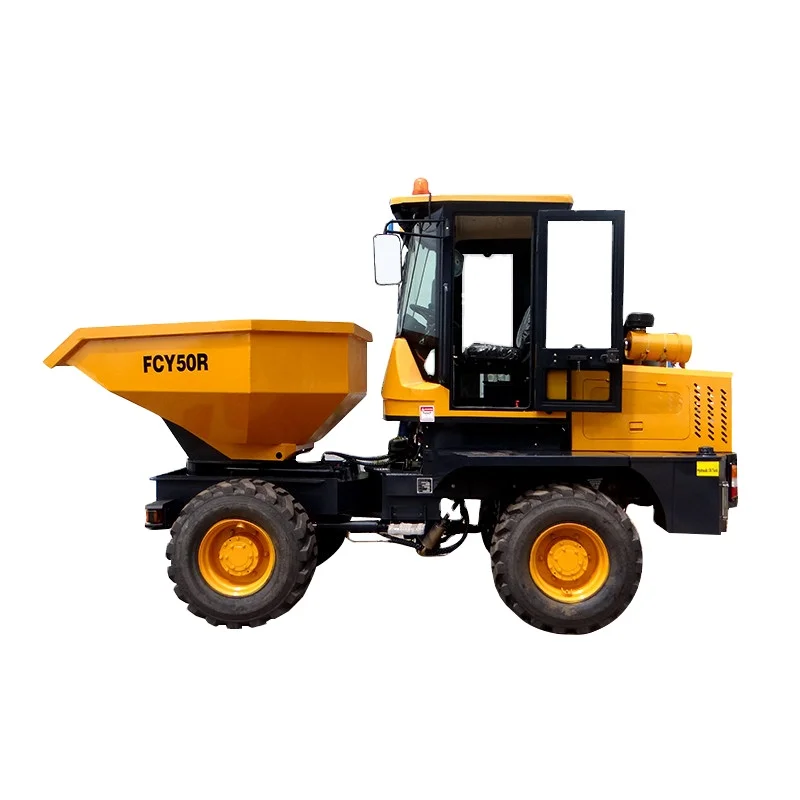

FCY50R 5 TON 180 rotating 4x4 site dumper front small dump truck


Product Application

Site Dumper are widely used in short-distance transport of bulk material,such as the construction industry,the factory floor,battlefield,protecting road section,the municipal engineering,underground mines and so on.

Main Features


*Medium-sized engineering dumper 5 ton/FCY50 4*4 Drive,full hydraulic steering,can unload materials smoothly by strong hydraulic pressure unloading system,The product is stable performance,simple operation,low fuel consumption,widely used in construction engineering,municioal engineering,urban and rural landscape,road traffic,the station sites,etc.:especially suitable for narrow site loading and short distance runing sand,gravel,coal,slag,loam,garbage and etc.

*Low walking speed,short-distance transport of bulk material.

*Easy operation,small turning radius can be used in a narrow site loading environment,With full seal cabin optional.

*Deutz and Cummins engine as optional engine which makes the performance more reliable.

*Off road wider tyres as option,can work in muddy and bumpy road.


Product Description

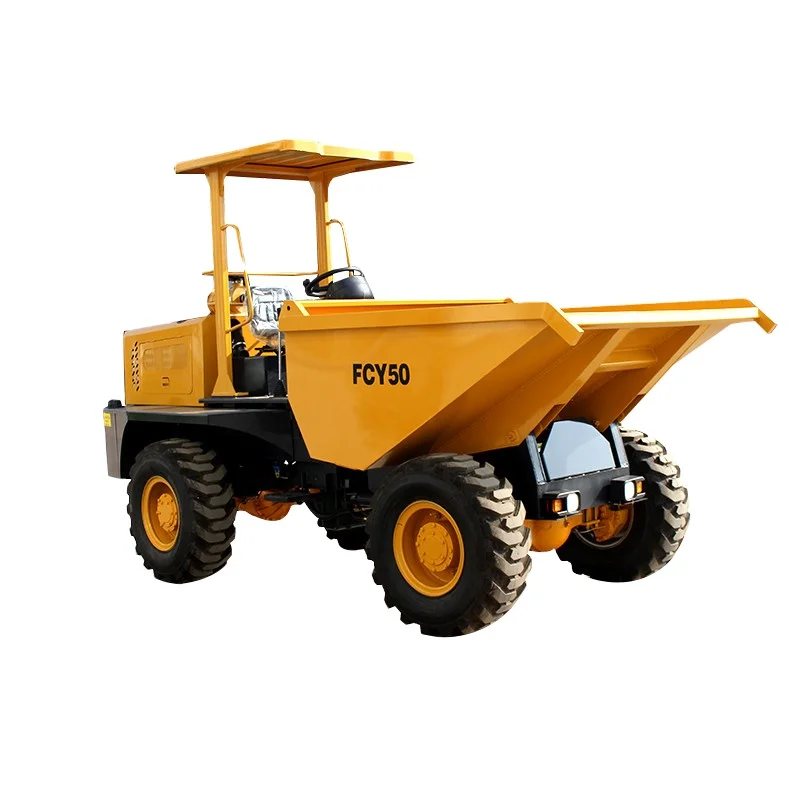

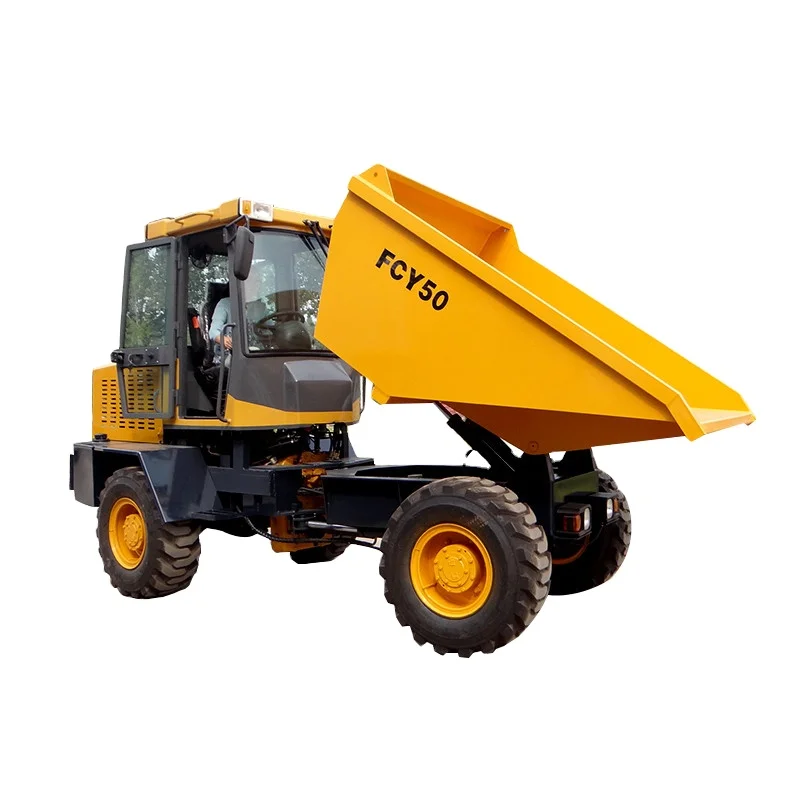

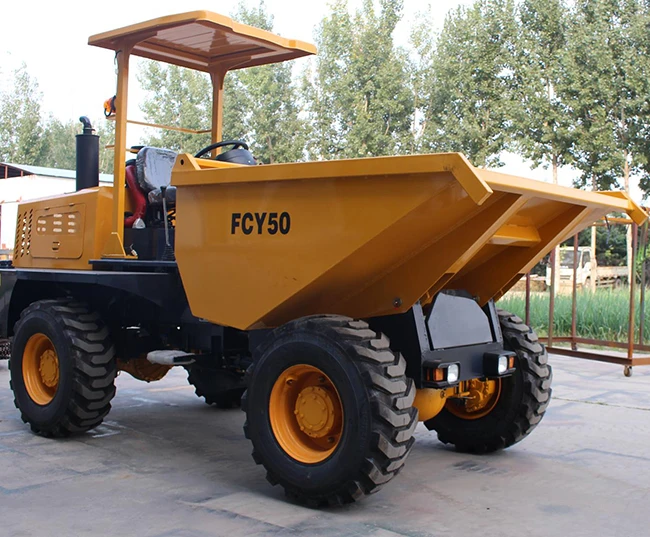

FCY30 WEIFANG YISHAN FCY50 5.0ton small 4x4 wheel dumper

Site Dumper are widely used in short-distance transport of bulk material. Such as the construction industry,the factory floor,battlefield,protecting road section,the municipal engineering,underground mines and so on.

FCY50 Site Dumper
Payload
5000kg
Operating weight
3250 kg
Hopper capacity
2.0m3
Maximum speed
25.2 km/h
Handbrake available on grade
18%
Max grade ability
25%
Distance of road after brake
≤2.5m with load and speed 10km/h
Minimum turn radius
4 m
Ground clearance
248 mm
Noise level
≤108 db(A)
Loading discharge angle
48.40
Time of discharge
6s
Hydraulic pressure
16 Mpa
Wheel base
2200 mm
Wheel tread
1580 mm
Engine power
47KW
Dimensions (LxWxH)
4400x2100x2700 mm
Engine
Model/Maker
4102

Type
Diesel 4 stroke engine, 4-cylinder incline, direct fuel
injection, water cooled
Bore x stroke piston
100 x 102 mm
Power
47KW
Speed
2400 R/Min
Max t
120@2100v/p
Weight
350 kg
Transmission system
Hydraulic Torque Converter
2 Forward and 2 reverse gears
Type
power shift, spur gear constantly in mesh
Model
265
Type
3-elements.single stage
Torque ratio
3.06
System pressure
160(kgf/c ㎡)
