Патч-корд SC/APC К SC/UPC 2 мм 3 Sm Simplex 1 5
- Категория: Коммуникационные кабели >>>
- Поставщик: Huizhou,Adp,Optical,Communications,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.32 $* | 0.83 $* |
| Aug-17-2025 | 0.66 $* | 0.26 $* |
| Jul-17-2025 | 0.67 $* | 0.11 $* |
| Jun-17-2025 | 0.52 $* | 0.52 $* |
| May-17-2025 | 0.3 $* | 0.92 $* |
| Apr-17-2025 | 0.74 $* | 0.74 $* |
| Mar-17-2025 | 0.31 $* | 0.41 $* |
| Feb-17-2025 | 0.31 $* | 0.70 $* |
| Jan-17-2025 | 0.4 $* | 0.33 $* |
Характеристики
Product Specification
FC/ST Fiber Optic Connector | ||||||||
Conector | PC(SM) | UPC(SM) | APC(SM) | PC(MM) | ||||
Return Loss(dB) | ≥45 | ≥50 | ≥60 | ≥35 | ||||
Insertion Loss(dB) | ≤0.2(Typical)≤0.3(Max) | |||||||
Repeatability(dB) | ≤0.1 | |||||||
Durability(times) | ≥1000 | |||||||
Operating Temperature(℃) | -100~+80 | |||||||
Tensile Strength(N) | ≥90(φ3）≥70（φ2） | |||||||
SC Fiber Optic Connector | ||||||||
Conector | PC(SM) | UPC(SM) | APC(SM) | PC(MM) | ||||
Return Loss(dB) | ≥45 | ≥50 | ≥60 | ≥35 | ||||
Insertion Loss(dB) | ≤0.2(Typical)≤0.3(Max) | |||||||
Repeatability(dB) | ≤0.1 | |||||||
Durability(times) | ≥500 | |||||||
Operating Temperature(℃) | -25~+70 | |||||||
Tensile Strength(N) | ≥90(φ3）≥70（φ2） | |||||||
LC Fiber Optic Connector | ||||||
Conector | PC(SM) | UPC(SM) | PC(MM) | |||
Return Loss(dB) | ≥45 | ≥50 | ≥35 | |||
Insertion Loss(dB) | ≤0.2(Typical)≤0.3(Max) | |||||
Repeatability(dB) | ≤0.1 | |||||
Durability(times) | ≥500 | |||||
Operating Temperature(℃) | -25~+70 | |||||
Tensile Strength(N) | ≥90(φ3）≥70（φ2） | |||||
MU Fiber Optic Connector | ||||||
Conector | PC(SM) | UPC(SM) | PC(MM) | |||
Return Loss(dB) | ≥45 | ≥50 | ≥35 | |||
Insertion Loss(dB) | ≤0.2(Typical)≤0.3(Max) | |||||
Repeatability(dB) | ≤0.1 | |||||
Durability(times) | ≥500 | |||||
Operating Temperature(℃) | -40~+80 | |||||
Tensile Strength(N) | ≥70(φ3）≥70（φ2） | |||||
MT-RJ Fiber Optic Connector | ||||
Conector | SM | PC(MM) | ||
Return Loss(dB) | ≥35 | ≥25 | ||
Insertion Loss(dB) | ≤0.3(Typical)≤0.55(Max) | |||
Repeatability(dB) | ≤0.1 | |||
Durability(times) | ≥1000 | |||
Operating Temperature(℃) | -25~+70 | |||
Tensile Strength(N) | ≥90(φ3）≥70（φ2） | |||

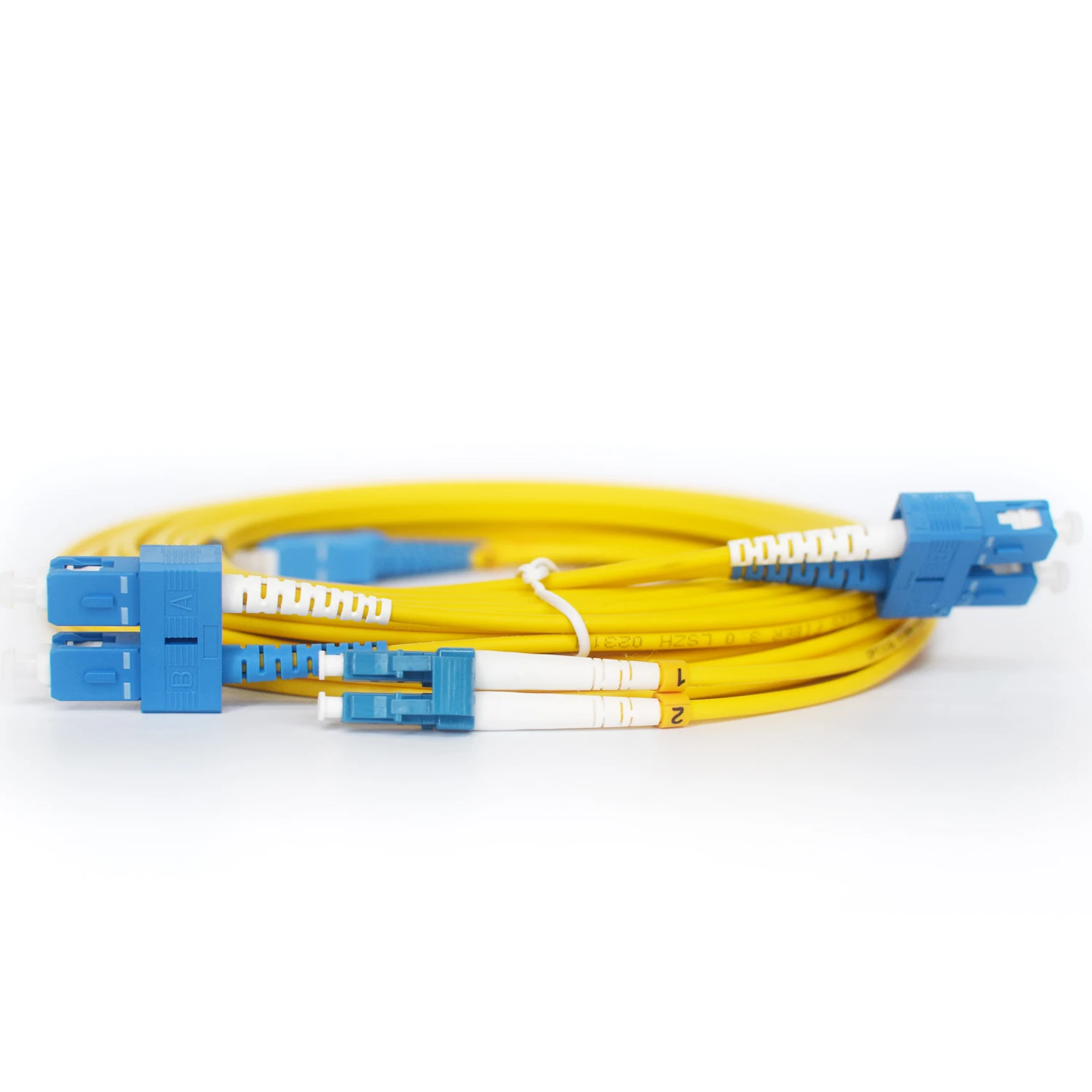

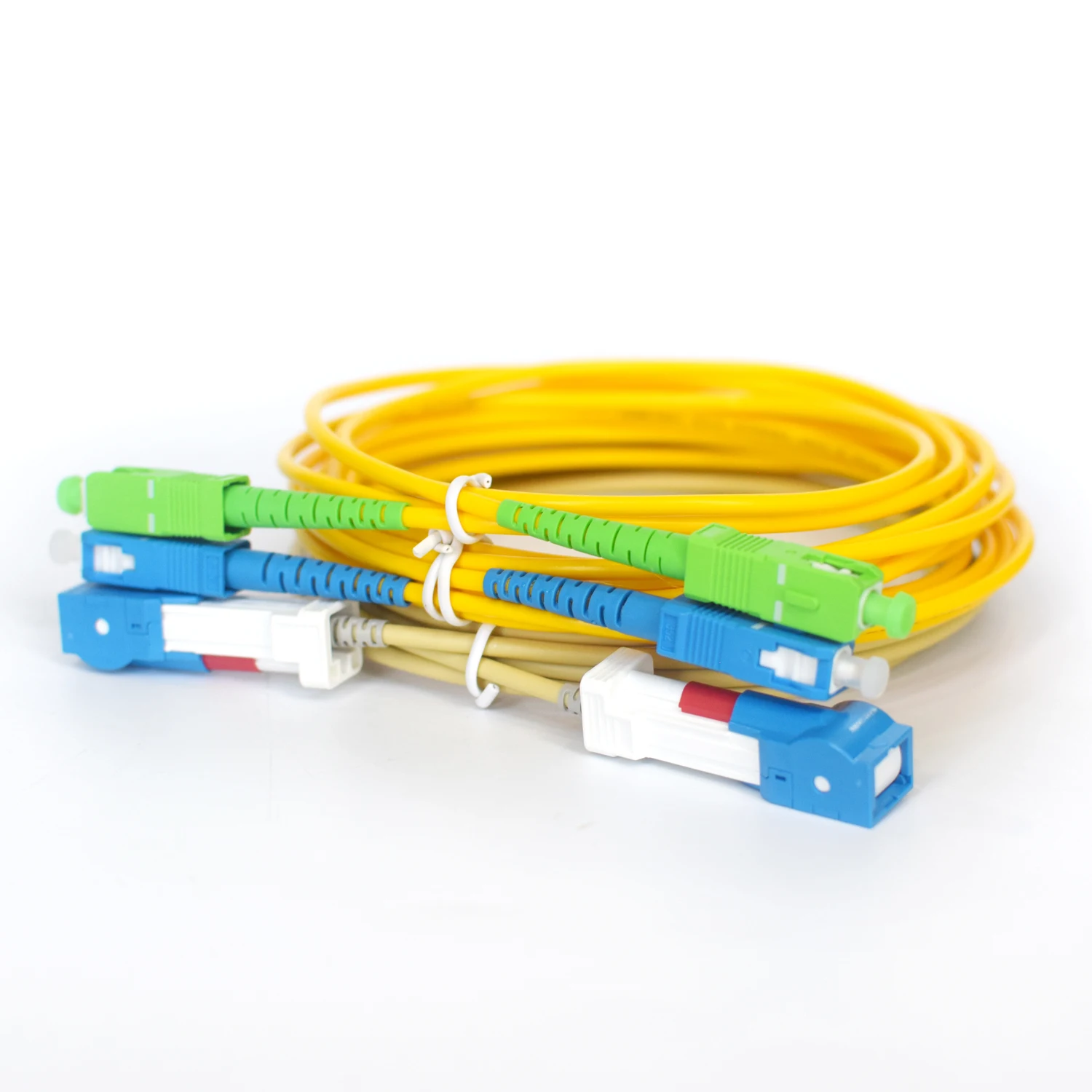

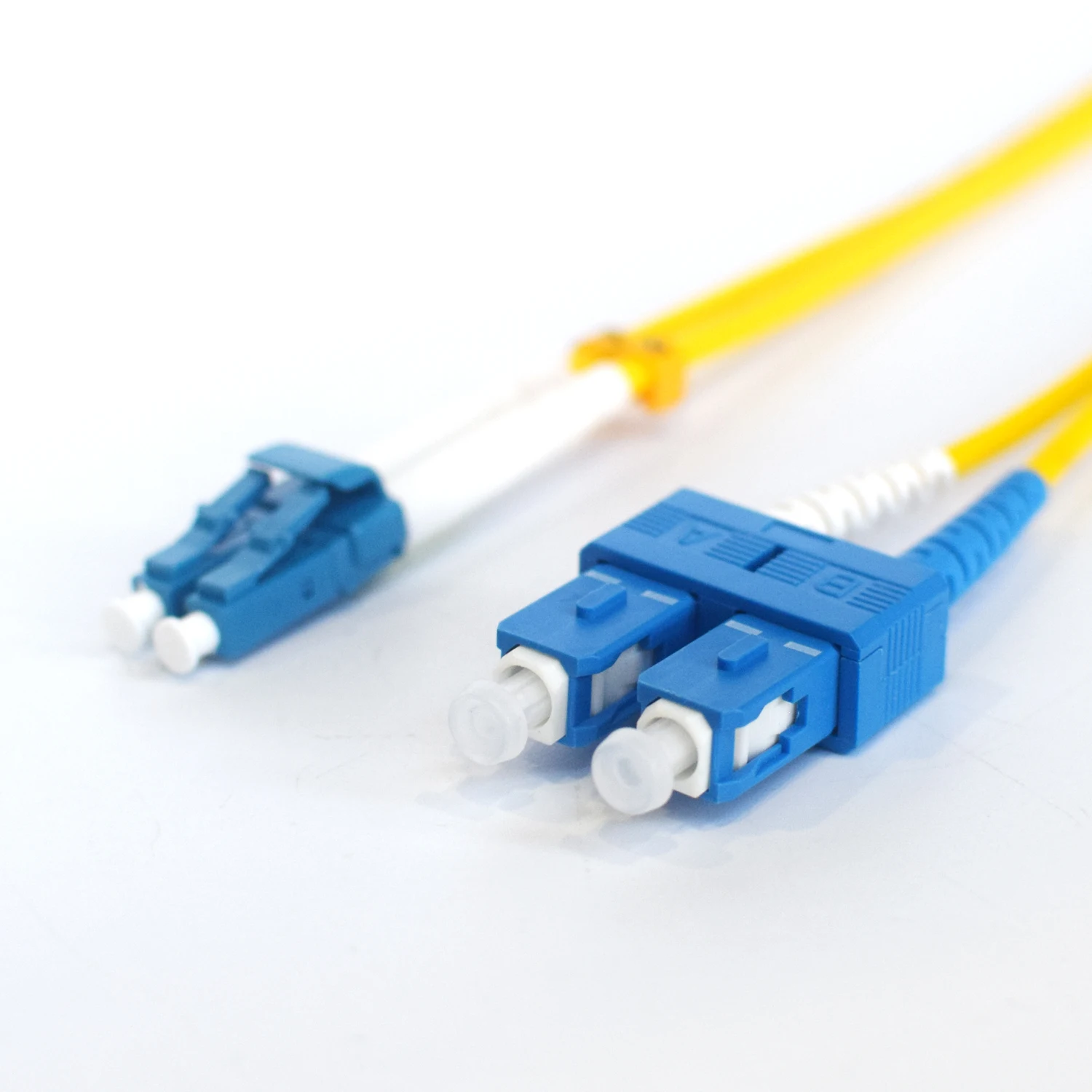

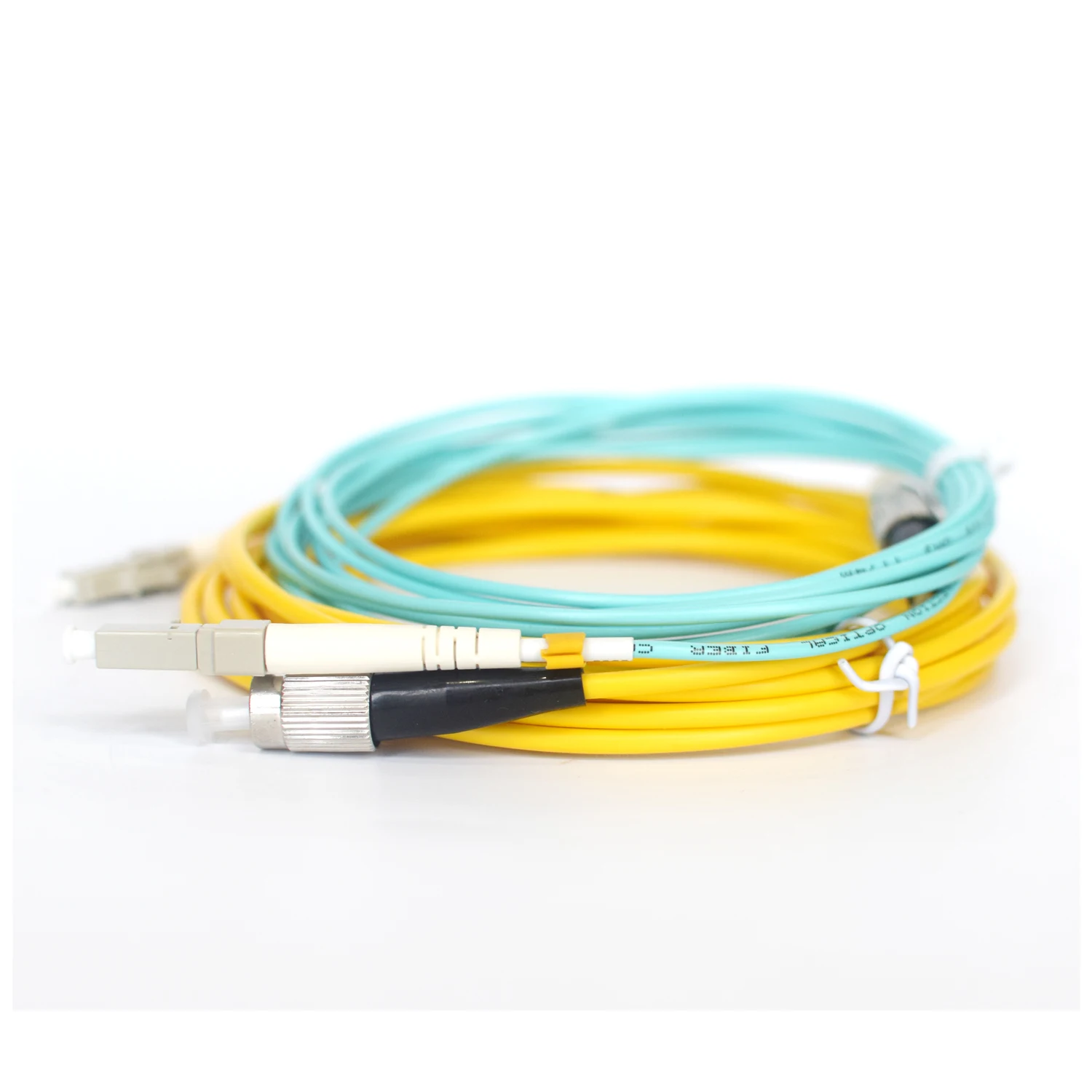

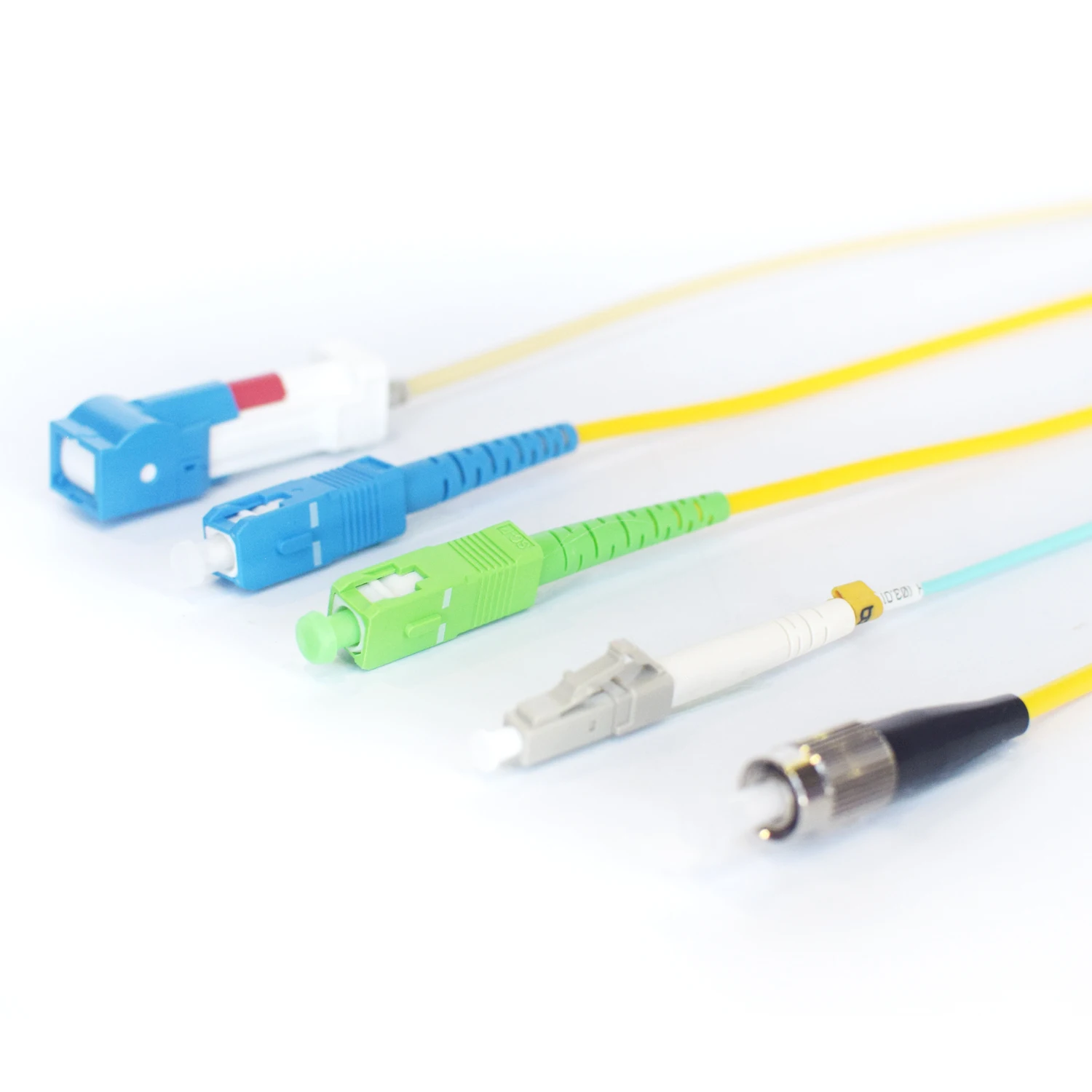

Products Show

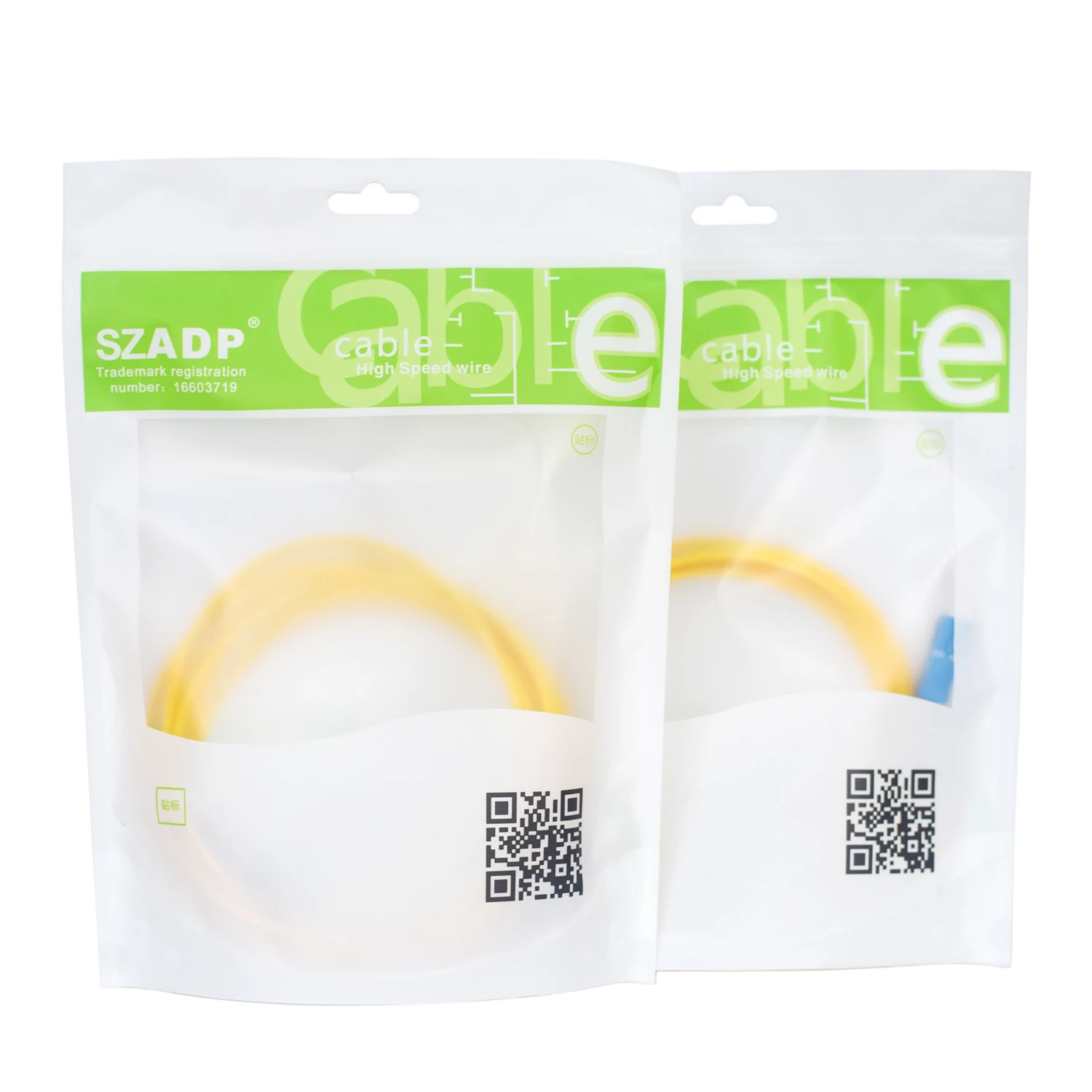

Packing&Shippment
