Dn15 dn25 высококачественный Одноструйный счетчик
- Категория: Water Meters >>>
- Поставщик: Taizhou,Jiahao,Import,&,Export,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 5.78 $* | 5.30 $* |
| Aug-18-2025 | 5.39 $* | 5.82 $* |
| Jul-18-2025 | 4.21 $* | 4.45 $* |
| Jun-18-2025 | 5.95 $* | 5.60 $* |
| May-18-2025 | 4.81 $* | 4.33 $* |
| Apr-18-2025 | 5.99 $* | 5.54 $* |
| Mar-18-2025 | 5.70 $* | 5.94 $* |
| Feb-18-2025 | 4.60 $* | 4.1 $* |
| Jan-18-2025 | 4.81 $* | 4.27 $* |
Характеристики
Product Description

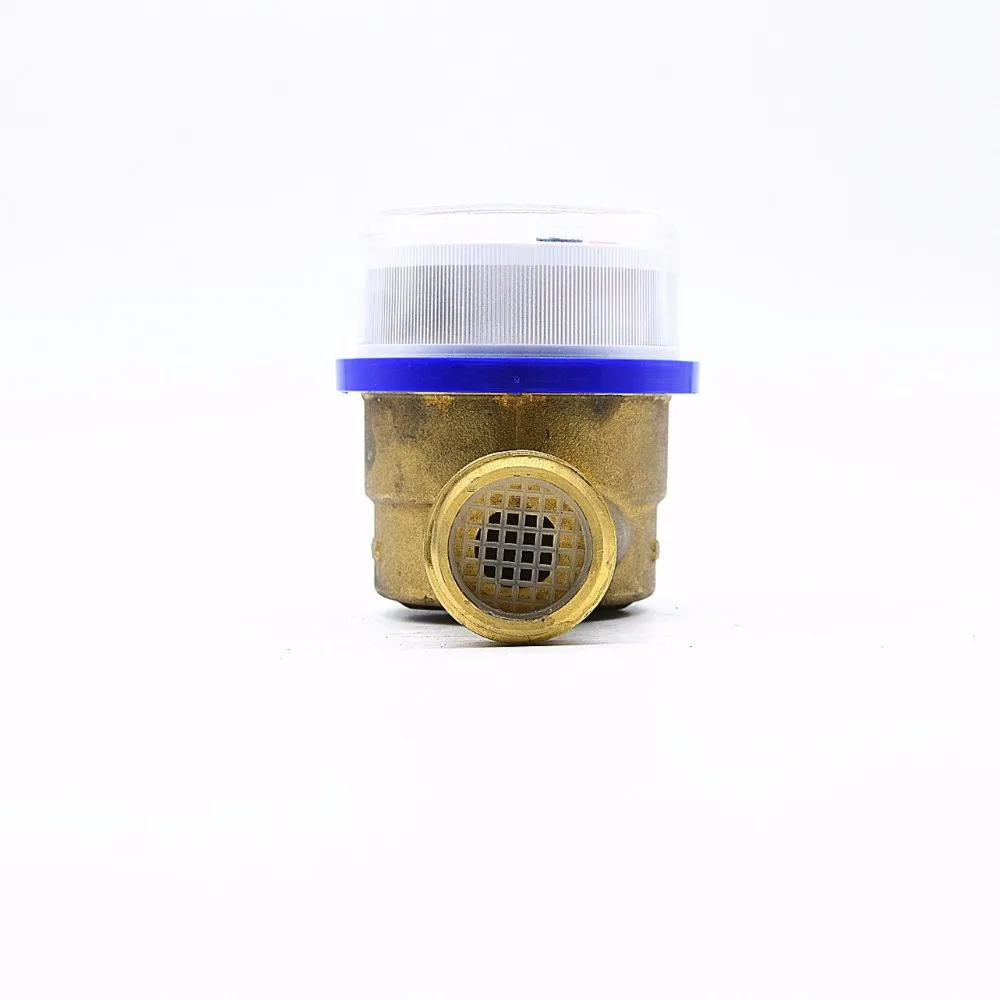

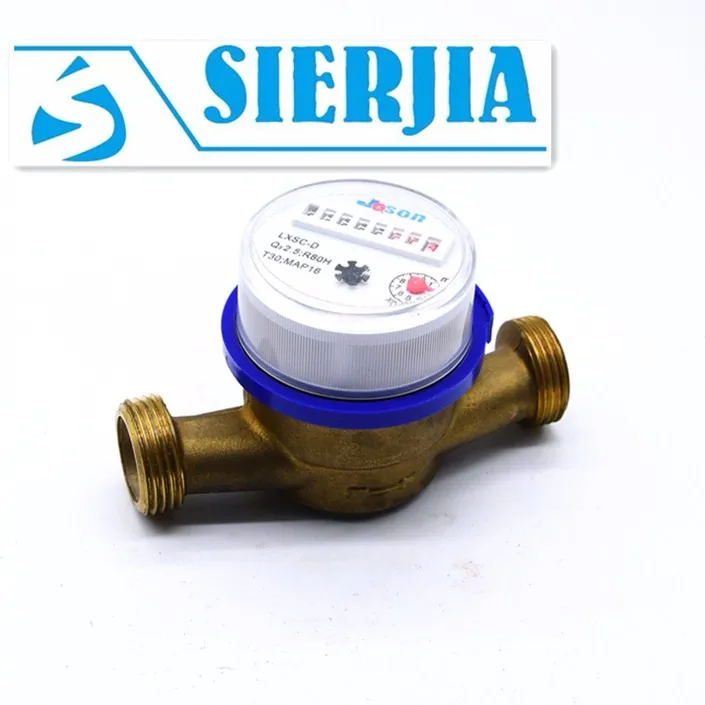

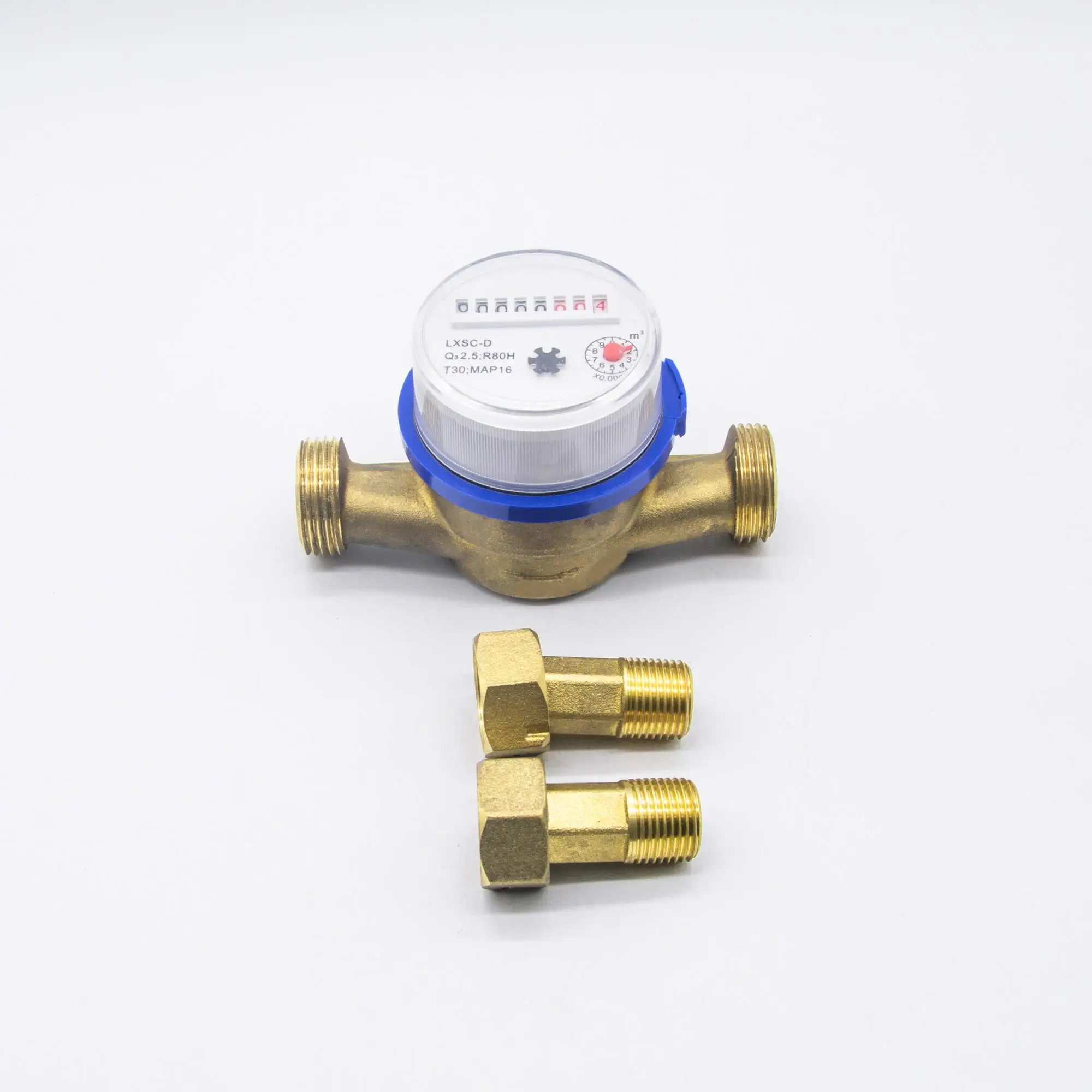

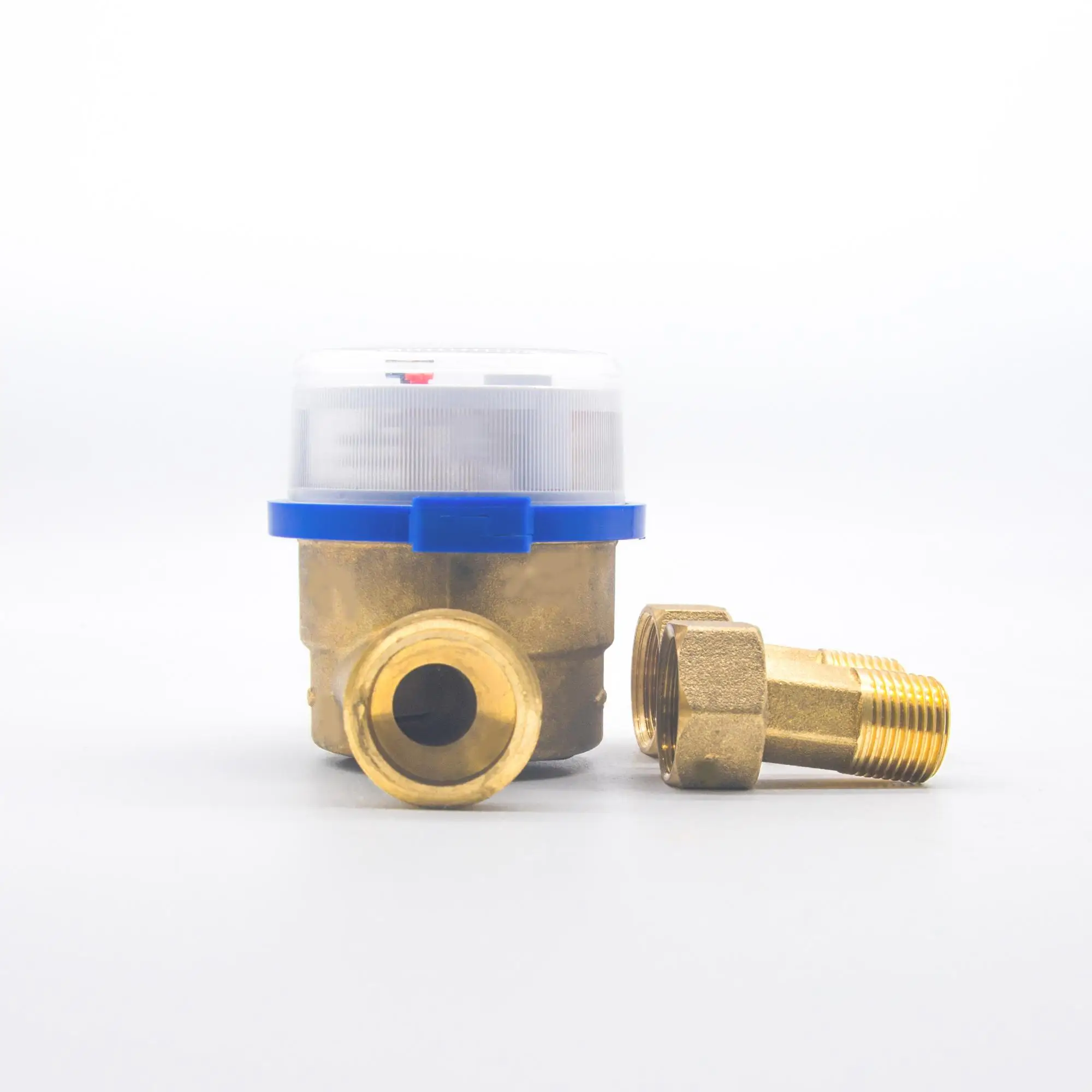

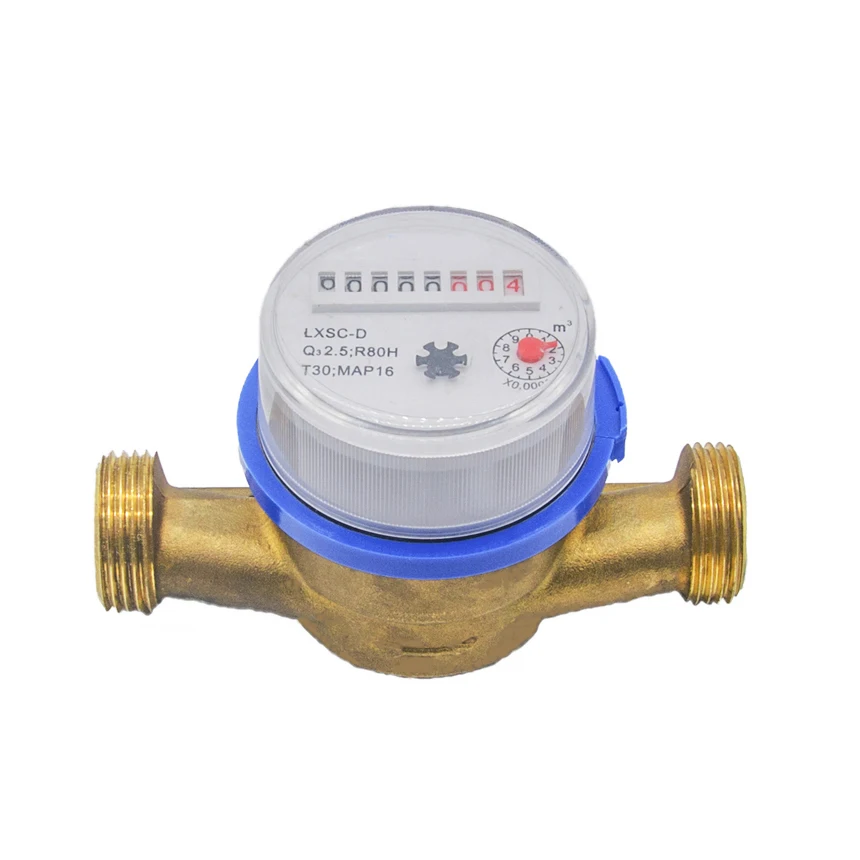

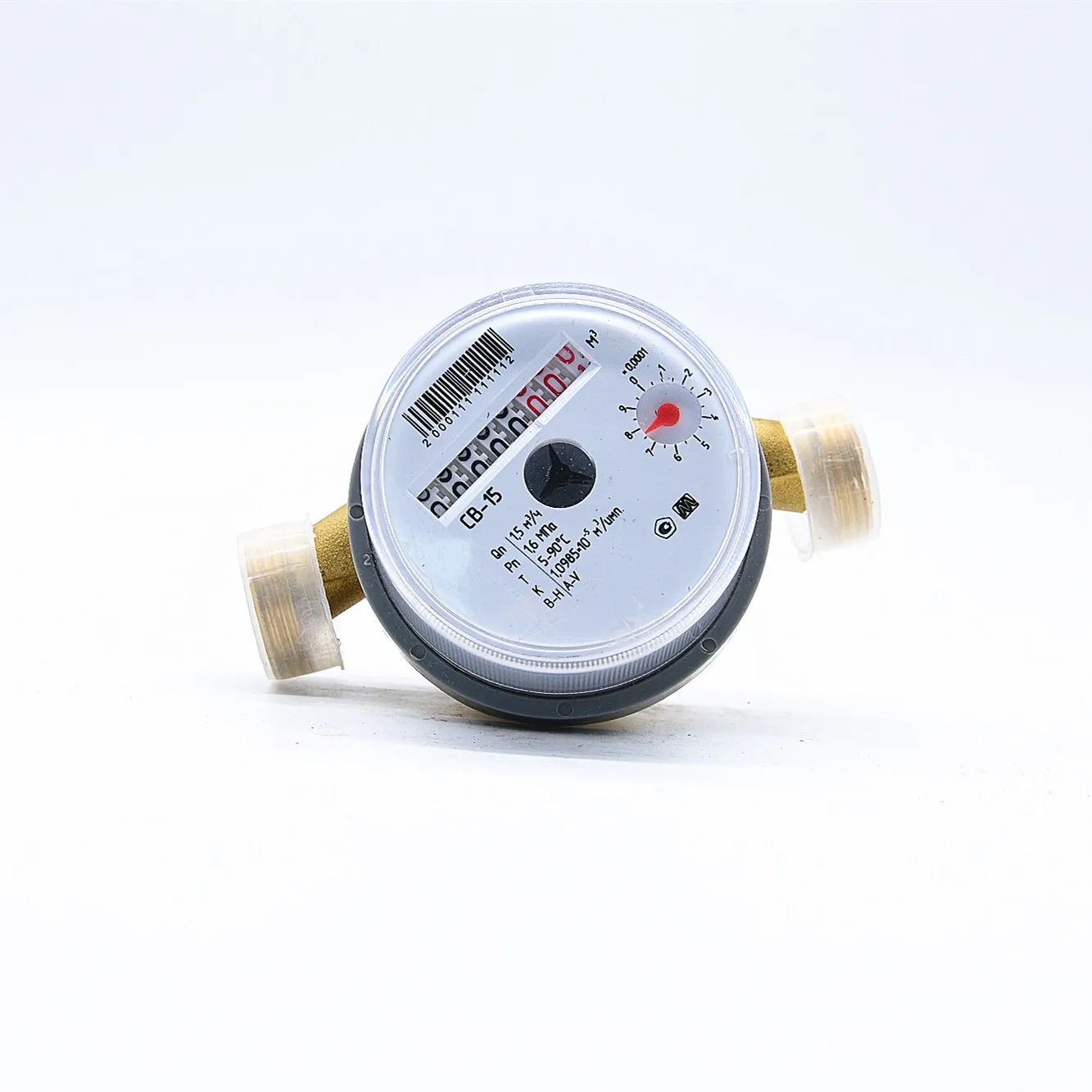

Single jet water meter
Single jet water meter: When water flows through the water meter, only one (strand) water flow drives the impeller to rotate. The nominal diameter of such water meters is generally 15 (or 13) ~ 25 mm.
The single jet water meter is small in size and light in weight. The counting mechanism and the testing mechanism are rotated by magnets. The counter can rotate 360° freely, which is convenient for reading. The water meter has anti-magnetic effect and can keep the reading clear for a long time. The utility model has the advantages of compact structure, high counting precision, small starting flow, beautiful appearance and reliable work.
The single jet water meter is small in size and light in weight. The counting mechanism and the testing mechanism are rotated by magnets. The counter can rotate 360° freely, which is convenient for reading. The water meter has anti-magnetic effect and can keep the reading clear for a long time. The utility model has the advantages of compact structure, high counting precision, small starting flow, beautiful appearance and reliable work.
Single jet water meter features:
1.Dry-dial, magnetic drive, Resistance to exterior magnet interference
2.Single-jet
3.Selected high quality materials for steady&reliable characteristic
4.Vacuum sealed register ensures the dial kept free from fog and keep the reading clear in a long term service
5.Measuring accuracy conform to ISO 4064 class B Standard
6.Small in size and light in weight
2.Single-jet
3.Selected high quality materials for steady&reliable characteristic
4.Vacuum sealed register ensures the dial kept free from fog and keep the reading clear in a long term service
5.Measuring accuracy conform to ISO 4064 class B Standard
6.Small in size and light in weight
Technical Parameters
Dimensions | ||||||||||
Type | Size(mm) | Length | Width | Heigth | Connection thread | |||||
Nominal flow Q3(m3/h) | (mm) | 4 | 6.3 | |||||||
DN15 | 15 | 110 | 80 | 88 | G3/4B | |||||
DN20 | 20 | 130 | 80 | 88 | G 1B | |||||
Structure diagram
Company Profile
COMPANY PROFIEL
JIAHAO is a professional manufacturer of Smart valves,Ultrasonic Heat meter,Ultrasonic Water meter,as well as the meter for prepaid system. The goods are widely used in HVAC system, Water treatment system, Industrial equipment.With superior quality,competitive price,have been enjoyed a high popularity and approval among Russia,Turkey,Poland and other Euro-market.
Exhibition
ISK-SODEX 2018 ISTANBUL - HALL9 SIERJIA D12 ON 7TH-10TH FEBRUARY
On 7th--10th February, we participate in the exhibition in the Istanbul. We will show our latest products, such as Ultrosonic
meter, transducer, temperature sensor, motorized valve, etc. There must be something catch your eyes!
Welcome to it
AQUA-THERM 2018 MOSCOW C649A IN 6TH-9TH FEBRUARY
Our products vary from HVAC system and water treatment system to industrial equipment.
There will always be surprising products for you.
We are looking forward to your coming!
Waiting for you in Moscow!
Packing & Delivery
FAQ
Q:Are you manufactory?
A: Yes, we are professional manufacturer for brass fittings and valves and smart meter.
Q:What is MOQ for this product in your company?
A:MOQ is 200 pcs, if less, please check with us firstly.
Q:What delivery time is in your company for this product?
A:Delivery time is 30 days in general. If tight, please check us. We will arrange production for you as per mutual benefit.
Q:What payment is it in your company after order?
A:Payment is T/T or L/C at sight. Another payment can be accepted after confirmation.
Q:Can you pack this product with our color card and our brand logo?
A:Customized color card is welcome with design in PDF,AI,CDR form.
Q:We are one big company, and want to design our special package for this product, is it ok?
A:Sure. Another customized package is welcome with design as gift box, display box and so on.
Q:What shipment is it to our destination?
A:In general, we deliver goods by sea for saving cost. If urgent, we can consider by air.
