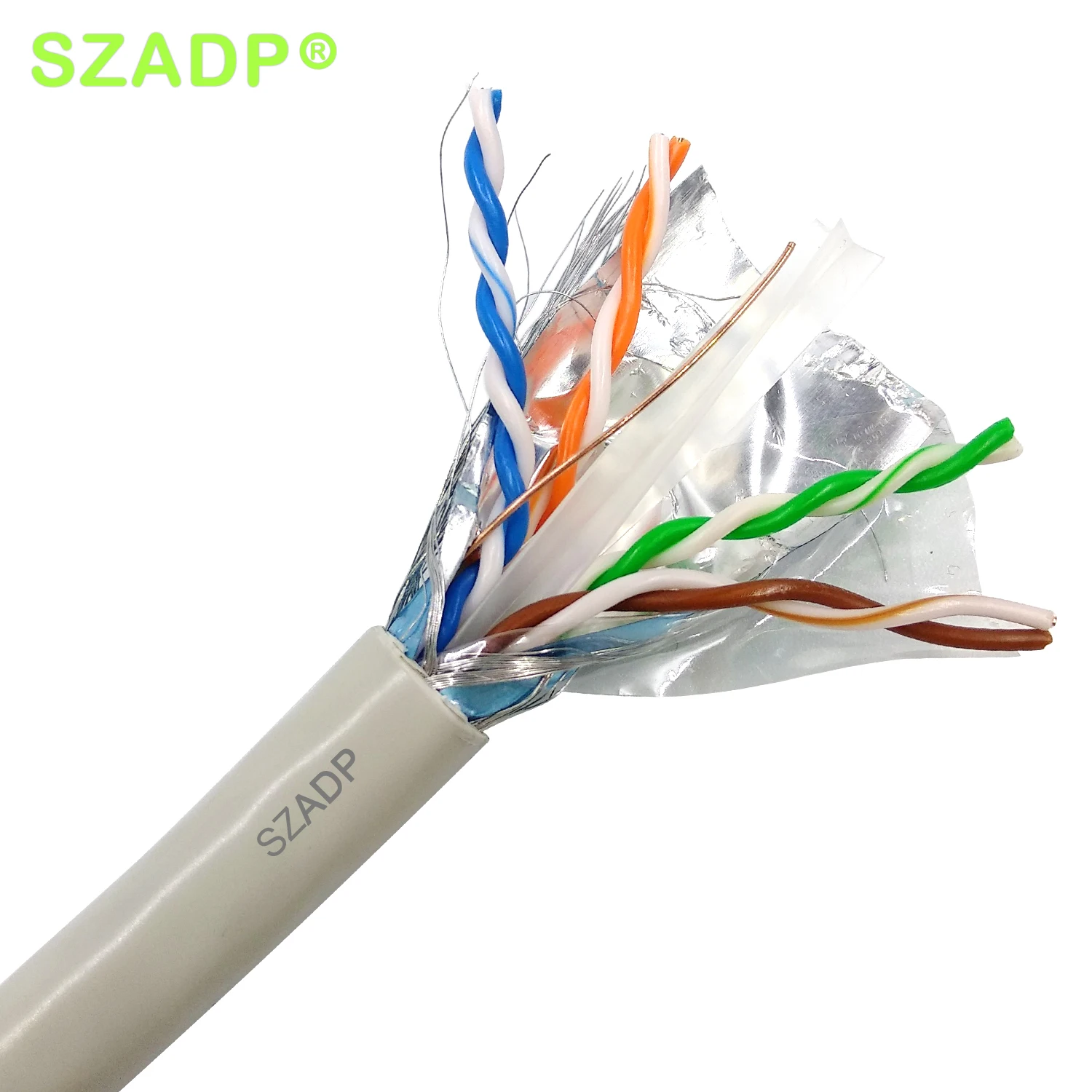

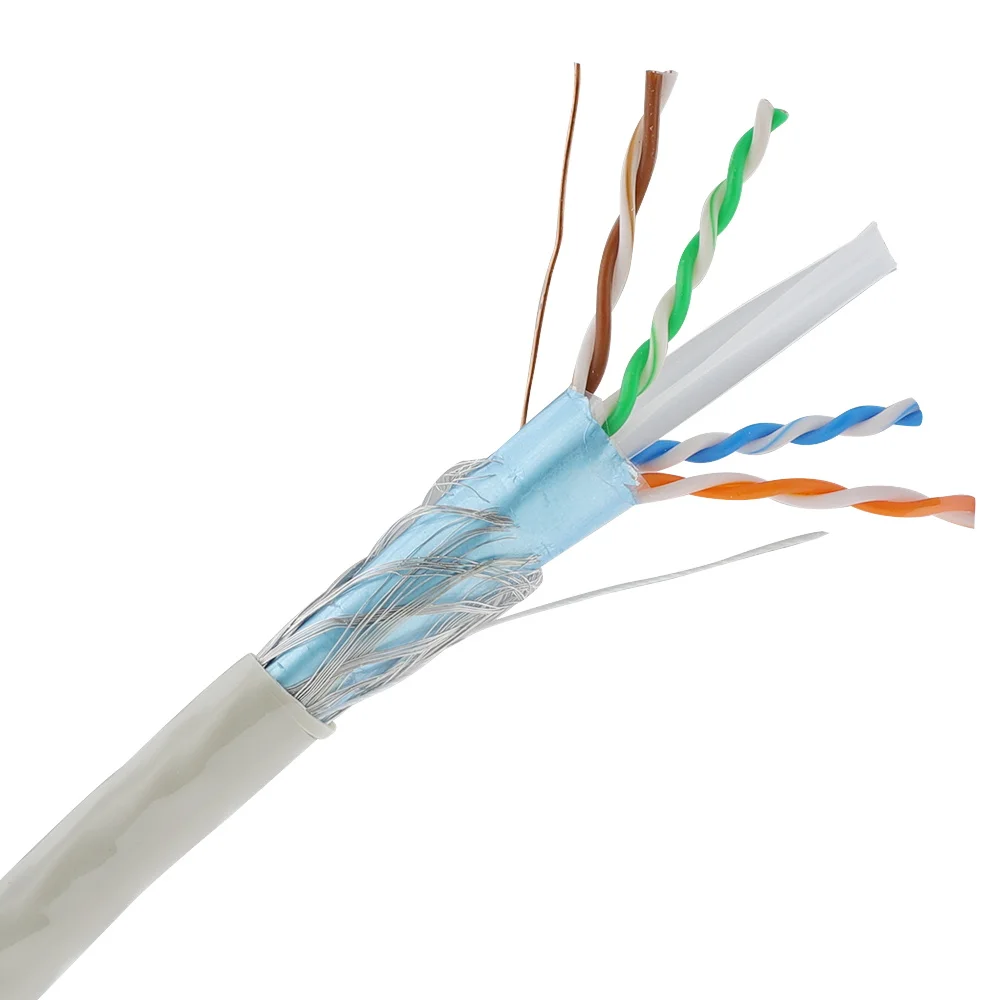

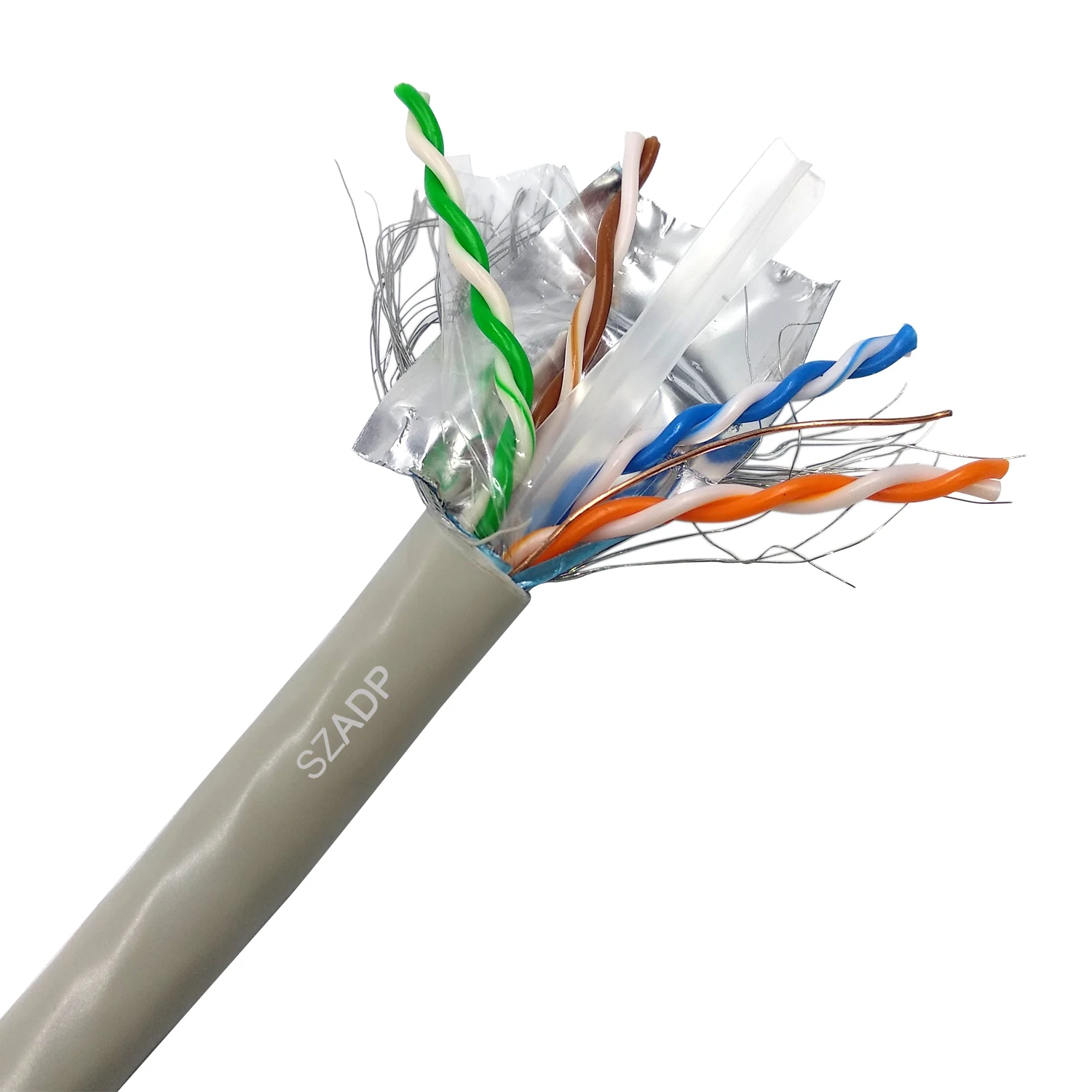

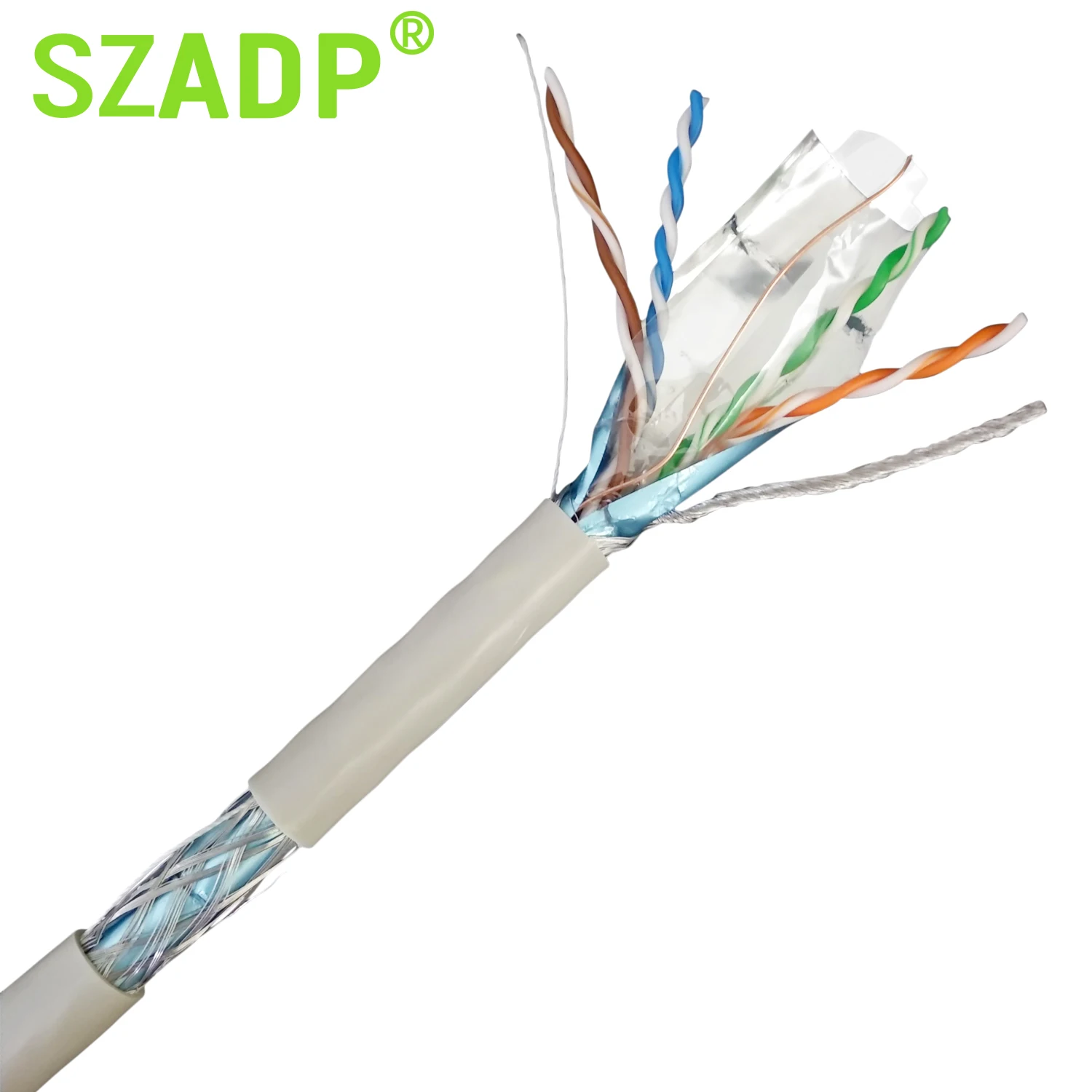

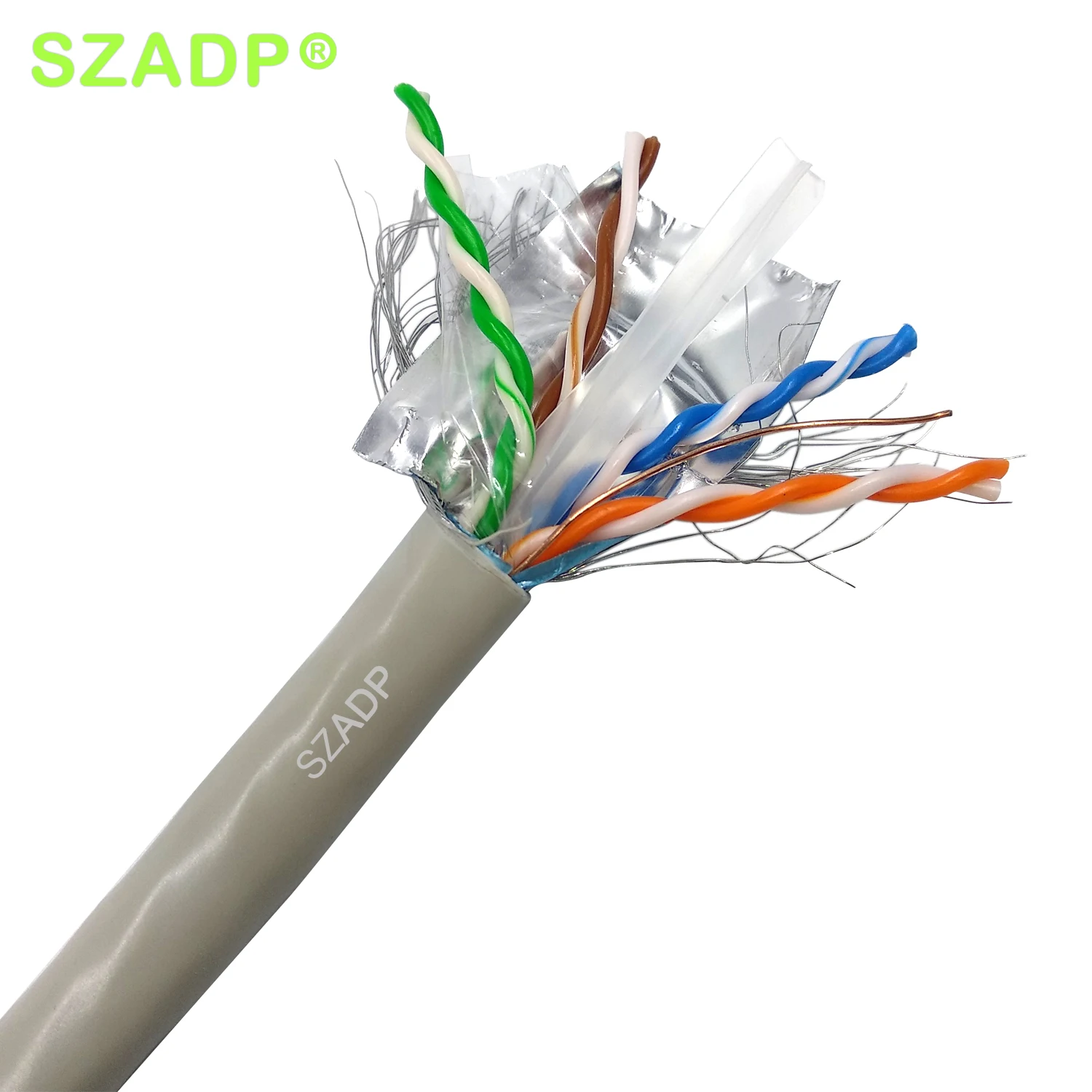

SZADP Cat6 SFTP lan кабель плетеный
- Категория: Коммуникационные кабели >>>
- Поставщик: Huizhou,Adp,Optical,Communications,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.60 $* | 0.56 $* |
| Aug-17-2025 | 0.60 $* | 0.89 $* |
| Jul-17-2025 | 0.84 $* | 0.67 $* |
| Jun-17-2025 | 0.9 $* | 0.37 $* |
| May-17-2025 | 0.82 $* | 0.76 $* |
| Apr-17-2025 | 0.24 $* | 0.83 $* |
| Mar-17-2025 | 0.29 $* | 0.97 $* |
| Feb-17-2025 | 0.66 $* | 0.21 $* |
| Jan-17-2025 | 0.35 $* | 0.98 $* |
Характеристики
Products Show
lan cable | |
Category: | SFTP Cat6 |
Specifications: | 4 pairs |
Conductor: | 0.5mm 0.56mm 0.57mm |
Material: | Copper /CCA /HCCA |
Shield: | USFTP(Shielded Foil Twisted Pair) |
color | blue black white grey yellow red |
Jacket: | pvs lszh |
Meter | 305M |
Electrical Performance:
1.0-100.0MHZ Impendance(ohms)100±15
1.0-100.0MHZ Impendance Delay Screw(ns/100m)<45
Pair to ground Capacitance Unbalance(PF/100M)330 Max
Conductor DC resistance 20%(ohms/km)<93.8
Resistance Unbalance(%) 5
Test object : jacket
Test material: PVC
Before Tensile Strength(Mpa)≥13.8
Aging Elongation(%)≥100
Aging condition(C xhrs) 100*240
After tensile strength(Mpa)≥85% of unaged
Aging Elongation(%)≥50% of naged
Cold bend(-20±2℃*4hrs) No crock
1.0-100.0MHZ Impendance Delay Screw(ns/100m)<45
Pair to ground Capacitance Unbalance(PF/100M)330 Max
Conductor DC resistance 20%(ohms/km)<93.8
Resistance Unbalance(%) 5
Test object : jacket
Test material: PVC
Before Tensile Strength(Mpa)≥13.8
Aging Elongation(%)≥100
Aging condition(C xhrs) 100*240
After tensile strength(Mpa)≥85% of unaged
Aging Elongation(%)≥50% of naged
Cold bend(-20±2℃*4hrs) No crock
Cable data:
Conductor:Solid bare copper/CCA/HCCA
AWG:24
Conductor Dia(mm):0.51
Insulation:PE
Average Thickness(9±0.03mm):0.20
Min Point Thickness:0.17
Insulation Dia(±0.03mm):0.91
Twistiing lay length(mm):30 undemeath
Cabling lay length(mm):200 undemeath
Jacket:PVC
Average Thickness:0.5
Min Point Thickness:0.43
Qutor Dia(i1.0mm):5.1
Rip Cord:YES
Weight Nom(kg/km):32
Core Color:Blue-white/nlue,Orange-white/orange
Green_white/green,Brown_white/brown
Product Structure
