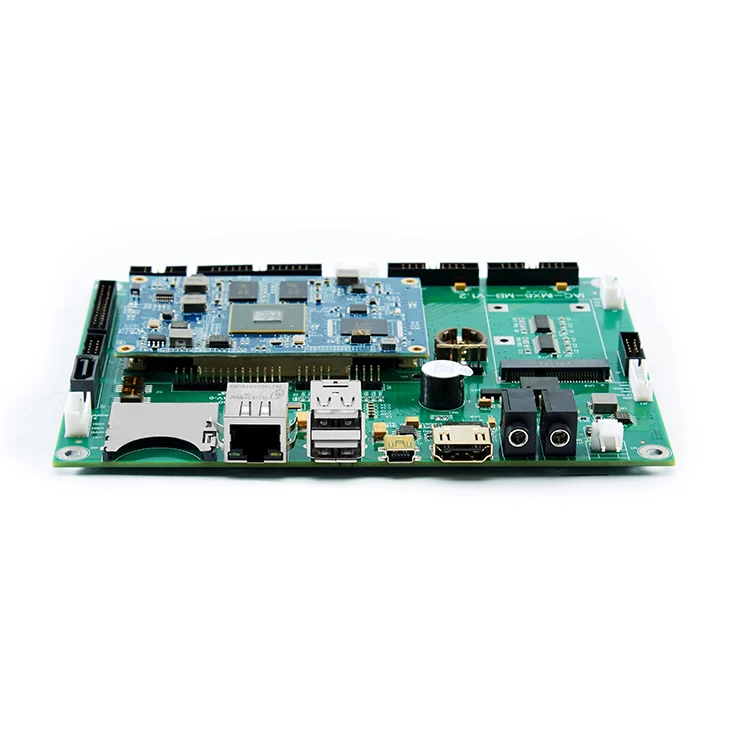

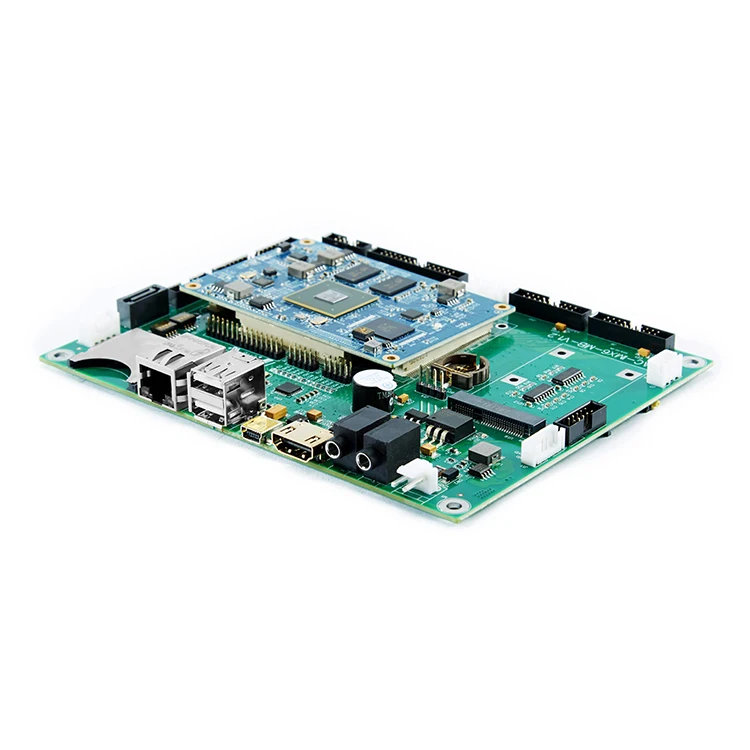

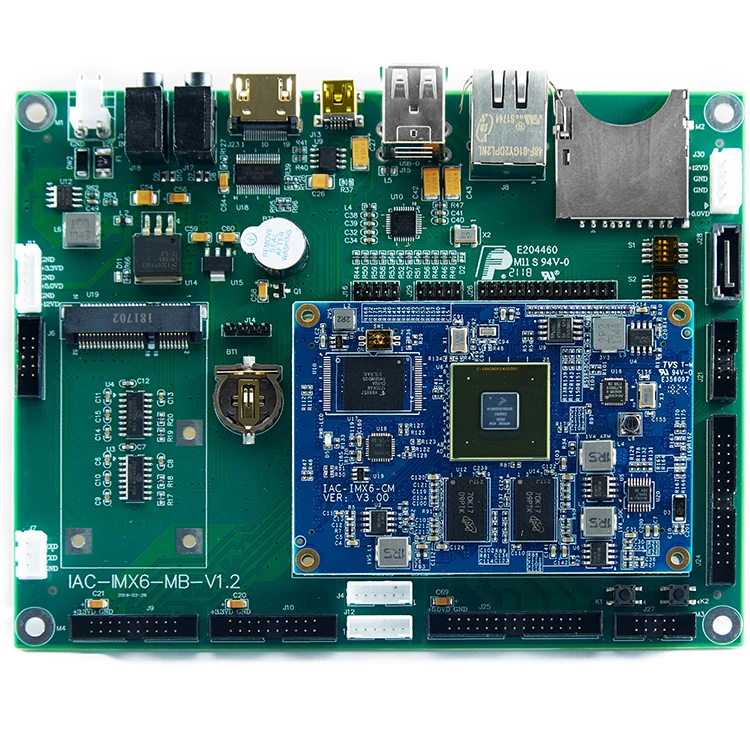

Customizing I.mx6 ARM A9 quad core IoT motherboard with 3-ch Ethernet

Qiyang IAC-IMX6-Kit development board is based on Freescale i.MX6 cortex-A9 series processors, compatible with single/double/four cores. Processor integrates FlexCAN, MLB BUS, HD level of NEON SIMD multimedia accelerator, Triple Play 3D/2D/VG accelerator, 1080P video codec, PCI Express and SATA-2, excellent data connection and powerful decoding ability, also integrates LVDS, MIPI display port, MIPI camera port and HDMI v1.4 many display interface, provide extensible solutions in fields of consumer electronics, automotive and industrial applications, etc.

Product Parameters

IAC-IMX6-KIT Development Kit Hardware Resource
CPU	Freescale I.MX6D processor, ARM Cortex-A9 kernel, 1.0GHz, compatibility with solo/dual/quad core.
RAM	DDR3 SDRAM,4*256MB, total 1GB (2GB optional)
FLASH	4GB eMMc (32GB in max.)
Communication	3-ch RS232: Including 1-ch as debug UART, 2-ch RS232 can be multiuse with RS485
	5-ch USB: Including 1-ch USB OTG, 4-ch USB 2.0 HOST, including 1-ch USB to connect MINI PCI-e.
	1-ch Industrial 10/100/1000Mbps, with ACT, LINK indicator.
	1-ch mini PCI-e , to connect 3G/4G module
	2-ch CAN, support CAN 2.0 protocol.
Display	CSI&DSI port
	2-ch LVDS port, each to support 1920*1200 resolution
	HDMI , support HDMI 1.4
Audio	McASP audio connector, dual audio output, MIC audio input
Input	Standard I2C capacitive touch panel port
	1*20 parallel, MIPI-CSI2( 4-channel), support 3-ch input camera ports at the same time.
Expansion	SIM card socket
	EIM Bus
Storage Interface	1-ch SD card port, support high speed SD card storage
	1-ch SATA hard disk port, SATA II standard, speed reaches up to 3.0 Gbps.
Others	Reset, RTC, Watchdog, buzzer, JTAG.
Power Input	+12V, +6V~+25V wide voltage supported.
Software Resource	OS	Linux3.0.35, Android4.4	Electrical Specification
	Drawing	Interface Board Schematic (PDF), PCB, IO Comparison	SOM Size	86mm*60mm
	Driver Software	Interface drivers and driver code	Interface Board Size	160mm*125mm
	Test Software	Interface drivers, test program and source code	Board To Board connector	3*100pin B to B
