Коммерческая машина для производства кубиков льда 35 кг/24 ч
US $330.00-$380.00
2tons/day Flake Ice Maker Machine Commercial for
- Категория: >>>
- Поставщик: Hangzhou,Xuantong,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 2380.66 $* | 2499.65 $* |
| Aug-16-2025 | 2360.79 $* | 2478.60 $* |
| Jul-16-2025 | 1980.46 $* | 2079.75 $* |
| Jun-16-2025 | 2320.23 $* | 2436.53 $* |
| May-16-2025 | 2020.90 $* | 2121.42 $* |
| Apr-16-2025 | 2280.80 $* | 2394.58 $* |
| Mar-16-2025 | 2260.77 $* | 2373.73 $* |
| Feb-16-2025 | 2240.50 $* | 2352.79 $* |
| Jan-16-2025 | 2220.47 $* | 2331.1 $* |
Характеристики
Product Description

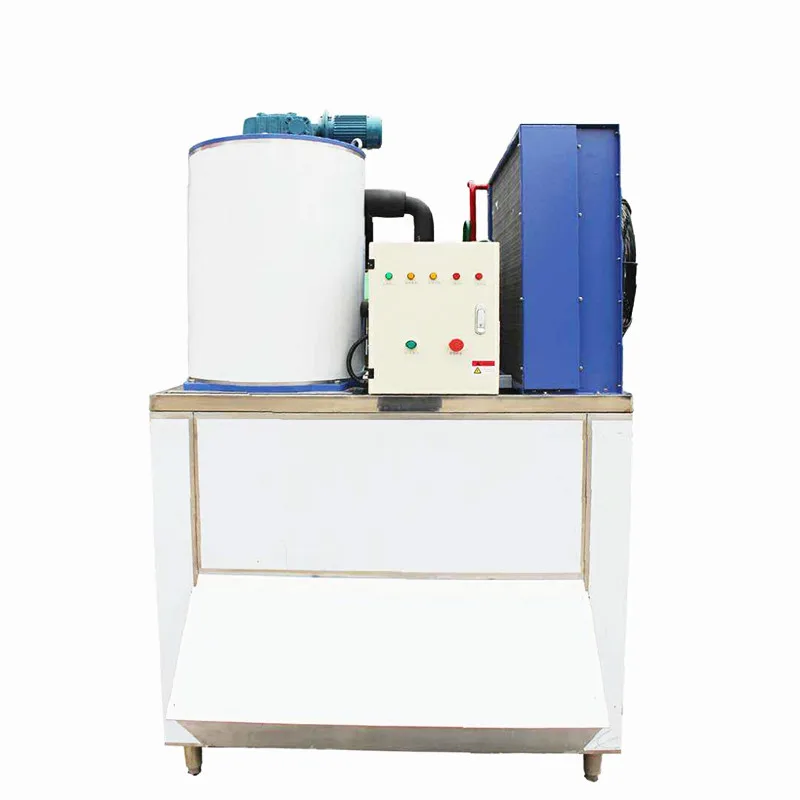

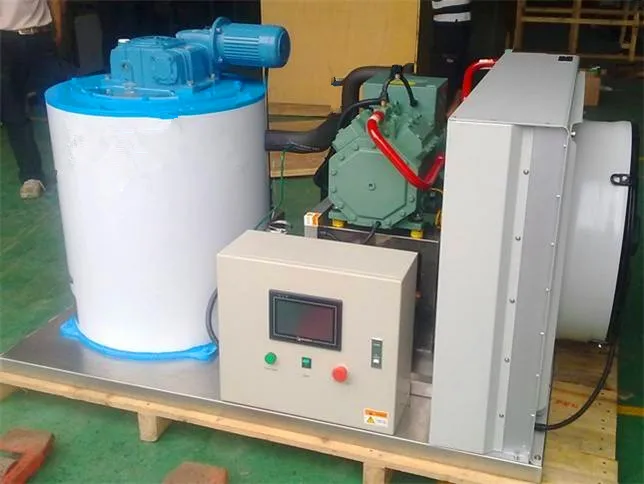

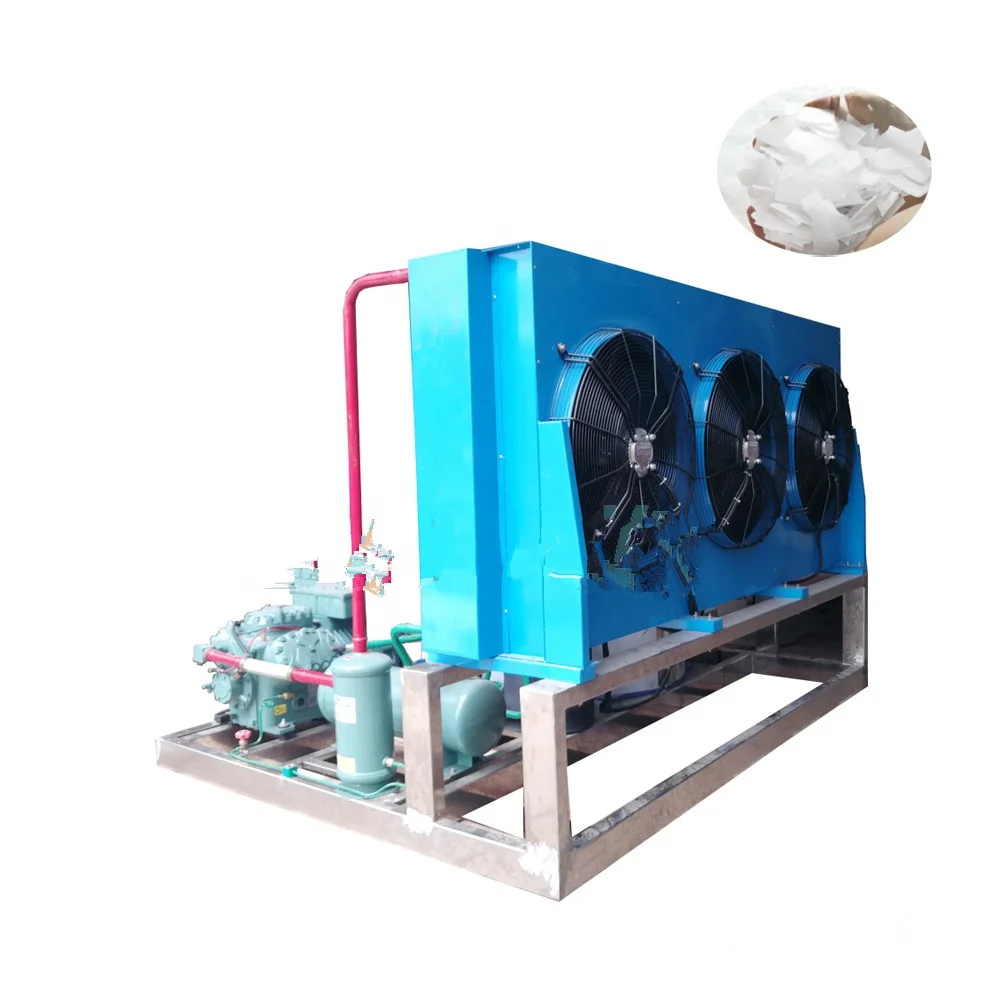

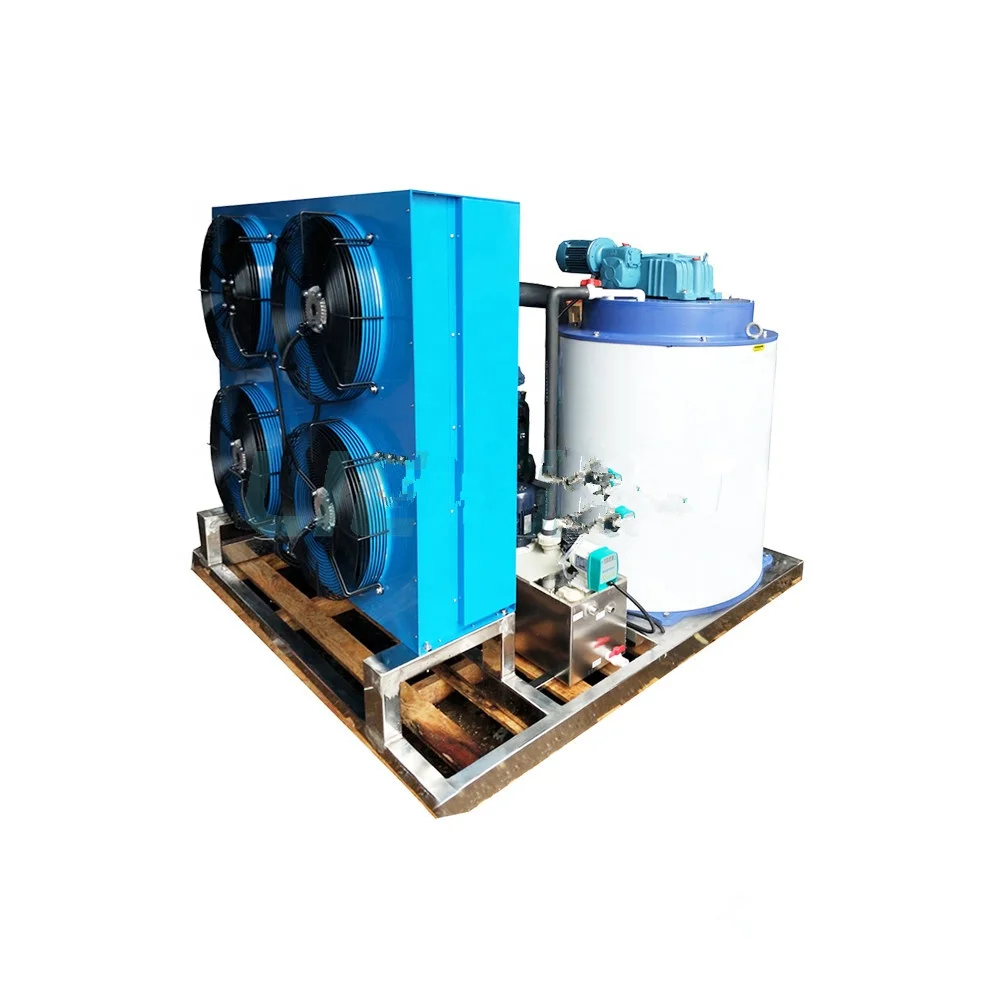

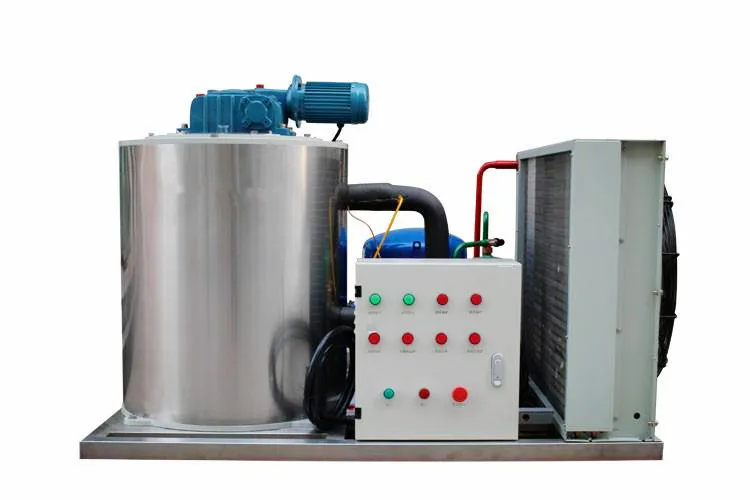

2tons/day Flake Ice Maker Machine Commercial Ice Machine for Fishery/Meat
Main parts name | Brand | Orgin |
Compressor | Copeland/Bitzer Danfoss/Fusheng | America/Germany/Danmark/China |
Oil sperator | Unite | America |
Electromagetic valve | Alco | America |
Economic expansive valve | Danfoss | Danmark |
Reducer | Gongji | Taiwan |
PLC control | LG | Korea |
Direction for use
1. Flake Ice: Dry, pure, powderless, not easy to block, flake ice thickness is about 1.8mm~2.2mm, without
edges or corners which will can product the cooling food, fish, seafood and other products.
2. Microcomputer Intelligent control: the machine is using PLC Control System with world famous brand
components. Meanwhile, it can portect the machine when there are water shortage, ice full, H/L pressure
alarm, and motor reversal.
3. Evaporator drum: Use stainless steel material or carbon steel chrominum. The style of inside machine
ensures constant running at the lowest power consumption
4.Application: The concrete flake ice machine have been applied in refreshing vegetable, fruit, foodstuff in
supermarket.
edges or corners which will can product the cooling food, fish, seafood and other products.
2. Microcomputer Intelligent control: the machine is using PLC Control System with world famous brand
components. Meanwhile, it can portect the machine when there are water shortage, ice full, H/L pressure
alarm, and motor reversal.
3. Evaporator drum: Use stainless steel material or carbon steel chrominum. The style of inside machine
ensures constant running at the lowest power consumption
4.Application: The concrete flake ice machine have been applied in refreshing vegetable, fruit, foodstuff in
supermarket.
technical data sheet
Ice flake evaporator advantages:
(1)Be made of low-temperature pressure vessel special materials and passed precision processing;
(2)More sufficient evaporation area and better performance with dry style evaporation way;
(3)Whole processing is made by vertical lathe to ensure the precision up to 2 ounces;
(4)Be designed and produced with standard low-temperature pressure vessel manufacturing process, including surface treatment, heat
treatment, gas-tight test, tensile&compression strength test, etc.
(5)Using imported refrigeration accessories;
(6)All water supply line are made of stainless steel, high sanitary condition;
(7)Fast ice forming & falling speed, ice begins within 1 to 2 minutes.
(8)Ice blade: made of SUS304 material seamless steel tube and formed through only one time process. It's durable.
(9)Spindle and other accessories: made of SUS304 material through precision machining, and conform to food hygiene standards.
(10)Thermal insulation: foaming machine filling with imported polyurethane foam insulation. Better effect.
Tips: (1)Evaporator size and installation direction can be customized according to customers' requirements;
(2)The material of evaporator wall and up and down pedestal is available (304&316).
(1)Be made of low-temperature pressure vessel special materials and passed precision processing;
(2)More sufficient evaporation area and better performance with dry style evaporation way;
(3)Whole processing is made by vertical lathe to ensure the precision up to 2 ounces;
(4)Be designed and produced with standard low-temperature pressure vessel manufacturing process, including surface treatment, heat
treatment, gas-tight test, tensile&compression strength test, etc.
(5)Using imported refrigeration accessories;
(6)All water supply line are made of stainless steel, high sanitary condition;
(7)Fast ice forming & falling speed, ice begins within 1 to 2 minutes.
(8)Ice blade: made of SUS304 material seamless steel tube and formed through only one time process. It's durable.
(9)Spindle and other accessories: made of SUS304 material through precision machining, and conform to food hygiene standards.
(10)Thermal insulation: foaming machine filling with imported polyurethane foam insulation. Better effect.
Tips: (1)Evaporator size and installation direction can be customized according to customers' requirements;
(2)The material of evaporator wall and up and down pedestal is available (304&316).
Small commerical flake ice machine | ||||||||||||||||||
Model | compressor power | daily output | refrigeration capacity | coolng way | power supply | total power | refrigerant | weight | unit size | |||||||||
XT-F03T | 2HP | 0.3t/24h | 1290Kcal | air cooling | 220v/1ph/50hz | 1.49 | R22 | 165 | 780*905*920 | |||||||||
XT-F05T | 3HP | 0.5t/24h | 2580 | air cooling | 380v/3ph/50hz | 2.37 | R404a | 215 | 1100*820*740 | |||||||||
XT-F1T | 5HP | 1.5t/24h | 5160 | air cooling | 380v/3ph/50hz | 4.11 | R404a | 242 | 1100*820*840 | |||||||||
XT-F1.5T | 9HP | 1t/24h | 7740 | air cooling | 380v/1ph/50hz | 7.29 | R404a | 360 | 1310*970*1005 | |||||||||
XT-F2T | 10HP | 2t/24h | 10320 | air cooling | 380v/1ph/50hz | 8.31 | R404a | 440 | 1500*1095*1050 | |||||||||
XT-F3T | 15HP | 3t/24h | 15480 | air cooling | 380v/3ph/50hz | 11.59 | R404a | 560 | 1750*1190*1410 | |||||||||
1.strandard cooling mode:air cooling ,can be designd to water cooling to customer request.
2.strandard condition:ambient temperature 25C ,water inlet temperature 15C,evaporating temperature -22C ,Condensing temperature 40C
Medium size industry flake ice machine | ||||||||||||||||||
Model | compressor power | daily output | refrigeration capacity | cooling way | power supply | total power | refrigerant | weight | unit size | |||||||||
XT-F4T | 20HP | 4t/24h | 20640 kcal | water cooling | 380v/3ph/50hz | 18.49 | R404a | 672 | 1700*1550*1470 | |||||||||
XT-F5T | 25HP | 5t/24h | 25800 | water cooling | 380v/3ph/50hz | 23.2 | R404a | 780 | 1700*1550*1610 | |||||||||
XT-F6T | 30HP | 6t/24h | 30960 | water cooling | 380v/3ph/50hz | 27.31 | R404a | 845 | 1700*1550*1610 | |||||||||
XT-F8T | 40HP | 8t/24h | 41280 | water cooling | 380v/3ph/50hz | 35.24 | R404a | 1020 | 2300*1900*1720 | |||||||||
XT-F10T | 50HP | 10t/24h | 51600 | water cooling | 380v/3ph/50hz | 41.84 | R22 | 1640 | 2800*1900*1880 | |||||||||
XTF-12T | 55HP | 12t/24h | 61920 | water cooling | 380v/3ph/50hz | 45.34 | R22 | 1940 | 2800*1900*1880 | |||||||||
XTF15T | 60HP | 15t/24h | 83850 | water cooling | 380v/3ph/50hz | 53.42 | R22 | 2250 | 3500*2150*1920 | |||||||||
1.strandard cooling mode:R404a ,can be designd to R22 to customer request.
2.strandard condition:ambient
temperature 25C ,water inlet temperature 15C,evaporating temperature -22C ,Condensing temperature 40C
temperature 25C ,water inlet temperature 15C,evaporating temperature -22C ,Condensing temperature 40C
Large scale industry flake ice machine | ||||||||||||||||||
Model | compressor power | daily output | refrigeration capacity | cooling way | power supply | total power | refrigerant | weight | unit size | |||||||||
XT-F20T | 80HP | 20t/24h | 1118000 | water cooling | 380v/3ph/50hz | 66.29 | R22 | 3160 | 3500*2150*2240 | |||||||||
XT-F25T | 100HP | 25t/24h | 139750 | water cooling | 380v/3ph/50hz | 84.59 | R22 | 3140 | 3500*2150*2240 | |||||||||
XT-F30T | 130HP | 30t/24h | 1667700 | water cooling | 380v/3ph/50hz | 112.32 | R22 | 3440 | 5000*2140*2555 | |||||||||
XT-F40T | 160HP | 40t/24h | 240800 | water cooling | 380v/3ph/50hz | 134.5 | R22 | 4860 | 6300*2200*2240 | |||||||||
1.strandard R22,
.2.strandard condition:ambient
temperature 25C ,water inlet temperature 15C,evaporating temperature -22C ,Condensing temperature 40C
temperature 25C ,water inlet temperature 15C,evaporating temperature -22C ,Condensing temperature 40C
We can offer non -standard design accorrding to customer special request.like material, cooling mode,refrigerant ,power supply,unit& ice stoarge room size and intallation type ETC
