Патч-панель UTP Cat6 24 порта
- Категория: Патч-панель >>>
- Поставщик: Huizhou,Adp,Optical,Communications,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.73 $* | 0.43 $* |
| Aug-17-2025 | 0.95 $* | 0.16 $* |
| Jul-17-2025 | 0.59 $* | 0.53 $* |
| Jun-17-2025 | 0.90 $* | 0.45 $* |
| May-17-2025 | 0.80 $* | 0.31 $* |
| Apr-17-2025 | 0.94 $* | 0.63 $* |
| Mar-17-2025 | 0.11 $* | 0.90 $* |
| Feb-17-2025 | 0.61 $* | 0.54 $* |
| Jan-17-2025 | 0.60 $* | 0.8 $* |
Характеристики
Product Description

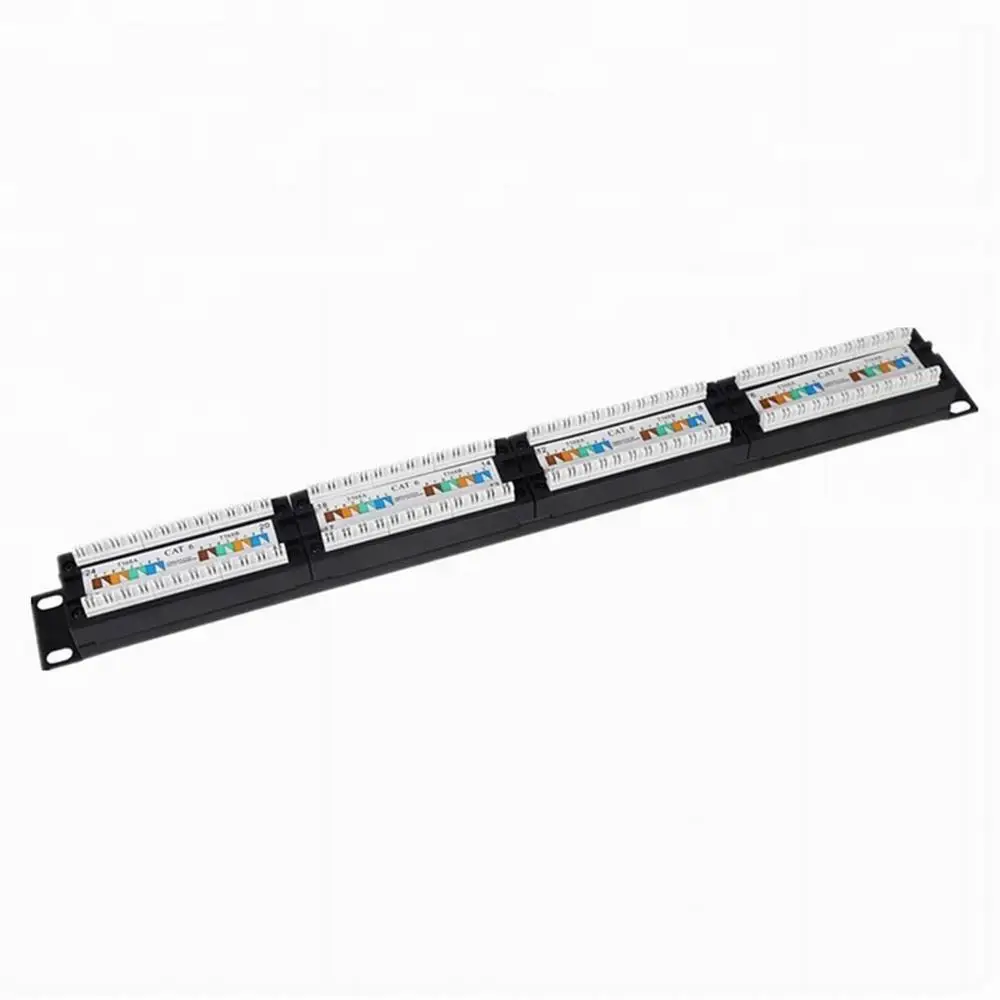

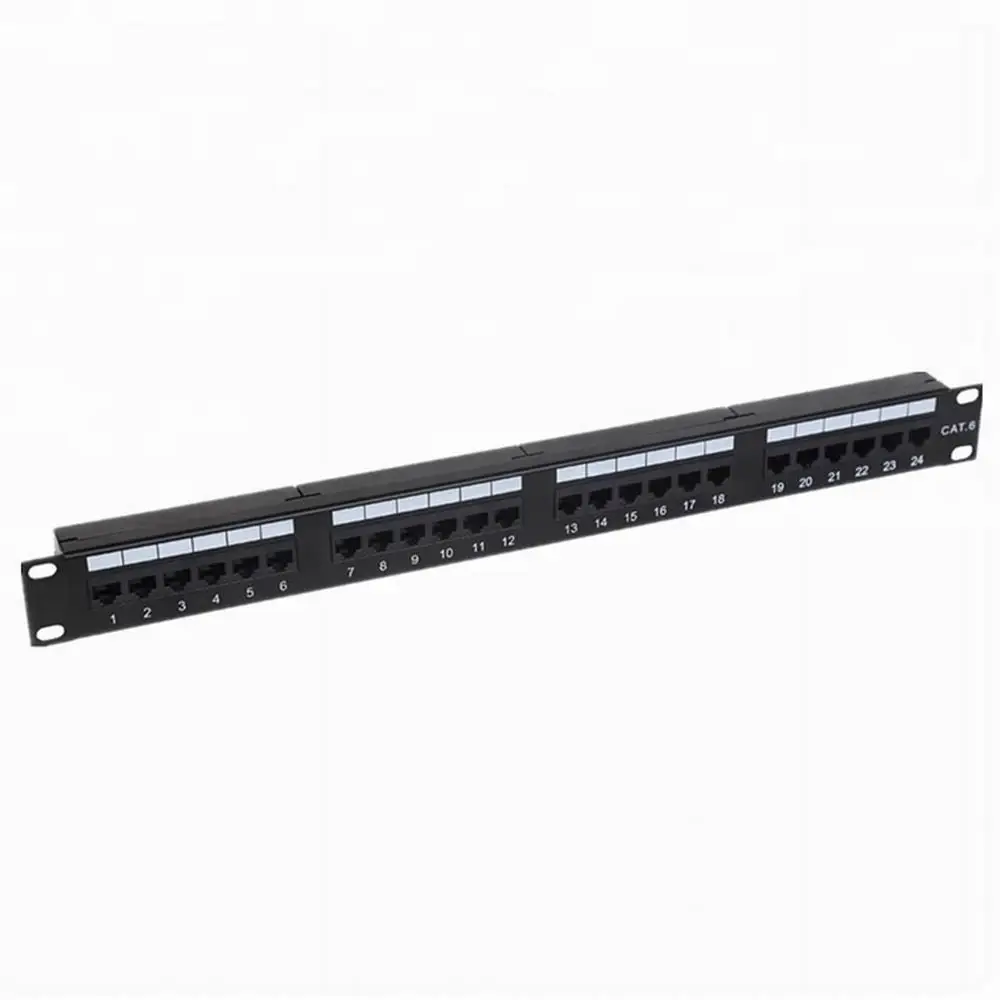

UTP Cat6 Patch Panel 19' 1U
Drawing
Feature
1.100% passed FLUKE DTX-1800 test.
2.15 years quality guarantee.
3.IDC fits for 22-26 AWG solid wire.
4.Insertion Life:750 times MIN
5.Punching Life:250 times MIN
6.Meet TIA/EIA-T568A and T568B category 6A requirements.
7.It has been designed to exceed TIA/EIA specification.The bandwidths of category 6 up to 500 MHZ.
2.15 years quality guarantee.
3.IDC fits for 22-26 AWG solid wire.
4.Insertion Life:750 times MIN
5.Punching Life:250 times MIN
6.Meet TIA/EIA-T568A and T568B category 6A requirements.
7.It has been designed to exceed TIA/EIA specification.The bandwidths of category 6 up to 500 MHZ.
Product details
CONTACT RESISTANCE | 20m OHM |
INSULATION ESISTANCE | <= 100M OHM @100 V DC |
WITHSTAND VOLTAGE | DC1000V AC700V RMS 60HZ, IMIN |
CAT5E PERMANENT LINK | CONFORM TO ANSI/TIA/EIA 568B. 2-10 |
Environmental | |
STORAGE | -40°/ +70° |
OPERATION | -10°/ +60° |
MECHANICAL | |
METAL MATERIAL | COLD ROLLED PLATE |
IDC MATERIAL | NEW PC, ACCEPT 22-24AWG WIRE |
TERMINAL | PHOSPHOR BRONZE, TIN GOLD PLATING 3U’’ |
RJ45 CONTACT LIFE | 750 TIMES MIN |
Our Factory
