Блок питания с переключателем на Din-рейку 60 Вт 24
- Категория: Переключатель источника питания >>>
- Поставщик: Shanghai,Nature,Beyond,Electric,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 11.32 $* | 11.31 $* |
| Jul-18-2025 | 9.50 $* | 9.63 $* |
| Jun-18-2025 | 11.71 $* | 11.82 $* |
| May-18-2025 | 11.93 $* | 11.16 $* |
| Apr-18-2025 | 9.37 $* | 9.27 $* |
| Mar-18-2025 | 11.93 $* | 11.40 $* |
| Feb-18-2025 | 11.89 $* | 11.32 $* |
| Jan-18-2025 | 11.14 $* | 11.93 $* |
Характеристики
Product Detail

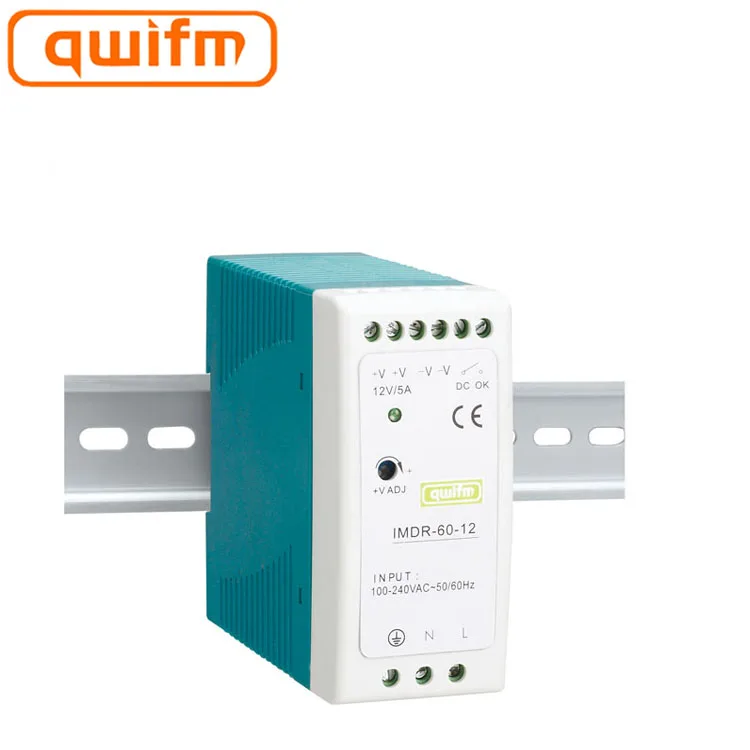

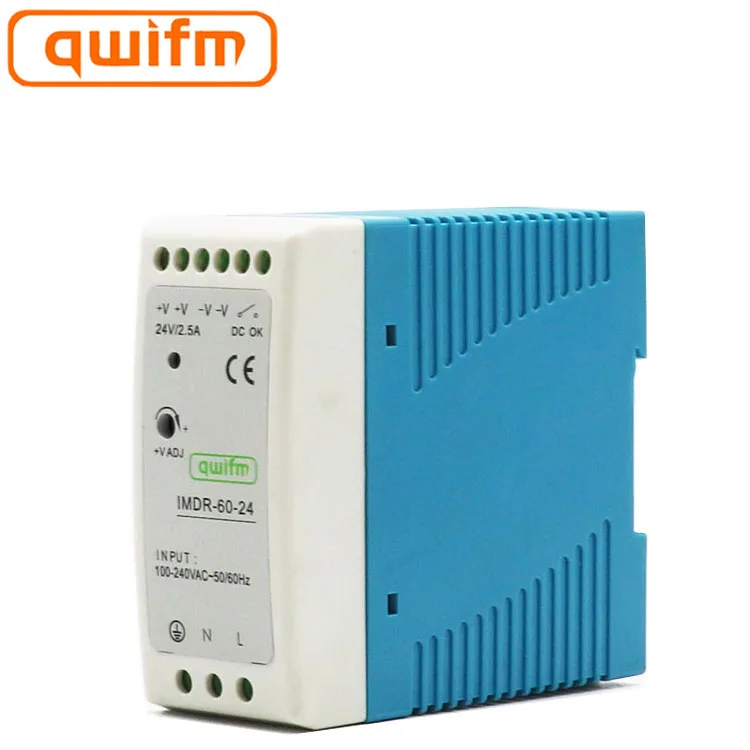

| Model | IMDR-60-5 | IMDR-60-12 | IMDR-60-24 | IMDR-60-48 | |
| Output | DC Voltage | 12V | 15V | 24V | 48V |
| Rated Current | 10A | 5A | 2.5A | 1.25A | |
| Current Range | 0~10A | 0~5A | 0~2.5A | 0~1.25A | |
| Rated Power | 60W | ||||
| Ripple & Noise | 80 mVp-p | 120 mVp-p | 150 mVp-p | 200 mVp-p | |
| Input | Voltage Range | 85~264VAC, 120~370VDC | |||
| Efficiency | 78% | 86% | 88% | 87% | |
| Inrush Current | Cold Start, 30A /115VAC; 60A /230VAC | ||||
| Protection | Over load | 105%-150% rated output power | |||
| Protection type: Constant current liimiting, recovers automattically after fault condition is removed | |||||
| Over Voltage | 120%-150% rated output voltage | ||||
| Protection type: Shut down o/p voltage, re-power on to recover | |||||
| Over temperature | Shut down o/p voltage, recovers automatically after temperature goes down | ||||
| Environment | Working Temp & Humidity | ·-20-60°C 20-90% RH non-condensing | |||
| Storage Temp & Humidity | ·-40-85°C 10-90%RH | ||||
| Safety & EMC | Withstand Voltage | I/P-O/P: 3KVAC; I/P-FG: 1.5KVAC; O/P-FG: 0.5KVAC within 1 min | |||
| EMC Emission | Compliance to EN55032:2015 , EN61000-3-2 :2014, | ||||
| Others | Dimension | 40*90*100mm (W*H*D) | |||
| Packing | 0.4kg/pcs | ||||
