Миниатюрные упорные шарикоподшипники из нержавеющей стали F9-17M 9x17x5
- Категория: Thrust Ball Bearings >>>
- Поставщик: Shanghai,Chenghui,Bearing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 1.44 $* | 1.99 $* |
| Jul-19-2025 | 1.79 $* | 1.66 $* |
| Jun-19-2025 | 1.27 $* | 1.30 $* |
| May-19-2025 | 1.79 $* | 1.88 $* |
| Apr-19-2025 | 1.46 $* | 1.3 $* |
| Mar-19-2025 | 1.10 $* | 1.3 $* |
| Feb-19-2025 | 1.43 $* | 1.13 $* |
| Jan-19-2025 | 1.50 $* | 1.98 $* |
Характеристики
Product Description

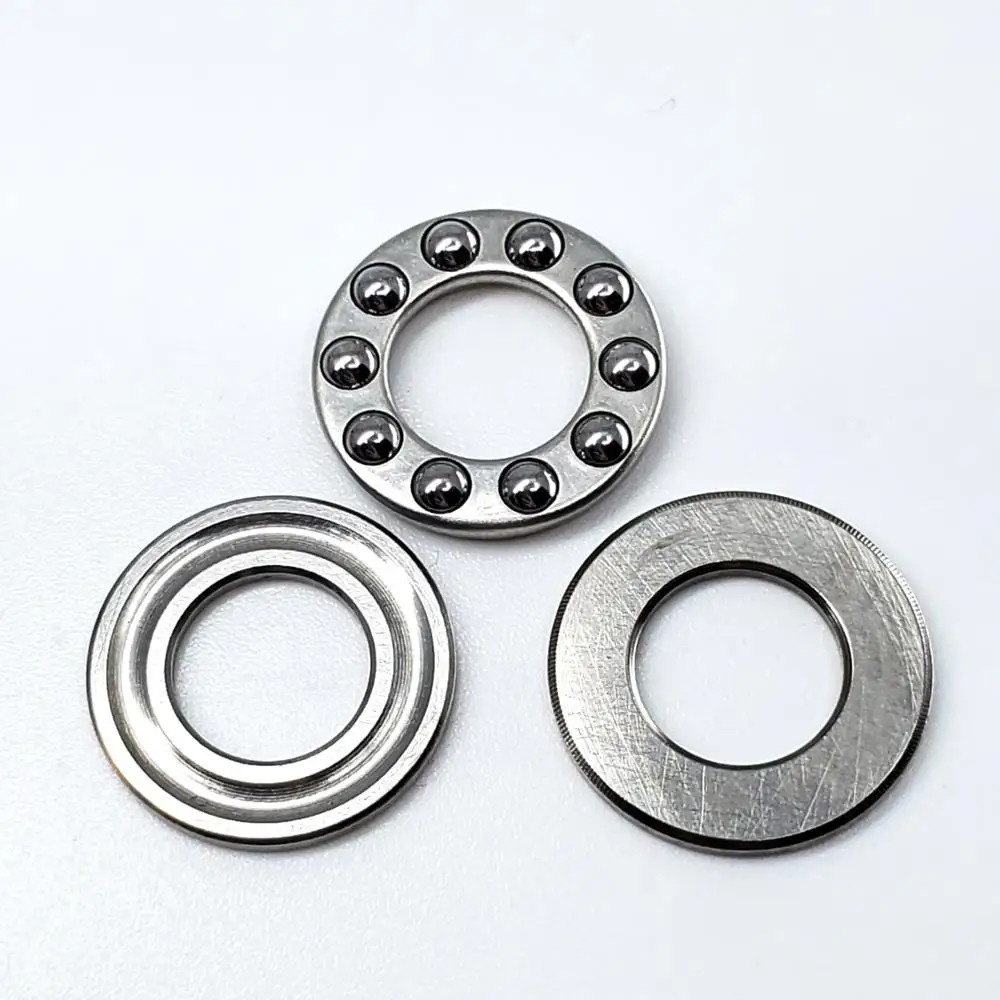

F9-17M 9x17x5.5 Full Stainless Steel Miniature Thrust Ball Bearings with Grooved Raceway
Features
• 440 stainless steel race and ball
• 304 stainless steel cage
• 304 sheet steel and nitrile rubber combined seals
• Temperature range -30ºC to +110ºC
• Application for Cossion resistance conditions
Full Stainless Steel Miniature Thrust Ball Bearing
| C&H | Dimensions (mm) | Load Ratings(N) | Mass | ||||||
| d | D | T | d1 | D1 | r | Cw | Cow | ≈(g) | |
| SF3-8M | 3 | 8 | 3.5 | 3.2 | 7.8 | 0.05 | 730 | 655 | 0.86 |
| SF6-12M | 6 | 12 | 4.5 | 6.2 | 11.8 | 0.15 | 1342 | 1559 | 2.16 |
| SF7-15M | 7 | 15 | 5.5 | 7.2 | 14.8 | 0.15 | 2961 | 3508 | 4.10 |
| SF9-17M | 9 | 17 | 5.0 | 8.2 | 16.8 | 0.20 | 2816 | 3508 | 4.0 |
Payments and Return Policy
• We accept the payment after your receiving and approving the bearings
• The goods must be returned with 30 days and brand new. We will pay the return charges only for the quality problem.
• The return is no for quality problem. Customer will pay the return charges.
Miniature Thrust Ball Bearings With Flat and Grooved Racway
| C&H | Dimensions (mm) | Load Ratings(N) | Mass | ||||||
| d | D | T | d1 | D1 | r | Cw | Cow | (g) | |
| F2-6 | 2 | 6 | 3 | 0.1 | 143 | 83 | 0.49 | ||
| F2X-7 | 2.5 | 7 | 3.5 | 0.1 | 199 | 120 | 0.81 | ||
| F3-8 | 3 | 8 | 3.5 | 0.15 | 212 | 140 | 1.21 | ||
| F4-9 | 4 | 9 | 4 | 0.15 | 221 | 160 | 1.37 | ||
| F4-10 | 4 | 10 | 4.5 | 0.15 | 355 | 245 | 1.93 | ||
| F5-11 | 5 | 11 | 4.5 | 0.15 | 340 | 245 | 2.22 | ||
| F6-12 | 6 | 12 | 4.5 | 0.15 | 390 | 315 | 2.48 | ||
| F7-15 | 7 | 15 | 5 | 0.2 | 795 | 630 | 4.22 | ||
| F8-16 | 8 | 16 | 5 | 0.2 | 535 | 445 | 4.81 | ||
| F9-17 | 9 | 17 | 5 | 0.2 | 815 | 710 | 4.99 | ||
| F10-18 | 10 | 18 | 5.5 | 0.2 | 800 | 710 | 6.01 | ||
| F3-7M | 3 | 7 | 3 | 3.2 | 6.8 | 0.05 | 497 | 440 | 0.47 |
| F3-8M | 3 | 8 | 3.5 | 3.2 | 7.8 | 0.05 | 859 | 771 | 0.86 |
| F4-9M | 4 | 9 | 4 | 4.2 | 8.8 | 0.05 | 816 | 771 | 1.12 |
| F4-10M | 4 | 10 | 4 | 4.2 | 9.8 | 0.1 | 799 | 771 | 1.47 |
| F5-10M | 5 | 10 | 4 | 5.2 | 9.8 | 0.1 | 1025 | 1156 | 1.33 |
| F5-12M | 5 | 12 | 4 | 5.2 | 11.8 | 0.1 | 912 | 1028 | 2.05 |
| F6-12M | 6 | 12 | 4.5 | 6.2 | 11.8 | 0.15 | 1579 | 1835 | 2.16 |
| F6-14M | 6 | 14 | 5 | 6.25 | 13.8 | 0.15 | 1883 | 2023 | 3.53 |
| F7-14M | 7 | 14 | 4.5 | 7.2 | 16.8 | 0.15 | |||
| F7-15M | 7 | 15 | 5.5 | 7.2 | 14.8 | 0.15 | 3484 | 4128 | 4.10 |
| F7-17M | 7 | 17 | 6 | 7.2 | 16.9 | 0.15 | 2645 | 3146 | 6.41 |
| F8-16M | 8 | 16 | 5 | 8.2 | 15.8 | 0.2 | |||
| F8-19M | 8 | 19 | 7 | 8.2 | 18.8 | 0.2 | 3399 | 4110 | 9.27 |

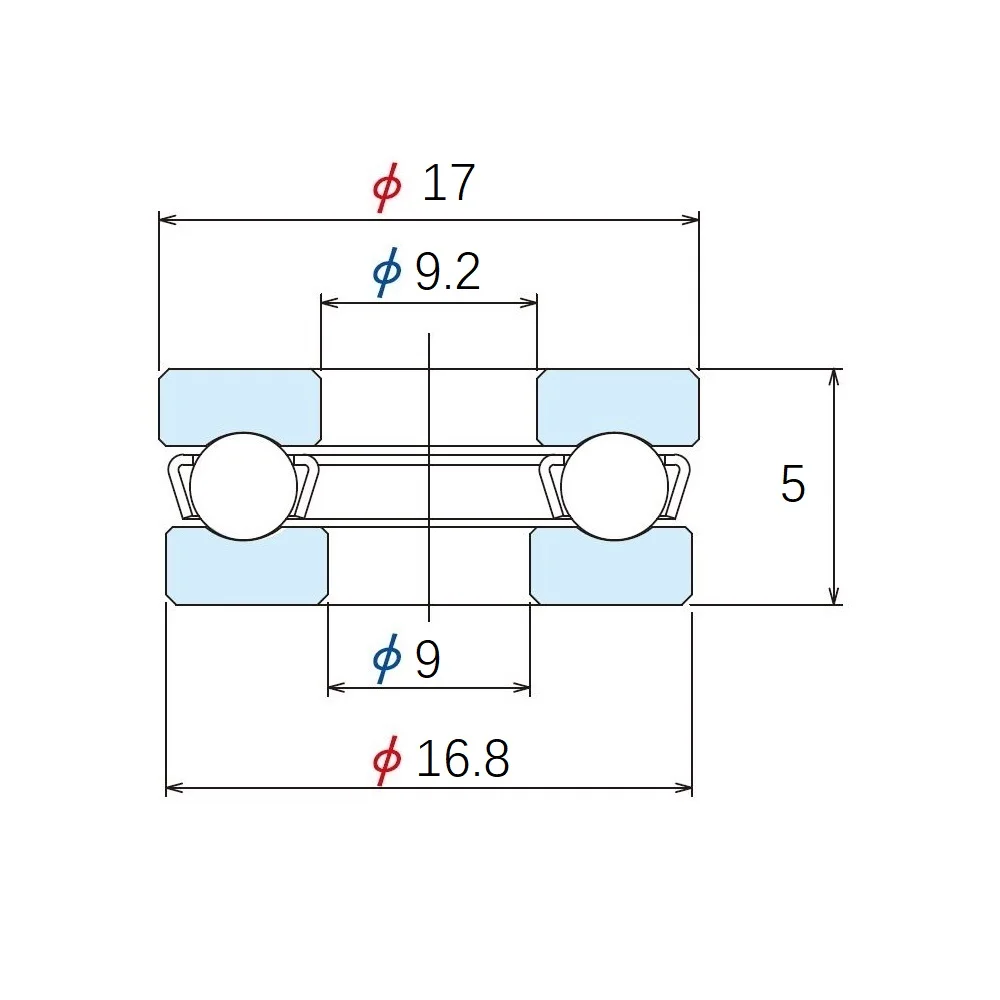

| F9-17M | 9 | 17 | 5 | 9.2 | 16.8 | 0.2 | 3313 | 4128 | 4.05 |
| F9-20M | 9 | 20 | 7 | 9.2 | 19.8 | 0.2 | 3327 | 4110 | 9.92 |
| F10-18M | 10 | 18 | 5.5 | 10.2 | 17.8 | 0.2 | |||
| F10-20M | 10 | 20 | 6.5 | 10.2 | 19.8 | 0.2 | 4707 | 6423 | 8.45 |
