Полностью непрерывная дистилляционная установка для зажигания очищающая отработанные шины/пластиковое масло дизельного топлива под отрицательным
- Категория: Rubber Processing Machinery >>>
- Поставщик: Shangqiu,Zhongming,New,Energy,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.99 $* | 0.26 $* |
| Aug-15-2025 | 0.26 $* | 0.72 $* |
| Jul-15-2025 | 0.5 $* | 0.29 $* |
| Jun-15-2025 | 0.24 $* | 0.93 $* |
| May-15-2025 | 0.13 $* | 0.42 $* |
| Apr-15-2025 | 0.76 $* | 0.16 $* |
| Mar-15-2025 | 0.10 $* | 0.35 $* |
| Feb-15-2025 | 0.24 $* | 0.63 $* |
| Jan-15-2025 | 0.53 $* | 0.27 $* |
Характеристики
Company Profile
| Business Type | Manufacturer,Trading Company √ | Country/Region | Henan,China √ |
| Main Products | Pyrolysis of waste tyres/rubber, Pyrolysis oil plant,Pyrolysis plant | Total Empioyees | 20-50People |
| Year Established | 2016 √ | Patents | |
| Product Certifications | CE,ISO9001,ISO4001. | Main markets | Africa 30.00% South America 20.00% Mid East 20.00% Southeast Asia 20% |
| Trademarks |  |
Product Description2
Negative pressure distillation process

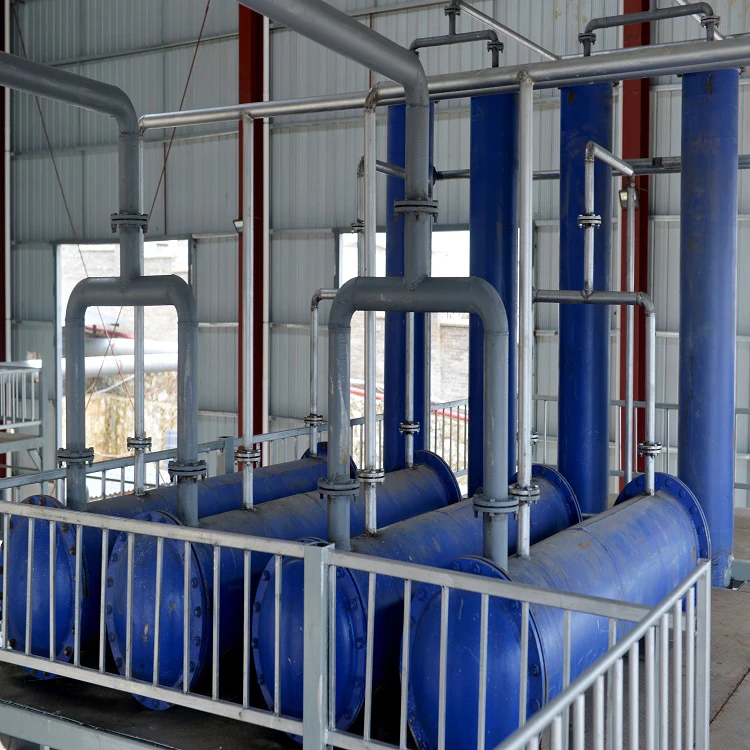

1.The waste oil vacuum distillation unit is designed as a continuous production process, and the waste oil is pumped into the preheating system by vacuum. After heating, it is automatically sent to the still (normal temperature-380 °C end) . The vacuum adjustment in-0.03 MPA can get about 80% of the fuel oil (diesel) base oil production (the requirements of the raw oil and the production of fuel oil vacuum should be controlled in-0.08 MPA) , the use of one-time feed mode of production, with the change of temperature, after the gas is purified in the gas tower, the gas enters the condensing system of the equipment. When the gas passes through the first stage of condensing, 95% of the oil gas is converted, and then enters the second stage of condensing. The remaining 3%-5% of the gas is converted, it then goes into a three-stage vertical condenser to prevent a small amount of the gas from not being converted. That is, the unconverted gas enters the oil-gas separation system. And then it goes into the furnace to ignite it.
2.Negative pressure environmental protection type: no smoke, no smell and no secondary pollution in the production process; in order to meet the standard of environmental protection emission, the burned gas is further purified, the crack pipe is cooled by condensation, then the crack pipe is sprayed by two stages to remove dust, then the crack pipe is separated by gas and water, finally the crack pipe is decomposed by UV light to eliminate the harmful substances completely, which meets the national emission standard.
3.The equipment can be operated using fuel oil or natural gas as heat source (heating with non-condensable gas in the production process to save fuel)
Technical performance sheet
Project | Content | ||
Type of equipment | ZMFY-10 | ZMFY-20 | ZMFY-30 |
Raw materials | Waste engine oil, cracking crude oil, crude oil, lubricating oil, etc. | ||
Final product | Non-standard diesel, gasoline and base oil | ||
Structural form | Horizontal rest | ||
Main furnace size | Φ1600*5500 | Φ2200*6600 | Φ2500*7000 |
Main furnace material | Q345R/Q235R/310S Stainless steel boiler plate | ||
Main furnace thickness | 14mm/16mm/18mm/20mm | ||
Daily throughput | 10T | 20T | 30T |
Oil Yield | 85%-90% | ||
Working pressure | Negative pressure productio | ||
Available fuel | Natural Gas, fuel oil | ||
Total installed power | 25kw/h | ||
Area occupied by equipment | 20m*30m*9m | ||
Cooling mode | Circulating water | ||
Single man-made | 3 persons/station | ||
Installation mode | Guide installation | ||
Mode of operation | Semi-continuous operation | ||
Production Cycle | 15 days | ||
Packaging & Shipping
Company Information
Shangqiu Zhongming New Energy Technology Co. , Ltd. is located in the West Section of Xinsan road, Yucheng County Industrial Zone, Shangqiu. The registered capital of the company is 9.6 million yuan, production of waste tires, rubber, oil sludge and other related products recycling equipment, and mechanical equipment manufacturing and sales, with equipment import and export qualification, the company passed C C C, ISO9001, ISO14001, ISO145001, CE certification, the company produced complete sets of products, exports to Japan, south Korea, the United States, the Middle East, Europe and other countries and regions, has a very high reputation and quality.
