Сельскохозяйственный мини-трактор с кабиной rops 4 в 1 фронтальный погрузчик 40
- Категория: Тракторы >>>
- Поставщик: Shandong,Jiulin,Import,&,Export,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 5831.77 $* | 6123.12 $* |
| Aug-16-2025 | 5782.54 $* | 6071.4 $* |
| Jul-16-2025 | 4851.51 $* | 5094.5 $* |
| Jun-16-2025 | 5684.64 $* | 5968.17 $* |
| May-16-2025 | 4949.91 $* | 5196.25 $* |
| Apr-16-2025 | 5586.76 $* | 5865.97 $* |
| Mar-16-2025 | 5537.11 $* | 5814.70 $* |
| Feb-16-2025 | 5488.38 $* | 5762.26 $* |
| Jan-16-2025 | 5439.47 $* | 5711.60 $* |
Характеристики

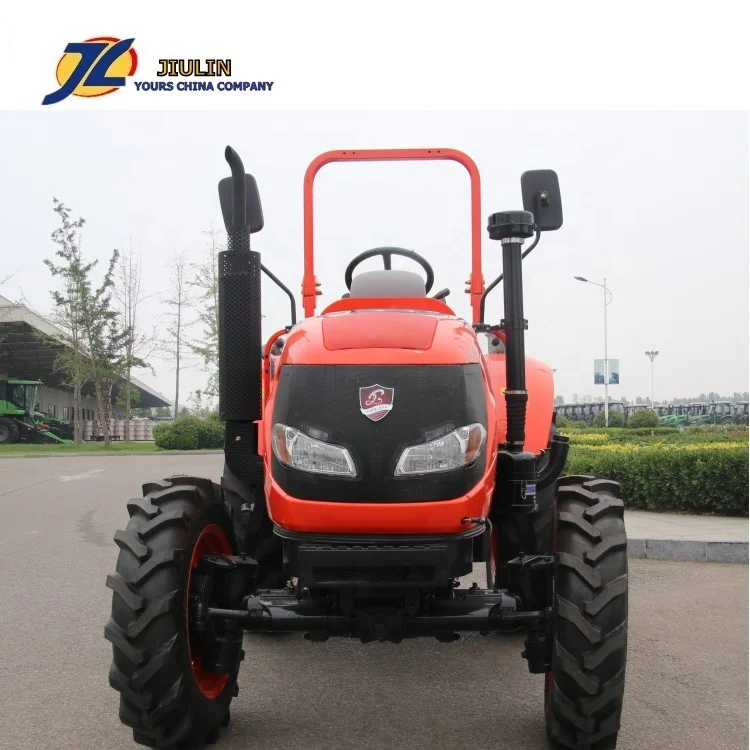

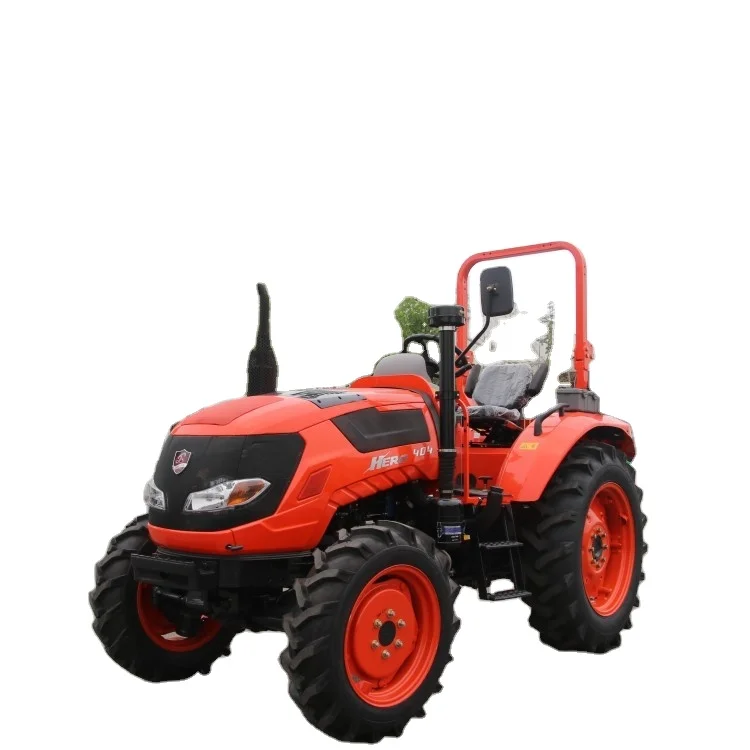

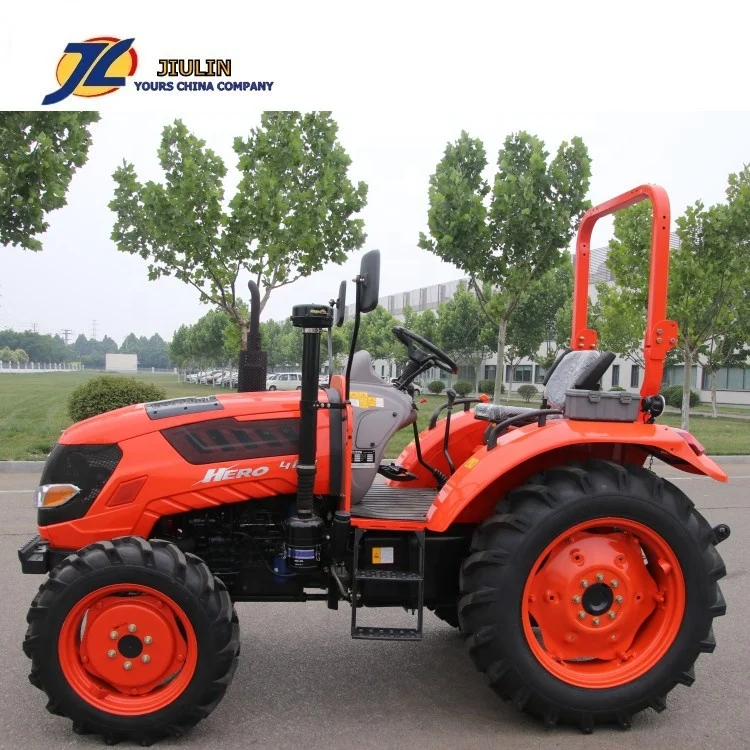

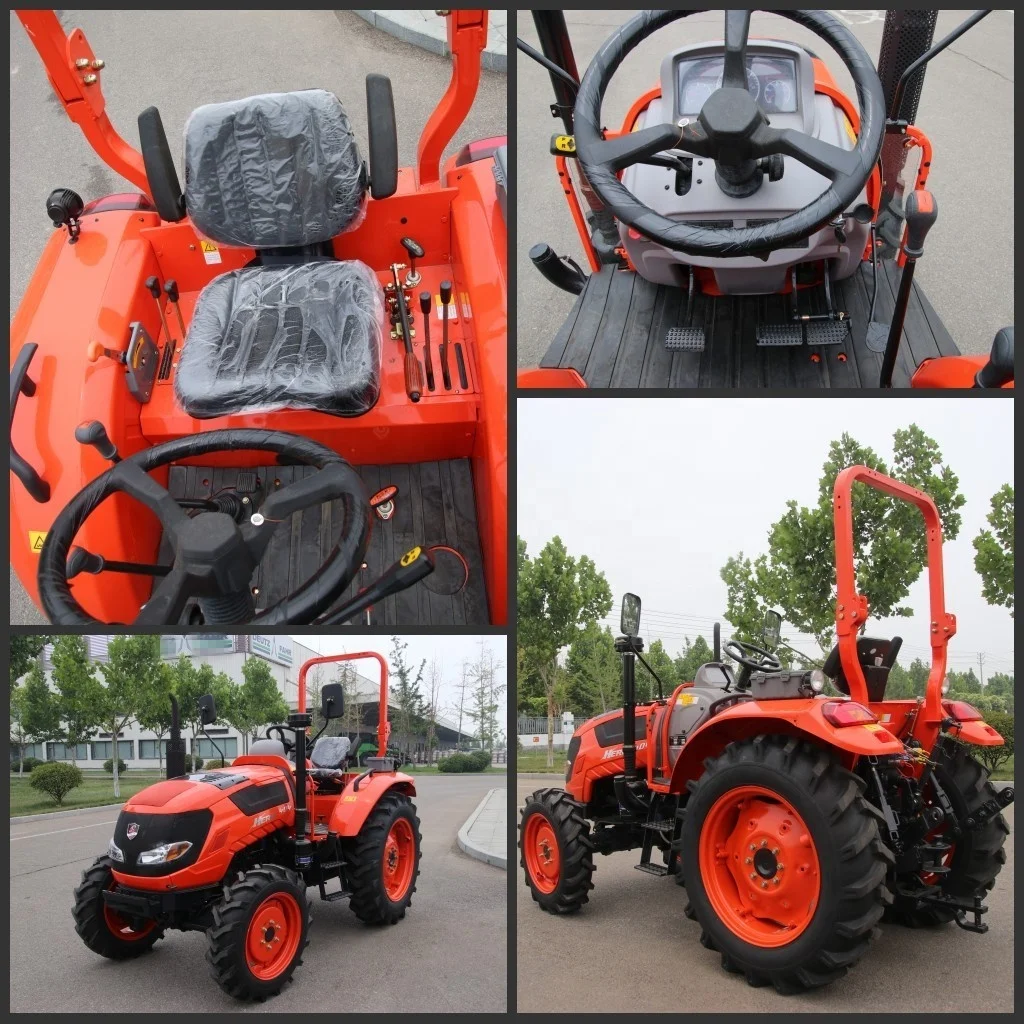

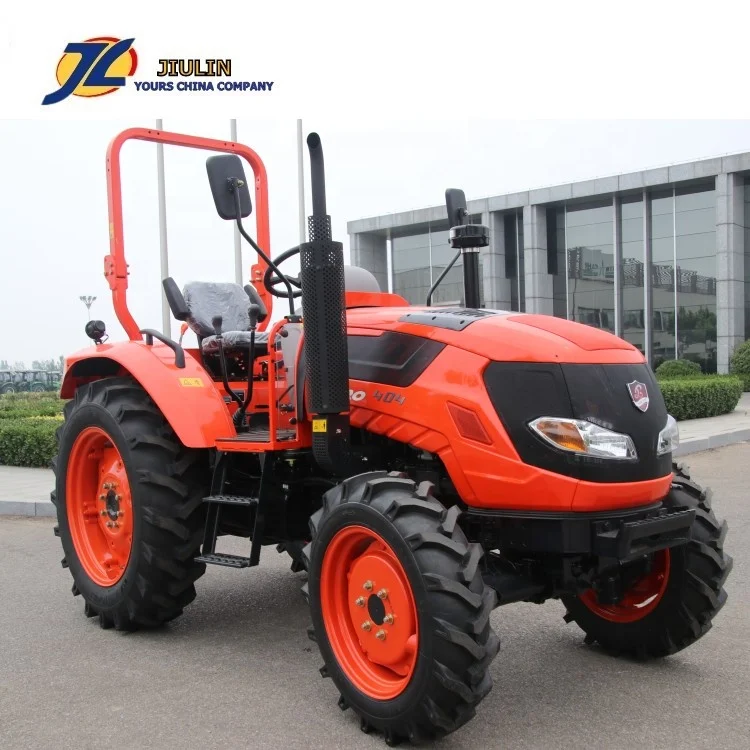

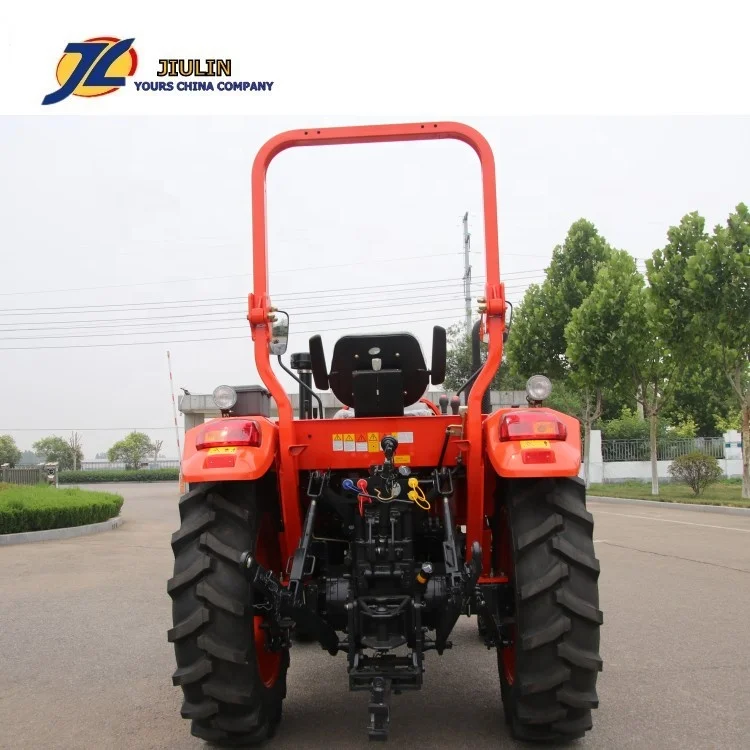

Mini 40HP farm wheel tractor with cabin, rops 4 in 1 Front end loader
1. Direct injection engine, optional domestic 4-cyl diesel engine, which can meet different operation requirements.
2. Dual stage clutch, shuttle shift gears transmission, easy to operate. 12F+12R
| Type | FL404 | |
| Drive type | four-wheel drive | |
| Engine | ||
| Engine Brand | Quanchai | |
| Engine Type | QC490T40 | |
| Max. Torque (Nm @ engine rpm) | 155~160/1700 | |
| Fuel tank capacity (L) | 38L+22L=60L | |
| 48L+22L=70L | ||
| Rating power of engine KW/RPM | 29.4/2400 | |
| Fuel consumption @ nominal power (g/kw.h) | ≤248 | |
| Air Intake Type | Natually-Aspirated | |
| Displacement L | 4/2.672 | |
| Air filter type/size | ||
| Torque reserve | 23% | |
| Transmission system | ||
| Clutch type/size | One-piece,dry,double-action/10 inches | |
| No. of gears (F+R) | 8F+4R/8F+8R/12F+12R | |
| Shift method | mechanical sliding sleeve | |
| Max. speed | 34.78 | |
| Gear position | side position | |
| Hydraulic system | ||
| Hydraulic output flow rate (L / MIN) | 38.4 | |
| Hydraulic output valve | One group/Two groups/Three groups/Simple hydraulic output | |
| Hydraulic filter types and capacity | wire mesh/63μm | |
| Working device | ||
| Three-point-linkage | 1 Type/2 Type (Optional) | |
| PTO Speed | 540/760rpm | |
| 540/1000rpm(Optional) | ||
| Lifting Capacity kn | 9KN/15KN(Enforced lift) | |
| Tillage depth adjustment | Draft, position,position and draft mix control/position,float(Enforced lift) | |
| Parameter | ||
| The whole machine size (dimensions) mm | 3790×1520×2130 | |
| 3790×1620×2130 | ||
| (kg) | With cab | 2300 |
| Min. operation mass | Without cab | 2120 |
| Wheel base (mm) | 1992 | |
| Mini turning Radius (m) | 3.8 | |
| Rated traction force(N) | 11 | |
| Deck | Flat Deck | |
| Minimum ground clearance (mm) | 325 | |
| Heat ventilation cab | Optional | |
| Front/rear wheel tread | 1200/1200 | |
| 1250/1300 | ||
| (common 1300) | ||
| tyre size | 8.3-20/12.4-28 | |
| Braking and steering | ||
| Braking system | Wet type,disc brake | |
| Steering type | hydraulic steering | |
| Steering Angle (4 x4) | Front axle Max.Steering angle 30°/50° | |
| (options: all these types can Optional for ROPS ,Sunshade,swing drawbar, front/rear ballast,cabin) | ||
Packaging & Shipping
Two methods of container packing:
Company Information
Our factory of Shandong Jiulin Import&Export Co., LTD is located in No.119 Qinhuangdao road, Rizhao city of Shandong province,China,affiliated to Rizhao Zhongrui Group,which is a large-scale comprehensive enterprise group collection of foreign trade and industrial development, our export productes contain tractors, excavator, car battery,paper stick,paper straw and so on. After many years of management, the group which has been widely accepted by the society from all walks of life step by step, the listed top 500 of China's foreign trade, China's top 500 private economy, top 100 private enterprises in shandong province,china.
Our Services
1. JL series tractor is Europe designed for multiple light works,
such as farming, forest, garden ,transportation etc.
2.Equipped with Chinese famous diesel engine, It has the advantage of high cost efficiency and .fuel efficiency, low maintenance cost and good working performance.
