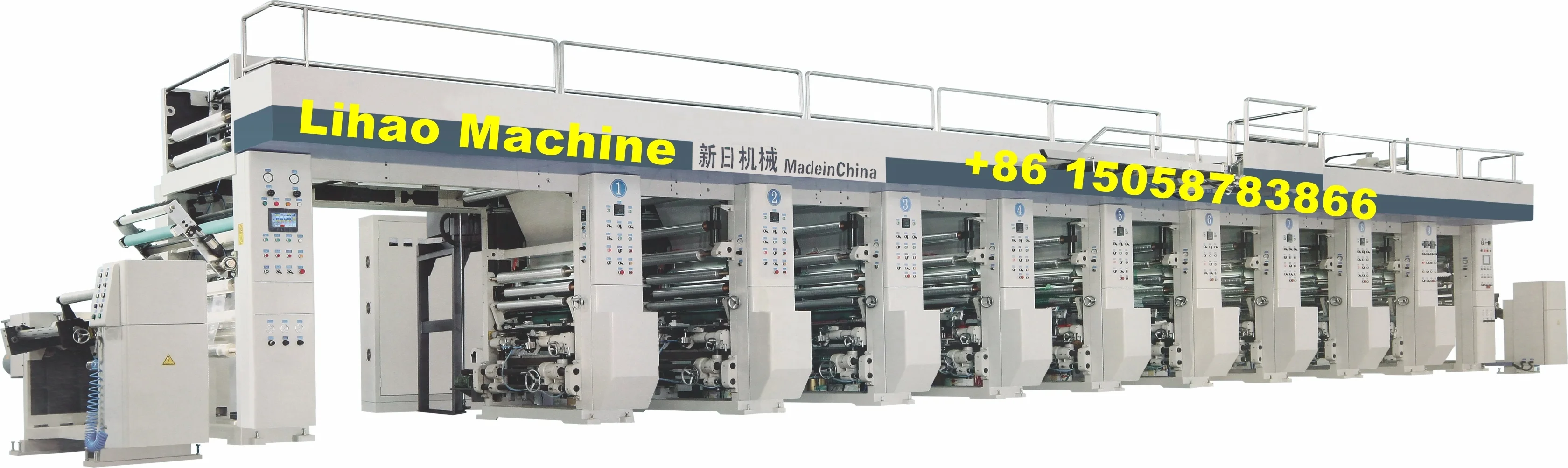

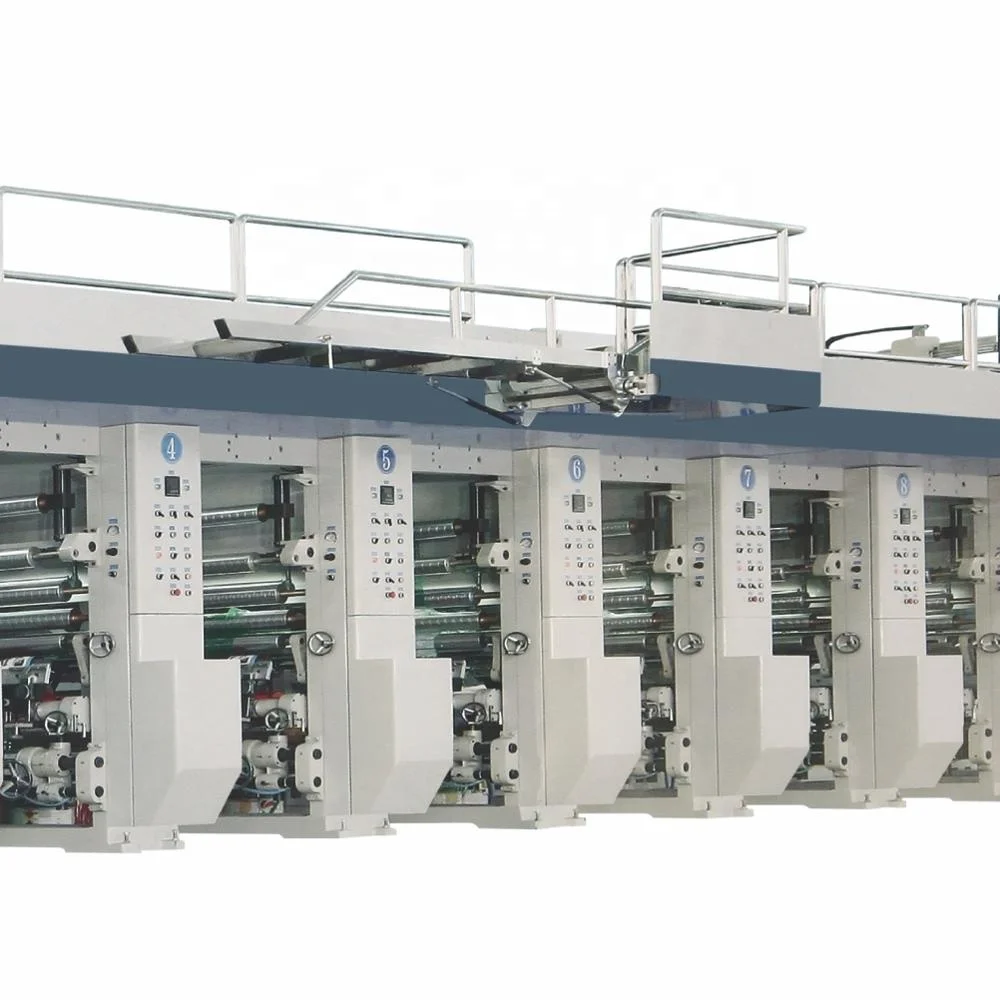

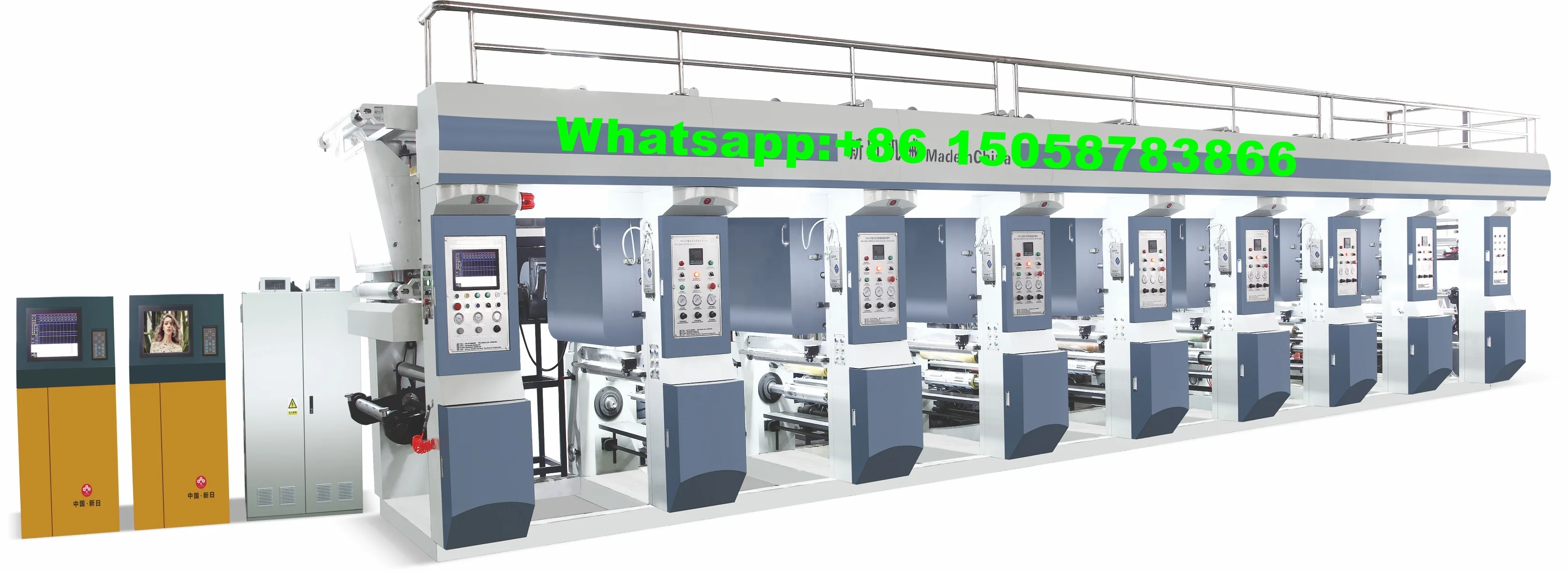

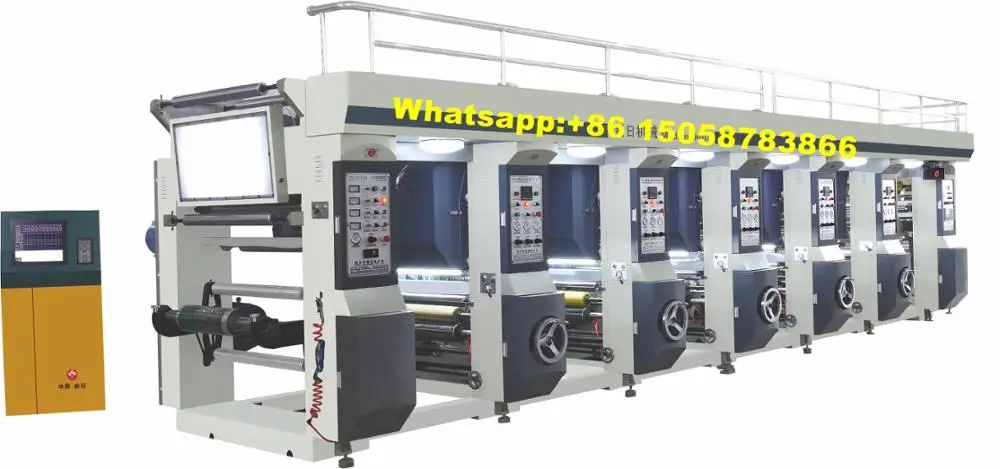

High Speed Automatic Rotogravure Printing Machine  (1-10 colors)

Product Application

Feature:

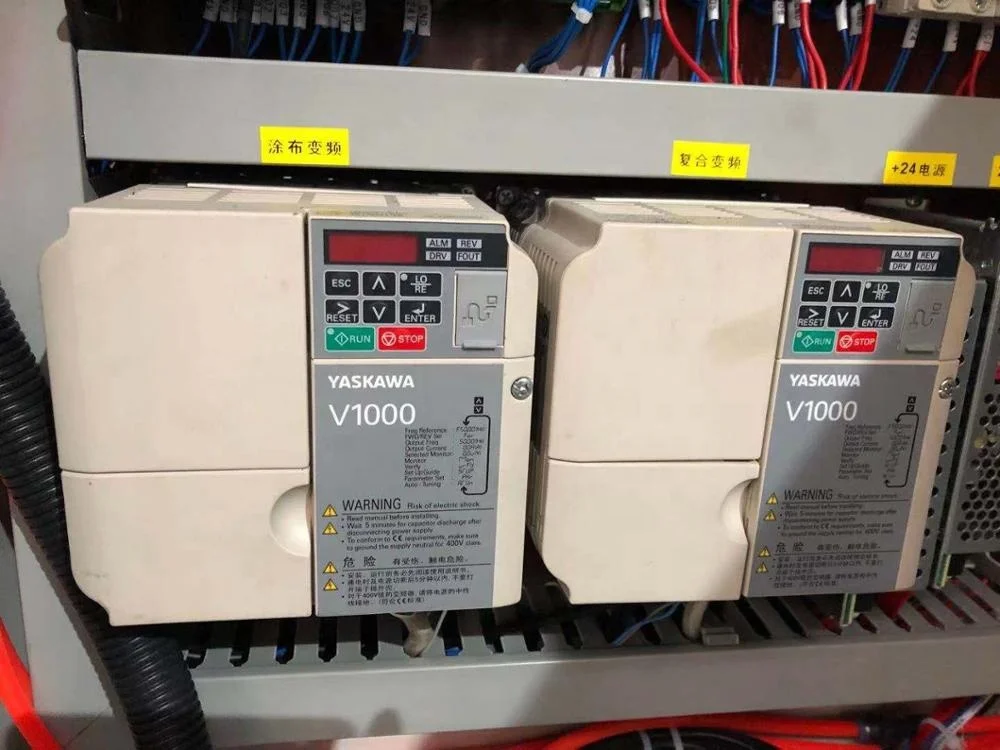

1. 7 servo motor controlling system, it can make tension close loop control, so we can make the material waste to the least, during one year’s running, you can save huge cost.

2. Unwind double station turret with air shaft, two servo motor control, automatic splicing and cutting with non stop.

3. Rewind double station turret with air shaft, two servo motor control, auto splicing and cutting with nonstop.

4. Independent chassis without connection, the bolt will be installed into the ground which make machine more stable during high speed running.

5. New design enclosed type doctor blade, pneumatic move, it can remove extra ink completely from the printing cylinder, so that the printing picture will be more clear and shinning

6. Shaftless pneumatic printing cylinder installation which can save much time

7. Ink is circulated automatically by ink pump

8. Special ink plate design make ink touch printing cylinder completely and better for ink circulate.

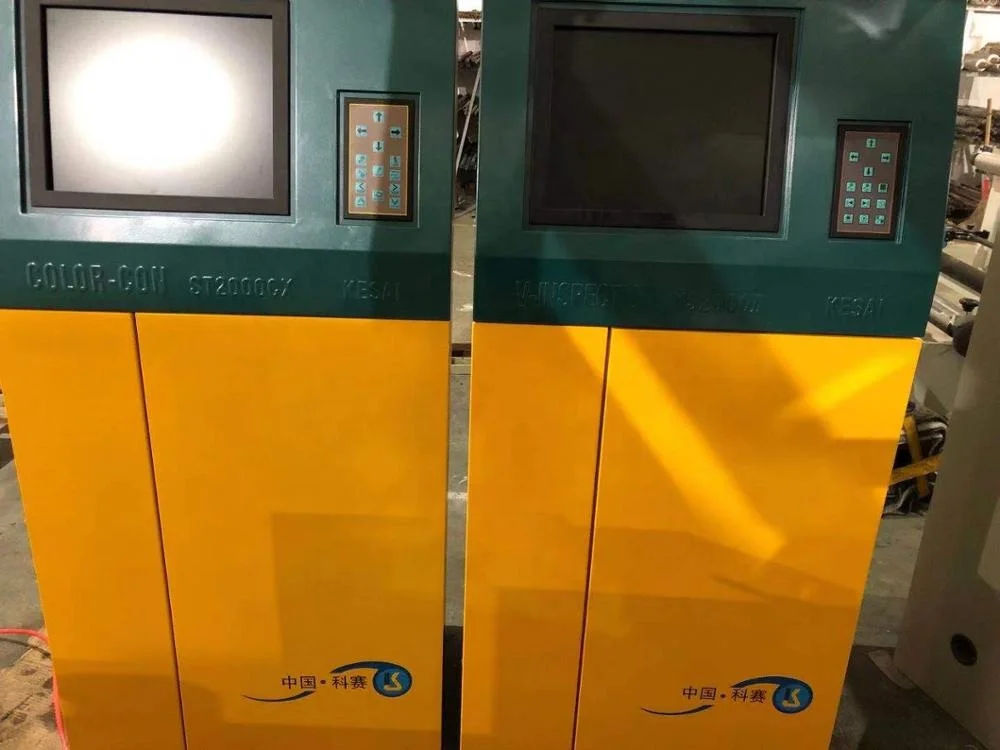

9. Automatic computer register with video inspection.

10. It equipped with double long register which has longer moving distance, so it has bigger range of registration adjustment to make registration accurate.

11. Independent drying and suction exhausting system, air circulated, max recycled rate 50%, waste air eliminating tunnel. External blower increase the air amount for a better heating.

12. Unwind 2 floating roller, rewind 2 floating roller to micro adjust the tension during machine running

13. Oven is pneumatic open and close which is convenient for material guiding.

 14. Assisted oven installed on the last printing unit, when last color cover the whole cylinder, it can ensure to dry the material completely.

15.Turning bar can be installed to do reverse printing for PE tube material
