Silica sand mining machine silica washing attrition scrubber with the best price

Brief introduction:
Attrition scrubbers are also called attrition cells, which are generally used before or after sand screws in sand washing plant to scrub the surfaces of particulates, break down impurities, and remove it from competent aggregate material to reduce the product turbidity. We design singl and multiple cell attrition scrubber units for different scrubbing requirements of mineral materials.
LZZG attrition scrubbers provide efficient scrubbing solutions for a variety of applications for sand, gravel, aggregate ore, coal and other industries.

Working principle:

Working principle:
1.Slurry enters the scrubber cavity through the feed pipe, and produces severe turbulence under the strong agitation of impeller. The ore particles have great momentum in them and produce intense friction and collision with each other.
2.The impurity membrane wrapped on the surface of ore is easily peeled off the mineral surface by friction and impact due to its low strength. The cement surface is immersed in water and then the mineral particles are strongly rubbed and collided with each other to loosen and disintegrate, thereby achieving the separation of clay and ore.
3.These impurities and clay are disintegrated and exfoliated into the slurry, and the slurry can be separated by subsequent desliming. In the actual production process, different agents should be added according to the actual conditions of mineral.

Features:
1.Large scrubbing intensity and good effect. The unique tank structure and impeller configuration increase the scrubbing

strength by about 30% compared to the conventional scrubber of the same specification.
2.Low power consumption, wear and corrosion resistance. The inner liner and impeller are made of wear-resistant

materials.
3.The light starting and small starting power greatly reduces the operator’s working intensity because of the impeller is

above the pulp sedimentation zone.
4.Simple structure, large effective volume, small floor space.
5.Low circumferential speed and long service life.
6.The relative position of ore feeding, ore discharge and the motor can be customized according to the needs of users.

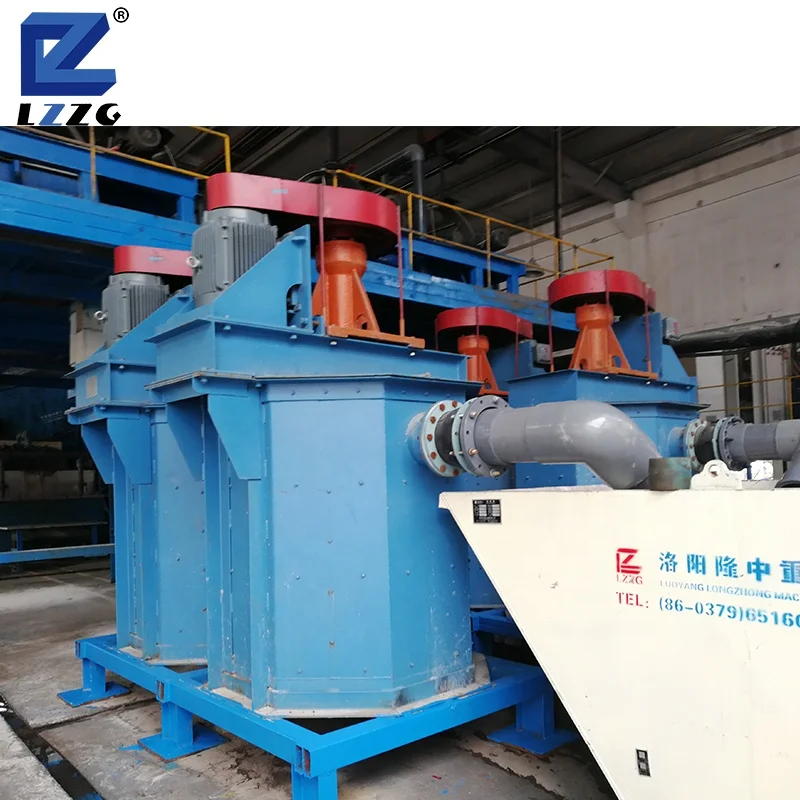

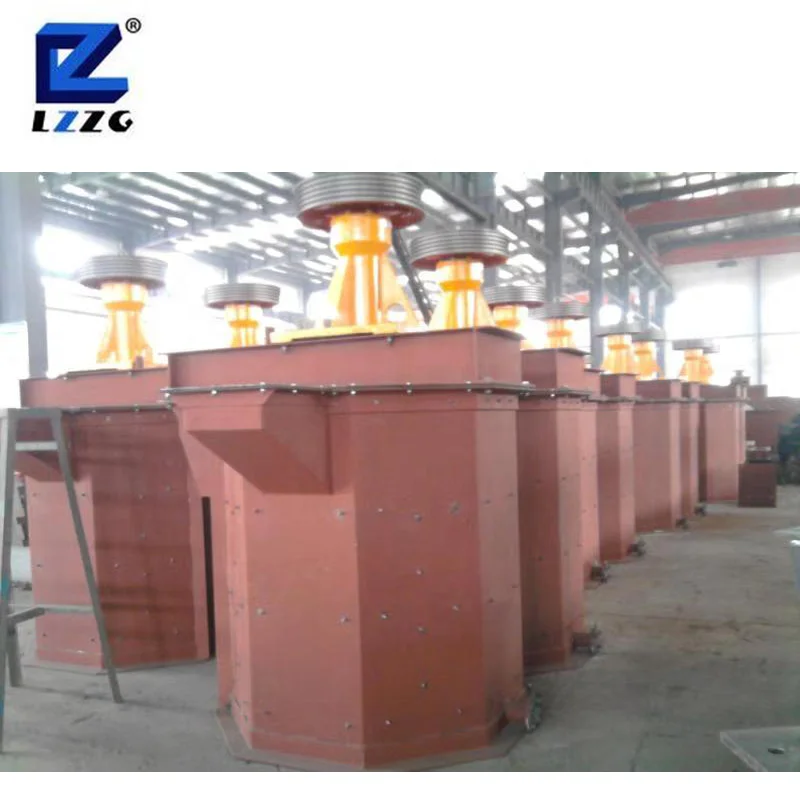

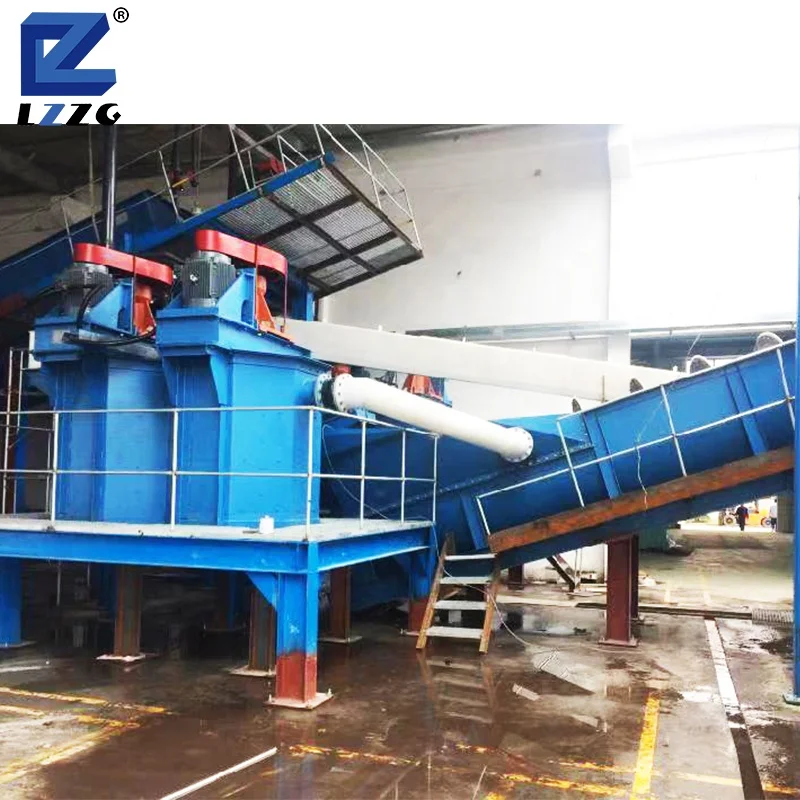

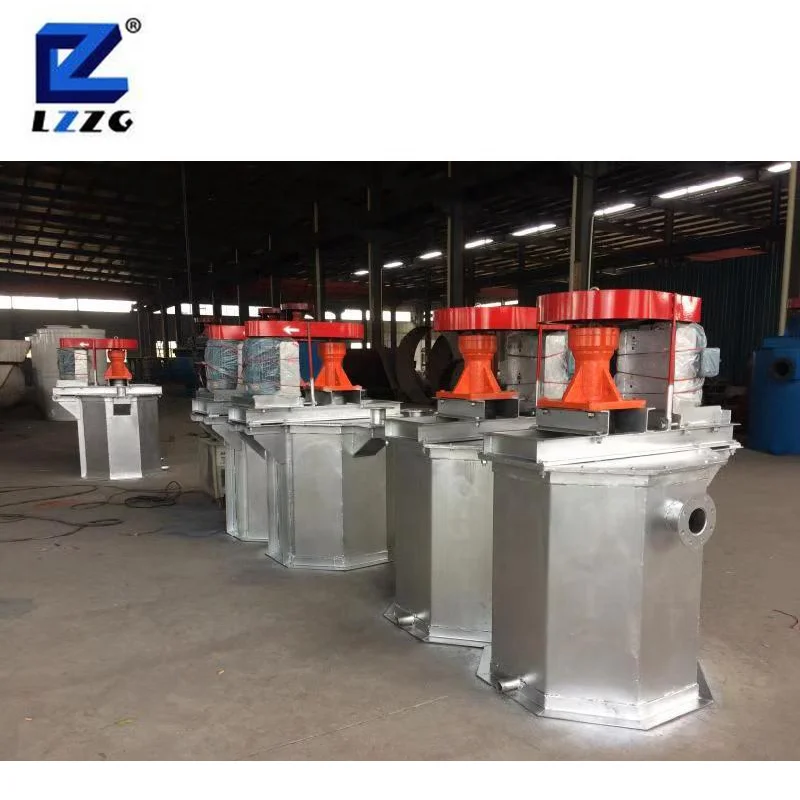

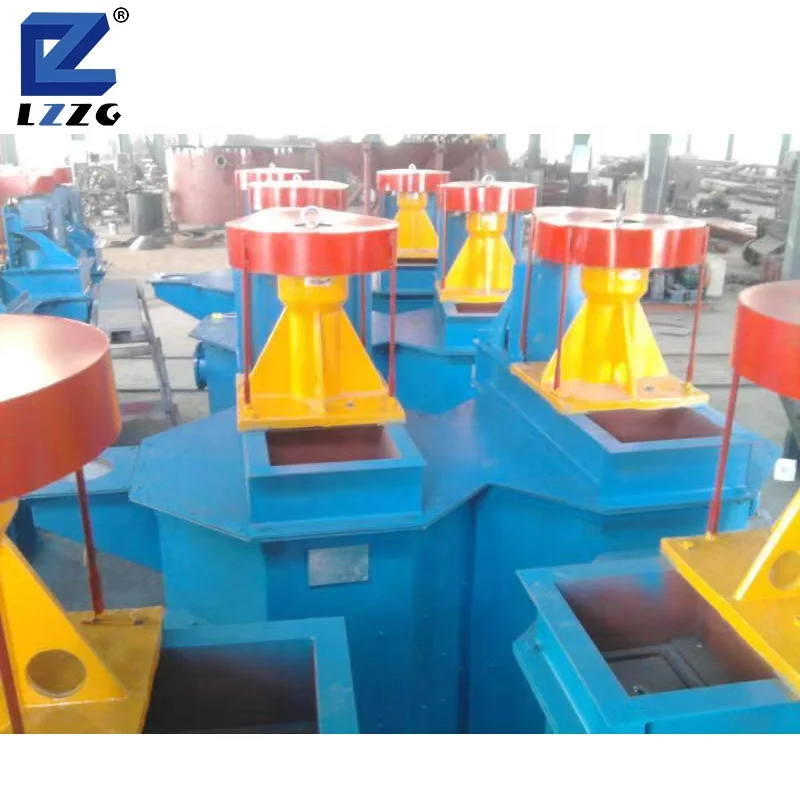

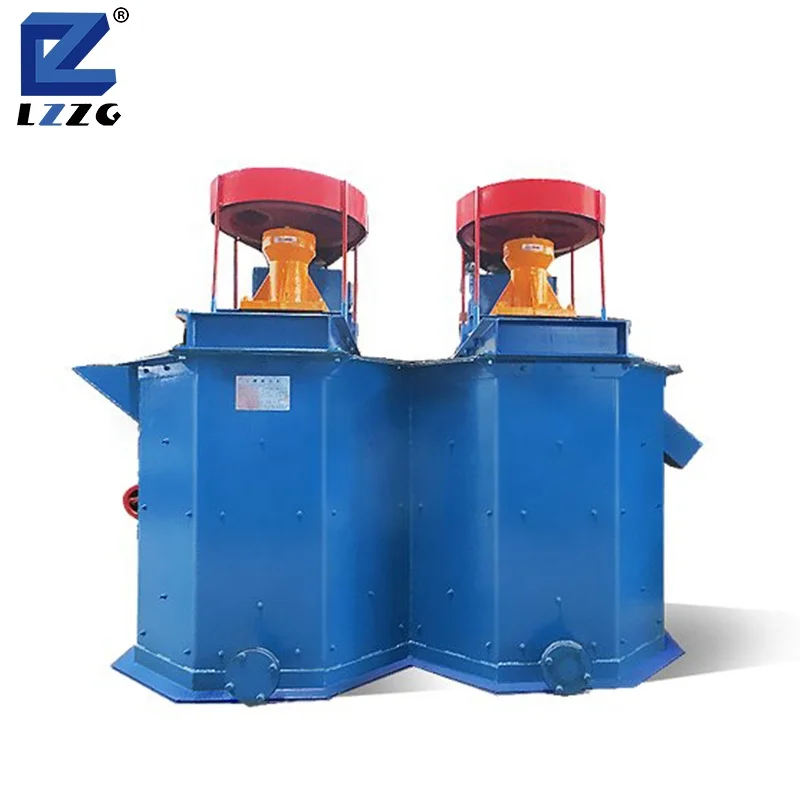

Detailed Images

Tech specification

Model	Impeller diameter(mm)	Volume(m³)	Feed size(mm)	Capacity(t/h)	Power(kw)	Weight(kg)	Overall size (mm)
CX0.25-1	240	0.25	≤10	2-10	3	350	7107081310
CX0.25-2	240*2	0.25*2	≤10	2-10	3*2	660	13657081310
CX0.5-1	320	0.5	≤10	5-20	5.5	450	9228861550
CX0.5-2	320*2	0.5*2	≤10	5-20	5.5*2	890	17618861550
CX1-1	480	1	≤10	10-40	15	1400	118011422057
CX1-2	480*2	1*2	≤10	10-40	15*2	2410	227611422057
CX2-1	520	2	≤10	20-70	30	3300	159715972775
CX2-2	520*2	2*2	≤10	20-70	30*2	6210	307515972775
CX4-1	770	4	≤10	40-100	55	7500	190017523470
CX4-2	770*2	4*2	≤10	40-100	55*2	14560	371217523470

Packing&Shipping

Company Introduction

LZZG is a professional company that committed to the research, design, manufacture and service of washing mechanism sand and gravel, tailings treatment, piling mud purification and waste incinerator slag treatment process. We have a group of senior scientific researchers and engineers, including mechanical design, mechanical manufacturing, electrical control, environmental protection and other professionals.
Besides the professional equipment manufacturing plant, LZZG established a professional team in design, quality inspection, installation and commissioning, and after-sales service. Our series of products are exported to Australia, Malaysia, America, Mexico, Serbia, Vietnam, India, Nepal and more countries, and are highly praised by customers.

Exhibition

Customer visit

Our team

Certifications

Our market

service system

Pre-sale Service:
1.Choice of model
2.Designing and manufacturing product according to customer's special requirement
3.Company will arrange engineer to customer's site,designing site and discussing project

On service:
1.Product inspection
2.Help customer to formulate the construction plan

After-sale Service:
1.Assign special after sale service team to site guiding customer to install and adjust machines
2.Training operator on site

FAQ

1.Does your product in stock?
Yes,once you place the order,the delivery will be done within one week.

2.Can the machine parts be replaced?
Yes,You can get them directly from us in a low price, and we make sure the easy maintainence and replacement .

3.How is the quality of your products?
Our products are manufactured strictly according to national and international standard, and we take a test on every product before delivery.Please check our working site. If our quality is not good, i don't think we can sell so well.

4.Guaranteed?
Yes. If products'quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.

5.How about price?
Yes, we are factory and be able to give you the lowest price than market one, and we have a policy that " for saving time and absolutely honest business attitude,we quote as low as possible for any customer, and discount can be given according to quantity".
