Высокочастотный и мощный функциональный чип RK RK3288 одноплатный компьютер с 2 Гб оперативной памяти 8
- Категория: Промышленные компьютерные и аксессуары >>>
- Поставщик: Zhejiang,Qiyang,Intelligent,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.75 $* | 0.24 $* |
| Aug-18-2025 | 0.33 $* | 0.89 $* |
| Jul-18-2025 | 0.40 $* | 0.58 $* |
| Jun-18-2025 | 0.48 $* | 0.85 $* |
| May-18-2025 | 0.19 $* | 0.79 $* |
| Apr-18-2025 | 0.87 $* | 0.94 $* |
| Mar-18-2025 | 0.46 $* | 0.73 $* |
| Feb-18-2025 | 0.56 $* | 0.63 $* |
| Jan-18-2025 | 0.8 $* | 0.98 $* |
Характеристики
high frequency and powerful function RK chip RK3288 single board computer with 2GB RAM and 8GB Flash

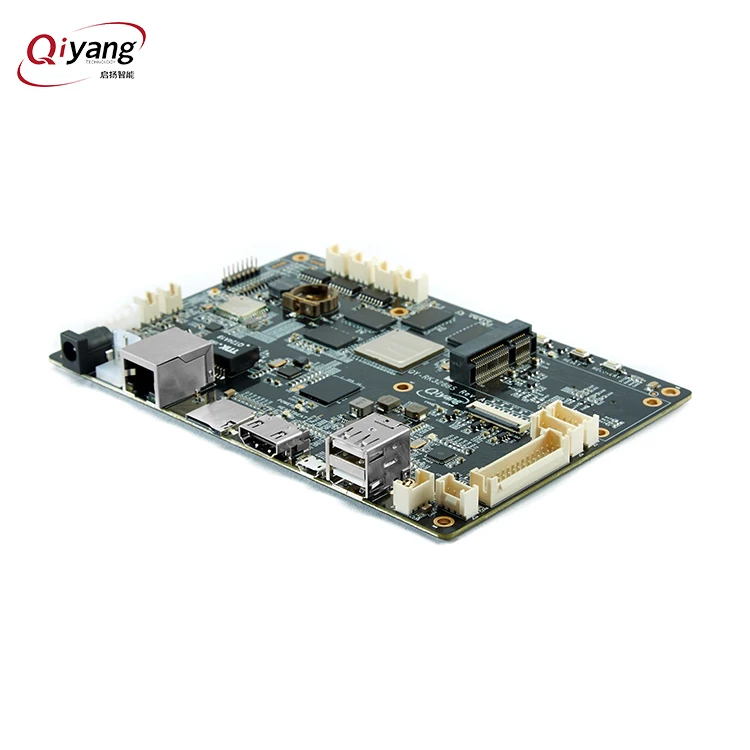

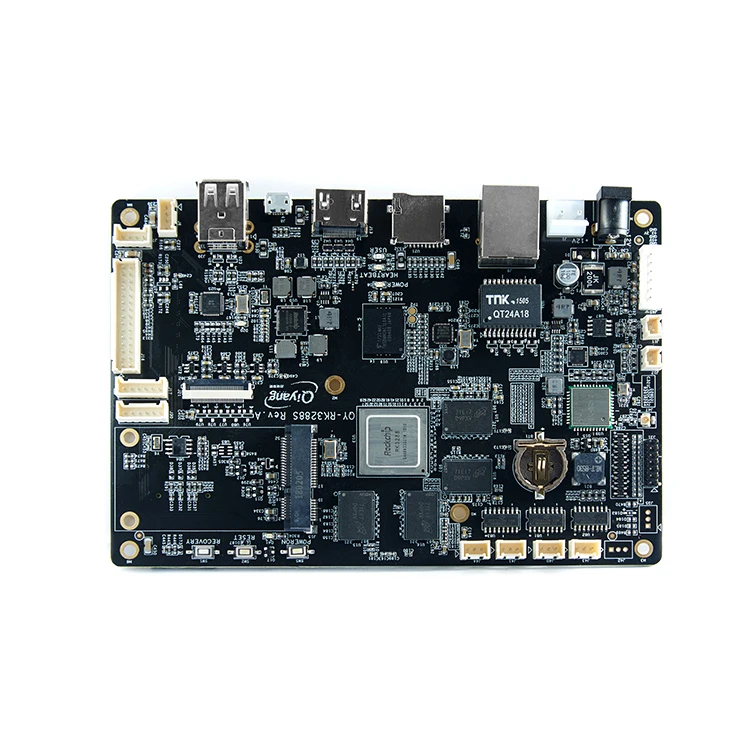

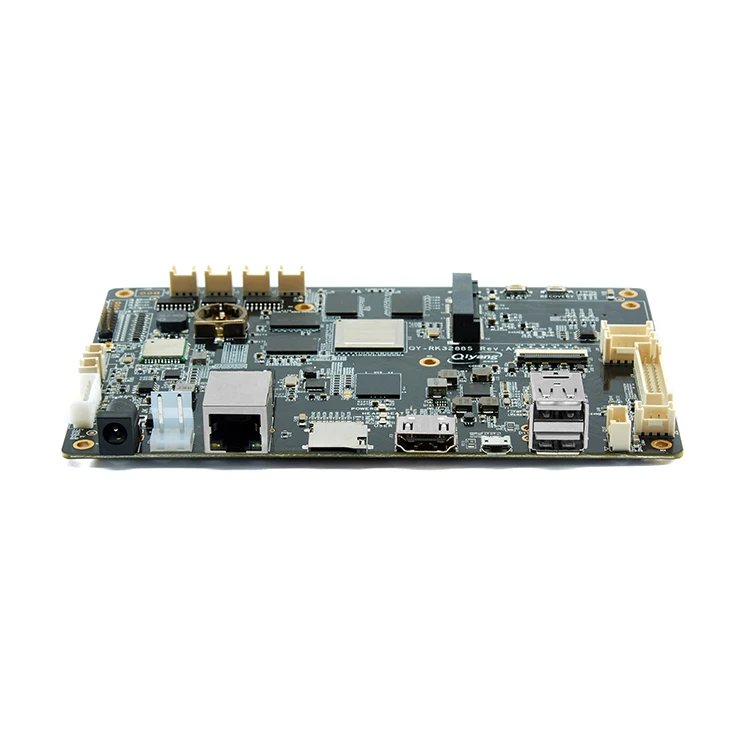

QY-RK3288 motherboard--strong four core cortex-A17 development platform(Cortex-A17 quad-core processor, 1.8GHz main frequency, 2GB super large memory (4G is expandable), 8G EMMC (expandable 32G), Mali-T764 GPU, Android 5.1 system) QY-RK3288 motherboard is using Rockchip RK3288 cortex-A17 quad-core processor, the main frequency is up to 1.8GHz, super cost performance processing core, has a strong graphics processing and hardware decoding ability, the development of the interface comprehensively lead, can be quickly used in all industries, so that the product has market competitiveness.
Product Parameters:
hardware sources | CPU | RockChip RK3288 processor, Cortex-A17 Quad core, Frequency reaches up to 1.8GHz. | ||
GPU | Mali-T764GPU, to support AFBC( Frame buffer compression) | |||
RAM | DDR3 SDRAM,4x512MB,totally 2GB ( 4GB optional) | |||
FLASH | 8GB eMMC (32GB in max.) | |||
Communication | 5-ch RS232, 1 port as the debug port | |||
1-ch USB OTG, 4-ch USB host | ||||
1-ch 10/100/1000Mbps industrial Ethernet port, with ACT, LINK indicator | ||||
Onboard WI-FI/BT module | ||||
1-ch MINI PCI-e | ||||
2-ch SDIO 3.0 | ||||
12-ch GPIO | ||||
Display | 1-ch dual channel LVDS interface, support 30 bits | |||
HDMI interface, support HDMI 2.0, the most resolution:4Kx2K@60Hz | ||||
MIPI interface(can connect Camera) | ||||
Audio | Speaker interface, MIC audio input interface | |||
Input | Standard I2C capacitive panel Interface | |||
Expansion | SIM card socket | |||
Storage Interface | 1-ch TF card socket. | |||
Others | Reset, RTC, Watch Dog | |||
Power Input | +12V power supply, +9V~+16V wide voltage supported. | |||
Software Resource | OS | Android 5.1 | Electrical Specification |
|
Materials | BSP,DEMO,APK | Size | 156mm*106mm | |
Power Consumption | ≤3W | |||
Operation Temperature | -10℃~+60℃ | |||
Humidity | 5%~95%, Non-Condensing | |||
