Характеристики

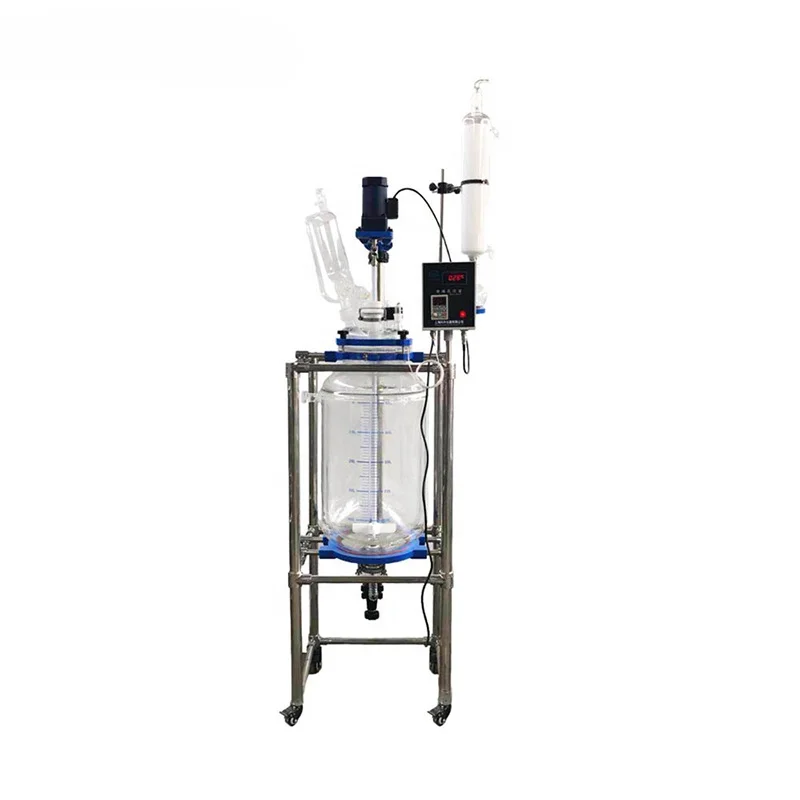

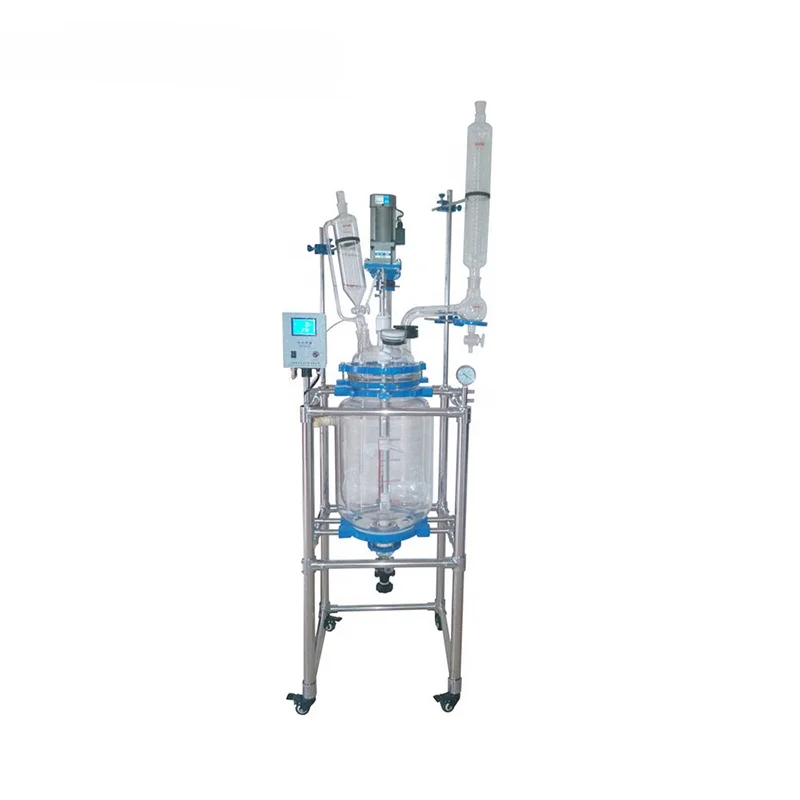

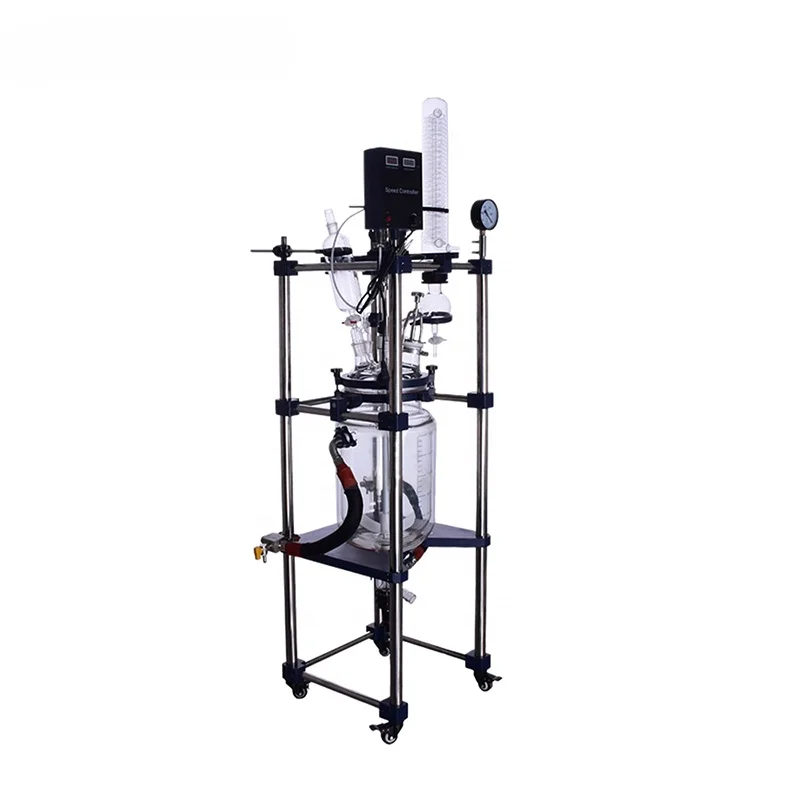

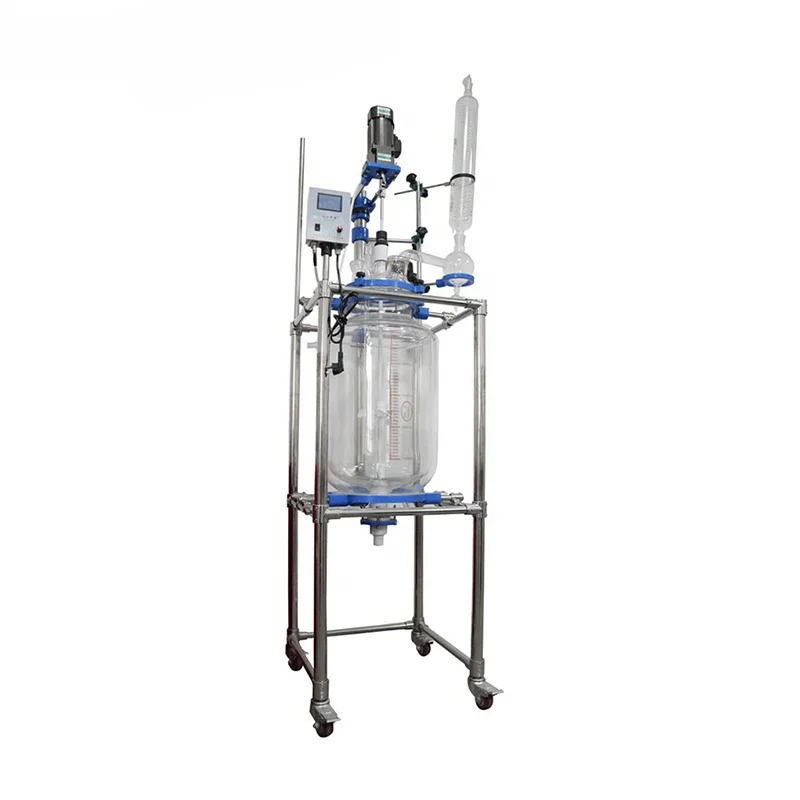

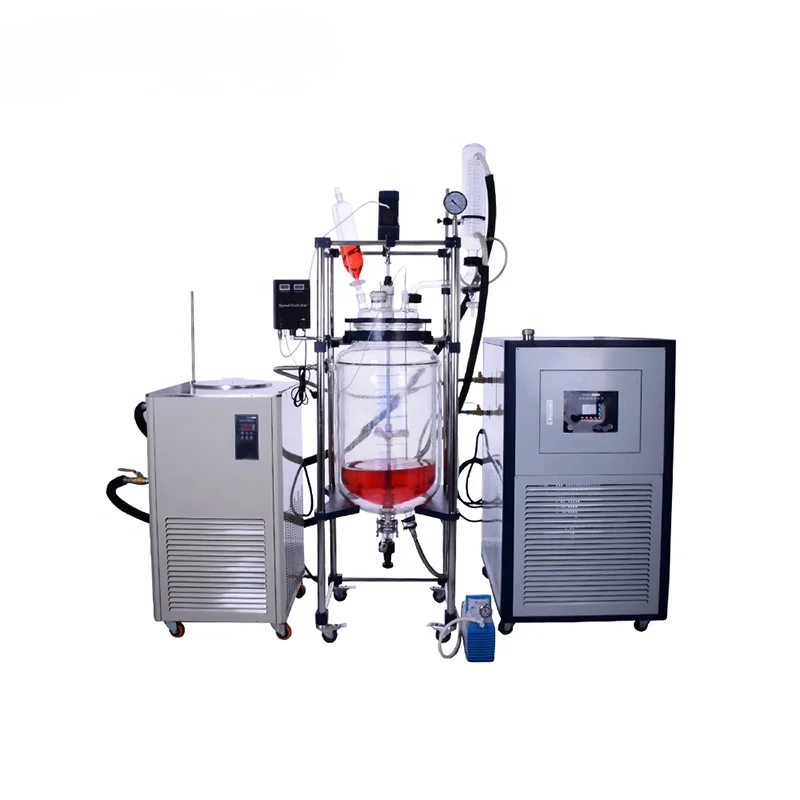

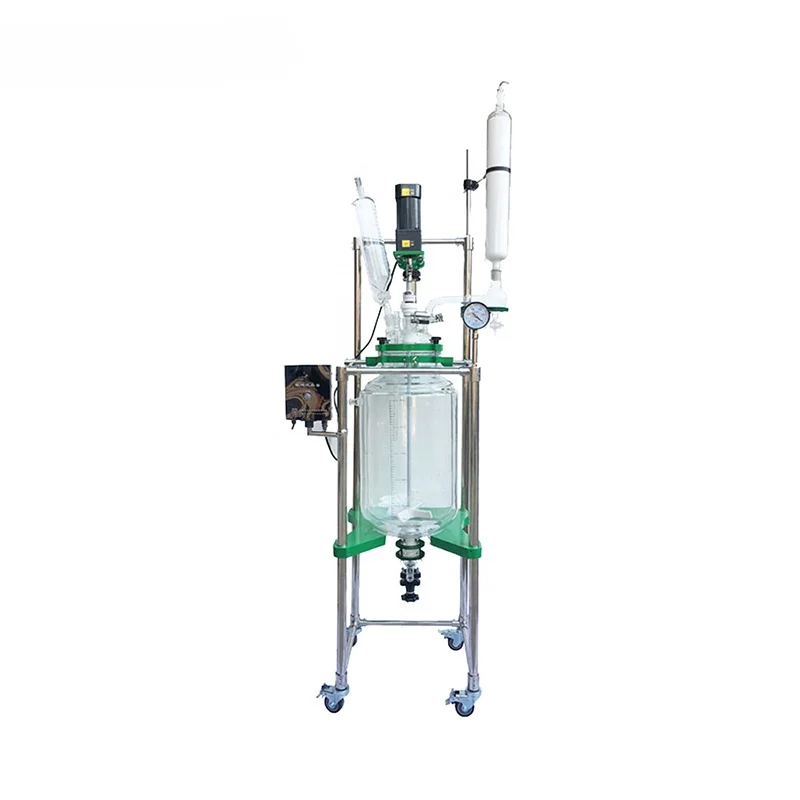

Chemical equipment pyrolysis glass reactor for laboratory
Product Description
The double-layer glass reactor adopts sandwich design. The metal is reacted at high or low temperature by circulating heat transfer. The reflux of reaction solvent is controlled by distillation. The glass reactor adopts GG17 high borosilicate glass, which has low expansion.Intermediate layer can be heated or cooled at constant temperature by circulating cold and hot medium (refrigerant, water, heat conducting oil). It is a modern synthetic chemical industry and an ideal experimental production equipment for biological hazards. Preparation of pharmaceuticals and new materials.
Specifications
| High borosilicate glass forced circulation continuous lab crystallizer equipment | ||
| crystallizer equipment/continuous crystallizer/forced circulation crystallizer | ||
| Model | XHSF-30L | |
| Volume | 30L | |
| Outline size | 55×55×236cm | |
| Glass kettle body | Material | GG17 high borosilicate glass |
| Thickness | 6-8mm | |
| Jacket capacity | 9L | |
| Width | 15mm | |
| Cover opening design | Mixing port | 32#/50# |
| Condensing | port label 51#ball | |
| Funnel mouth | 40# | |
| Thermometer | 24# | |
| Feeding port | φ80mm | |
| Exhaust valve | 34# | |
| Cover dimensions | Inner diameter:210mm ,outside diameter:265mm | |
| Stirring motor | 180W | |
| Standard matching: 0-450 rmp, optional matching: 0-800 rmp. Optional :explosion proof motor can increase the power according to the demand. | ||
| Controller | Variable frequency governor, digital display thermometer speed | |
| Constant pressure funnel | 1000ml | |
| Stir | Seal | Ceramics and graphite seal, wear-resistant, corrosion-resistant, high temperature resistance. |
| Blade | PTFE material stirring paddle, using anchor type + three blades stirring. Different types of stirring paddles can be customized according to requirements | |
| Discharge valve | New type of glass discharge valve, glass and tetrafluorine combined seal, no leakage, no dead angle | |
| Condensation and reflux | Adopt high efficiency GG17 high borosilicate glass condenser, cooperate with reflux head to realize: switch operation between distillation and reflux | |
| Receiving bottle | Selection of collecting bottles: 2-10L according to requirements | |
| Operating Temperature Range | -90~250℃ /Use pressure :normal pressure or negative pressure -0.098mpa | |
| Pressure gauge | -0.1Mpa~0Mpa Standard: Pointer pressure gauge ;Optional: Explosion-proof digital pressure gauge | |
