Цифровой ветеринарный рентгеновский аппарат maoke x17 200
- Категория: Other Radiology Equipment & Accessories >>>
- Поставщик: MEDSINGLONG,CO,LTD
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.32 $* | 0.4 $* |
| Aug-20-2025 | 0.46 $* | 0.62 $* |
| Jul-20-2025 | 0.17 $* | 0.73 $* |
| Jun-20-2025 | 0.70 $* | 0.90 $* |
| May-20-2025 | 0.14 $* | 0.67 $* |
| Apr-20-2025 | 0.82 $* | 0.67 $* |
| Mar-20-2025 | 0.7 $* | 0.91 $* |
| Feb-20-2025 | 0.61 $* | 0.40 $* |
| Jan-20-2025 | 0.68 $* | 0.16 $* |
Характеристики
X ray machine
Specification
High voltage generator | ||
16Maximum power kW | 22kW | |
kV range | 40~125kV | |
mA range | 16mA～200mA | |
Current time product range | 0.5mAs～320mAs | |
Exposure time | 0.0025s～6.4s （2.5ms～6400ms） | |
Working frequency | ≥30kHz | |
X-ray tube assembly | ||
Maximum tube voltage | 125kV | |
focus | 1.0mm/2.0mm | |
Anode rotation speed | 2800r/min | |
Anode heat capacity | 140KUH | |
Mechanical performance | ||
Bed size | length*width*height =2000×650×690mm | |
Control mode of lead door | manual | |
Grid Dimension | 15"×18" | |
Grid ratio | 10:1 | |
Supply voltage | AC220V±22V | |
Supply frequency | 50Hz±1Hz | |
X-ray detector
MSLFP02 17*17" Wired X ray detector | ||
Detector Technology | Amorphous Silicon | |
Scintillator | CsI | |
Active Area | 427mm x 427mm | |
Number of Pixels | 3072 x 3072 | |
Pixel Pitch | 139 um | |
AD Conversion | 16 bit | |
Trigger Mode | AED/Software/Prep | |
Data Interface | Wired (Compound Cable) | |
Dimension | 460mm*460mm*15mm | |
Weight | < 4.0kg(without handle and cable) | |
Cable | Compound Cable:1+6 m | |
Weight Capacity | 150kg uniformly | |
MSLFP06 17*17" Wireless X ray detector | ||
Detector Technology | Amorphous Silicon | |
Scintillator | CsI | |
Active Area | 427mm x 427mm | |
Number of Pixels | 3072 x 3072 | |
Pixel Pitch | 139 um | |
AD Conversion | 16 bit | |
Trigger Mode | AED/Software/Prep | |
Wifi | 2.4G and 5G, IEEE802.11 a/b/g/n/ac | |
Dimension | 460mm*460mm*15mm | |
Battery autonomy (H) | 5 | |
Resolution (lp/mm) | 3.6 | |
Weight Capacity | 150kg uniformly | |
x-ray detector software and images

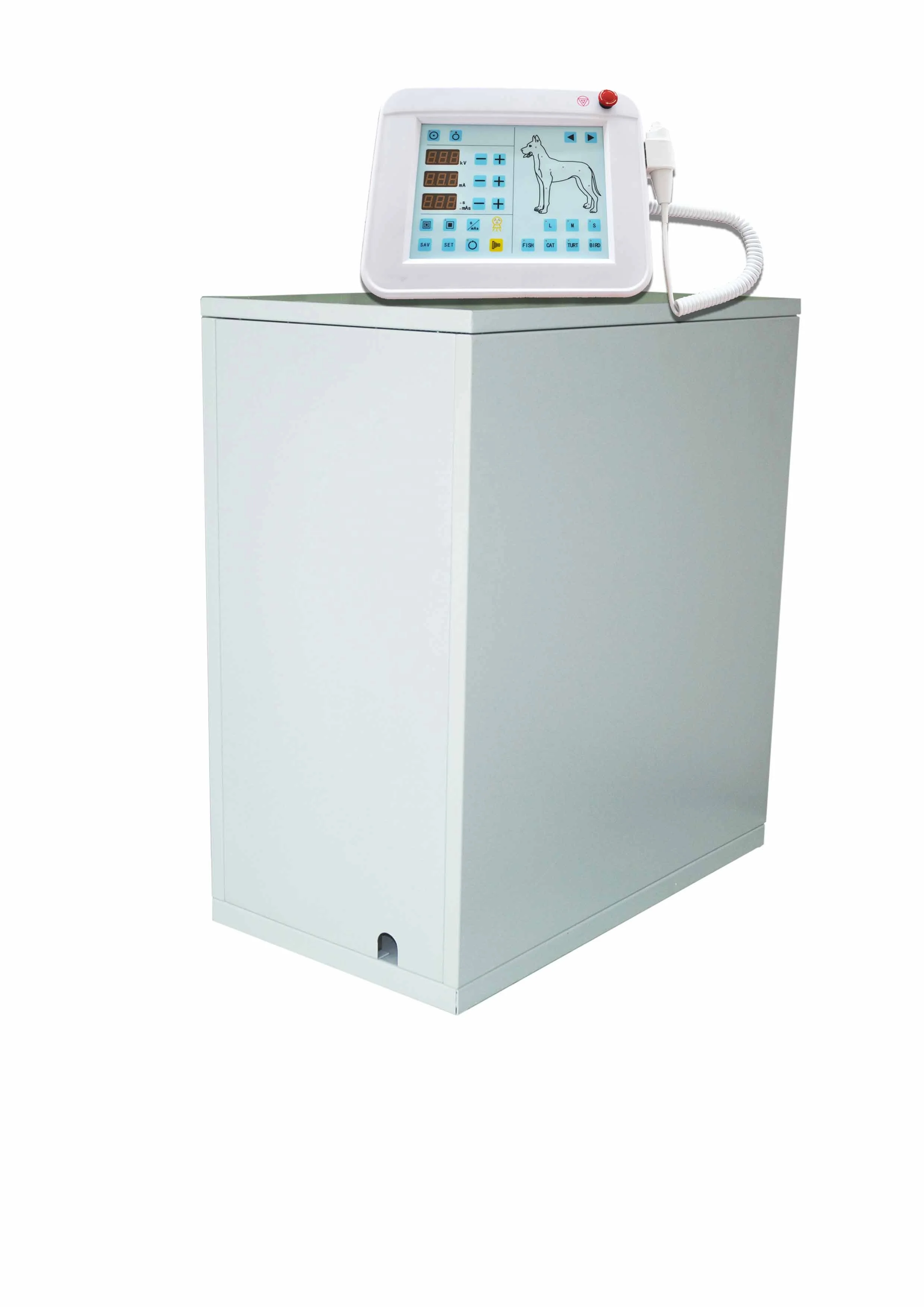

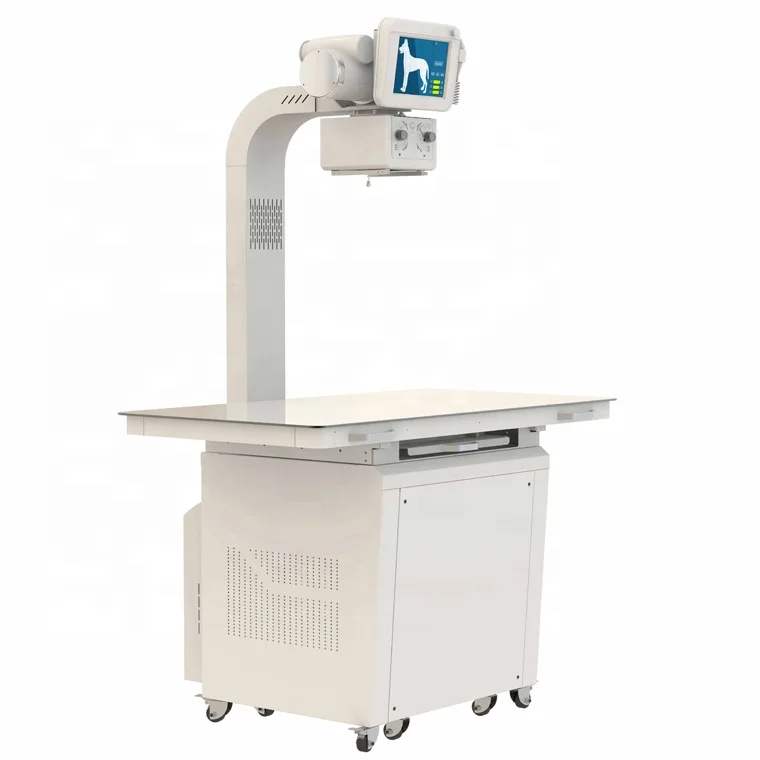

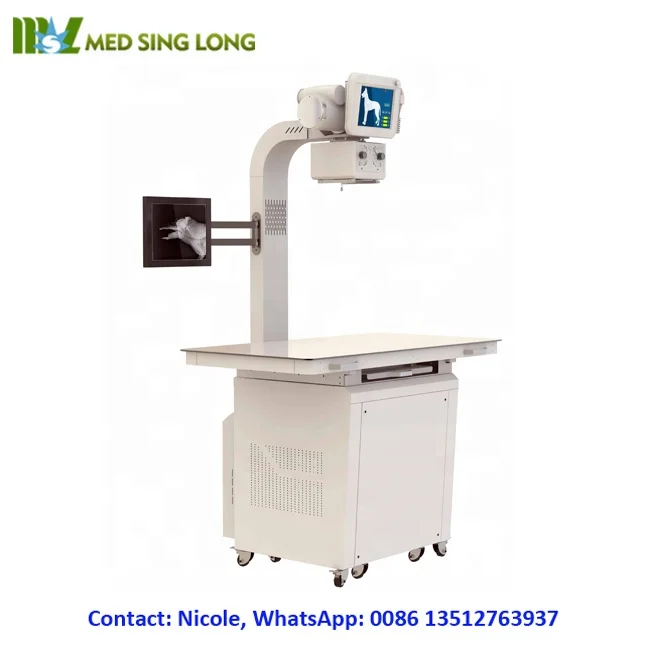

Product picture
Related Products
Our Company
MSL is a professional supplier of the Medical Equipment. Our company is located at Guangzhou.
We specialize in x ray machine, including the portable x ray machine, x ray machine with bed, C arm x ray machine with 11 years experiences for domestic market, 7 years for export. Do you want to know more about our products? Please free feel to contact me: nicole(at)medicalequipment-msl.com
Please rest assure that our superior quality will make you or your customs very satisfied. We give reference to you for our satisfied customers scattered all over world like Britain, America, Japan, Italy and other countries. Therefore, we have great confident that our products could meet your different requirements.
Packing & Delivery
Packing
The packing of veterinary x rays machine is wooden case.
Delivery
Our production time is within 10-15 working days after we receipt the full payment.
