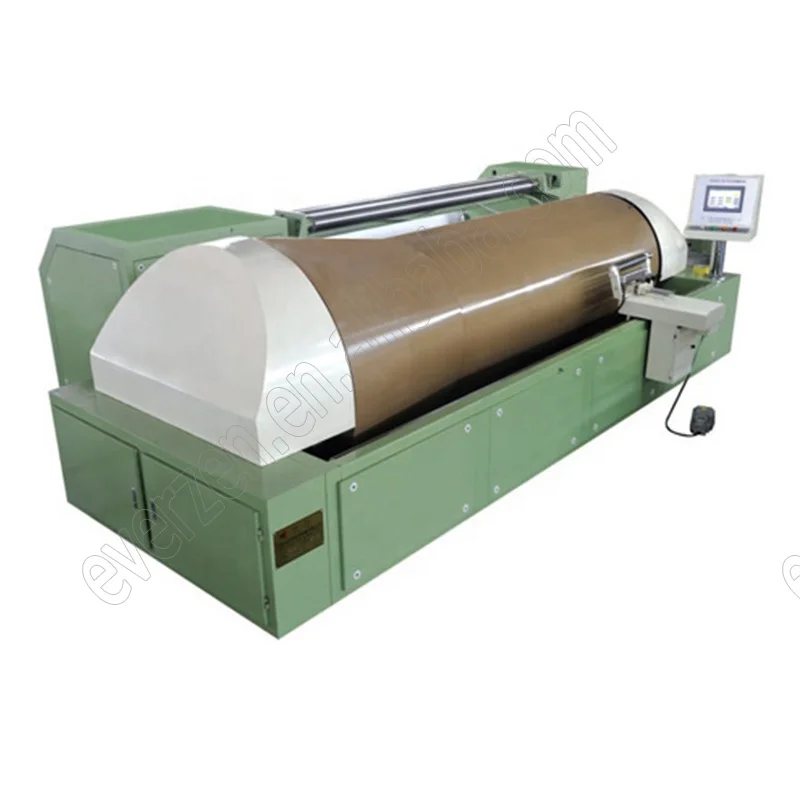

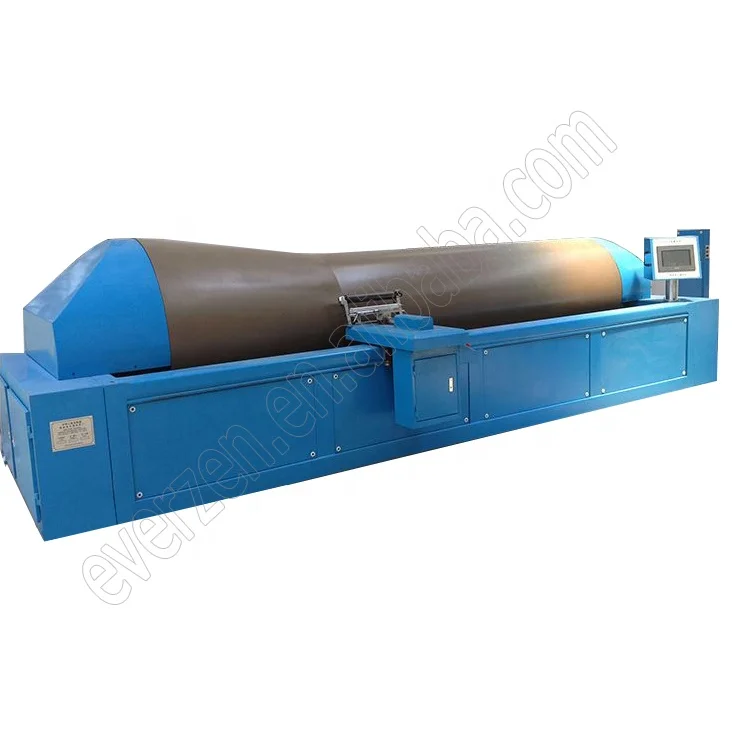

Technical parameters of EZTH369 high-speed slitting warping machine: Main performance index:
1. Warping speed: 20-800 (m / min) steplessly adjustable
2. Inverted shaft: 5-100 (m / min) stepless adjustable
3. Constant linear speed accuracy of warping beam: ≤ ± 2%
4. Maximum warp tension (strip tension): 600N
5. Tension of inverted shaft: <6000N (when speed limit is 60m / min)
6. Warp tension accuracy: ≤ ± 2%
7. Inverted shaft tension accuracy: ≤ ± 2%
8. Single yarn tension accuracy: ≤ ± 3%
9. Guide wire speed: 0,001-9,999 (mm / r) steplessly adjustable
10. Guide bar wire accuracy: ≤ ± 0.02%
11. Strip width range: 0.1-350mm
12. Strip positioning accuracy: ≤0.1mm
13. The maximum number: 999
14. Braking distance: <3 (at a speed of 400m / min)
15. Reliability of guillotine self-stop: 100%
Main specifications:
1. Width: 2000
2. Diameter of warp disc: 800mm
3. The diameter of the large cylinder: 1000 (mm)
4. Cone ratio: 1: 8
5. Number of spindles in the bobbin holder: 640
6. Bobbin spindle pitch:
7: Number of layers of creel stand: 8
Other technical parameters
1. Input power: 3 × 380V ± 10%
2. Input frequency: 50Hz ± 5%
3. Installed capacity: 35KVA (standard type)
4.Air supply: 0.3L 6Mpa
5. Body weight: 5500kg
6.Basket weight: 2500kg
7.The empty machine running noise is not greater than: 80dB |
