Детектор плоской панели DR X Ray Csl с человеческим и ветеринарным программным

Детектор плоской панели DR X Ray Csl с человеческим и ветеринарным программным

Категория: Other Radiology Equipment & Accessories >>>
Поставщик: MEDSINGLONG,CO,LTD

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	0.95 $*	0.64 $*
Aug-16-2025	0.84 $*	0.69 $*
Jul-16-2025	0.40 $*	0.58 $*
Jun-16-2025	0.0 $*	0.92 $*
May-16-2025	0.24 $*	0.96 $*
Apr-16-2025	0.49 $*	0.71 $*
Mar-16-2025	0.56 $*	0.63 $*
Feb-16-2025	0.34 $*	0.76 $*
Jan-16-2025	0.42 $*	0.74 $*

Характеристики

DR X Ray Csl flat panel detector with human & vet software

Product Introduction

Introduction about DR X Ray Csl flat panel detector with human & vet software

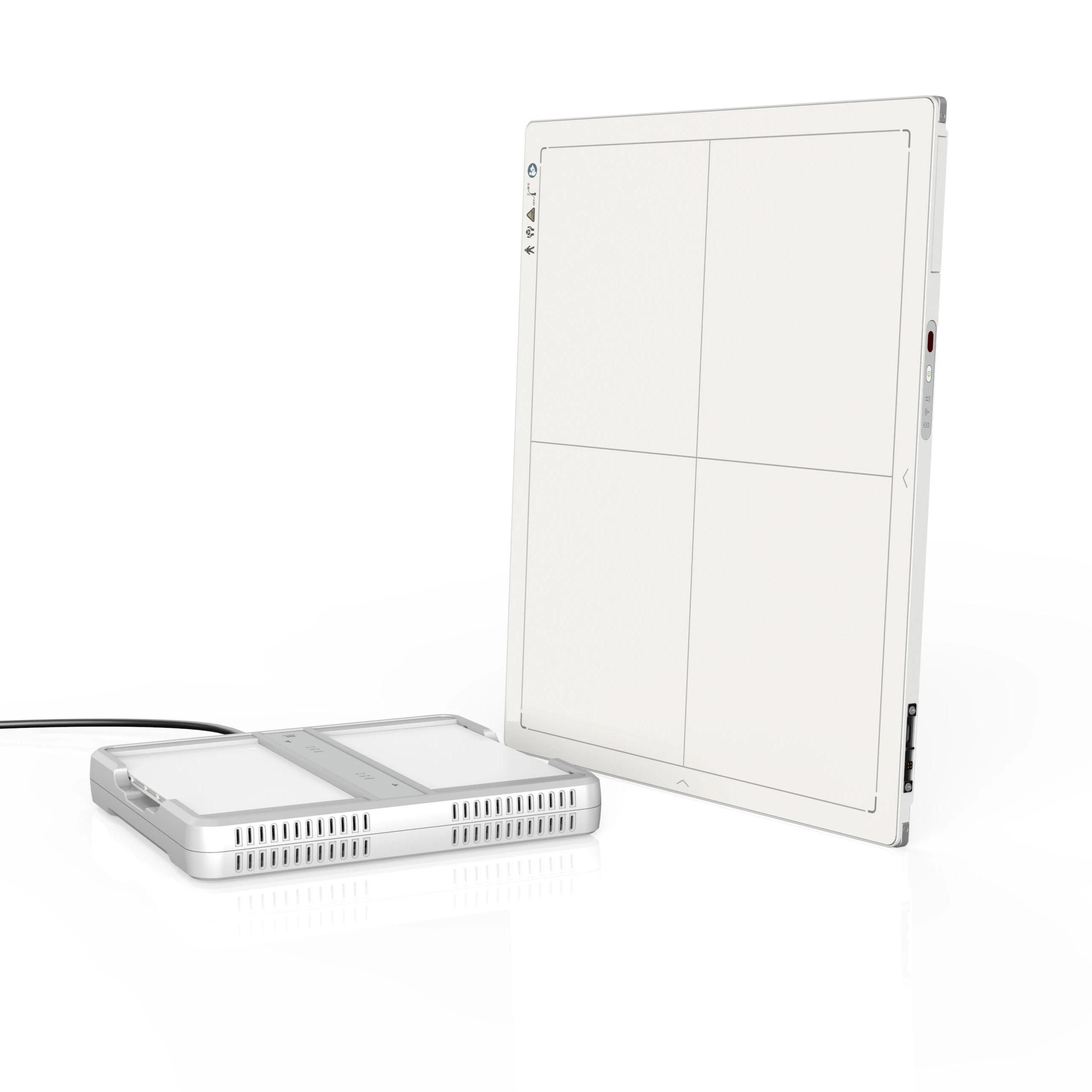

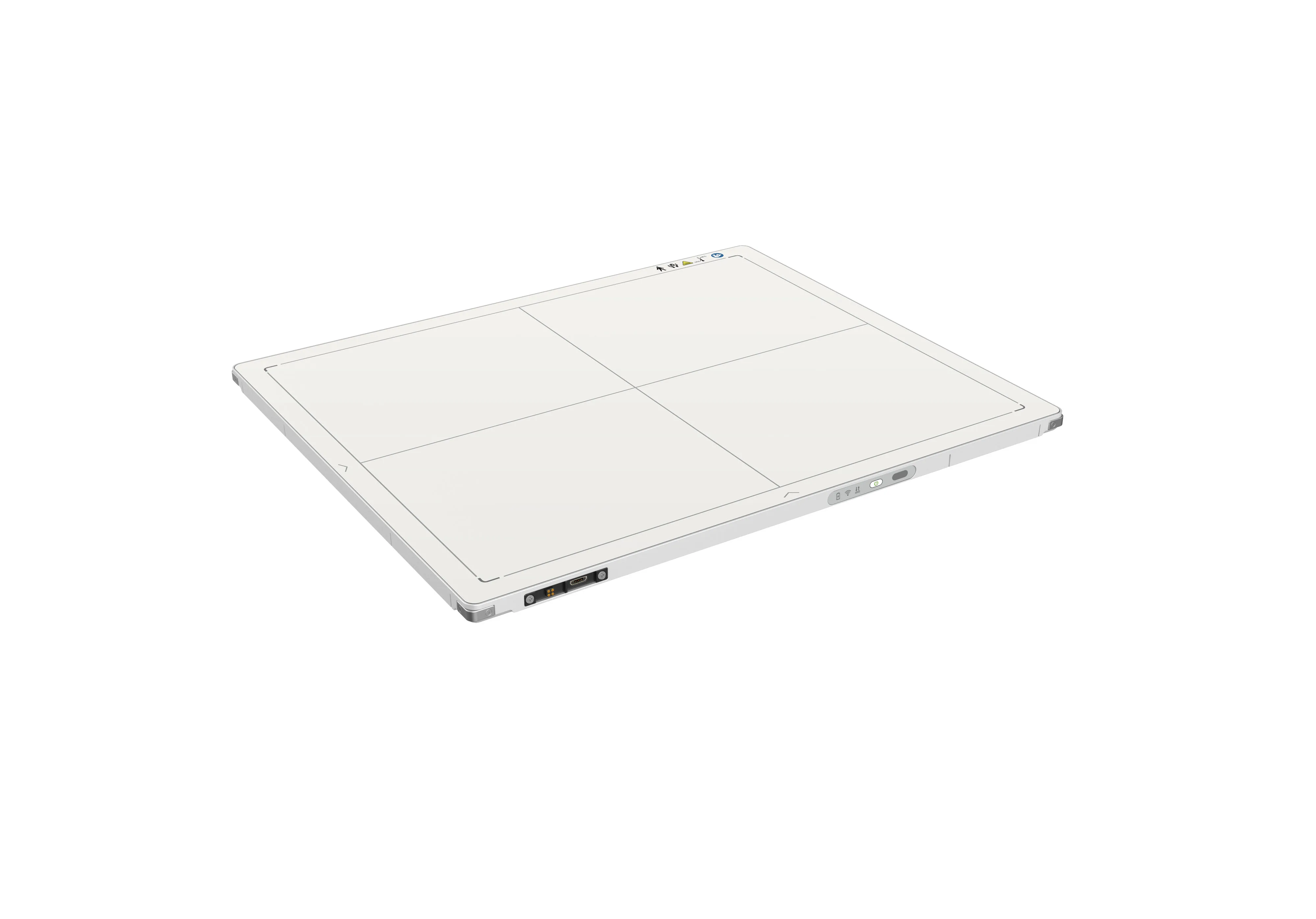

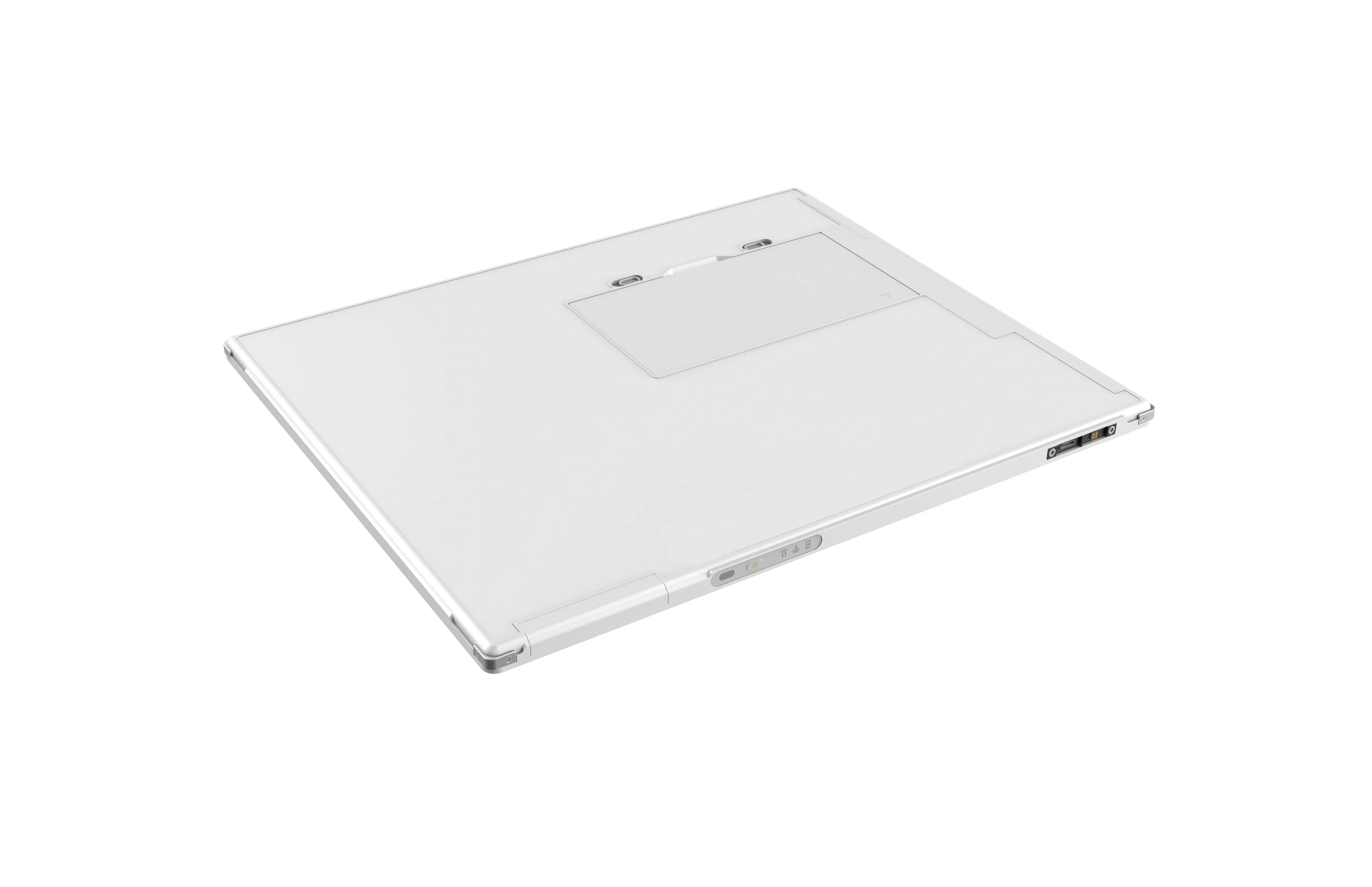

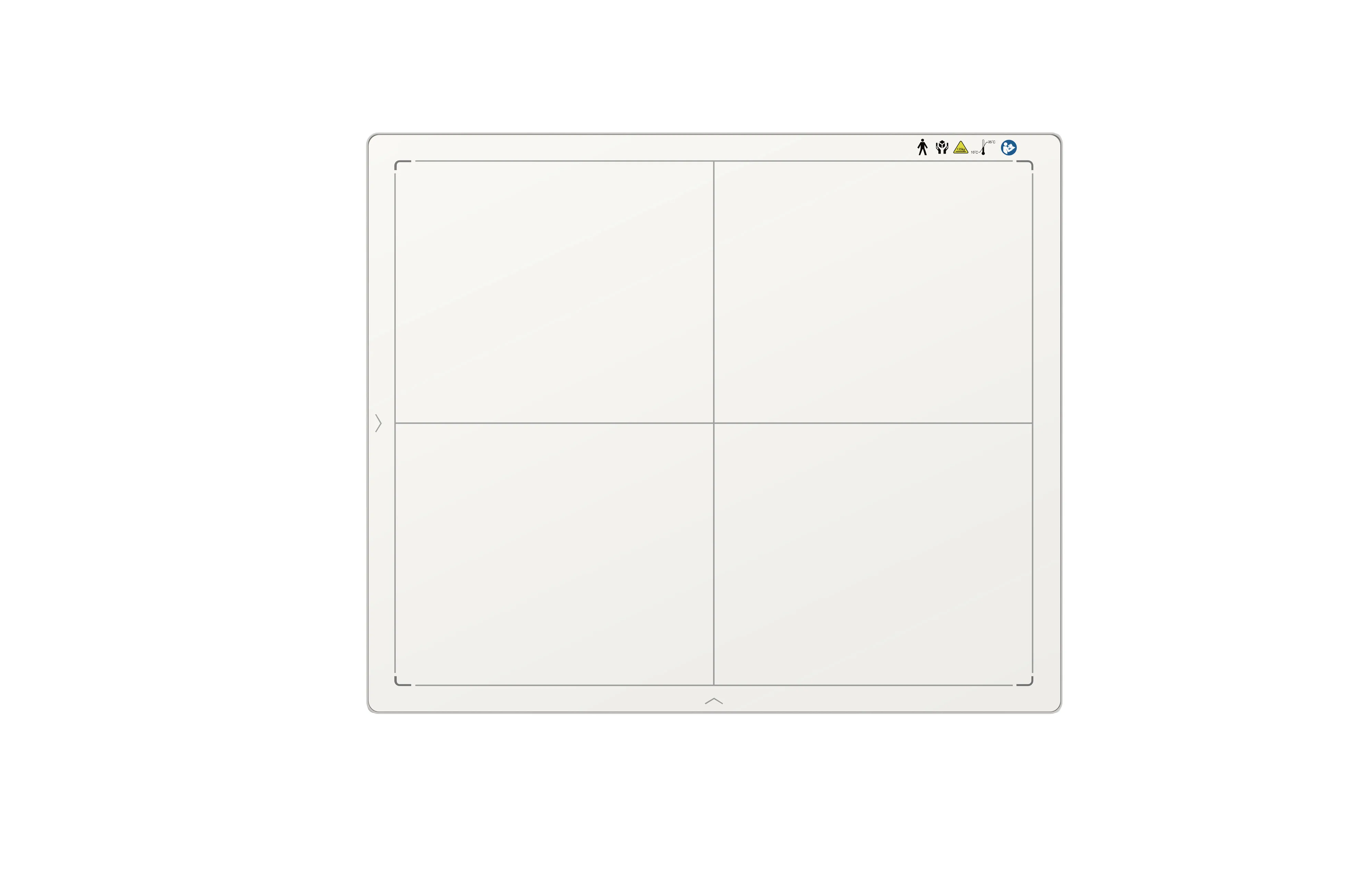

MSLFP06 cassette-size wireless X ray flat panel detector based on amorphous silicon thin-filmtransistor technologies. It is developed to provide the highest quality of radiographic image, which contains an active matrix of 3072×3072 with 150um pixel pitch. Panels’ scitinator has two options which is CsI(Caesium Iodide). However the most great improvement is MSLFP06 supports wireless communication between panel and Workstation. MSLFP06’s power supply includes battery. MSLFP06 can be used as a real portable panel.

Specification

Image Sensor	a-Si (Amorphous Silicon) TFT
Pixel Size	139um
Effective Array	3072 x 3072
Effective Area (H x V)	427mm x 427mm
Gray scales	14bit
Spatial Resolution	3.6 Lp/mm
Image Acquisition Time (Wireless) Both AP mode and Client mode	Preview Acquisition Time : 3 sec. Processed Acquisition Time : 7 sec. (including Preview Time)
Cycle Time	Min. 12s
Power Consumption	Max. 15W
Image Transfer	Wireless : IEEE802.11a/b/g/n
Data Transmission Rate (Wireless)	802.11b : Max. 11Mbps 802.11a/g: Max. 54Mbps 802.11n : Max. 300Mbps (MIMO 2x2)
X ray Energy	40kV to 150kV
X ray Dose	100nGy to 60uGy

Performance

Characteristic

*Wireless static flat panel detector used for generalradiography.

*Cassette-size

*Sync-shot exposuretrigger

*GOS or CsI scintillationscreen.

*Easy to change the cable and updatefirmware.

*Batteryrecycling

Intended Use

MSLFP06 Wireless Digital Flat Panel Detector is indicated for digital imaging solution designed for providing general radiographic diagnosis of human anatomy. It is intended to replace radiographic film/screen systems in all general-purpose diagnostic procedures. This panel provides digital X ray imaging for diagnosis of disease, injury, or any applicable health problem. The image is obtained as the result of X ray passing through the human body and detected bydetector.
