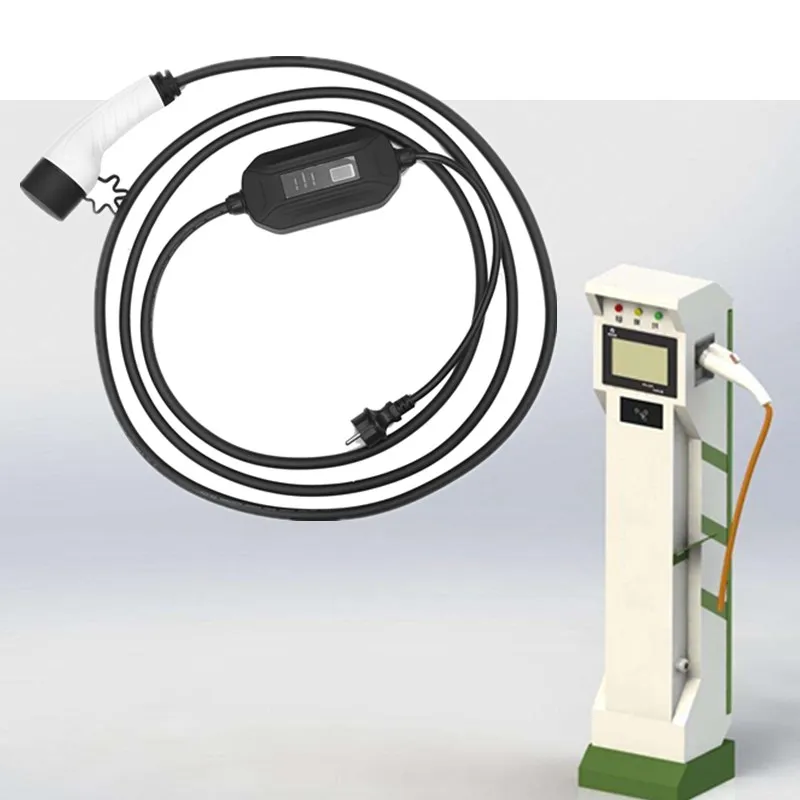

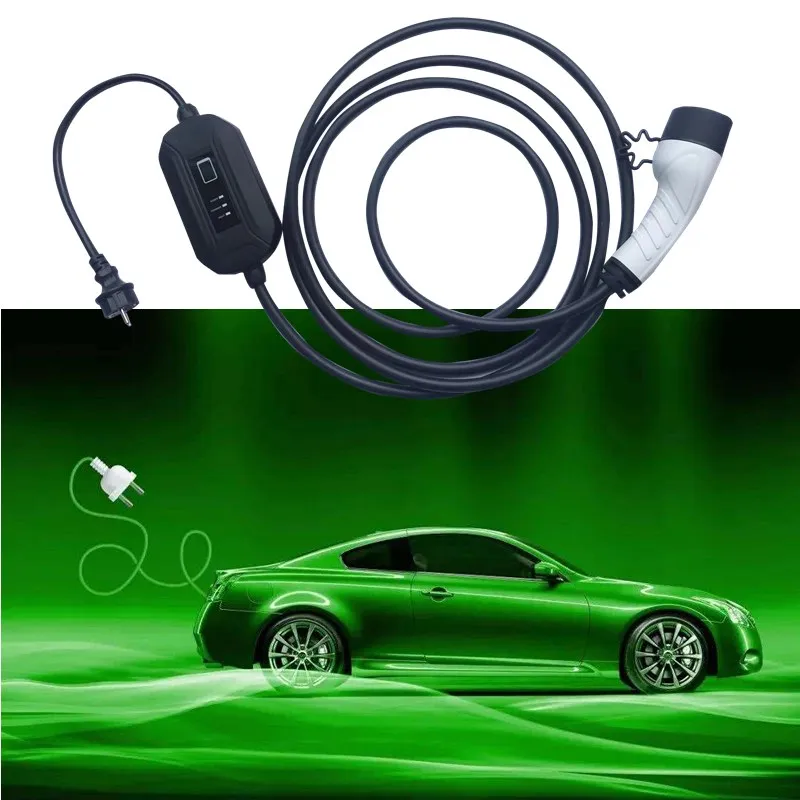

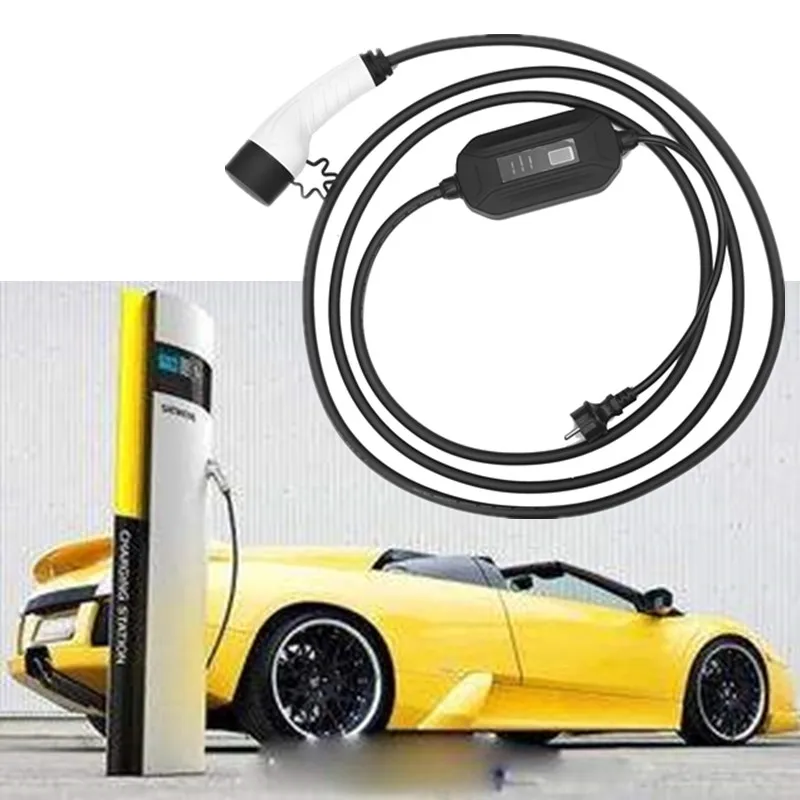

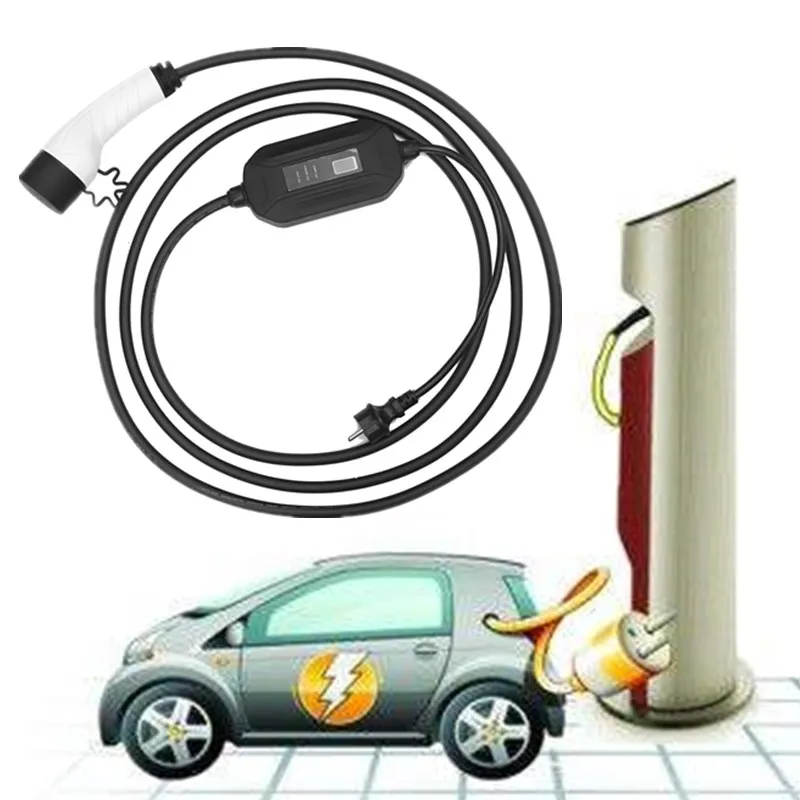

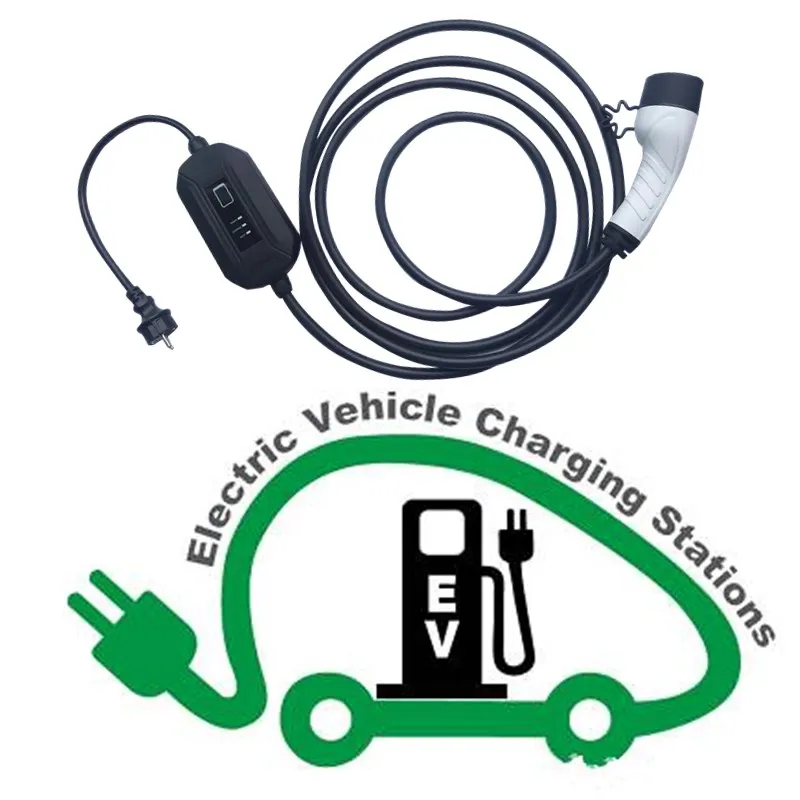

J1772 8A 16A 32A 40A регулируемый ток Тип 2 ev зарядный кабель с задержкой запуска светодиодный
- Категория: Charging Cables >>>
- Поставщик: Wuxi,Genesis,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 121.33 $* | 127.87 $* |
| Aug-17-2025 | 120.72 $* | 126.45 $* |
| Jul-17-2025 | 101.94 $* | 106.63 $* |
| Jun-17-2025 | 118.7 $* | 124.91 $* |
| May-17-2025 | 103.8 $* | 108.78 $* |
| Apr-17-2025 | 116.48 $* | 122.44 $* |
| Mar-17-2025 | 115.91 $* | 121.9 $* |
| Feb-17-2025 | 114.39 $* | 120.91 $* |
| Jan-17-2025 | 113.87 $* | 119.53 $* |
Характеристики
What is EV Charging cable
This product integrates charger, charging interface, human-computer interaction interface, communication, billing, etc., for the rapid charging of electric vehicles. Its use of small area, fast charging time and other characteristics, generally used in
various large charging stations, shopping malls, office buildings and other "instant charge" places.
various large charging stations, shopping malls, office buildings and other "instant charge" places.
SAE J1772 2009 (Type 1) North American standard
IEC 62196-2 (Mennekes, Type 2) EU European standard
IEC 61851-1:2017 Electric Vehicle Conductive Charging System (2017)
IEC 62752:2016 IC-CPD EVSE Charging Standard
IEC 61851-1:2017 Electric Vehicle Conductive Charging System (2017)
IEC 62752:2016 IC-CPD EVSE Charging Standard
Product Description
Product Name | 16A European standard ev charge controller type 2 |
Rated Current | 16A |
Operating Voltage | 250V |
Mechanical life | No-load plug in/pull out＞10000times |
Coupled insertion force | ＞45N﹤80N |
Impat of external force | can afford 1m drop and 2 tons vehicle run over pressure |
Insulation resistance | ＞1000MΩ（DC500V） |
Terminal temperature rise | ﹤50K |
Withstand voltage | 2000V |
Contact Resistance | 0.5mΩ Max |
contact bush | Copper alloy, silver plating |
Operating temperature | -30℃～+50℃ |
Cable specification | 3*2.5mm²+2*0.5mm² |
Cable color | black |
Plug model | 5-15/6-20/10-30/14-50 |
Charging standard | IEC62196-2 |
packing size | 350*350*120mm |
net weight | 2.00KG |
Details Images
Parts can be customized
Box: can print logos on it
Plug: can print logos and choose colors
Cable: can print words or logos and choose colors
Easy & Quick Operating
Simply connect the plug with the EV’s inlet, and then the charger will automatically detect the connection status and handshaking protocol automatically, and starts charging
High Compatibility
Fitting all EVs with Type 1/2 inlet, 100% correctly and effectively
Quick & Easy Operation
Simply connect the plug with the EV’s inlet, and then the charger will automatically detect the connection status and handshaking protocol automatically, and starts charging
LED Display
shows charging status via screen
Safety Assurance
Already passed all tests of TUV . There are all kinds of protective measures to ensure the safety of every user
Intelligent Chip
Automatically repairing minor charging problems while charging. The lights would blink in different ways to indicate different problems which will help you to know the charging situation right now
Rugged Enclosure
With brand-new design and solidly built high-strength ABS plastic, unsurpassed quality will be presented, even to bear the weight of a car, which was already been tested
IP67
Its unique waterproof design ensures you can use it anytime with confidence
Box: can print logos on it
Plug: can print logos and choose colors
Cable: can print words or logos and choose colors
Easy & Quick Operating
Simply connect the plug with the EV’s inlet, and then the charger will automatically detect the connection status and handshaking protocol automatically, and starts charging
High Compatibility
Fitting all EVs with Type 1/2 inlet, 100% correctly and effectively
Quick & Easy Operation
Simply connect the plug with the EV’s inlet, and then the charger will automatically detect the connection status and handshaking protocol automatically, and starts charging
LED Display
shows charging status via screen
Safety Assurance
Already passed all tests of TUV . There are all kinds of protective measures to ensure the safety of every user
Intelligent Chip
Automatically repairing minor charging problems while charging. The lights would blink in different ways to indicate different problems which will help you to know the charging situation right now
Rugged Enclosure
With brand-new design and solidly built high-strength ABS plastic, unsurpassed quality will be presented, even to bear the weight of a car, which was already been tested
IP67
Its unique waterproof design ensures you can use it anytime with confidence
Product Usage
Apply to vehicle
For Chevrolet Volt, for Citroen C-Zero, for Fisker Karma, for Ford Focus Electric, for Ford C-Max Energi, for Mia, for Mia
Electric Van,for Mitsubishi-I Miev, for Mitsubishi Outlander Phev, for Nissan NV200 SE Van, for Nissan Leaf, for Peugeot Ion, for Renault Fluence, forRenault Kangoo, for Smiths Edison Van, for Smiths Newton, for Tata Indica Vista EV, forToyota Prius, for Vauxhall Ampera...
Electric Van,for Mitsubishi-I Miev, for Mitsubishi Outlander Phev, for Nissan NV200 SE Van, for Nissan Leaf, for Peugeot Ion, for Renault Fluence, forRenault Kangoo, for Smiths Edison Van, for Smiths Newton, for Tata Indica Vista EV, forToyota Prius, for Vauxhall Ampera...
Company Introduction
Our company founded in 2007, located in Wuxi, Jiangsu province, near ShanghaiOur company is a high tech enterprises research, development, production and sales as a whole, Always with a strong sense of responsibility and mission committed to technology research and development and manufacturing of electric
vehicles and charging, battery connection system. Industrial chain mature and complete, from product design, mold design and manufacturing, plastic molding, machining, precision casting and assembly line, on-line testing capabilities fully complete;
product line covers: AC charging gun, DC charging gun
vehicles and charging, battery connection system. Industrial chain mature and complete, from product design, mold design and manufacturing, plastic molding, machining, precision casting and assembly line, on-line testing capabilities fully complete;
product line covers: AC charging gun, DC charging gun
