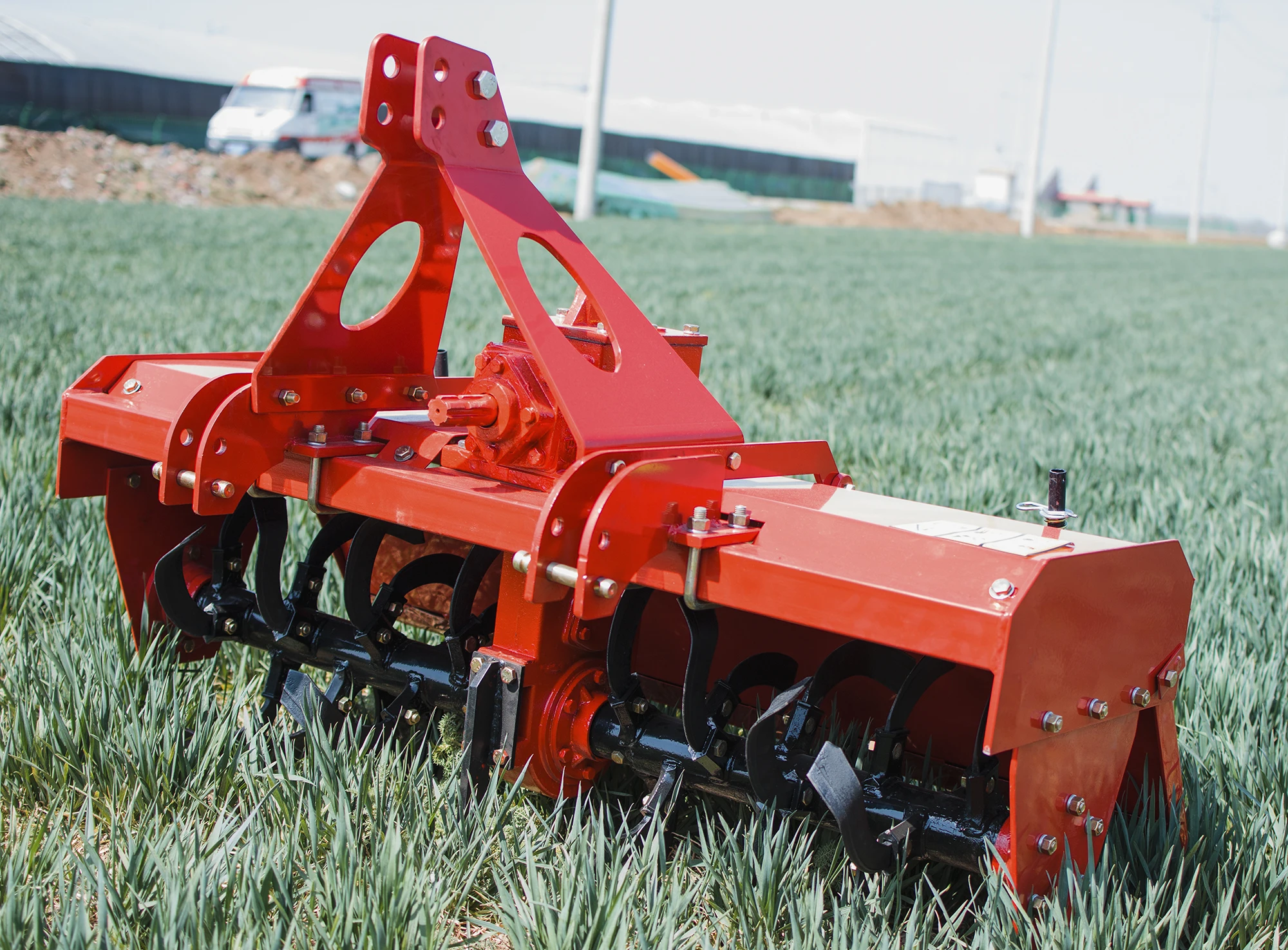

Высококачественный сельскохозяйственный трактор с приводом на колеса 40 л.с. роторный культиватор
- Категория: Тракторы >>>
- Поставщик: Shandong,Jiulin,Import,&,Export,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 774.20 $* | 813.92 $* |
| Aug-16-2025 | 767.33 $* | 805.57 $* |
| Jul-16-2025 | 644.81 $* | 676.33 $* |
| Jun-16-2025 | 754.37 $* | 792.64 $* |
| May-16-2025 | 657.19 $* | 690.38 $* |
| Apr-16-2025 | 741.92 $* | 778.26 $* |
| Mar-16-2025 | 735.85 $* | 772.92 $* |
| Feb-16-2025 | 728.14 $* | 764.47 $* |
| Jan-16-2025 | 722.32 $* | 758.38 $* |
Характеристики
HIGH GRADE 40hp farm wheel drive tractor PTO rotary tiller
FL404
FL35-50 series
HOT SALE technical features:
- Direct injection engine, optional domestic 4-cyl diesel engine, which can meet different operation requirements.
- transmission structure with 8F +4R, 8F+8R, 12F+12R
- Gear box, rear axle with matured technology and steady quality.
- New streamlined hood, nice appearance.
- Hydraulic steering, small steering radius, portable and flexible.
- Optional dry or wet air filter, internal or external muffler.
| Main parameters | ||
| Type | FL404 | |
| Drive type | four-wheel drive | |
| Engine | ||
| Engine Brand | Quanchai | |
| Engine Type | QC490T40 | |
Max. Torque (Nm @ engine rpm) | 155~160/1700 | |
| Fuel tank capacity (L) | 38L+22L=60L 48L+22L=70L | |
Rating power of engine KW/RPM | 29.4/2400 | |
Fuel consumption @ nominal power (g/kw.h) | ≤248 | |
| Air Intake Type | Natually-Aspirated | |
| Displacement L | 4/2.672 | |
| Air filter type/size | ||
| Torque reserve | 23% | |
| Transmission system | ||
| Clutch type/size | One-piece,dry,double-action/10 inches | |
| No. of gears (F+R) | 8F+4R/8F+8R/12F+12R | |
| Shift method | mechanical sliding sleeve | |
| Max. speed | 34.78 | |
| Gear position | side position | |
| Hydraulic system | ||
Hydraulic output flow rate (L / MIN) | 38.4 | |
Hydraulic output valve | One group/Two groups/Three groups/Simple hydraulic output | |
Hydraulic filter types and capacity | wire mesh/63μm | |
| Working device | ||
| Three-point-linkage | 1 Type/2 Type (Optional) | |
| PTO Speed | 540/760rpm 540/1000rpm(Optional) | |
| Lifting Capacity kn | 9KN/15KN(Enforced lift) | |
| Tillage depth adjustment | Draft, position,position and draft mix control/position,float(Enforced lift) | |
| Parameter | ||
The whole machine size (dimensions) mm | 3790×1520×2130 3790×1620×2130 | |
| (kg) Min. operation mass | With cab | 2300 |
| Without cab | 2120 | |
| Wheel base (mm) | 1992 | |
| Mini turning Radius (m) | 3.8 | |
| Rated traction force(N) | 11 | |
| Deck | Flat Deck | |
| Minimum ground clearance (mm) | 325 | |
| Heat ventilation cab | Optional | |
| Front/rear wheel tread | 1200/1200 1250/1300 (common 1300) | |
| tyre size | 8.3-20/12.4-28 | |
| Braking and steering | ||
| Braking system | Wet type,disc brake | |
| Steering type | hydraulic steering | |
| Steering Angle (4 x4) | Front axle Max.Steering angle 30°/50° | |
| ||
For more contact us
