Точильный станок для измельчения отработанных шин

Категория: Дробильные машины для пластика >>>
Поставщик: Jiangsu,Acemech,Machinery,Co.,Ltd.

Цена:10 000,00 $ - 12 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	11900.44 $*	12495.10 $*
Aug-15-2025	11800.10 $*	12390.59 $*
Jul-15-2025	9900.21 $*	10395.92 $*
Jun-15-2025	11600.23 $*	12180.67 $*
May-15-2025	10100.89 $*	10605.38 $*
Apr-15-2025	11400.49 $*	11970.4 $*
Mar-15-2025	11300.25 $*	11865.52 $*
Feb-15-2025	11200.71 $*	11760.61 $*
Jan-15-2025	11100.30 $*	11655.26 $*

Характеристики

Welcome To KiTech

Products Description

Cheap Price Waste plastic bags shredder machine

GENERALDESCRIPTION >>

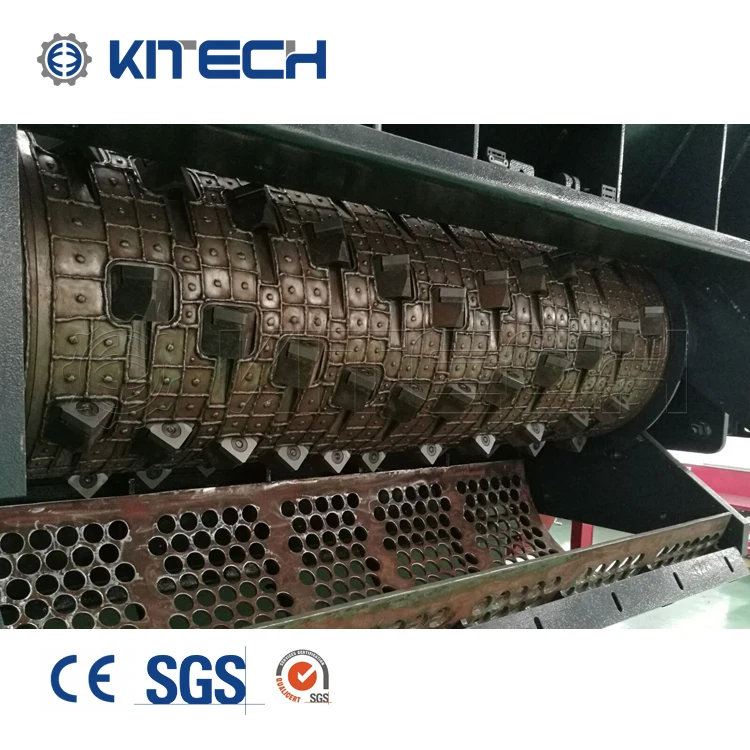

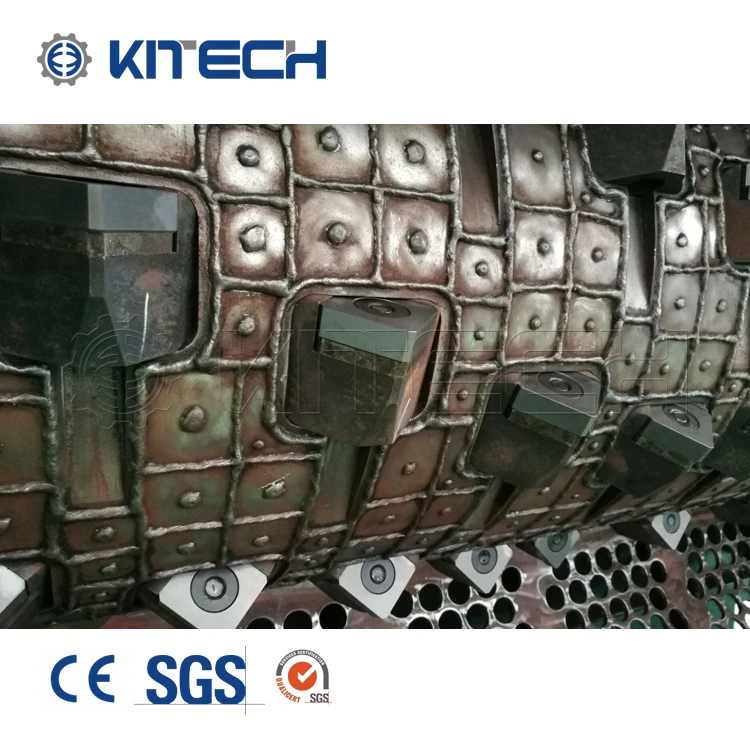

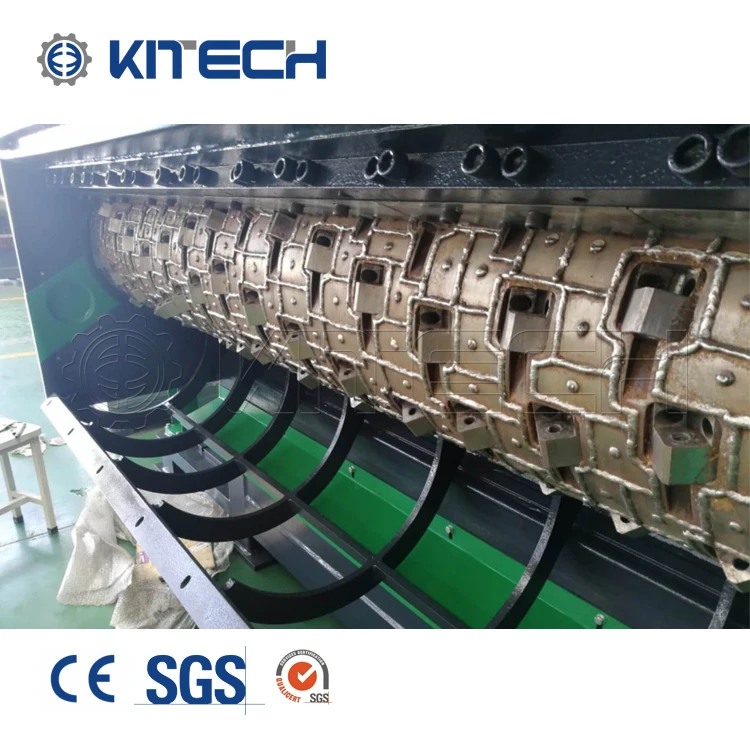

>>The AGS General Purpose Single Shaft Shredder has a 457mm diameter profiled rotor made of solid steel, operating at a speed of 74rpm. The concave ground,aggressive 4-way rotating knives are mounted in the grooves of the profiled rotor with special knife holders. This enables a reduction of the cutting gap between the
counter knives and the rotor which guarantees a high flow rate,low power consumption and maximum output of shredded material.

>>The hydraulically operated ram feeds the material automatically in the rotor's cutting chamber by load-related controls. The hydraulic system is equipped with high-pressure valves and volumetric flow controls which can be set according to the requirements of the input material.

>>Extremely robust pedestal bearing housings are mounted outside the machine and separate to the cutting chamber to prevent dust and dirt penetrating into the oversized bearings. This ensures a long service life and minimum service and maintenance.

>>Power is transmitted from the motor by a drive belt via an oversized gearbox which is located on the shaft end on one end of the rotor.

>>A safety switch prevents machine startup when the front panel is open and the machine features emergency stop buttons on the machine body and control panel.

KEY FEATURES >>

>>Large diameter flat rotor
>>Machined pocket knife holders
>>Optional hard facing
>>Concave ground square knives
>>Robust ram construction
>>Heavy duty guide bearings
>>Universal couplings
>>Low speed, high torque geared drive
>>Reduced footprint - (compared to
horizontal pusher designs)
>>Powerful hydraulic swing type ram
>>Bolt in drive shafts
>>Oil coaling on ram and gearbox
>>Two speed hydraulic system
>>Multiple rotor designs
>>Ram comb plate
>>Amp meter control

OPTIONS >>

>>Hydraulic screen cradle
>>Gearbox with shrink disc
>>Rotor cooling
>>Pipe spacer
>>Touch screen PLC
>>Hopper mounted viewing mirror
>>Increased motor drive
>>Hydraulic drive

Technology Data

ITEM			UNIT	AGS850	AGS1200	AGS1500	AGS2000
Cutting Chamber			mm	840X1570	1120X1570	1400X1570	1960X1570
Rotor Diameter			mm	457	457	457	457
Rotor Speed			rpm	74	74	74	74
Motor Power			kw	37/45/55	55	75	2X55/2X75
Rotor Knives			pcs	60	81	102	144
Stator Knives			pcs	2X3	2X4	2X5	2X7
Hydraulic Ram Power			kw	3.75	5.6	5.6	5.6
Screen Size			mm	40-100	40-100	40-100	40-100
Shredding Chamber Size			mm	800X730	800X1000	800X1290	800X1860
Dimensions	A	mm	2300	2300	2300	2300
		B	mm	1650	1650	1650	1650
		C	mm	540	540	540	540
		D	mm	660	660	660	660
		E	mm	2250	2250	2250	2250
		F	mm	350	350	350	350
		G	mm	2000	2280	2600	3720
