Product Description

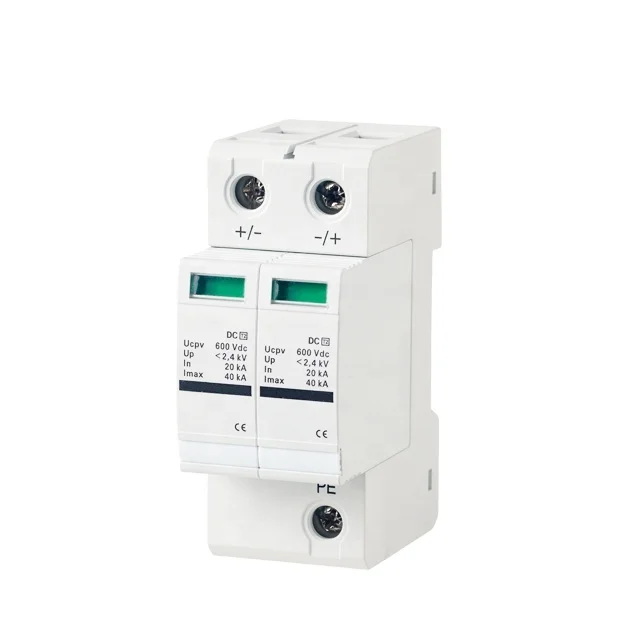

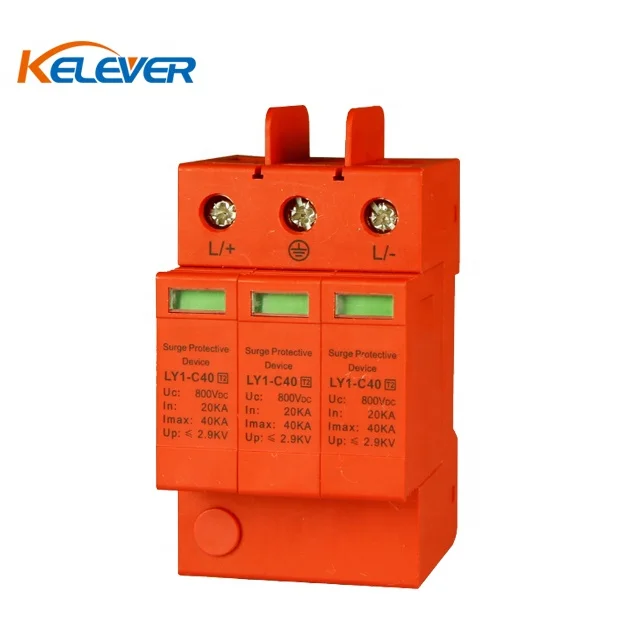

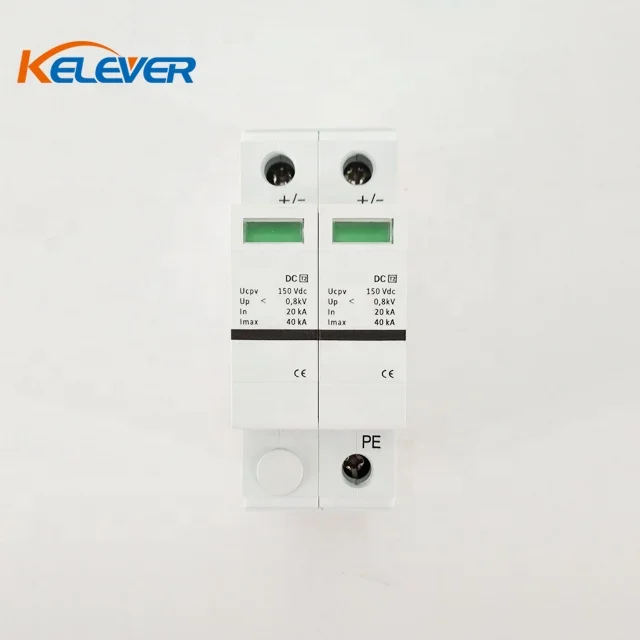

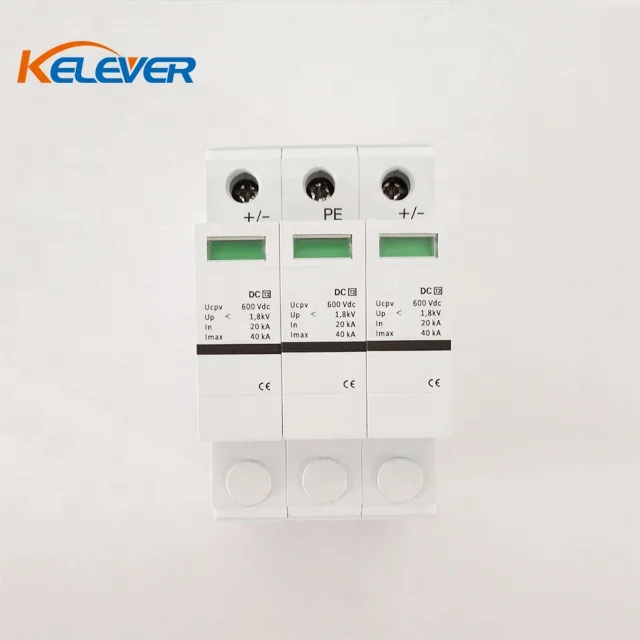

2P DC Surge Protector SPD for Solar Power Generation System
1.General This series of surge protector device(SPD)is suitable for new energy solar power generation system, and the maximum continuous working voltage is DC500V, 800V, 1000V, 1200V. The installation position is in the DC power supply system to protect indirect lightning current, direct lightning current or other transient overvoltage.2.Characteristic

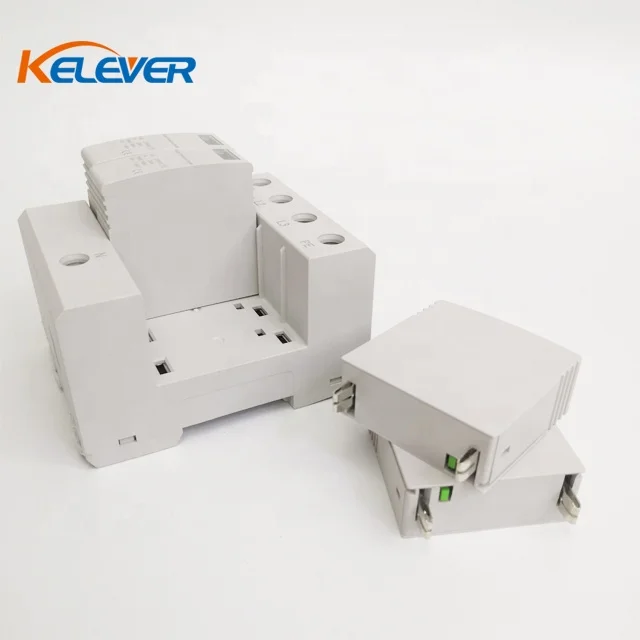

2.1.Plug-in surge protector
2.2. The color of the visible window indicates the working status of the protector, green (normal), red (fault).
2.3. Double protection for hot-melt overcurrent.
2.4. Configure the remote signal interface to realize remote control.
2.2. The color of the visible window indicates the working status of the protector, green (normal), red (fault).
2.3. Double protection for hot-melt overcurrent.
2.4. Configure the remote signal interface to realize remote control.
3.Technical Parameter
Type | DC40 type SPD | ||||||
Maximum continuous working voltage Uc(V) | 500 | 800 | 1000 | 1200 | |||
Nominal discharge current In (kA) | 20 | ||||||
Maximum discharge current Imax (kA) | 40 | ||||||
Voltage protection level Uc(kA) | ≤1.8 | ≤2.9 | ≤3.6 | ≤3.8 | |||
Response time (ns) | <25 | ||||||
Minimum cross-sectional area of access wire L / N (mm2) | 4 | ||||||
Minimum cross-section area of ground wire (mm2) | 6 | ||||||
Selection of fuse or circuit breaker (A) | 32 | ||||||
Installation | 35mm standard Din Rail | ||||||
Housing material | UL94-V0 grade flame retardant plastic | ||||||
4.Size
